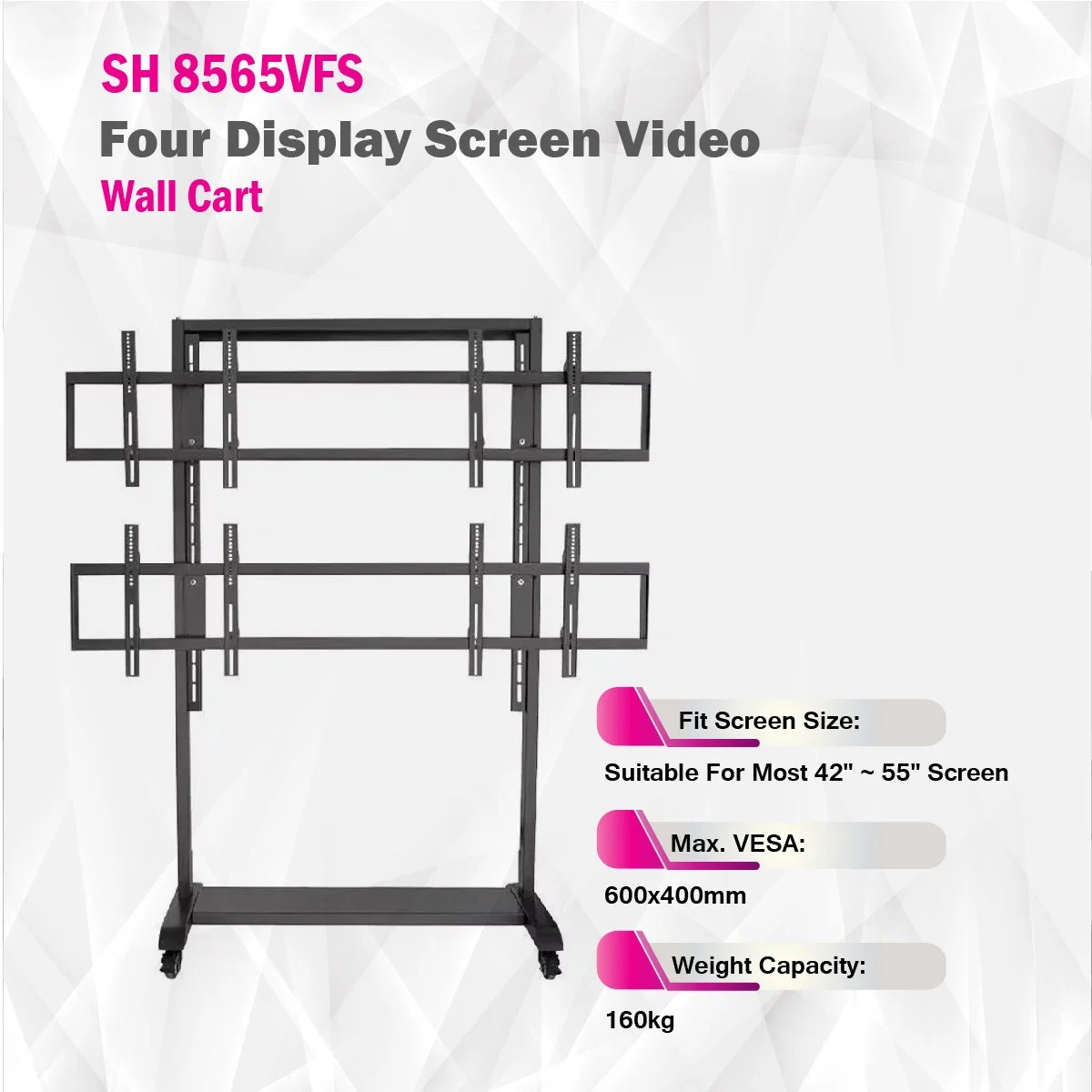

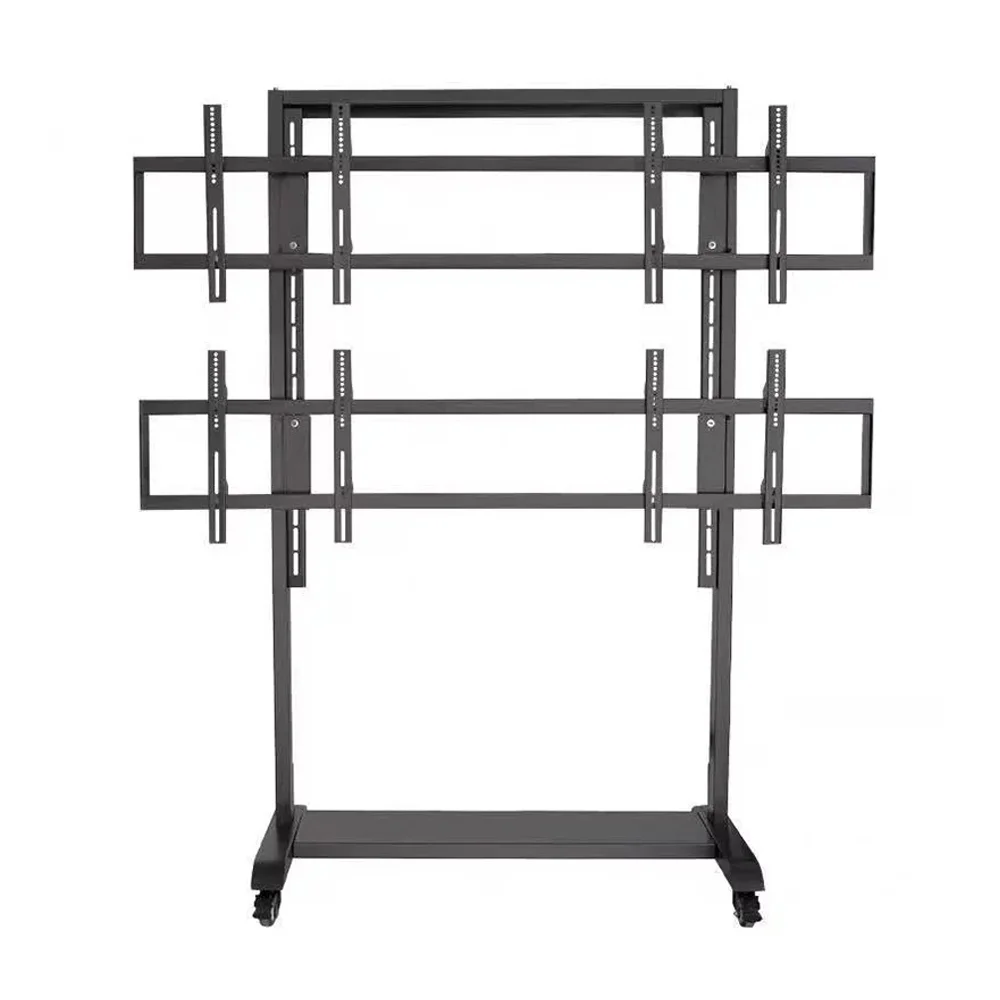

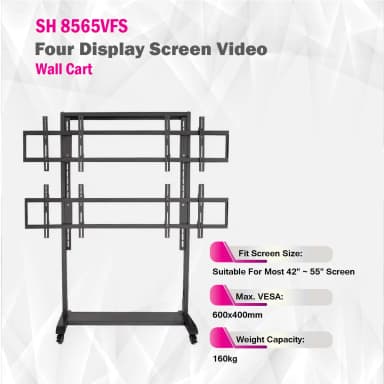

SH 8565VFS
Four Display Screen Video Wall Cart
Screen Size42" ~ 55"
Max VESA600x400mm
Weight Capacity160kg
Tilt Range+2° ~ -2°
Overview
| Product Category | Video Wall Floor Stand |
|---|---|
| Rank | Standard |
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm THK=2mm Cold-Rolled Sheet |
| Surface Finish | Sand-blasted Aluminum Anodic Oxidation |
| Weight Capacity | 160kg |
|---|---|
| Screen Qty | 2x2 |
| Fine Adjustment (Depth/Height) | 10-20mm (0.39"/0.79") |
| Tilt Range | +2° ~ -2° |
| Installation | Bolt-Down Base |
| Product Category | Video Wall Floor Stand |
|---|---|
| Rank | Standard |
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm THK=2mm Cold-Rolled Sheet |
| Surface Finish | Sand-blasted Aluminum Anodic Oxidation |
Features

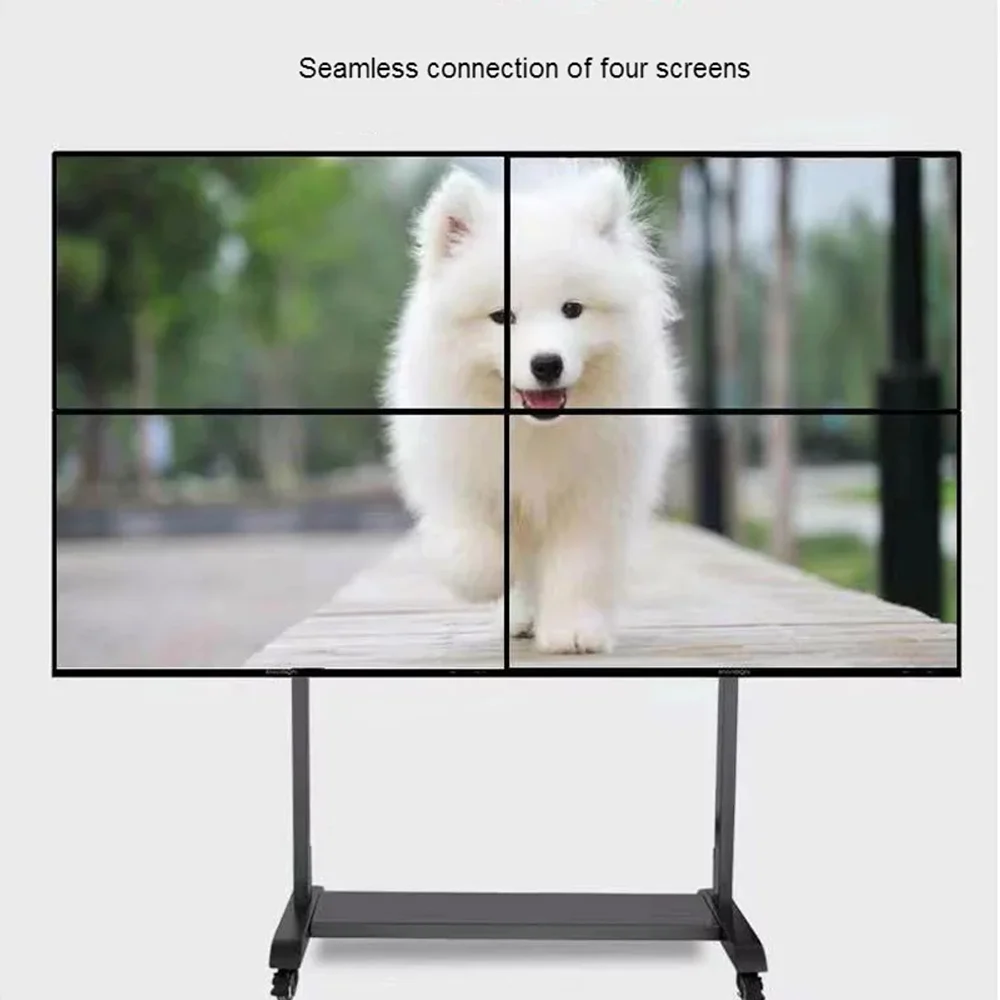

- 4-Screen SetupSupports a 2x2 configuration for 42"–55" screens
- High Load CapacityHolds up to 160kg total
- Max VESA CompatibilitySupports up to 600x400mm
- Fine Adjustment10–20mm depth and height micro-adjustments
- Tilt Range±2° for accurate screen alignment
Description
The SH 8565VFS Four Display Video Wall Cart is a sturdy, bolt-down solution designed for 2x2 screen configurations (42"–55"). Built with 2mm cold-rolled steel and finished in fine texture black, it supports up to 160kg total. Features include ±2° tilt, 10–20mm fine adjustment, integrated cable management, and a direction indicator. Ideal for professional environments, it ensures stable, precise display alignment with safety-tested mobility and organized installation accessories.
Drawing
No drawing available
