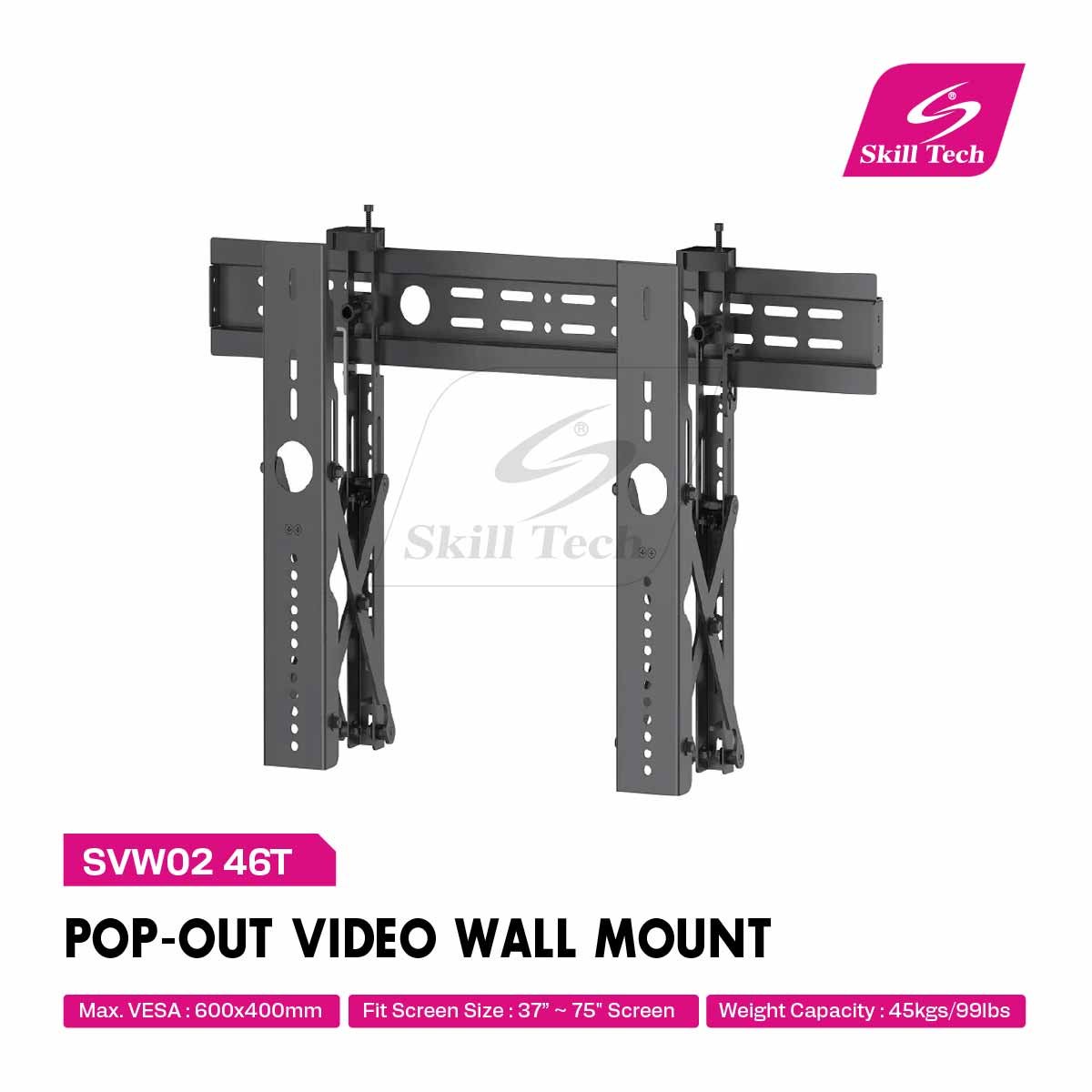

SVW02 46T
Pop-Out Video Wall Mount
Screen Size37"~75"
Max VESA600x400mm
Weight Capacity45kg
Profile68-215mm
Tilt Range+3° ~ -3°
Overview
| Product Name | Video Wall Mount |
|---|---|
| By Grade | Standard Series |
| By Mounting Pattern | Universal |
| Material | Steel |
| Thickness | Wall Plate:2mm,TV Plate:2.5mm |
| Installation | Solid wall |
|---|---|
| Weight Capacity | 45kgs/99lbs |
| Strength tested | 4 Times Approved |
| Max. VESA | 600x400mm |
| Level Adjustment | +3° ~ -3° |
| Product Name | Video Wall Mount |
|---|---|
| By Grade | Standard Series |
| By Mounting Pattern | Universal |
| Material | Steel |
| Thickness | Wall Plate:2mm,TV Plate:2.5mm |

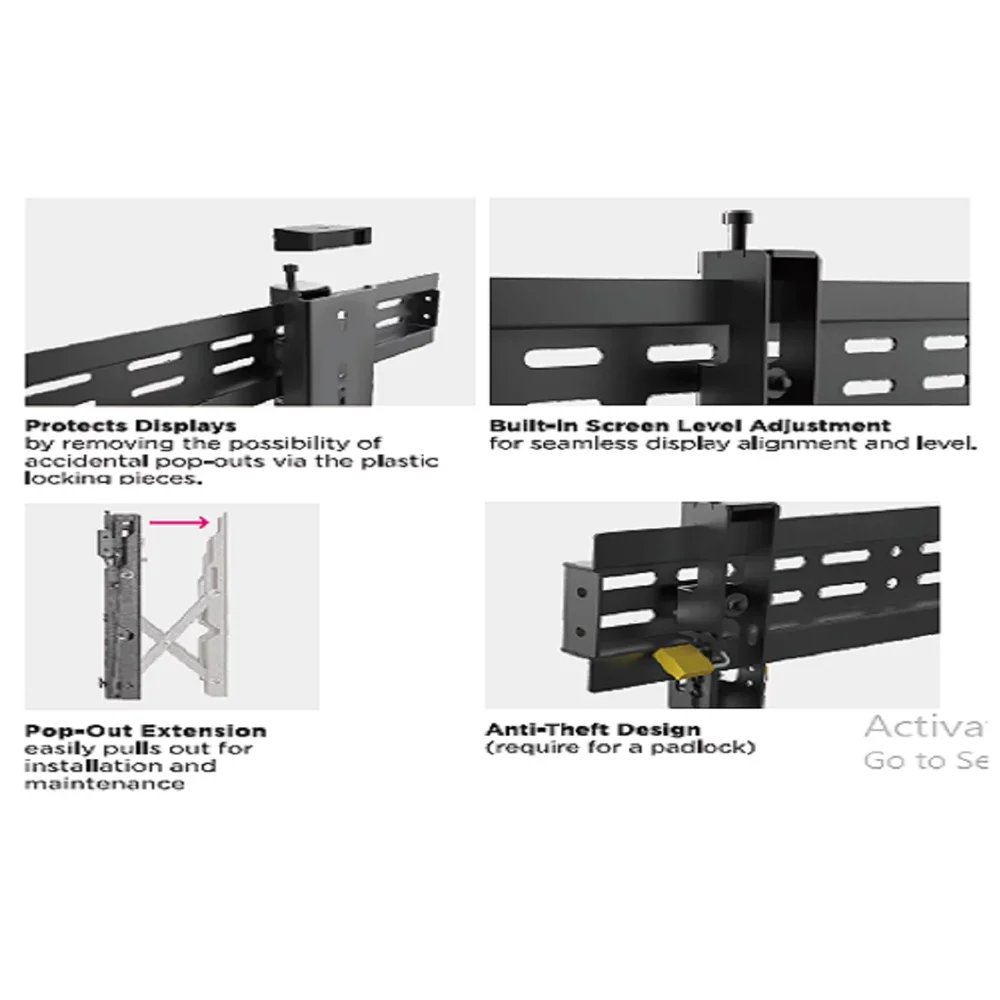

Features

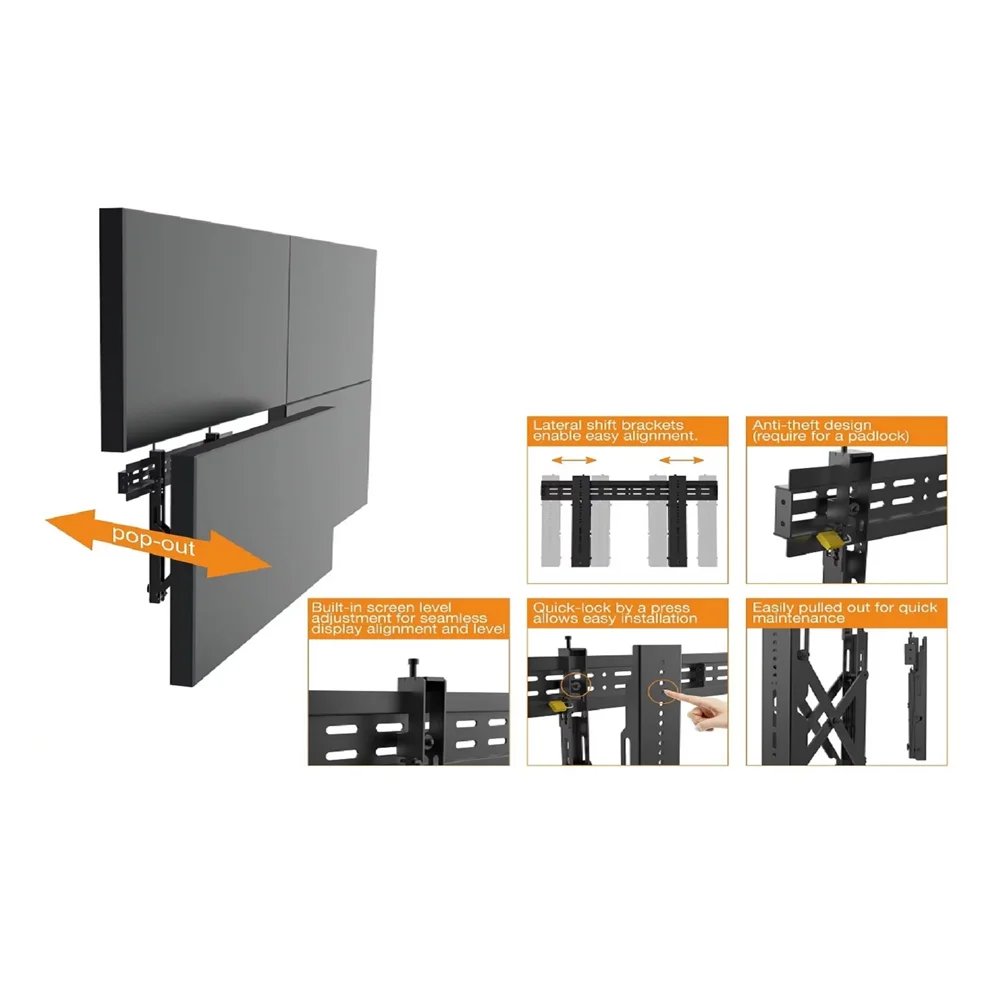

- Pop-Out MechanismAllows easy access for maintenance and installation adjustments.
- Micro AdjustmentEnsures precise screen alignment with fine-tuning capabilities.
- Universal CompatibilitySupports most 37″–75″ screens with max VESA 600x400mm.
- Strong & DurableMade from 2–2.5mm thick steel, strength tested 4 times for reliability.
- Secure DesignIncludes anti-theft feature and detachable panel for added security and convenience.
Description
The SVW02 46T Pop-Out Video Wall Mount is a standard-grade steel mount designed for 37″–75″ screens, supporting up to 45kg (99lbs) per screen. With a universal VESA pattern up to 600x400mm, it features a pop-out design for easy access, micro-adjustments for precise alignment, and level adjustment of ±3°. Built with 2–2.5mm thick steel and powder-coated in black, it includes an anti-theft feature and a separated panel for efficient installation.
Product Video

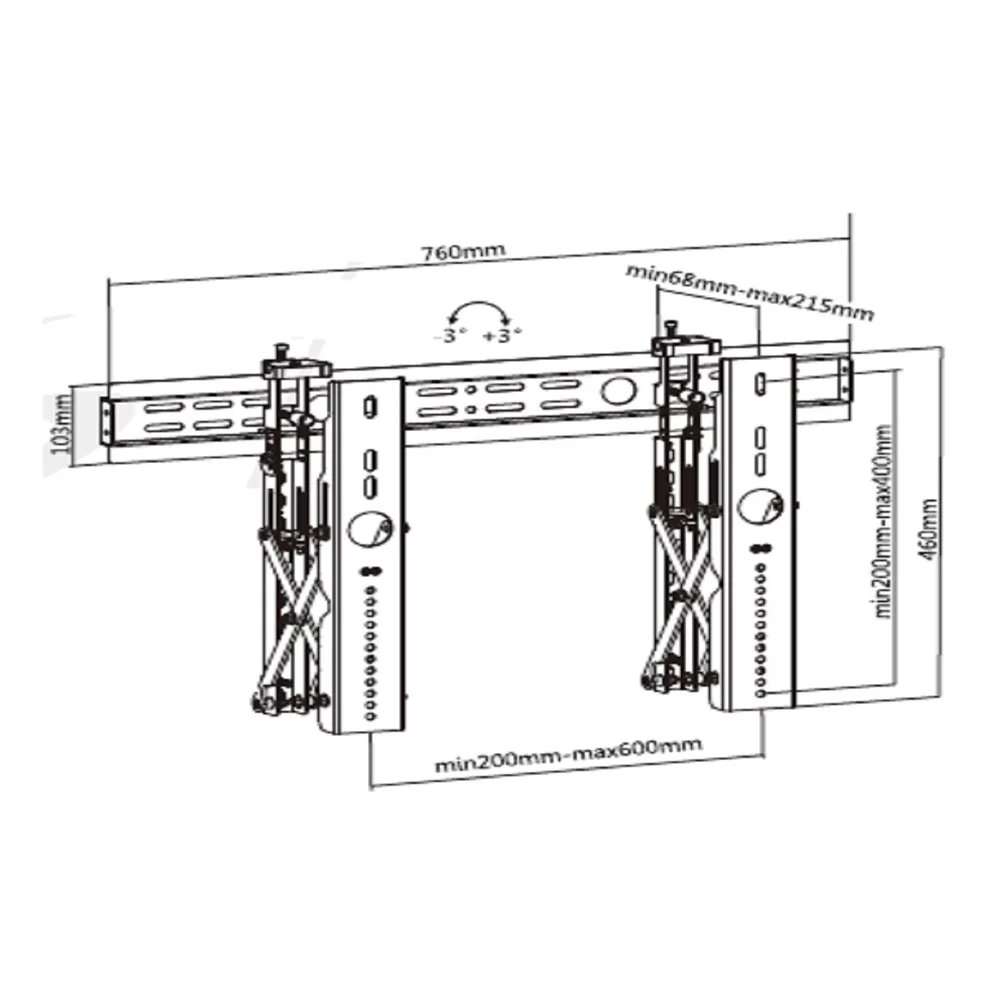

Drawing
