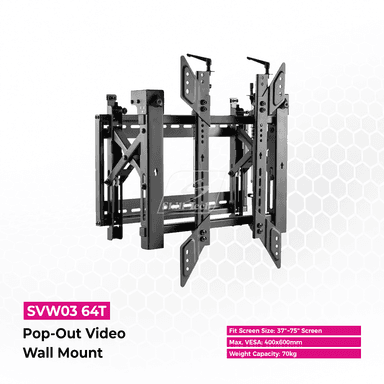

SVW03 64T
Pop-Out Video Wall Mount
Screen Size37''~75''
Max VESA400x600mm
Weight Capacity70kg
Profile152-315mm
Tilt Range+3° ~ -5°
Overview
| Product Category | Video Wall Mount |
|---|---|
| Rank | Premium |
| Material | Steel |
| Surface Finish | Powder Coating |
| Fit Screen Size | Suitable For Most 37″ ~ 75″ Screen |
| Screen Level | +3° ~ -3° |
|---|---|
| Profile | 152-315mm (6″-12.4″) |
| Installation | Single Stud |
| Wall Plate Type | Fixed Wall Plate |
| Freely Height Adjustable | No |
| Product Category | Video Wall Mount |
|---|---|
| Rank | Premium |
| Material | Steel |
| Surface Finish | Powder Coating |
| Fit Screen Size | Suitable For Most 37″ ~ 75″ Screen |
Features

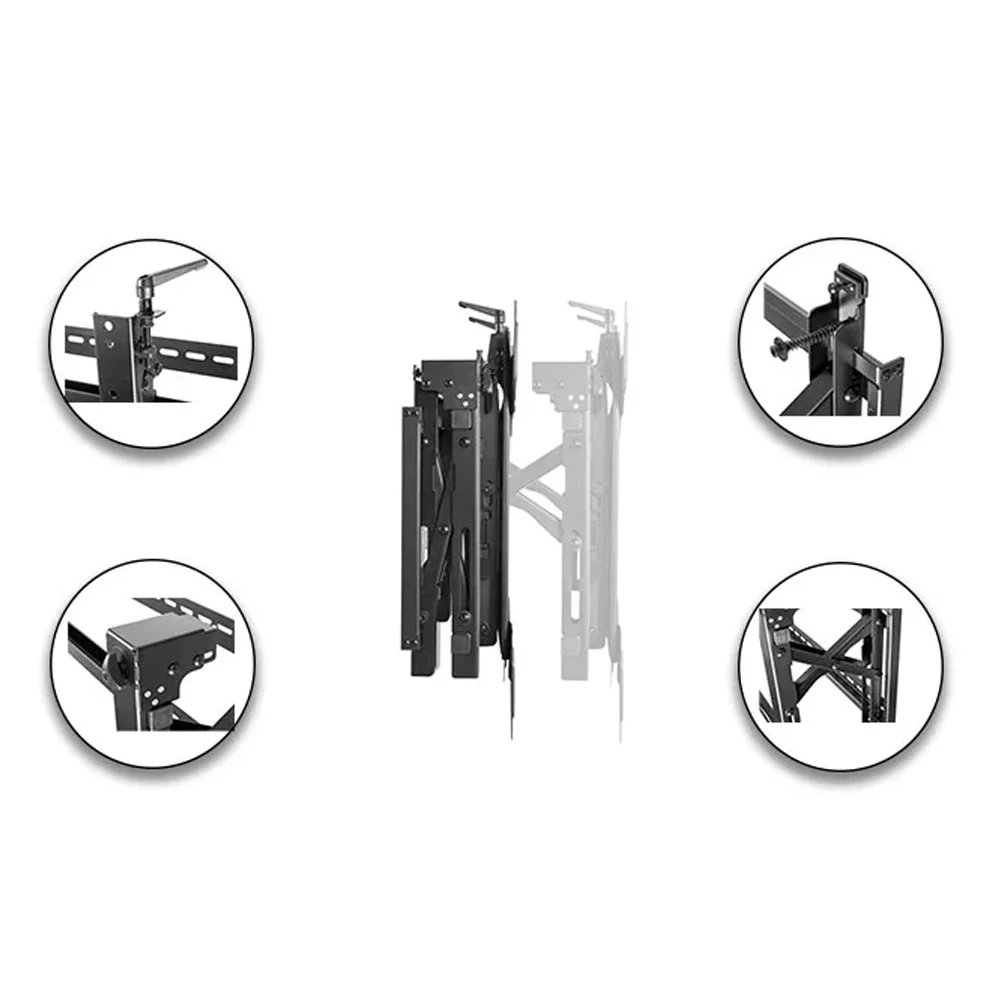

- Pop-Out DesignEnables easy access for maintenance and quick display replacement.
- Detachable PanelSimplifies installation and servicing of individual screens.
- Micro Adjustment FunctionAllows precise screen alignment for seamless video walls.
- Strong Load CapacitySupports up to 70kg (154lbs), suitable for most 37″–75″ screens.
- Secure and ReliableAnti-theft feature and 4-times strength testing ensure safety and durability.
Description
The SVW03 64T Pop-Out Video Wall Mount is a premium steel mount designed for 37″–75″ screens, supporting up to 70kg per display. Featuring a detachable panel and universal VESA compatibility up to 400×600mm, it allows micro-adjustments for precise alignment. With a tilt range of +3° to -5° and screen leveling, it’s ideal for single stud installations. Anti-theft design ensures security, making it perfect for professional video wall setups.

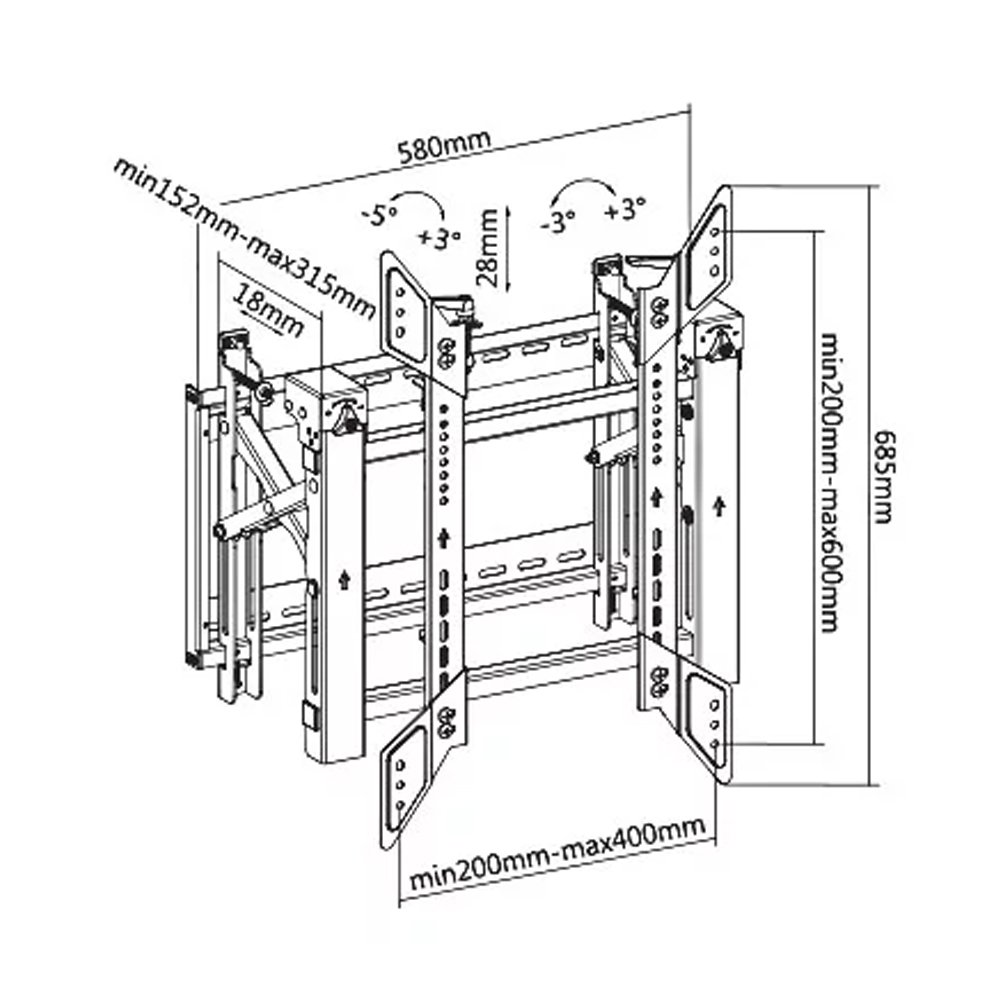

Drawing
