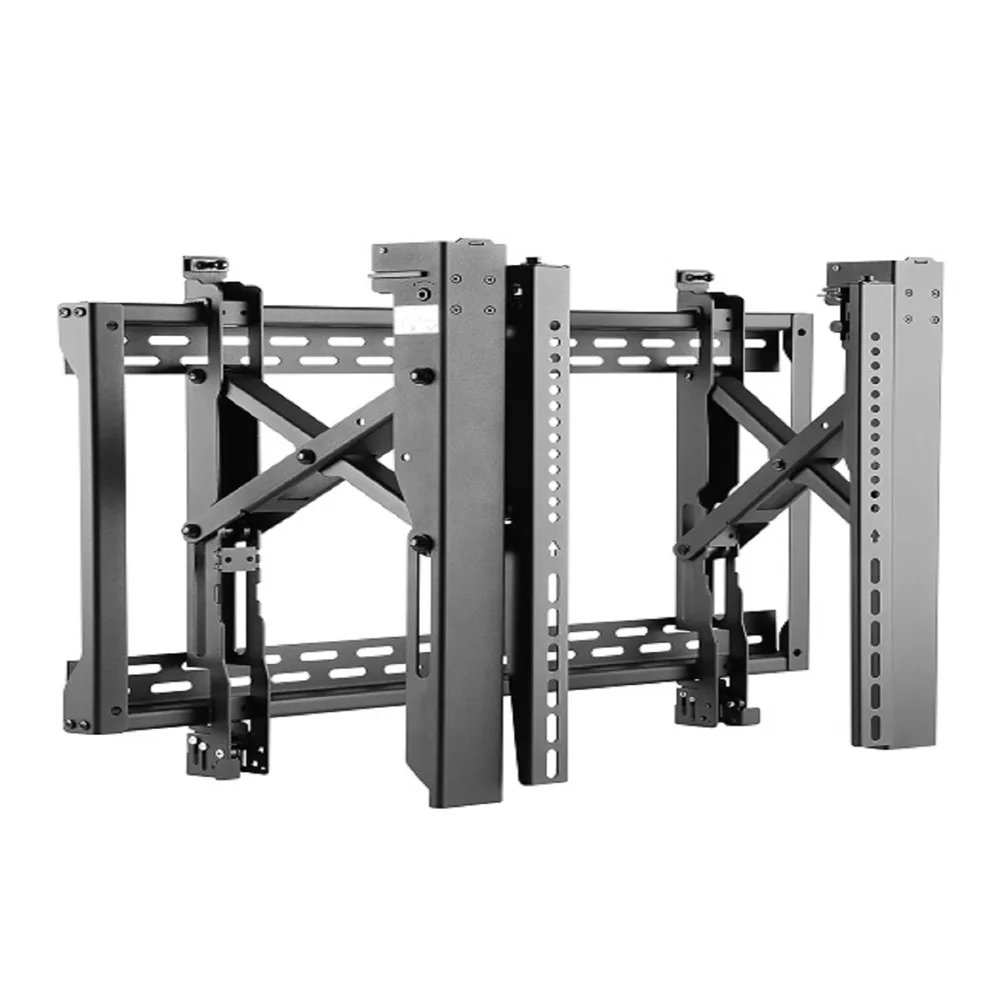

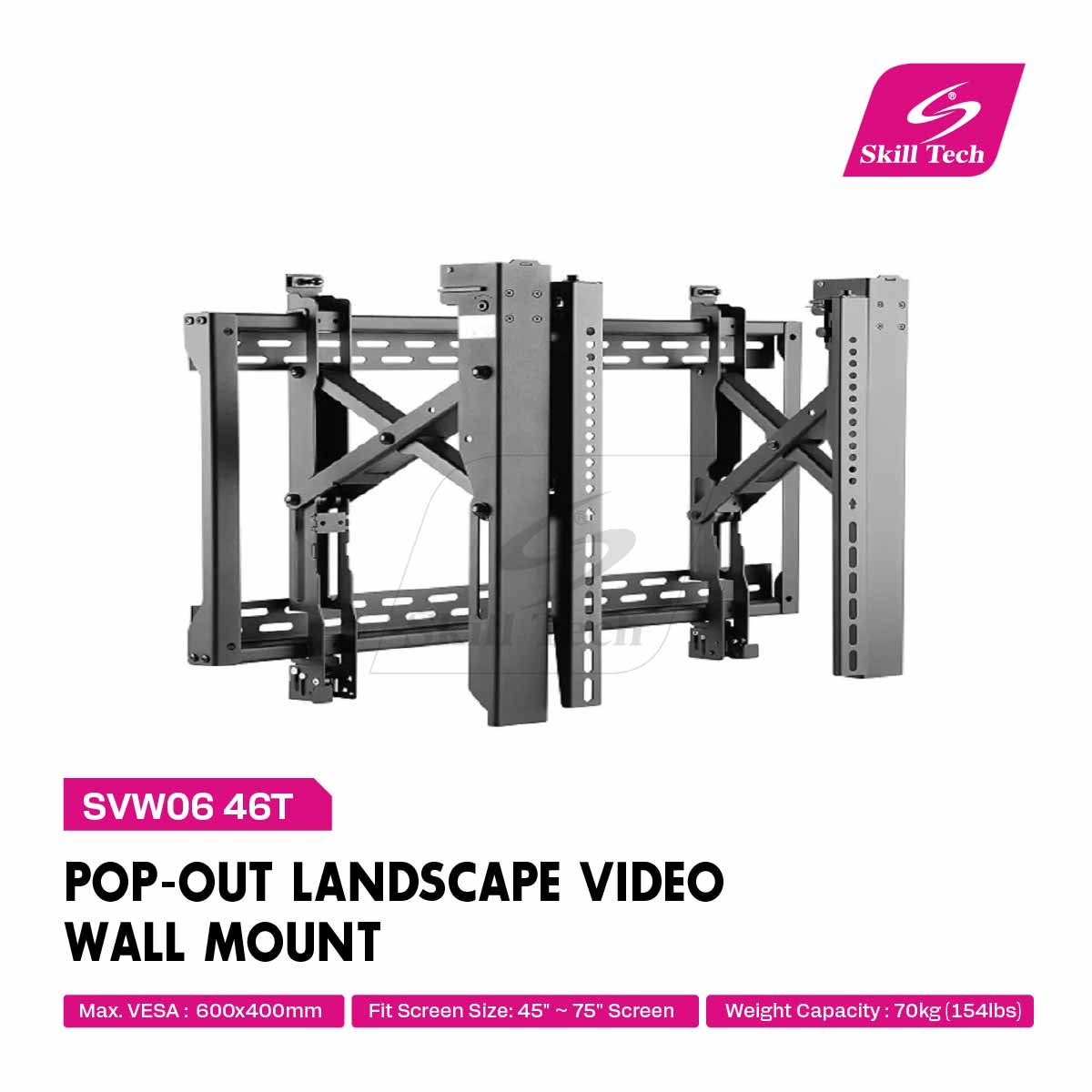

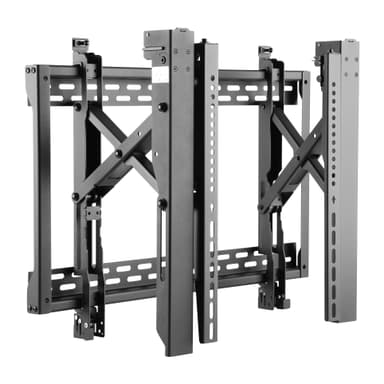

SVW06 46T Pop-Out Landscape Video Wall Mount

Product Category:	Video Wall Mount
Rank:	Premium
Material:	Steel
Metal Sheet Thickness:	Wall Plate THK=2mm Cold-Rolled Sheet, Bracket Arm THK=2mm Cold-Rolled Sheet,
Surface Finish:	Powder Coating
Color:	Fine Texture Black

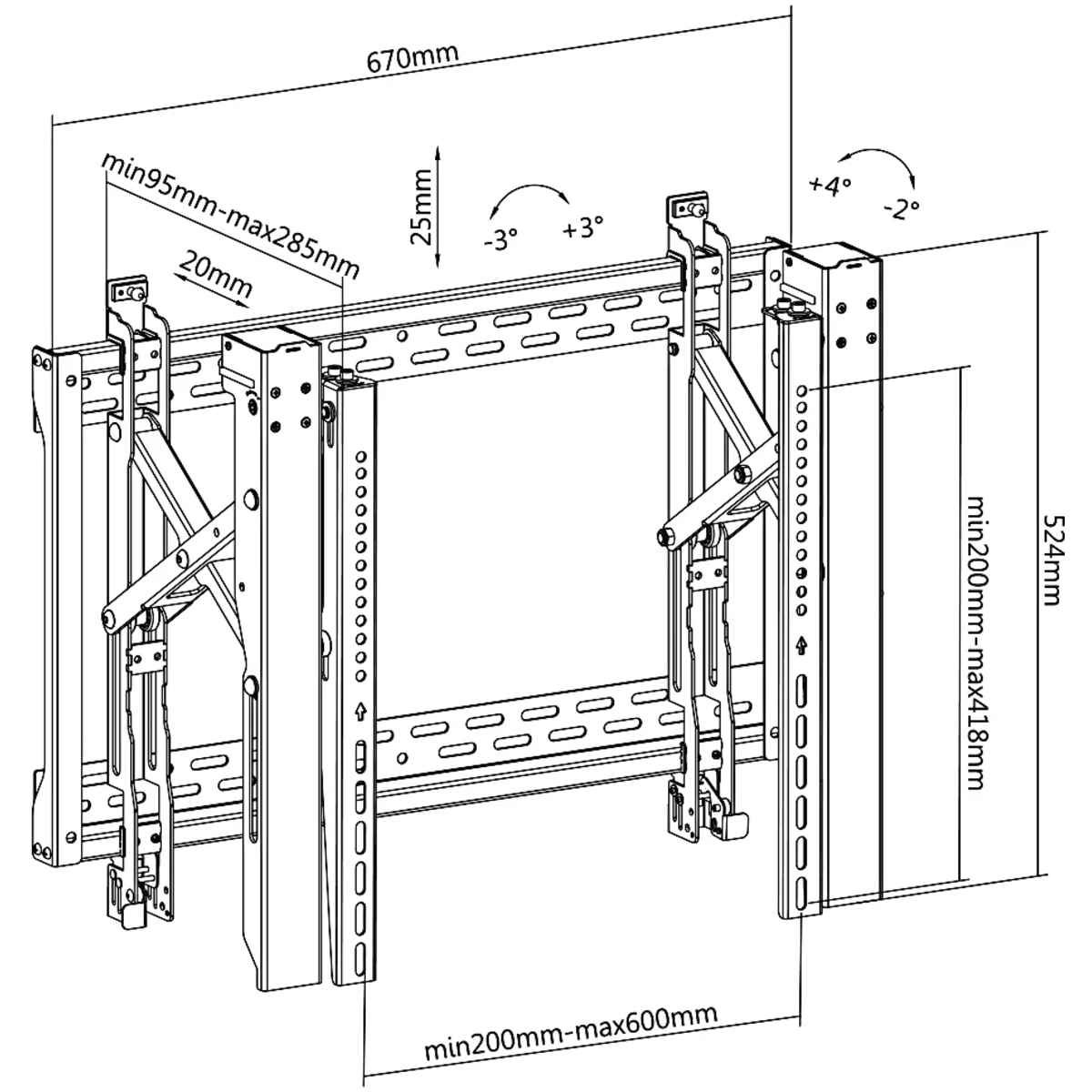

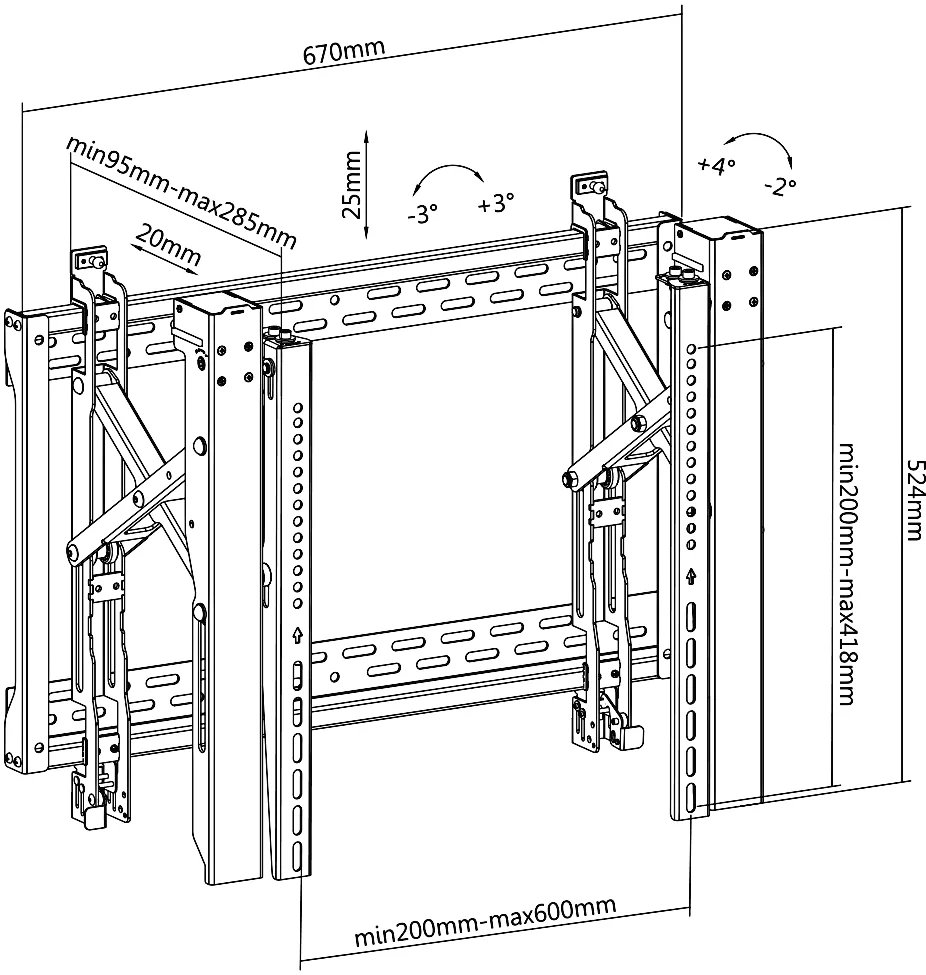

Dimensions:	670x95~285x524mm (26.4"x3.7"~11.2"x20.6")
Fit Screen Size:	Suitable For Most 45" ~ 75" Screen
Max.Vesa:	600x400mm
Weight Capacity(Per Screen):	70kg (154lbs)
Screen Qty:	1
Strength Tested:	4 Times Approved
Profile:	95~285mm (3.7"~11.2")
Fine Adjustment(Depth/Height):	20mm/25mm (0.79"/0.98")
Tilt Range:	+4° ~ -2°
Screen Level:	+3° ~ -3°
Installation:	Solid Wall
Direction Indicator:	Yes
Anti-theft:	Yes
Accessory Kit Package:	Normal/Ziplock Polybag,Compartment Polybag
Instruction Manual Included:	Yes
Certification:	UL

SVW06 46T provides a professional video wall solution while offering universal compatibility with a load capacity of 70kg/154lbs and max. VESA 600x400 hole pattern. Multi-dimensional micro-adjustment enables precision alignment of the video wall configuration including depth, height, and tilt. This video wall mount features a quick-release pop-out mechanism for easy installation and maintenance. Quick-release latch keeps displays in place via activating lock & unlock mode. It is a perfect solution for public and commercial displays with an anti-theft design (require for a padlock).

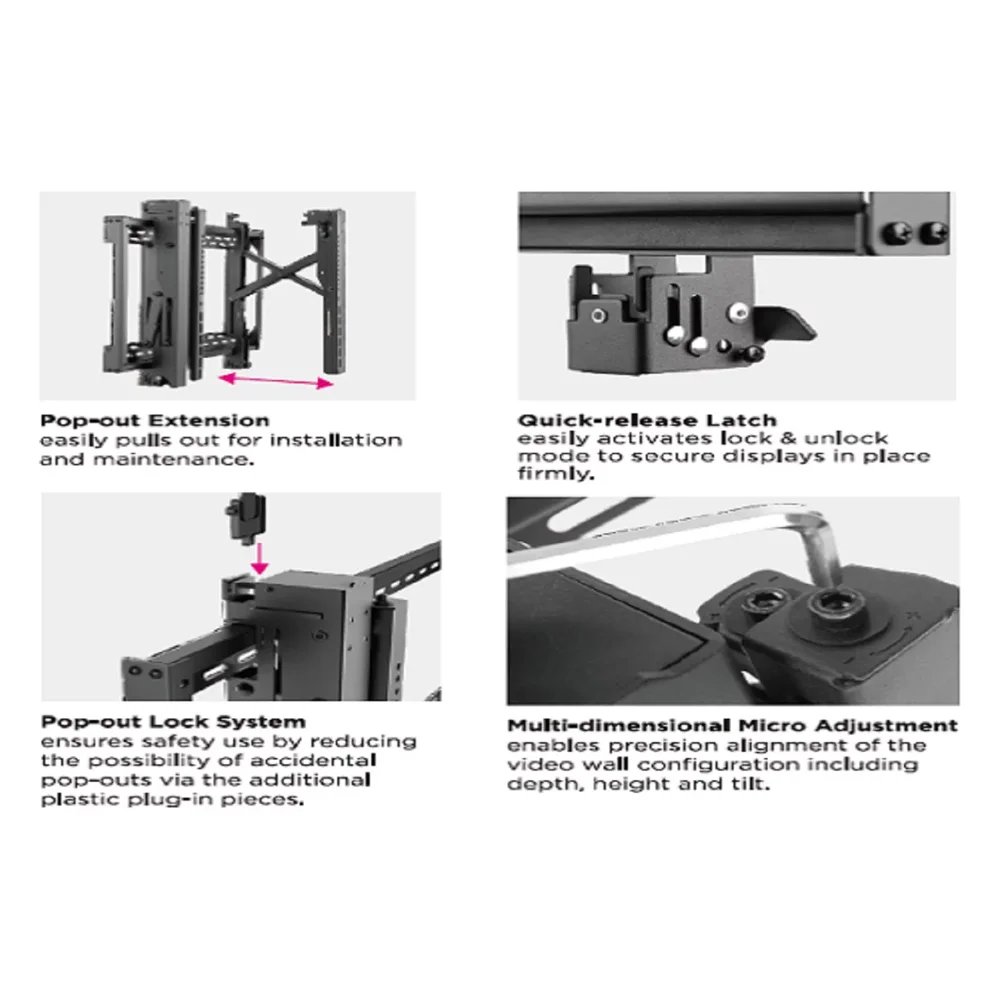

Pop-Out Extension: provides quick access for installation and maintenance.

Precise Display Alignment: height/depth adjustment for seamless digital signage.

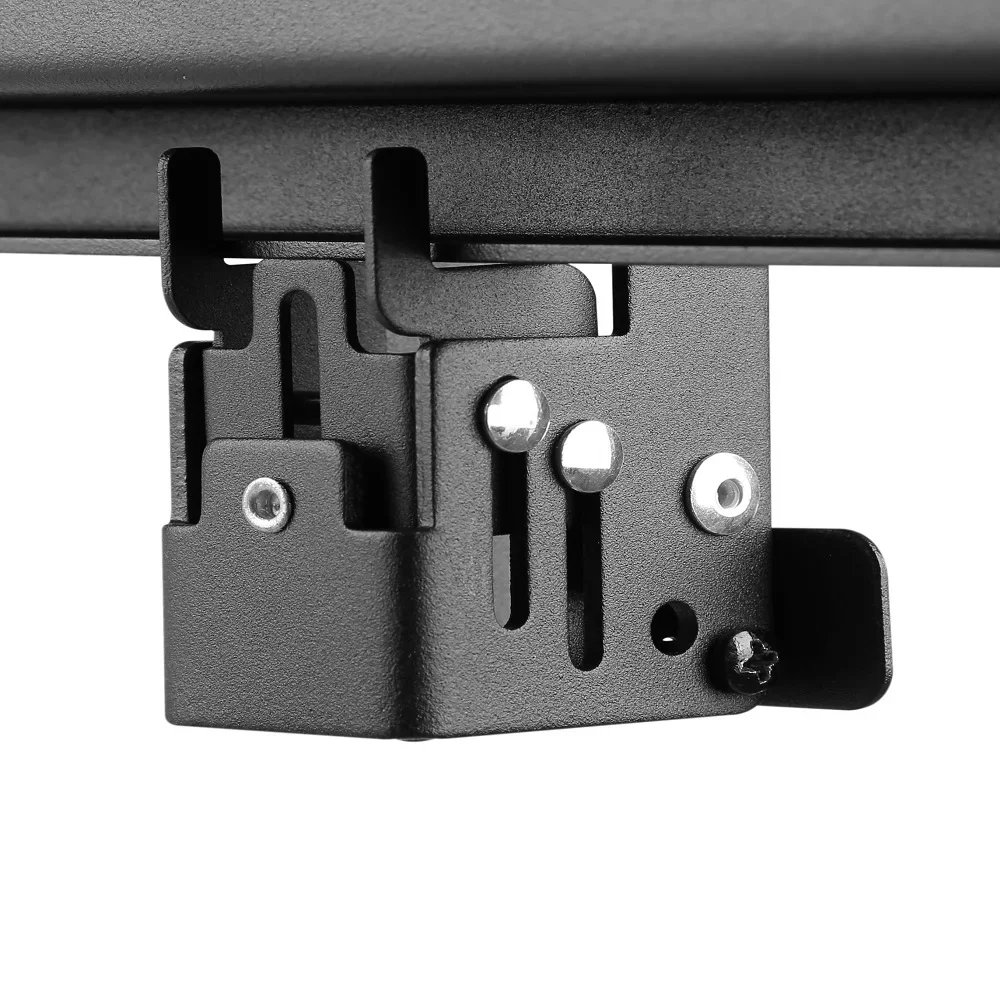

Quick-Release Latch: locks/unlocks the display in place.

Pop-Out Lock System: ensures safety by reducing the possibility of accidental pop-outs.

Anti-Theft Locking Hole: for additional security preventing any unwanted removal (extra padlock required).
