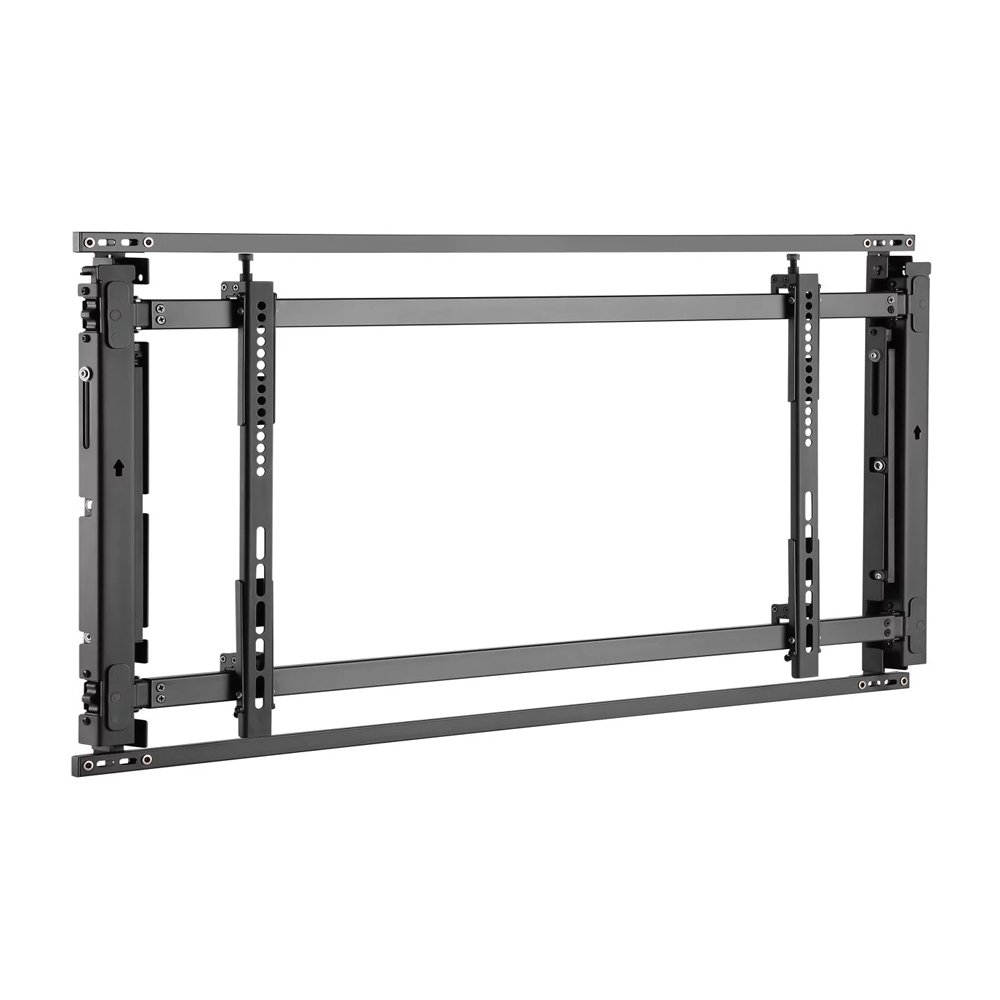

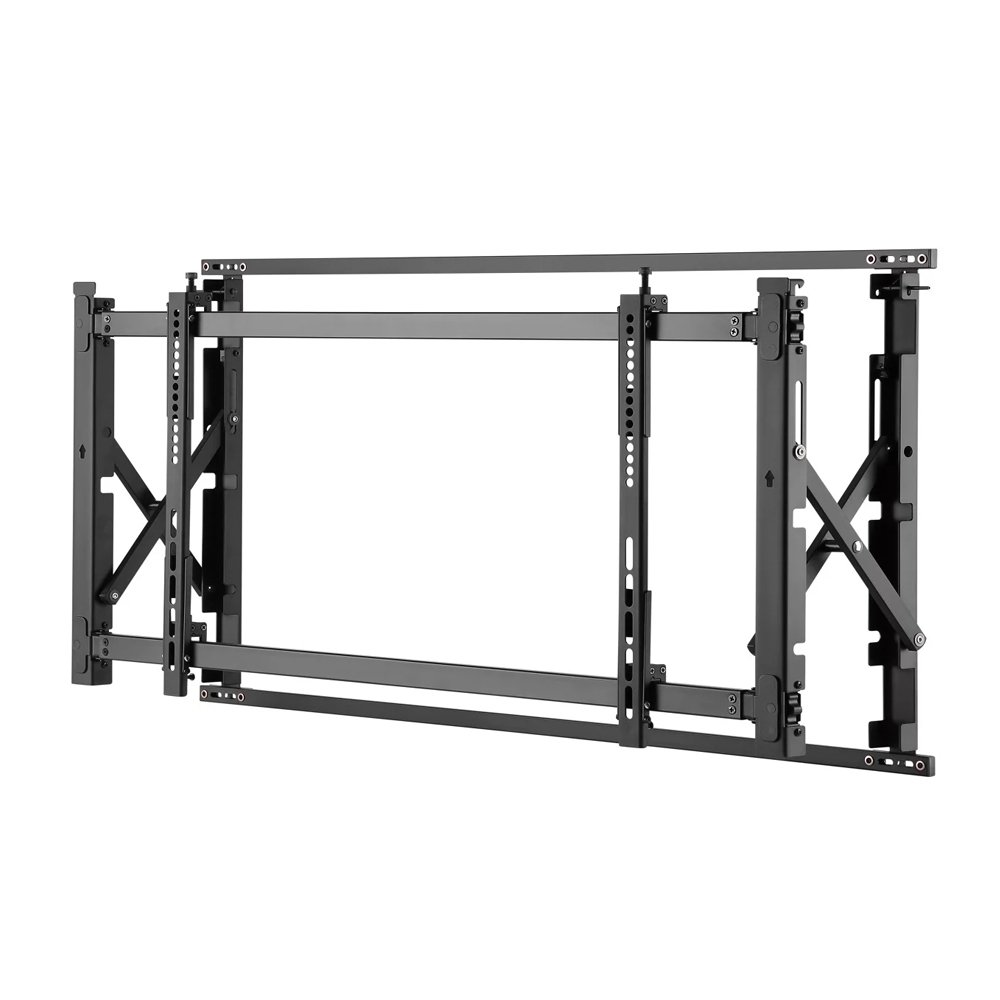

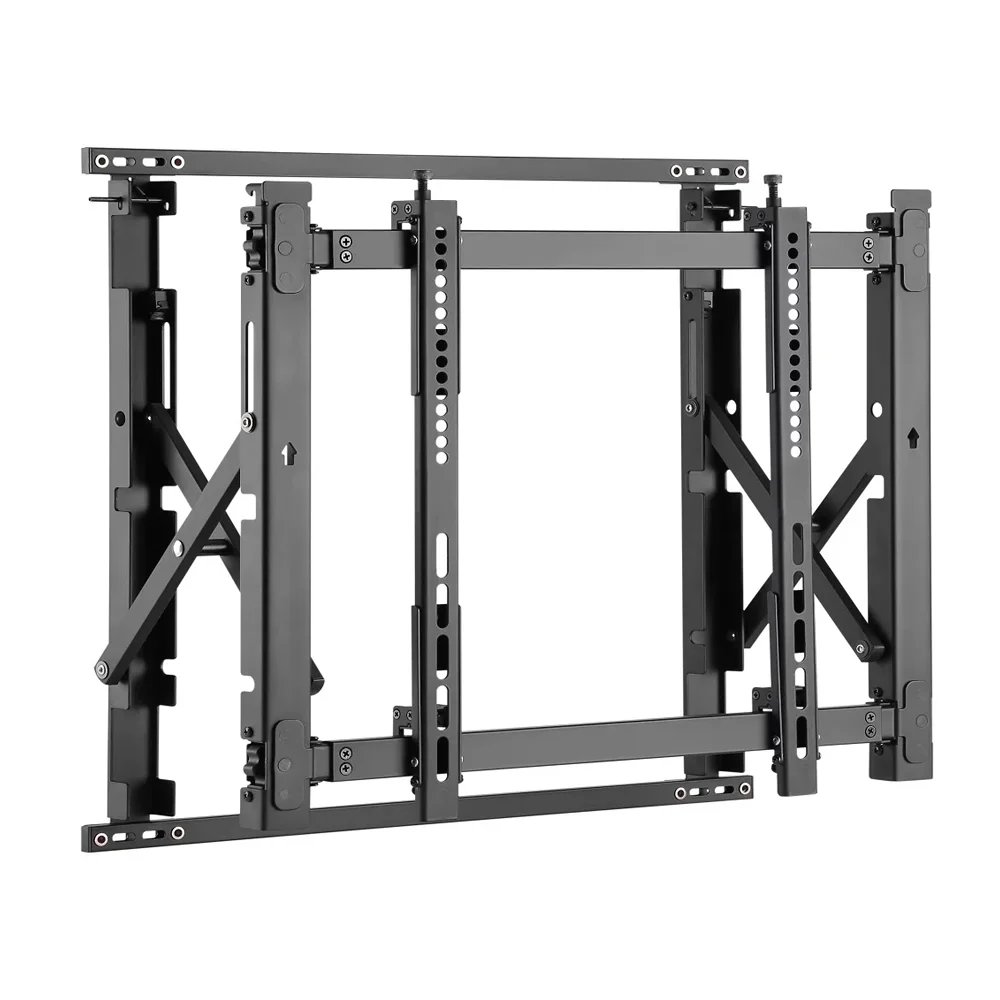

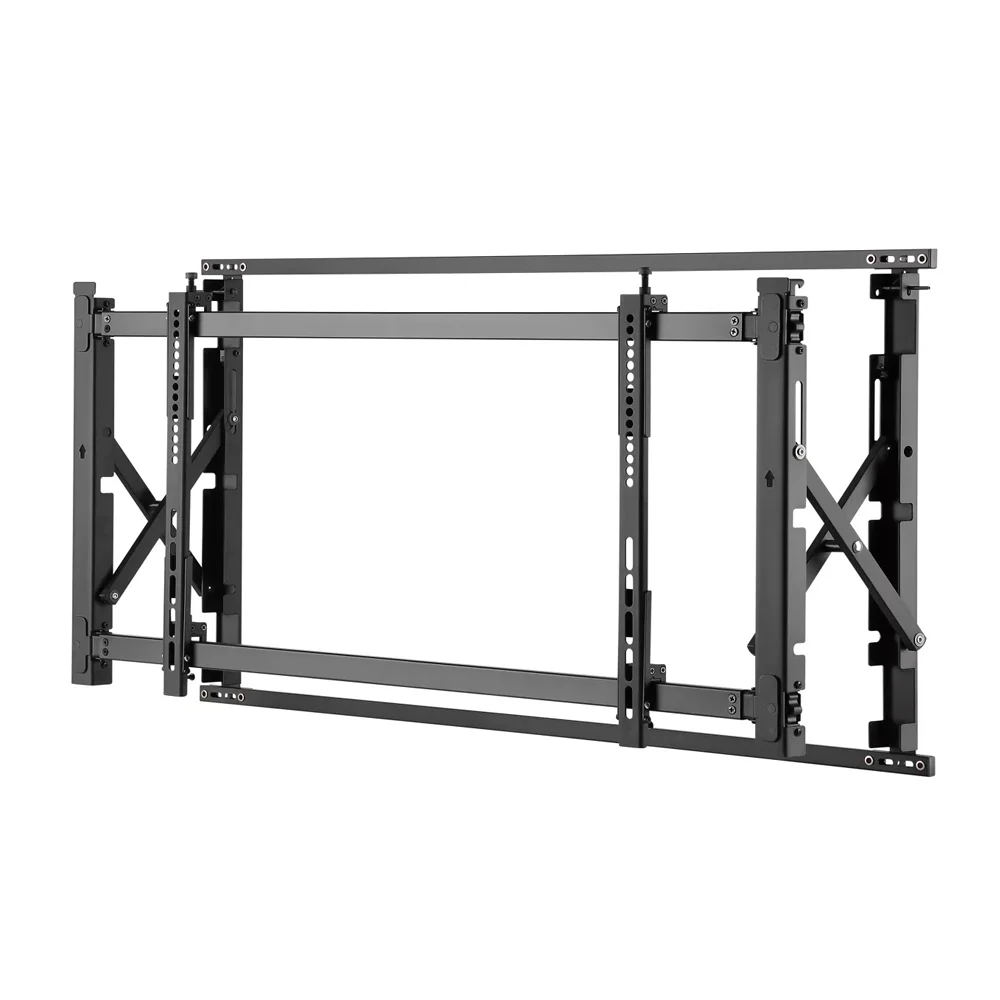

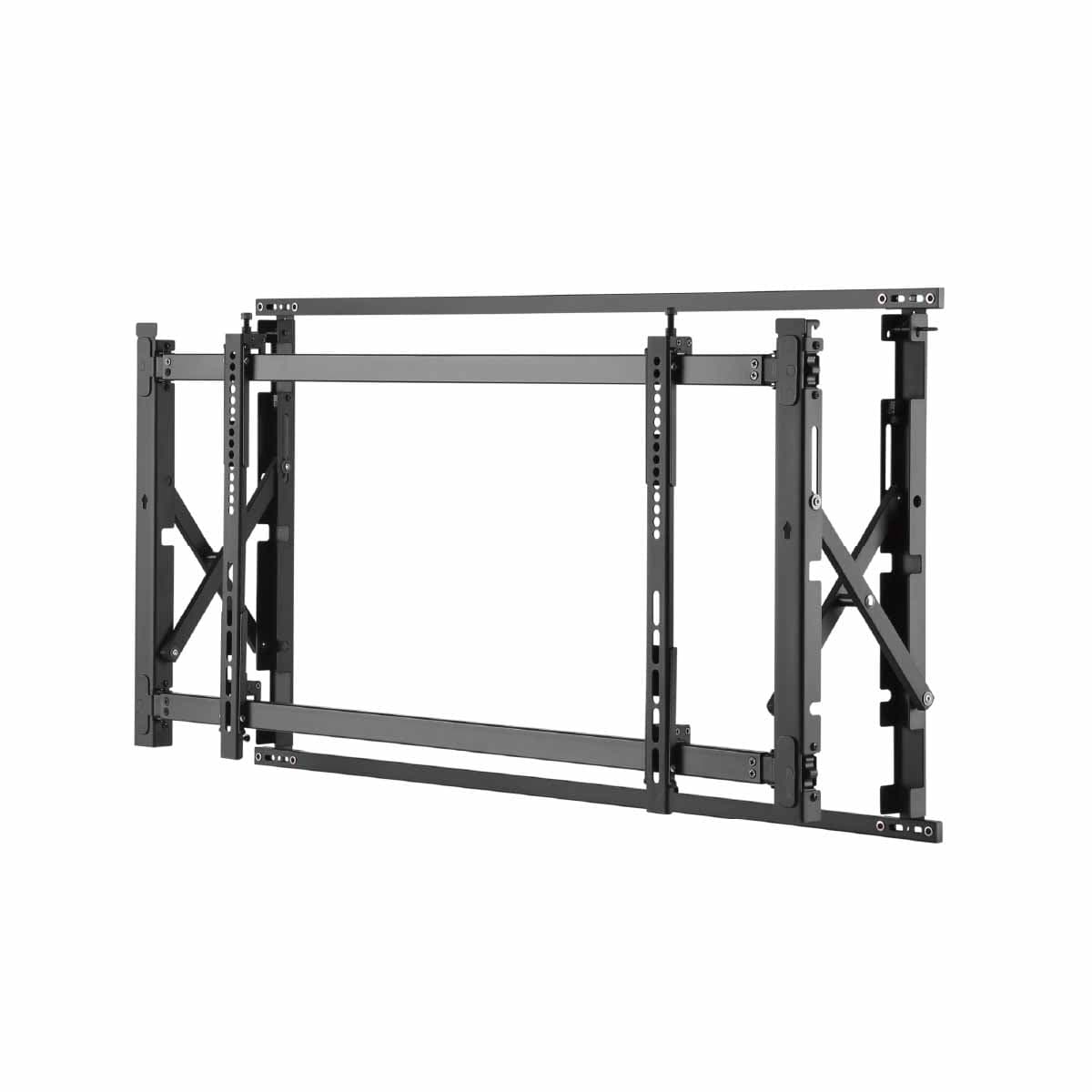

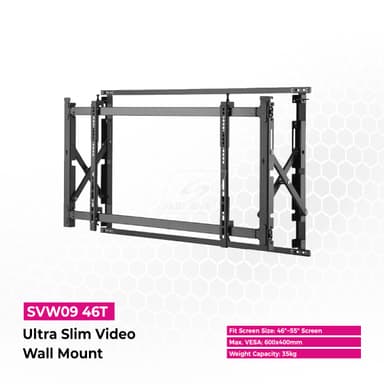

SVW09 46T Super Slim Video Wall Mount

Product Category:	Video Wall Mount
Rank:	Standard
Material:	Steel
Surface Finish:	Powder Coating
Color:	Matte Black
Color:	Matte Black

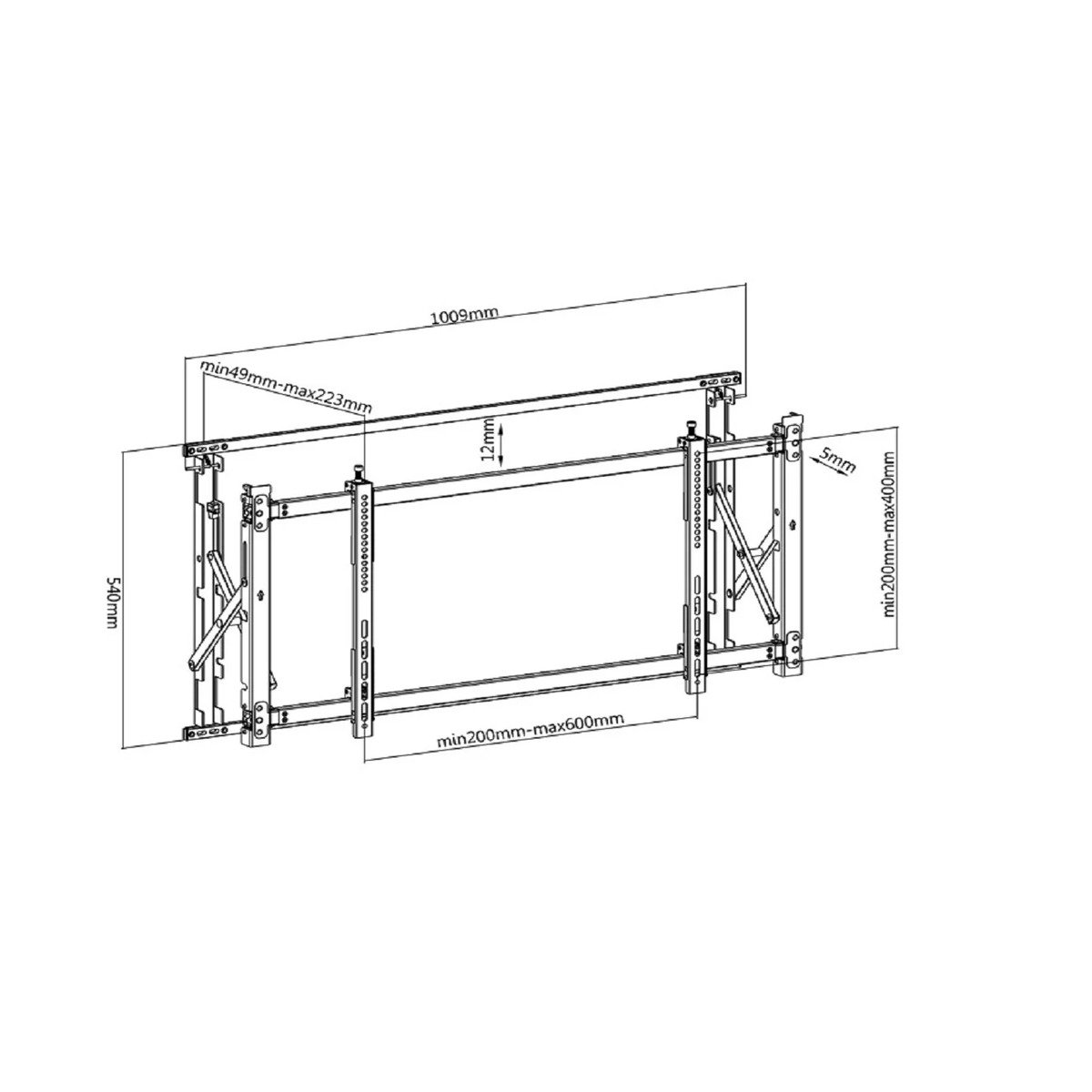

Dimensions:	1009x540x49~223mm (39.7"x21.3"x1.9"~8.8")
Fit Screen Size:	Suitable For Most 46" ~ 55" Screen
Max. VESA:	600x400mm
Weight Capacity(Per Screen):	35kg (77lbs)
Screen Qty:	1
Strength Tested:	4 Times Approved
Profile:	49~223mm (1.9"~8.8")
Fine Adjustment(Depth/Height):	5mm/12mm (0.2"/0.47")
Installation:	Solid Wall
Direction Indicator:	Yes
Cable Management:	No
Accessory Kit Package:	Normal/Ziplock Polybag,Compartment Polybag
Instruction Manual Included:	Yes
Magnetic:	No
Screw Kit for Samsung TV:	Yes

VIDEO WALL-MOUNTS

Super Slim Profile – Ultra-slim design with a profile of just 49mm, extendable up to 223mm for space-saving installations.
Fine Adjustment – Offers 5mm depth and 12mm height micro-adjustments for precise screen alignment.
Strong Support – Holds up to 35kg (77lbs) per screen, ideal for most 46"–55" displays.
Durable Build – Made from powder-coated steel and strength tested 4 times for long-lasting reliability.
Samsung TV Compatible – Includes a dedicated screw kit for easy installation with Samsung TVs.

The SVW09 46T Super Slim Video Wall Mount is a standard-grade steel mount designed for 46"–55" screens, supporting up to 35kg per display. With a slim profile of just 49mm and extendable up to 223mm, it offers fine depth (5mm) and height (12mm) adjustments for clean, precise installation. Finished in matte black, it includes a direction indicator and Samsung TV screw kit, and is strength tested 4 times for dependable performance.
