SH VW800
Pop-Out Video Wall Mount
Screen Size55''~120''
Max VESA1000x600mm
Weight Capacity130kg
Profile125-360mm
Tilt Range+2° ~ -2°
Overview
| Material | Steel, Plastic |
|---|---|
| Color | Fine Texture Black |
| Dimensions | 1105x125~360x630mm |
| Fit Screen Size | Suitable For Most 55"~120" Screen |
| Max. VESA | 1000x600mm |
| Strength Tested | 3 Times Approved |
|---|---|
| Profile | 125~360mm |
| Fine Adjustment(Depth/Height) | 15mm/13mm |
| Tilt Range | +2°~-2° |
| Installation | Solid Wall |
| Material | Steel, Plastic |
|---|---|
| Color | Fine Texture Black |
| Dimensions | 1105x125~360x630mm |
| Fit Screen Size | Suitable For Most 55"~120" Screen |
| Max. VESA | 1000x600mm |
Features
- Pop-Out MechanismEnables easy access for maintenance and adjustments in video wall configurations.
- Heavy-Duty SupportHolds large screens from 55" to 120", with a maximum weight capacity of 130kg per screen.
- VESA CompatibilitySupports mounting patterns up to 1000x600mm for broad screen compatibility.
- Fine Adjustment CapabilityOffers 15mm depth and 13mm height adjustment for precise screen alignment.
- Solid Wall InstallationDesigned for secure mounting on solid wall surfaces with a profile range of 125–360mm.
Description
The SH VW800 Pop-Out Video Wall Mount is engineered for professional video wall installations, supporting most 55" to 105" screens up to 130kg. Built from durable steel and plastic with a fine texture black finish, it features a pop-out design for easy access and maintenance. With max VESA compatibility up to 1000x600mm, ±2° tilt, and fine depth/height adjustments, it ensures precise alignment and secure mounting on solid walls.
Product Video

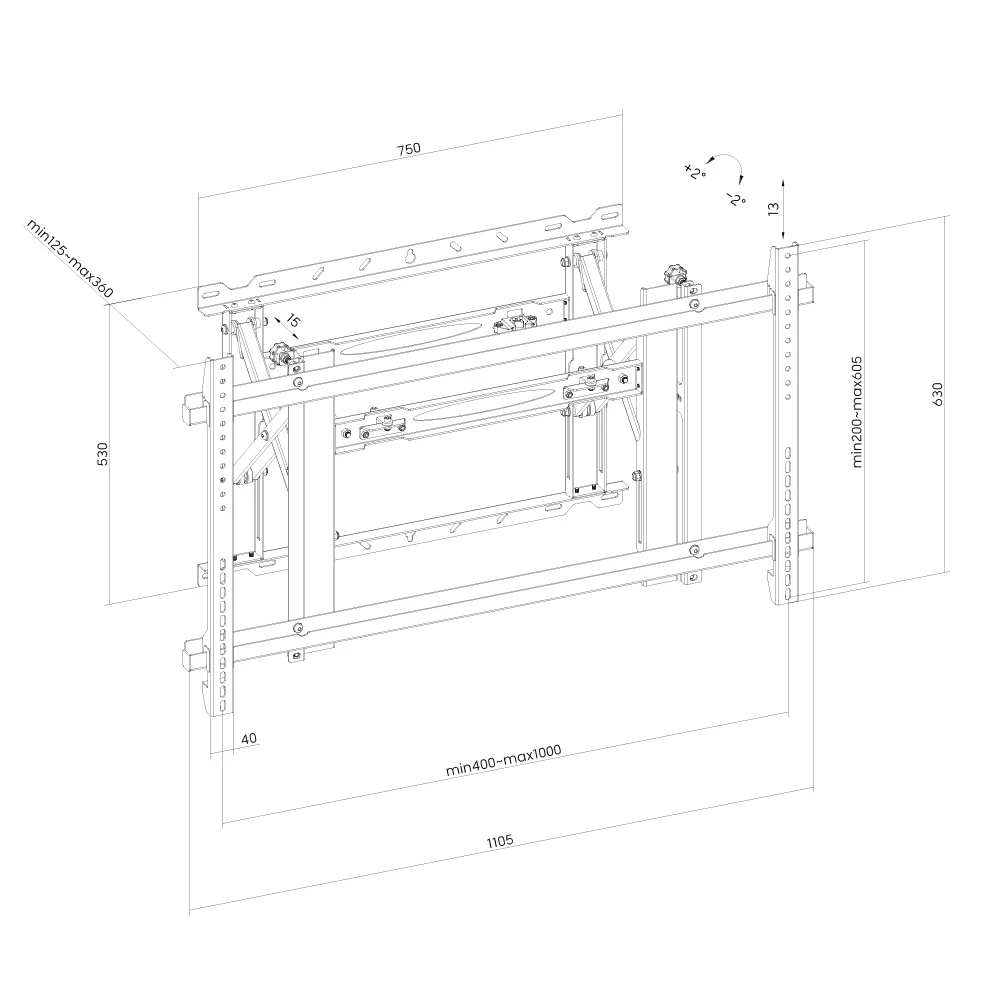

Drawing
