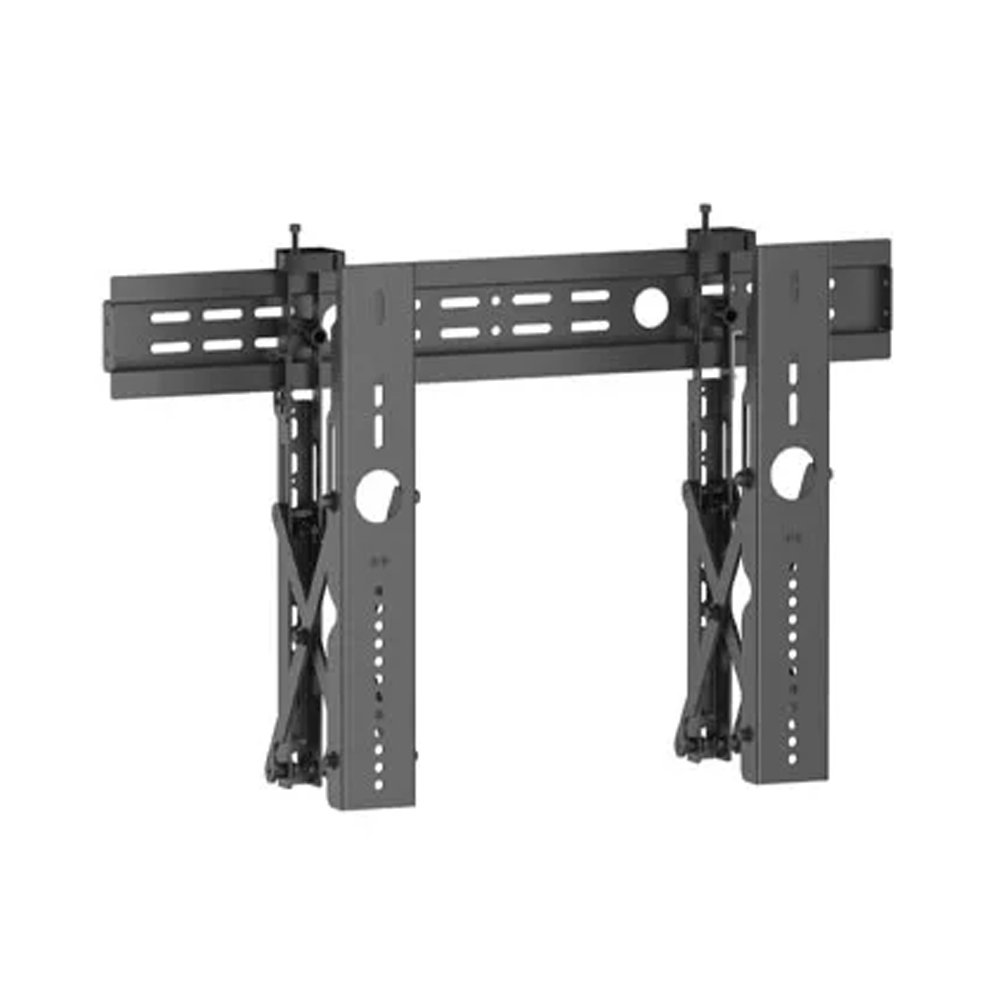

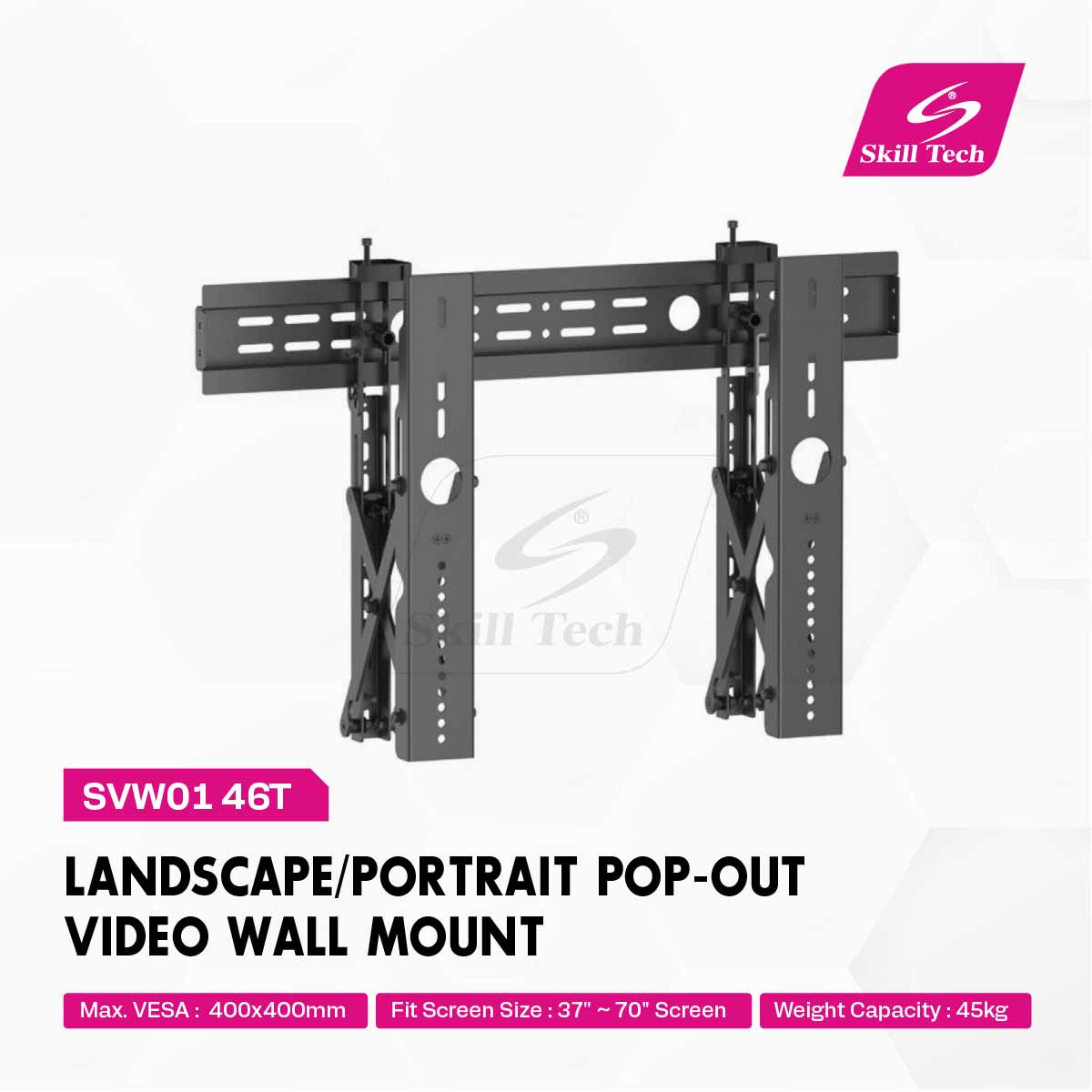

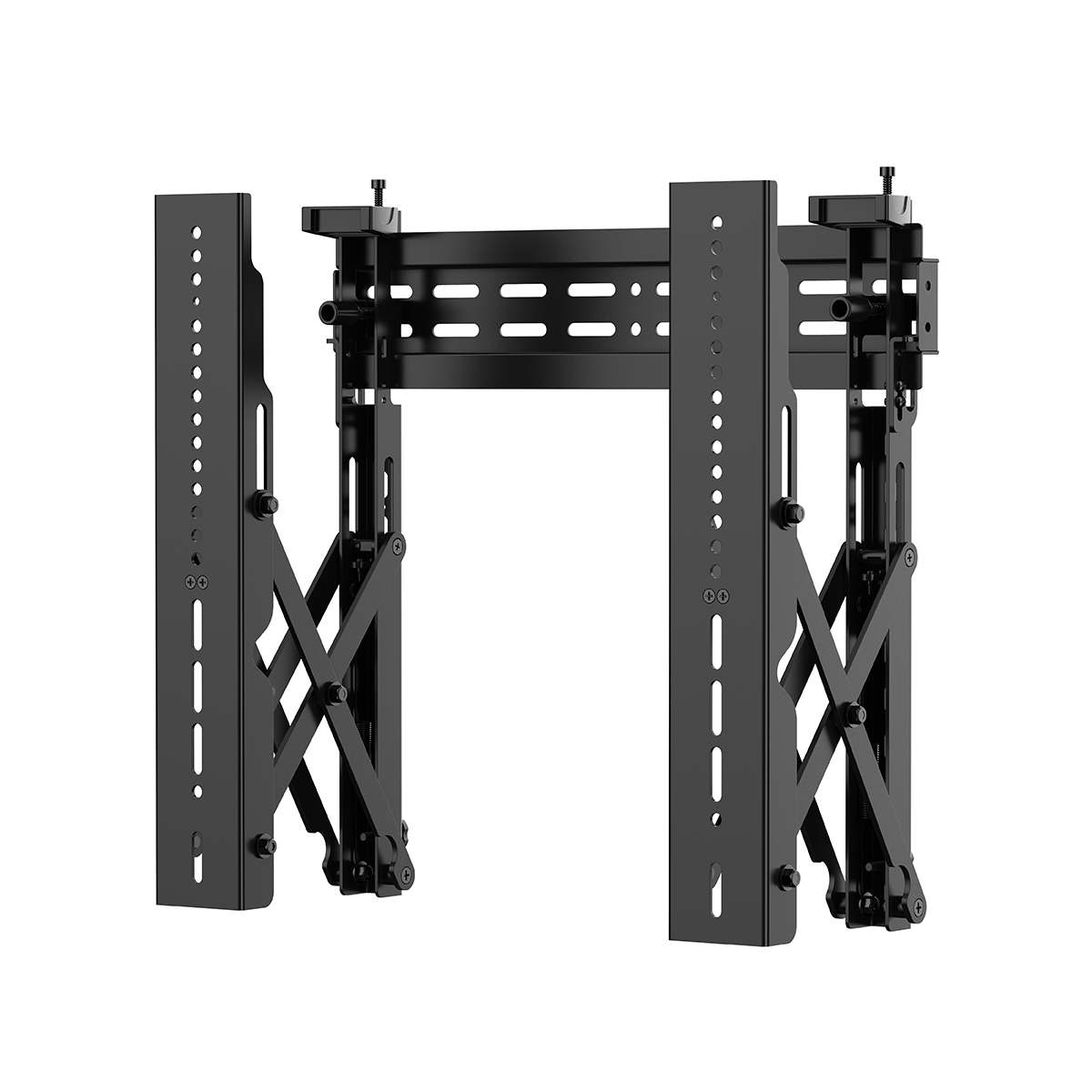

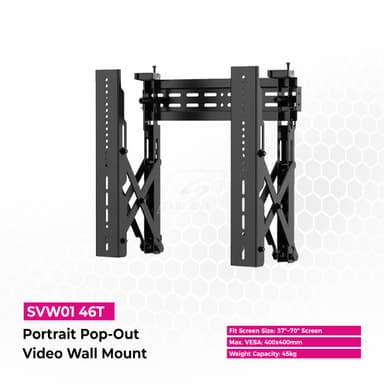

SVW01 46T
Portrait Pop-Out Video Wall Mount
Screen Size37"~70"
Max VESA400x400mm
Weight Capacity45kg
Profile68-215mm
Tilt Range+3° ~ -3°
Overview
| Product Name | Video Wall Mount |
|---|---|
| By Grade | Standard Series |
| By Function | Micro adjustment, Pop-out |
| By Mounting Pattern | Universal |
| Material | Steel |
| Installation | Solid wall |
|---|---|
| Weight Capacity | 45kg |
| Strength tested | 4 times approved |
| Max. VESA | 400x400mm |
| Level Adjustment | +3° ~ -3° |
| Product Name | Video Wall Mount |
|---|---|
| By Grade | Standard Series |
| By Function | Micro adjustment, Pop-out |
| By Mounting Pattern | Universal |
| Material | Steel |
Features
- Pop-Out FunctionAllows easy access for maintenance and cable management.
- Micro AdjustmentEnables precise screen alignment for seamless video wall setup.
- Universal VESA CompatibilitySupports screen sizes from 37"~70" with max VESA 400x400mm.
- Durable Steel ConstructionPowder-coated finish and strength-tested to support up to 45kg.
- Anti-Theft DesignBuilt-in security features for added protection in public spaces.
Description
The SVW01 46T is a versatile video wall mount designed for 37"~ 70" screens. Featuring micro-adjustments, pop-out function, and universal mounting compatibility, it ensures precise alignment and easy access. Made of durable steel with a black powder-coated finish, it supports up to 45kg and includes anti-theft features. With a slim 68-215mm profile and ±3° level adjustment, it's perfect for solid wall installations. VESA compatible up to 400x400mm.
Installation Video

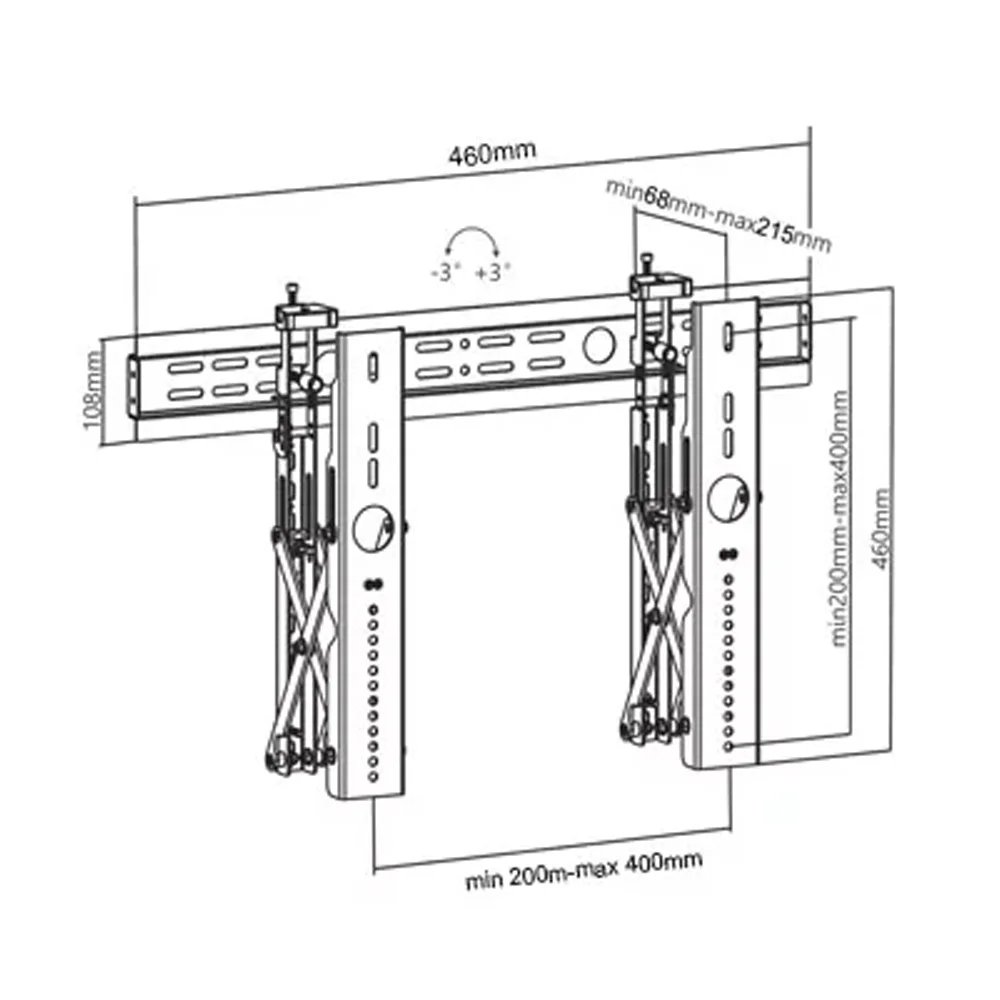

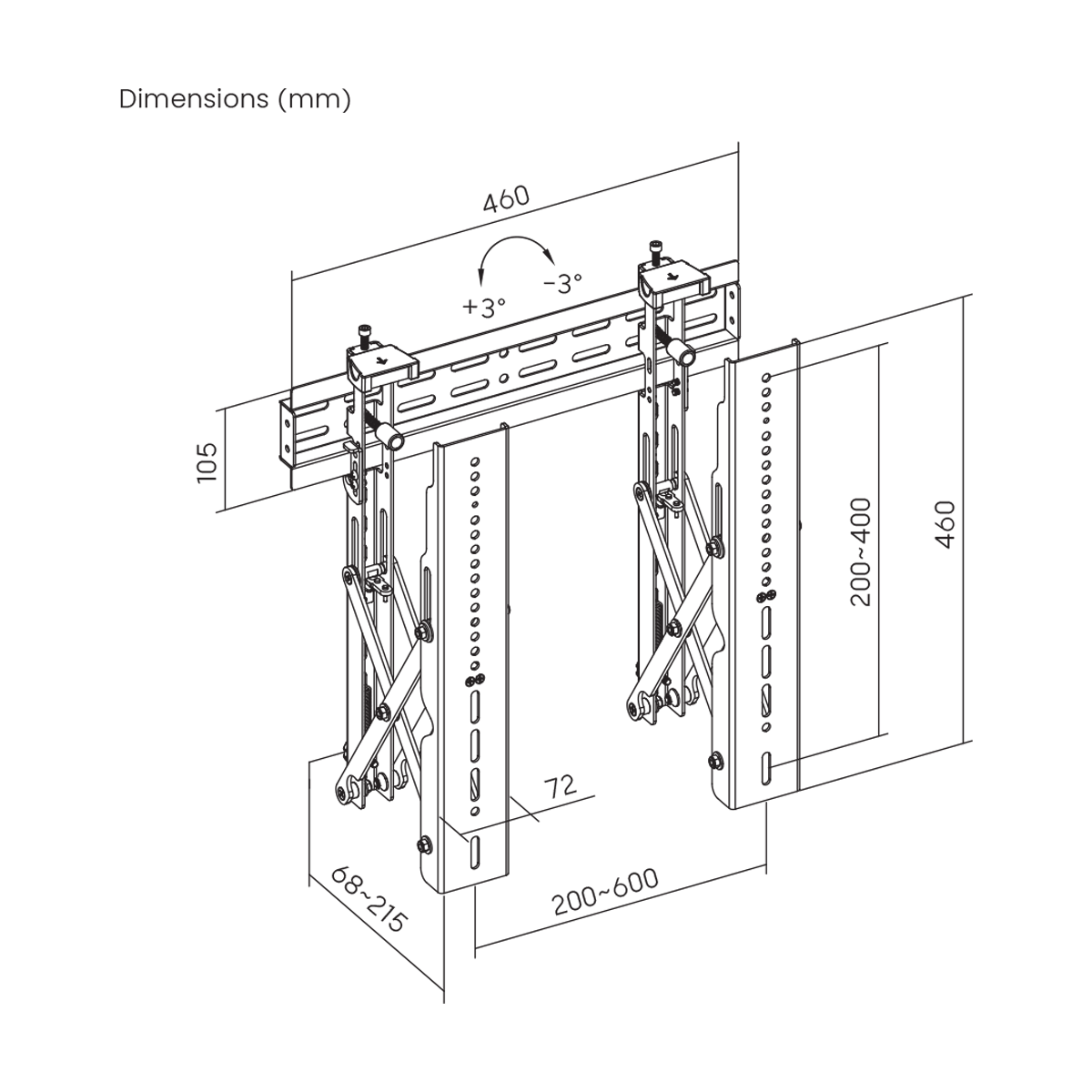

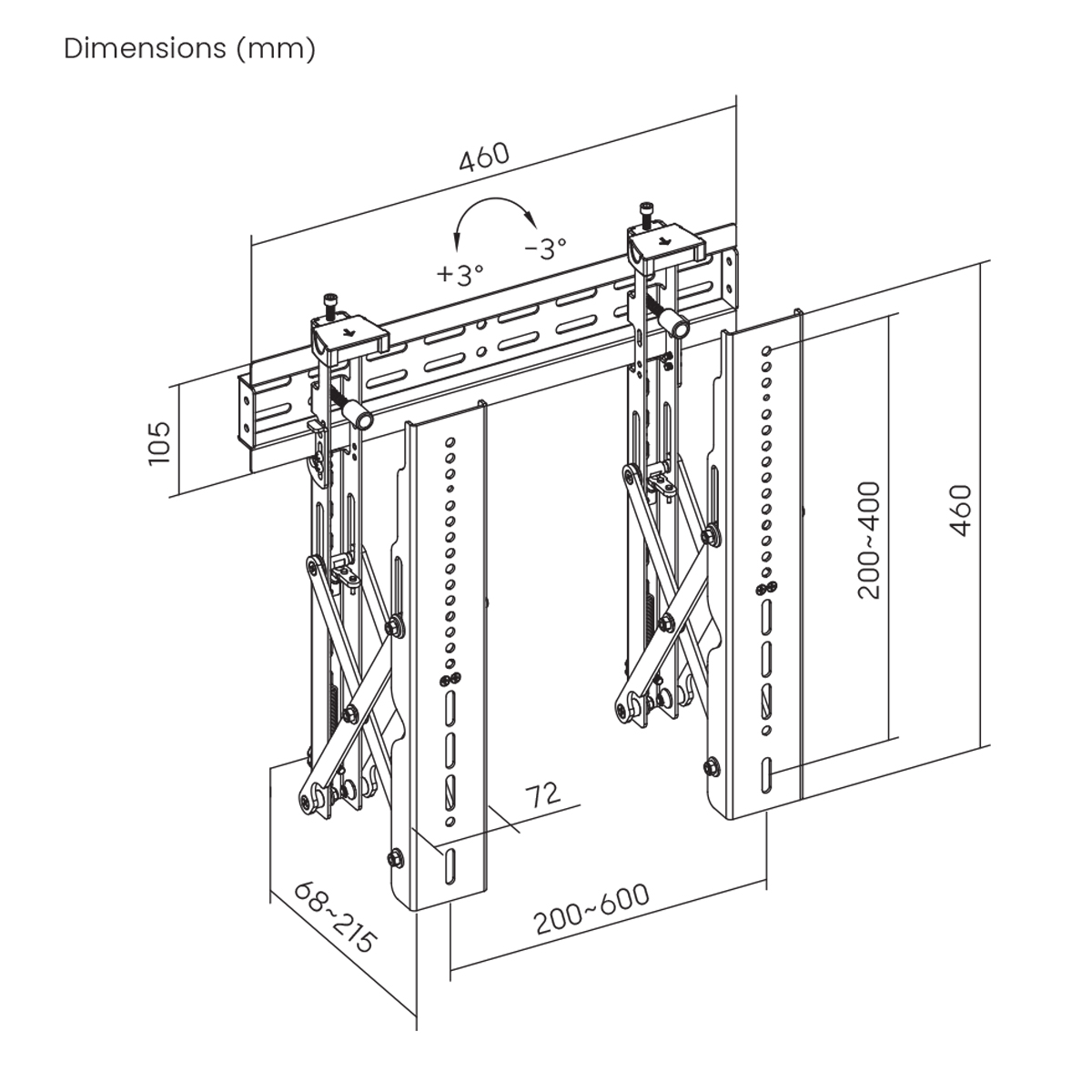

Drawing
