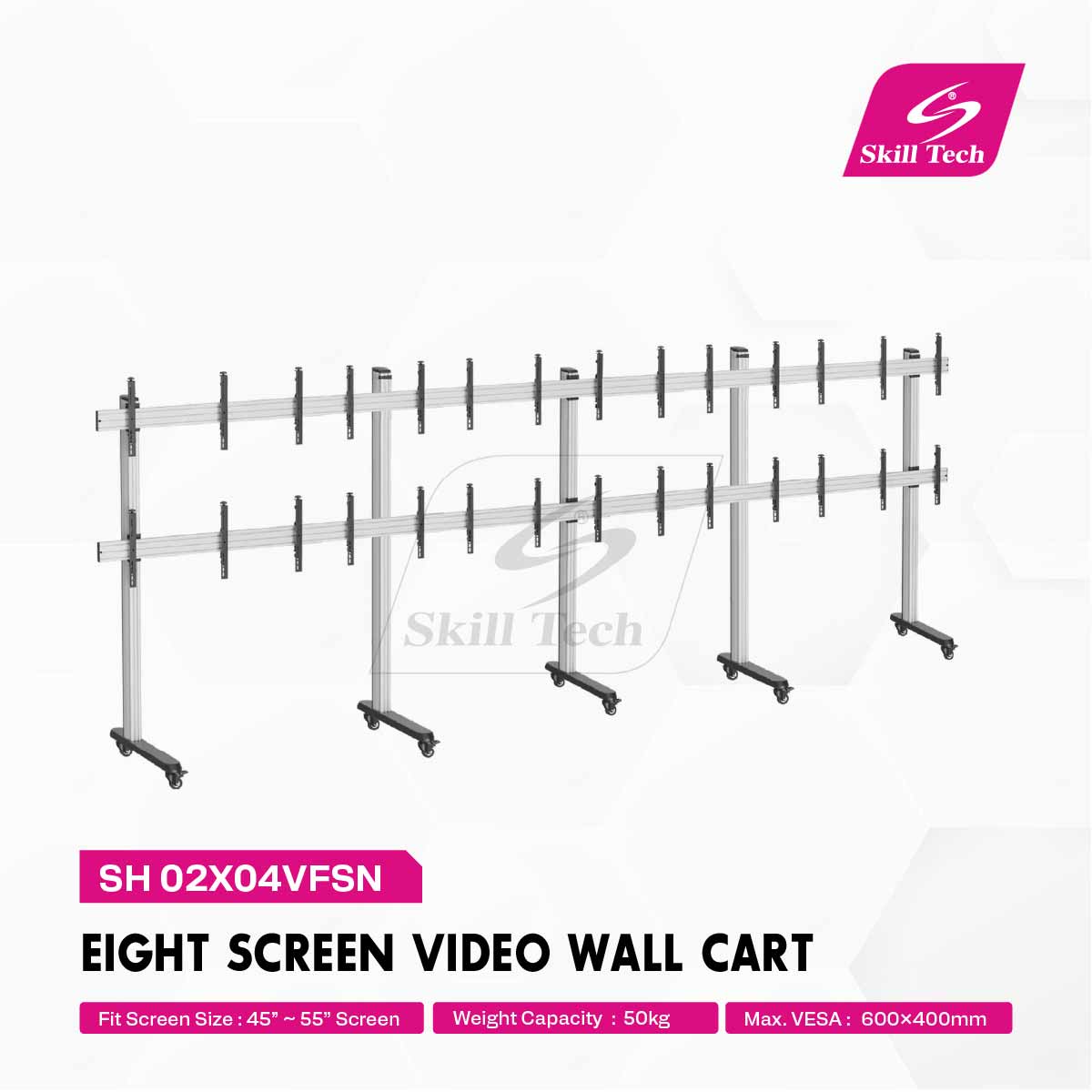

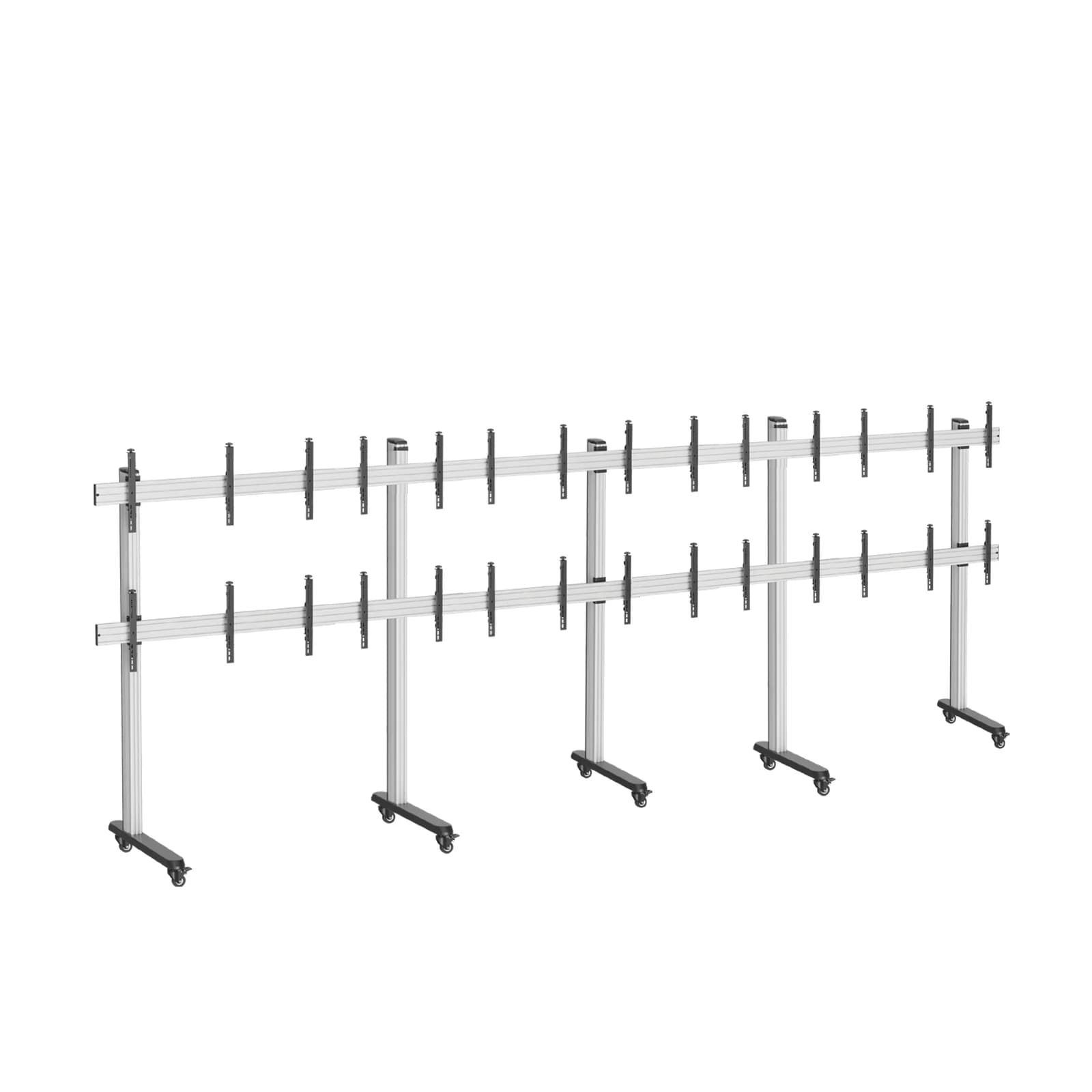

SH 02X04VFSN
Eight Screen Video Wall Cart
Screen Size45''~55''
Max VESA600x400mm
Tilt Range+2° ~ -2°
Cable Management
Weight Capacity8x50kg
Overview
| Product Category | TV Cart & Stand |
|---|---|
| Rank | Standard |
| Material | Steel+Aluminum+Plastic |
| Surface Finish | Powder Coating,Oxidized |
| Column Size | 2232mm |
| Weight Capacity (Screen) | 50kg per screen |
|---|---|
| Screen Qty | 2×4 |
| Tilt Range | +2° ~ -2° |
| Adjustable TV Height | yes |
| Cable Management | yes |
| Product Category | TV Cart & Stand |
|---|---|
| Rank | Standard |
| Material | Steel+Aluminum+Plastic |
| Surface Finish | Powder Coating,Oxidized |
| Column Size | 2232mm |
Features
- 2×4 Screen LayoutSupports eight screens (45″–55″), each up to 50kg with max VESA 600×400mm.
- Adjustable Tilt & HeightOffers ±2° tilt and customizable height for optimal viewing angles.
- Robust ConstructionBuilt from steel, aluminum, and plastic with powder coating and oxidized finish.
- Smooth MobilityEquipped with durable wheels for easy movement and repositioning.
- Integrated Cable ManagementEnsures a clean, organized, and professional display setup.
Description
The SH 02X04VFSN is a sturdy eight-screen video wall cart designed for 45" to 55" displays in a 2×4 configuration. Each mount supports up to 50kg with a maximum VESA of 600×400mm. Constructed from steel, aluminum, and plastic with a powder-coated and oxidized finish, it features ±2° tilt, adjustable TV height, smooth-rolling wheels, and integrated cable management—making it ideal for mobile professional display setups.

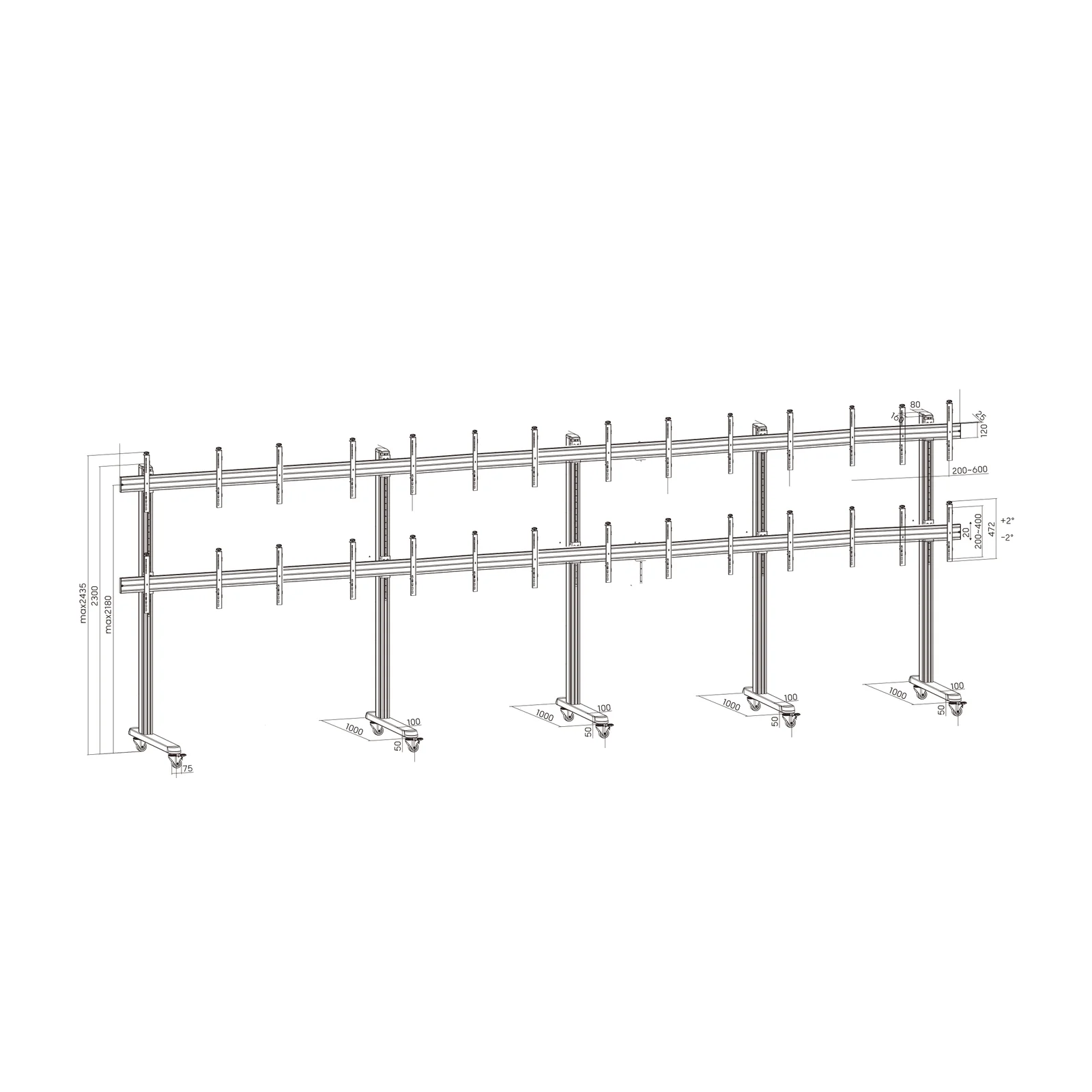

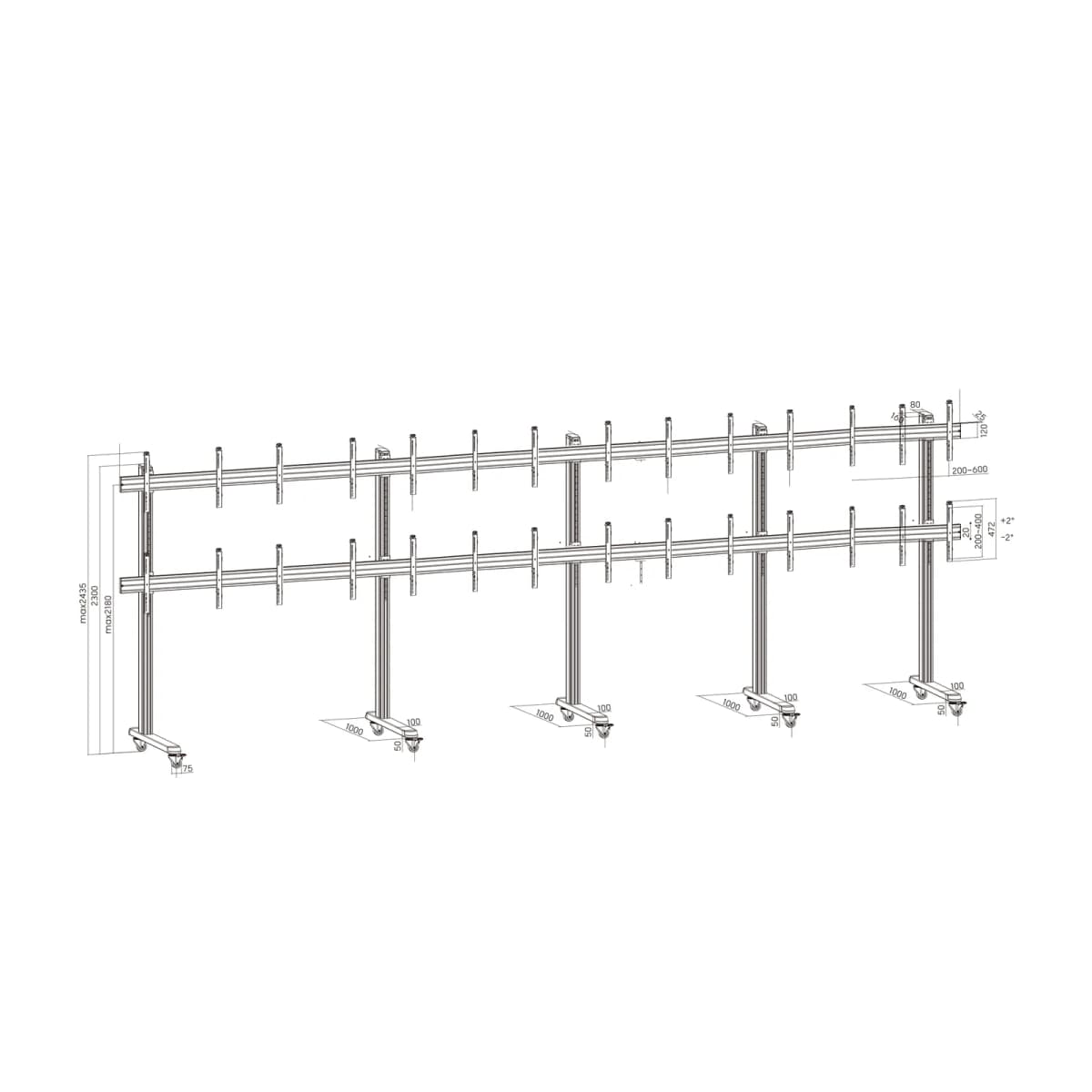

Drawing
