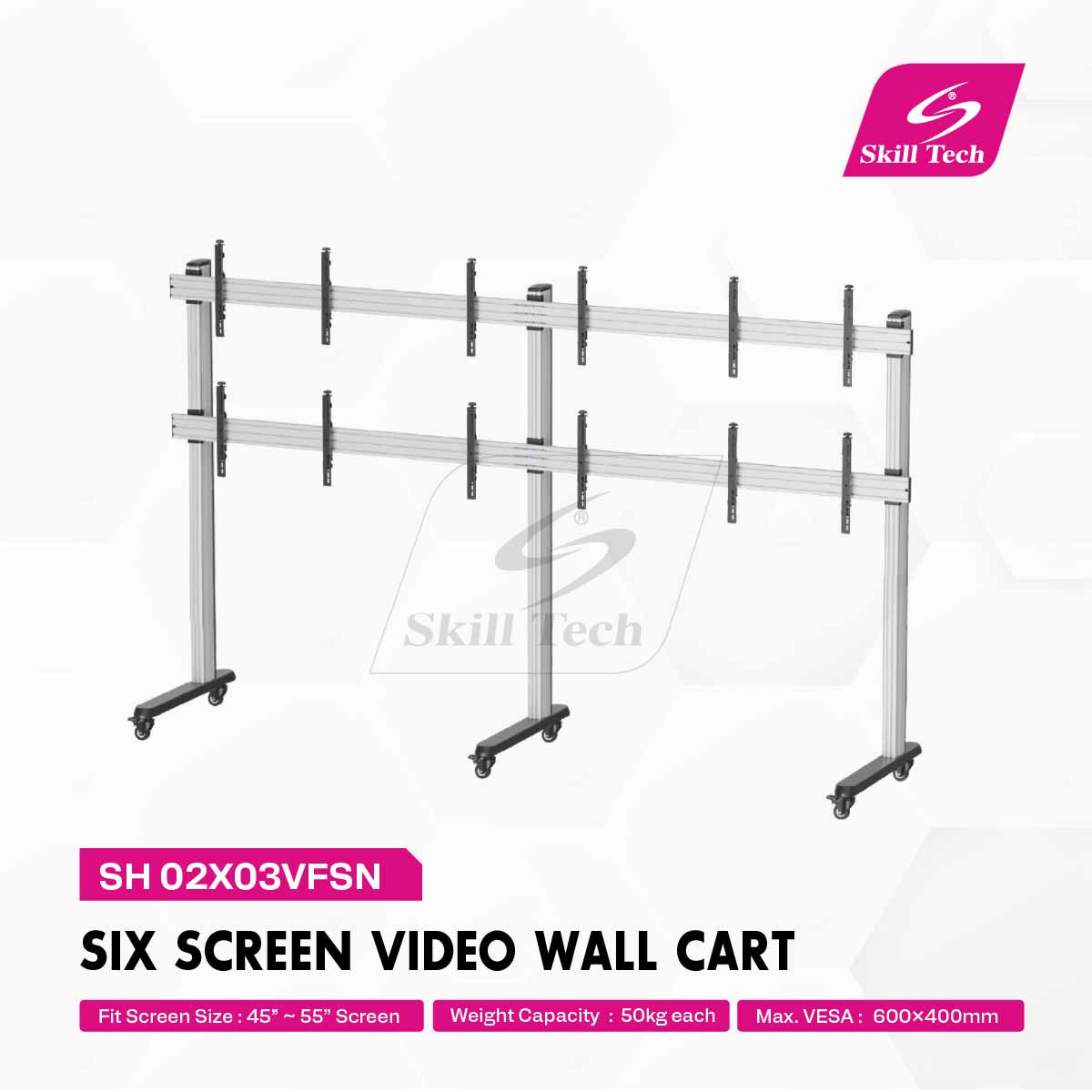

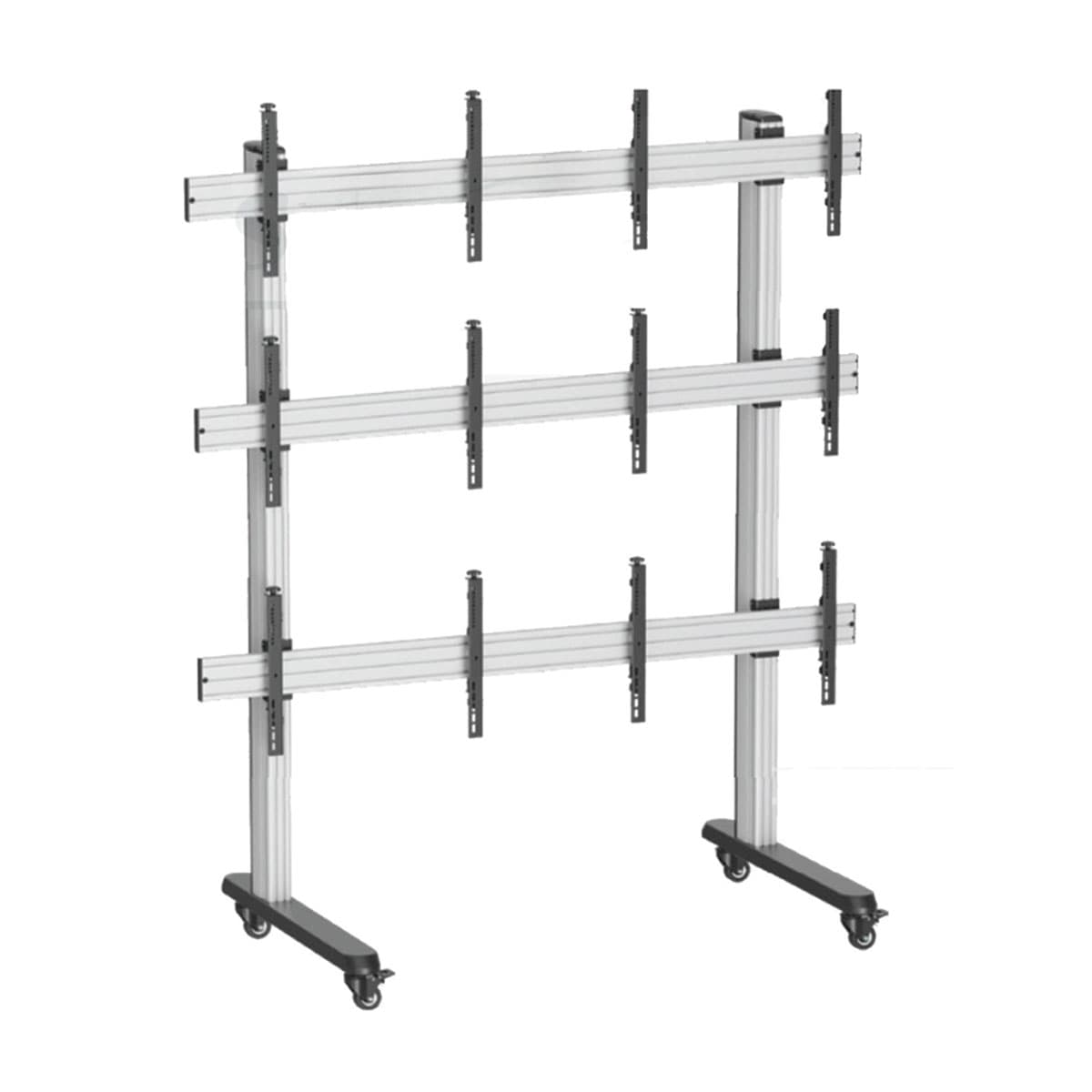

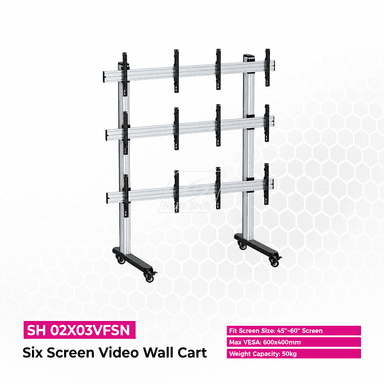

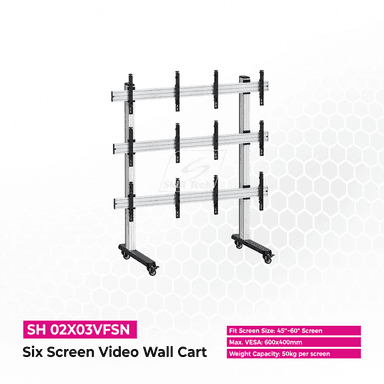

SH 02X03VFSN
Six Screen Video Wall Cart
Screen Size45''~60'
Max VESA600x400mm
Tilt Range+2° ~ -2°
Screen Rotation+3° ~ -3°
Weight Capacity6x50kg
Overview
| Product Category | TV Cart & Stand |
|---|---|
| Rank | Standard |
| Material | Steel+Aluminum+Plastic |
| Surface Finish | Powder Coating,Oxidized |
| Column Size | 1630mm(Total Height:64.2″) |
| Screen Qty | 2×3 |
|---|---|
| Tilt Range | +2° ~ -2° |
| Swivel Range | No |
| Screen Rotation | +3° ~ -3° |
| Adjustable TV Height | yes |
| Product Category | TV Cart & Stand |
|---|---|
| Rank | Standard |
| Material | Steel+Aluminum+Plastic |
| Surface Finish | Powder Coating,Oxidized |
| Column Size | 1630mm(Total Height:64.2″) |
Features
- 2×3 Screen ConfigurationSupports six 45″–60″ screens, each with a 50kg weight capacity and max VESA 600×400mm.
- Tilt and Rotation AdjustmentOffers ±2° tilt and ±3° screen rotation for precise alignment.
- Height Adjustable DesignEasily adjust screen height to meet different viewing needs.
- Strong, Professional BuildMade from steel, aluminum, and plastic with powder-coated and oxidized finish.
- Mobility and Cable ManagementEquipped with wheels and integrated cable routing for a clean, movable setup.
Description
The SH 02X03VFSN is a reliable six-screen video wall cart designed for 45" to 60" displays in a 2×3 configuration. Each screen supports up to 50kg with a max VESA of 600×400mm. Built from steel, aluminum, and plastic with a powder-coated and oxidized finish, it features ±2° tilt, ±3° screen rotation, and adjustable height. Integrated cable management and heavy-duty wheels provide mobility and a clean, professional appearance.

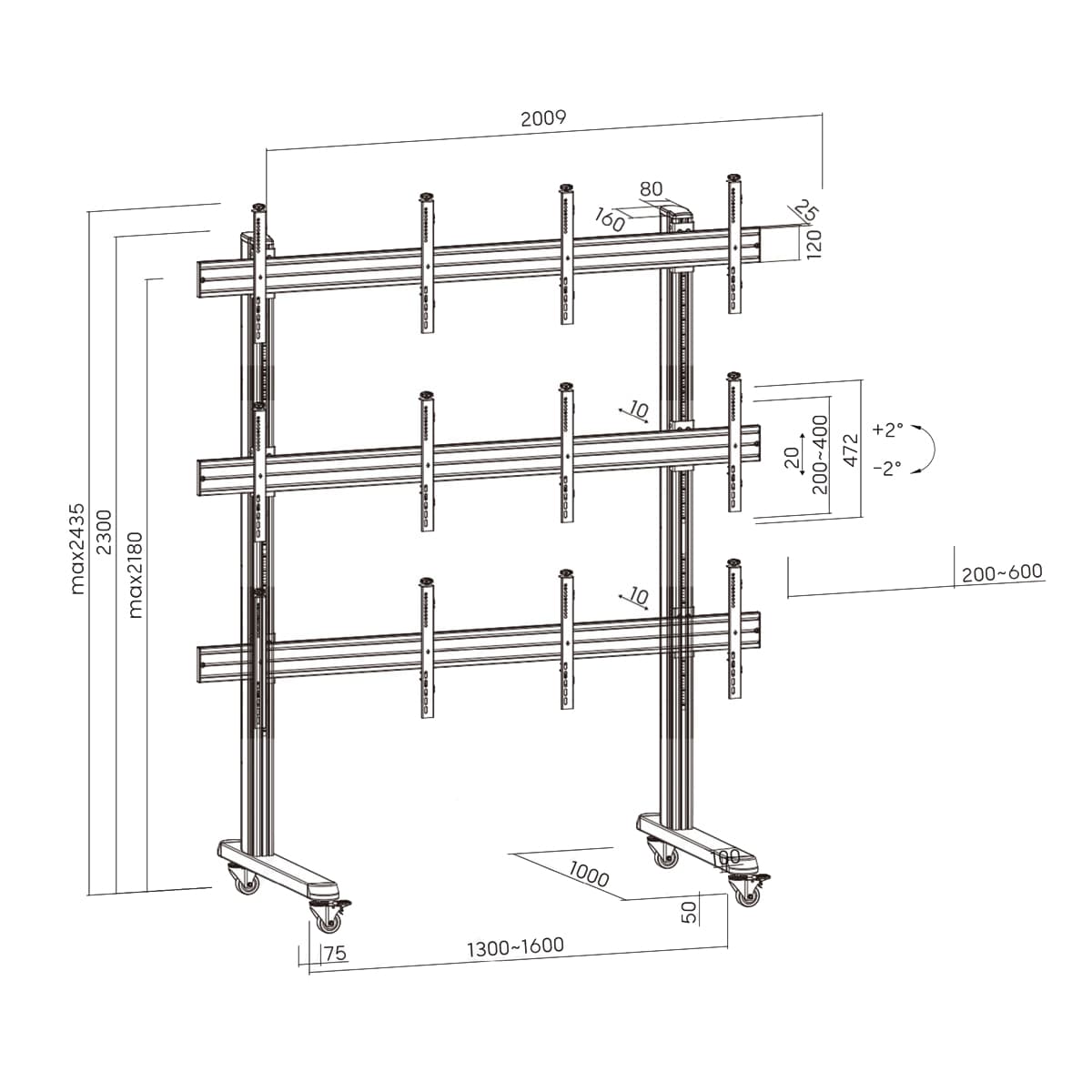

Drawing
