SH53 461P
Gas Spring Fireplace Mantel TV Mount
Screen Size43''~70''
Max VESA600x400mm
Weight Capacity13~33kg
Profile160-587mm
Tilt Range-3° ~ -9°
Overview
| Material | Steel, Plastic |
|---|---|
| Surface Finish | Powder Coating |
| Fit Screen Size | Suitable for Most 43"~70" Screen |
| Max. VESA | 600x400mm |
| Weight Capacity | 13~33kg |
| Tilt Range | -3° ~ -9° |
|---|---|
| Swivel Range | +30°~-30° |
| Screen Level | +3°~-3° |
| Installation | Solid Wall, Double Stud(406mm/450mm/600mm) |
| Cable Management | Yes |
| Material | Steel, Plastic |
|---|---|
| Surface Finish | Powder Coating |
| Fit Screen Size | Suitable for Most 43"~70" Screen |
| Max. VESA | 600x400mm |
| Weight Capacity | 13~33kg |
Features
- Gas Spring Assisted MovementAllows smooth and effortless vertical adjustment for perfect viewing above fireplaces.
- Wide CompatibilityFits most 43" to 70" TVs with VESA patterns up to 600x400mm and supports 13–33kg.
- Full Motion FlexibilityOffers -3° to -9° tilt, ±30° swivel, and ±3° screen leveling for optimal positioning.
- Adjustable Profile DepthExtends from 160mm to 587mm for enhanced reach and versatility.
- Organized InstallationSupports solid wall and double stud mounting (406/450/600mm) with integrated cable management.
Description
The SH 53461P Gas Spring Fireplace Mantel TV Mount is designed for smooth vertical movement and flexible viewing. Supporting 43" to 70" TVs weighing 13–33kg, it features a gas spring mechanism for effortless height adjustment (160–587mm profile). With tilt (-3° to -9°), swivel (±30°), and level (±3°) adjustments, it ensures optimal viewing. Made from steel and plastic with a powder-coated finish, it fits double studs and includes cable management for a clean setup.
Installation Video

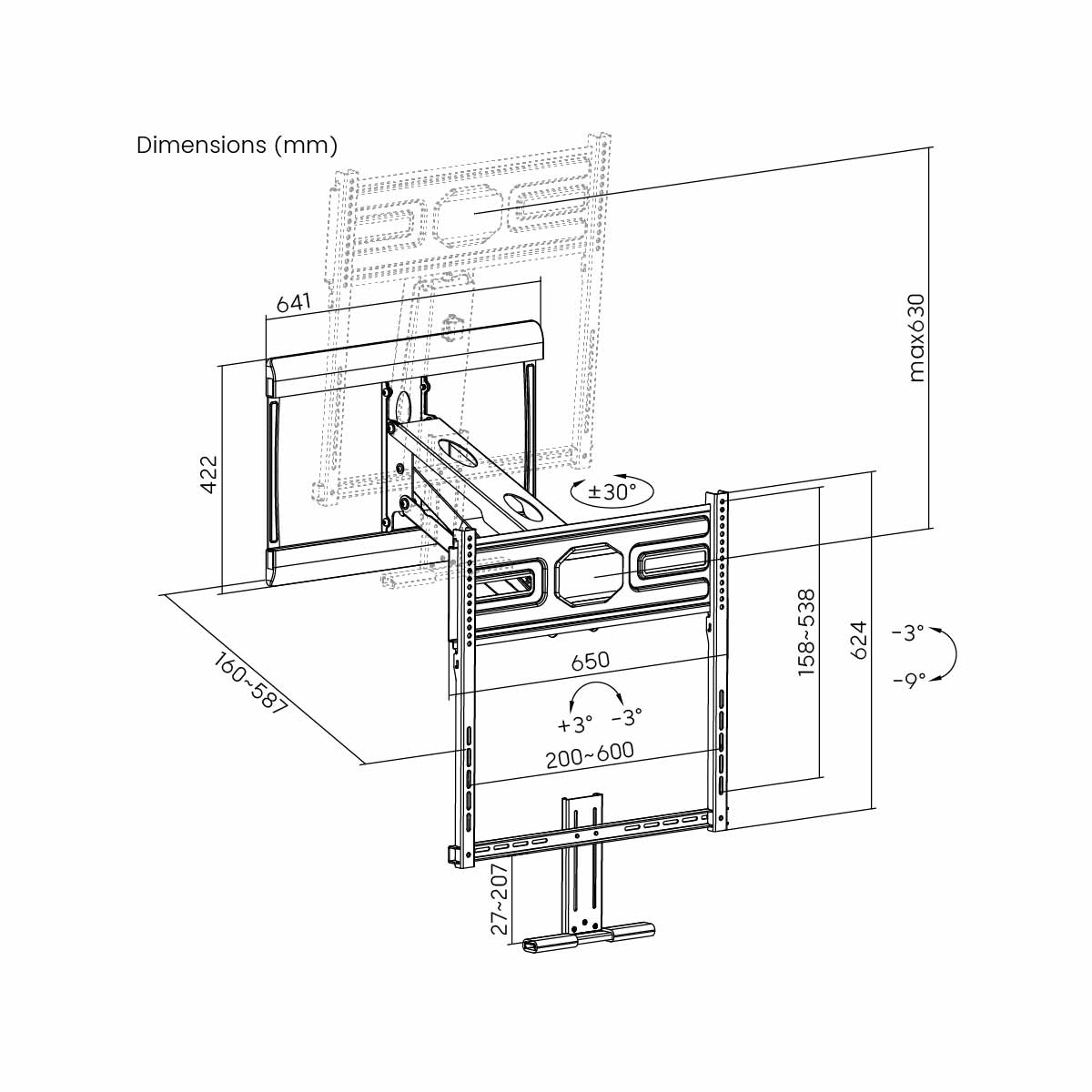

Drawing
