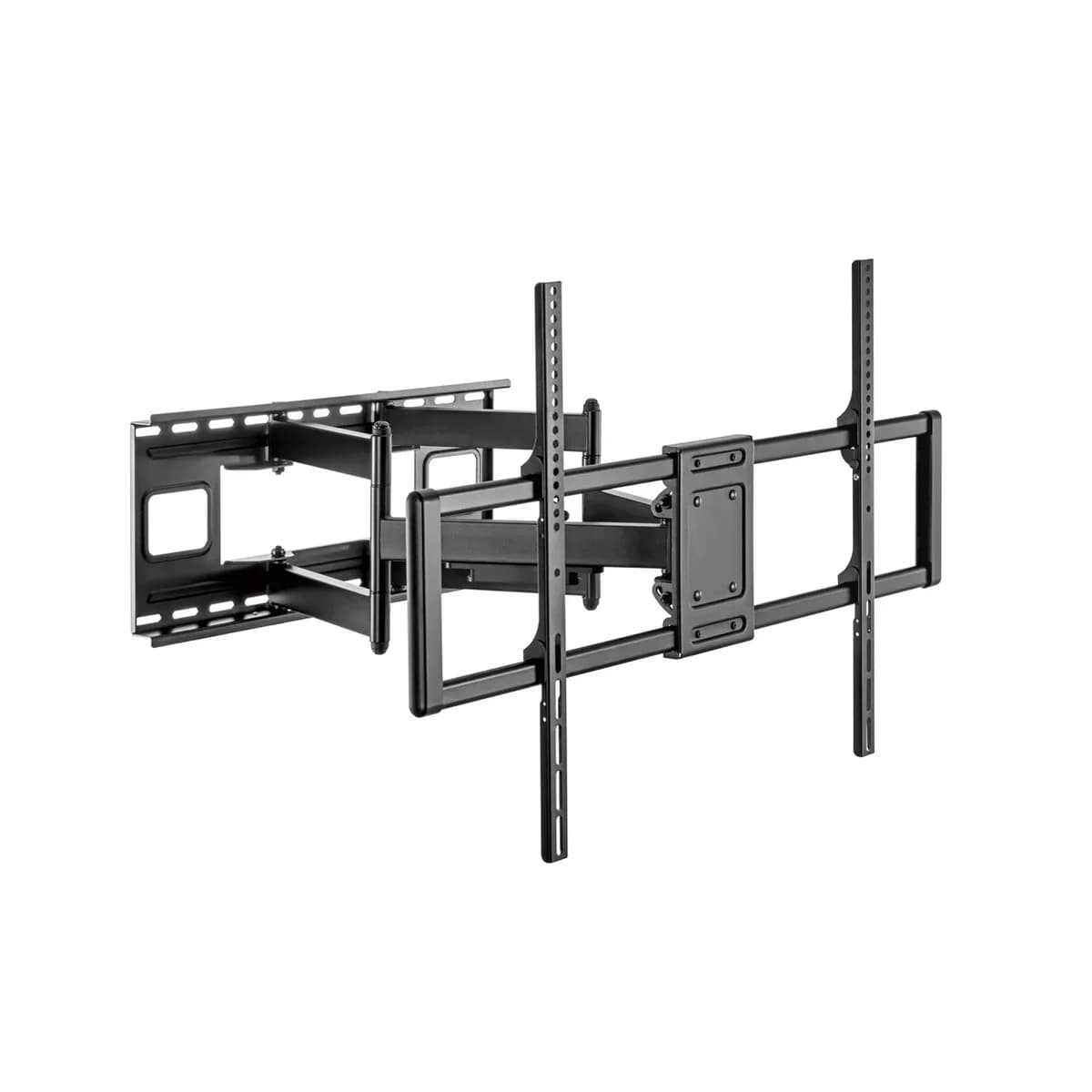

SH 990P
Heavy-Duty Full Motion TV Wall Mount
Screen Size60"~120"
Max VESA900x600mm
Weight Capacity120kg
Profile75-703mm
Tilt Range+5° ~ -15°
Overview
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel |
| Color | Fine Texture Black |
| Dimensions | 703x1010x630mm (27.7"x39.8"x24.8") |
| Mounting Hole Pattern | VESA & Universal |
|---|---|
| Max. VESA | 900X600mm |
| Weight Capacity | 120kg |
| Profile | 75-703mm (3"~27.7") |
| Tilt Range | +5° ~- 15° |
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel |
| Color | Fine Texture Black |
| Dimensions | 703x1010x630mm (27.7"x39.8"x24.8") |
Features
- Heavy-Duty SupportBuilt from solid steel, it holds TVs up to 120kg, ideal for large 60"–120" screens including curved models.
- Wide Motion RangeOffers +5° to -15° tilt, ±60° swivel, and ±5° screen level adjustment for optimal viewing angles.
- Extended ReachAdjustable profile from 75mm to 703mm enables flexible positioning from the wall.
- VESA CompatibilitySupports VESA patterns up to 900x600mm for broad TV model compatibility.
- Premium DimensionsLarge mounting plate (703x1010mm) ensures stability and secure installation on solid walls.
Description
The SH 990P Heavy-Duty Full-Motion TV Wall Mount is built for strength and versatility, supporting most 60" to 120" TVs including curved models. With a robust steel build and 120kg load capacity, it features a wide VESA range up to 900x600mm. Enjoy flexible viewing with +5° to -15° tilt, ±60° swivel, and ±5° screen leveling. Its extendable 75-703mm profile ensures optimal positioning for any large-screen setup.
Installation Video

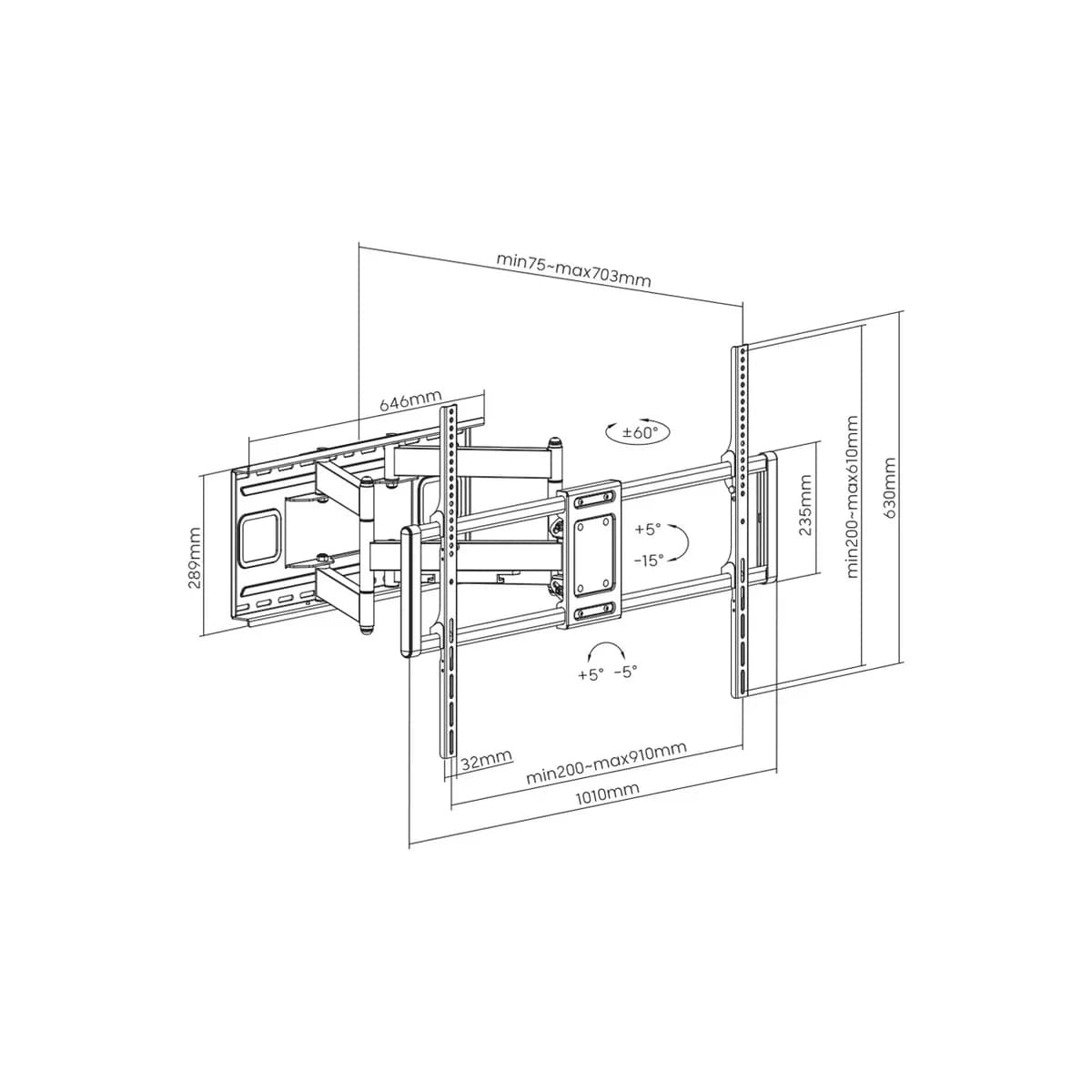

Drawing
