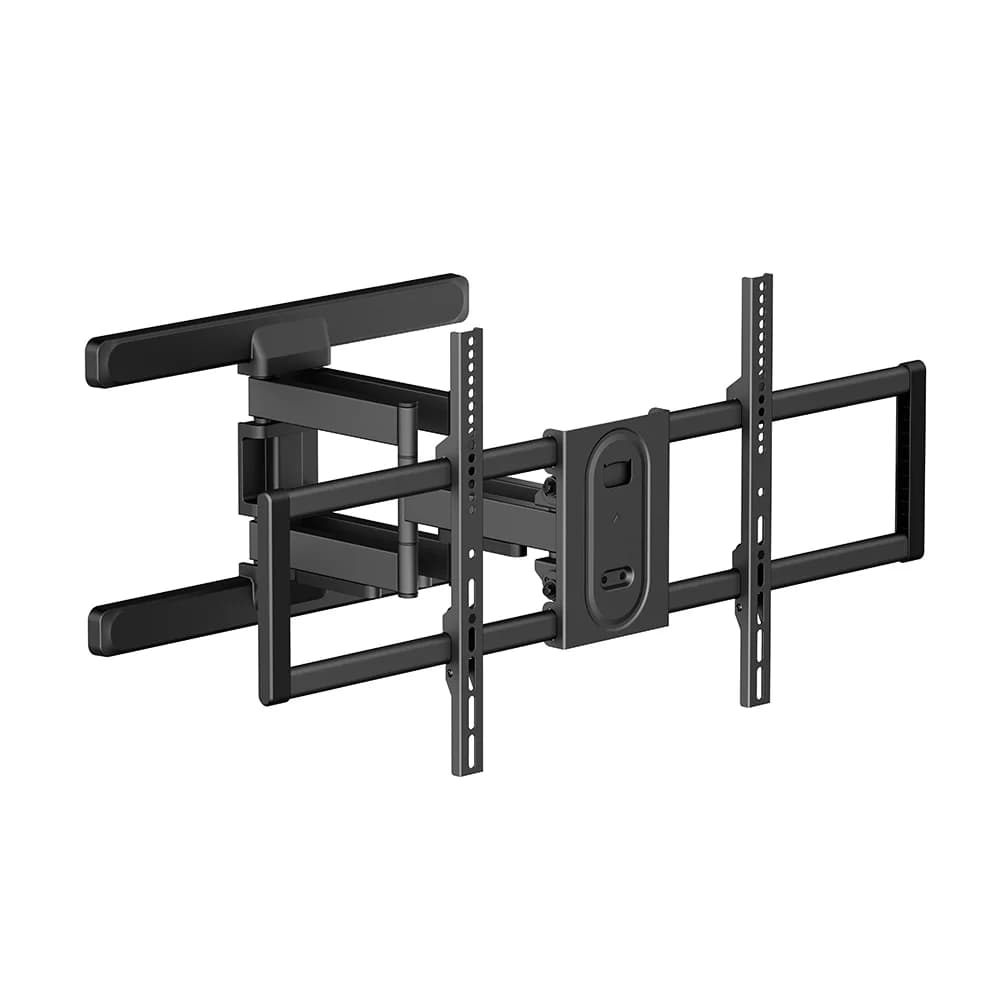

SH 840P
Stylish Full-Motion TV Wall Mount
Screen Size43''~100''
Max VESA800x400mm
Weight Capacity60kg
Profile65-480mm
Tilt Range+5°~-10°
Overview
| Product Category | Full- Motion TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel,Plastic |
| Metal Sheet Thickness | Bracket Arm THK=1.5mm pickling sheet,VESA Panel THK=1.8mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059" pickling sheet,VESA Panel THK=0.071" cold-rolled sheet,Wall Plate THK=0.12" pickling sheet) |
| Pipe Size | 40x20x1.5mm Square Steel Tube (1.6"x0.79"x0.059" Square Steel Tube) |
| Strength Tested | 4 Times Approved |
|---|---|
| Profile | 65-480mm (2.6"-18.9") |
| Tilt Range | +5°~-10° |
| Swivel Range | +60° ~ 60° |
| Screen Level | +3° ~ -3° |
| Product Category | Full- Motion TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel,Plastic |
| Metal Sheet Thickness | Bracket Arm THK=1.5mm pickling sheet,VESA Panel THK=1.8mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059" pickling sheet,VESA Panel THK=0.071" cold-rolled sheet,Wall Plate THK=0.12" pickling sheet) |
| Pipe Size | 40x20x1.5mm Square Steel Tube (1.6"x0.79"x0.059" Square Steel Tube) |
Features
- Durable ConstructionMade of steel and plastic with thick metal sheets (1.5mm bracket arm, 1.8mm VESA panel) for robust support and long-lasting durability.
- Universal CompatibilitySupports most 43" to 100" flat and curved TVs, with a maximum VESA of 800x400mm and a weight capacity of 60kg (132lbs).
- Flexible ViewingOffers tilt range of +5° to -10° and swivel range of ±60° for optimal screen positioning.
- Easy InstallationDesigned for solid wall or double stud installation (406mm/450mm), includes detachable panel and fixed wall plate for secure mounting.
- Cable ManagementFeatures built-in cable management to keep wires organized and out of sight for a clean setup.
Description
The SH 840P Stylish Full-Motion TV Wall Mount offers a sleek and durable solution for mounting 43" to 100" flat and curved TVs. With a weight capacity of 60kg (132lbs) and compatibility with VESA & Universal patterns up to 800x400mm, it allows for +5° to -10° tilt and ±60° swivel for flexible viewing. The mount features a strong steel build, cable management, and a detachable panel for easy installation.
Installation Video

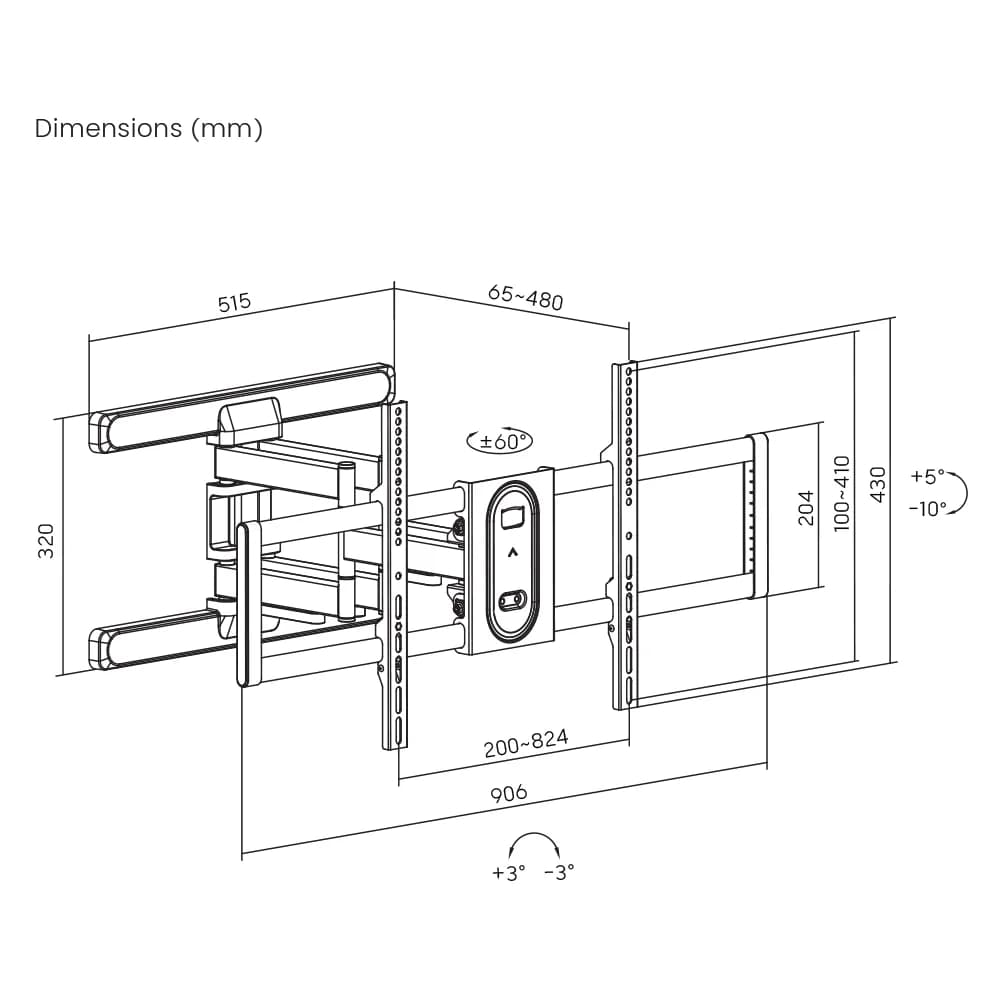

Drawing
