SH 1016P

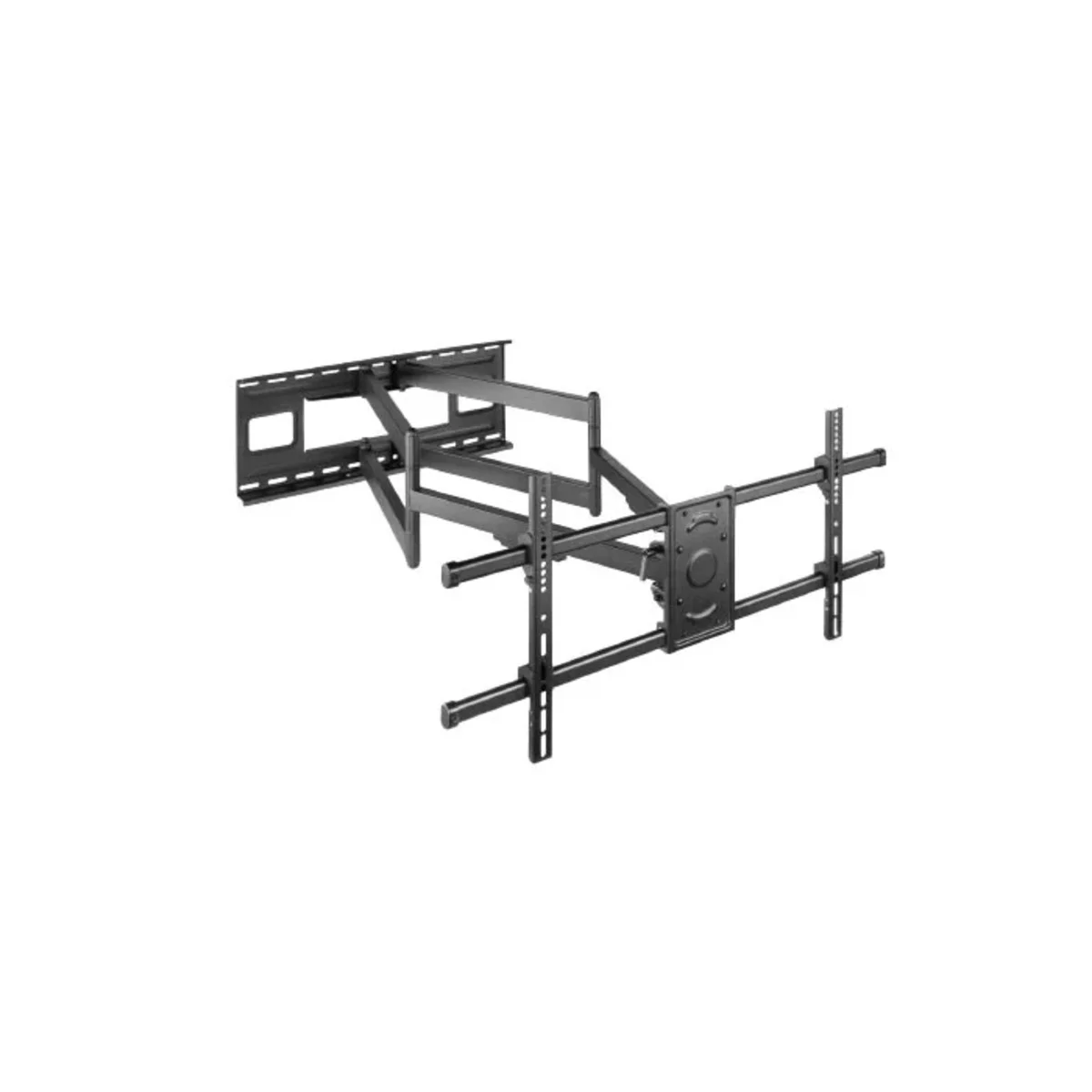

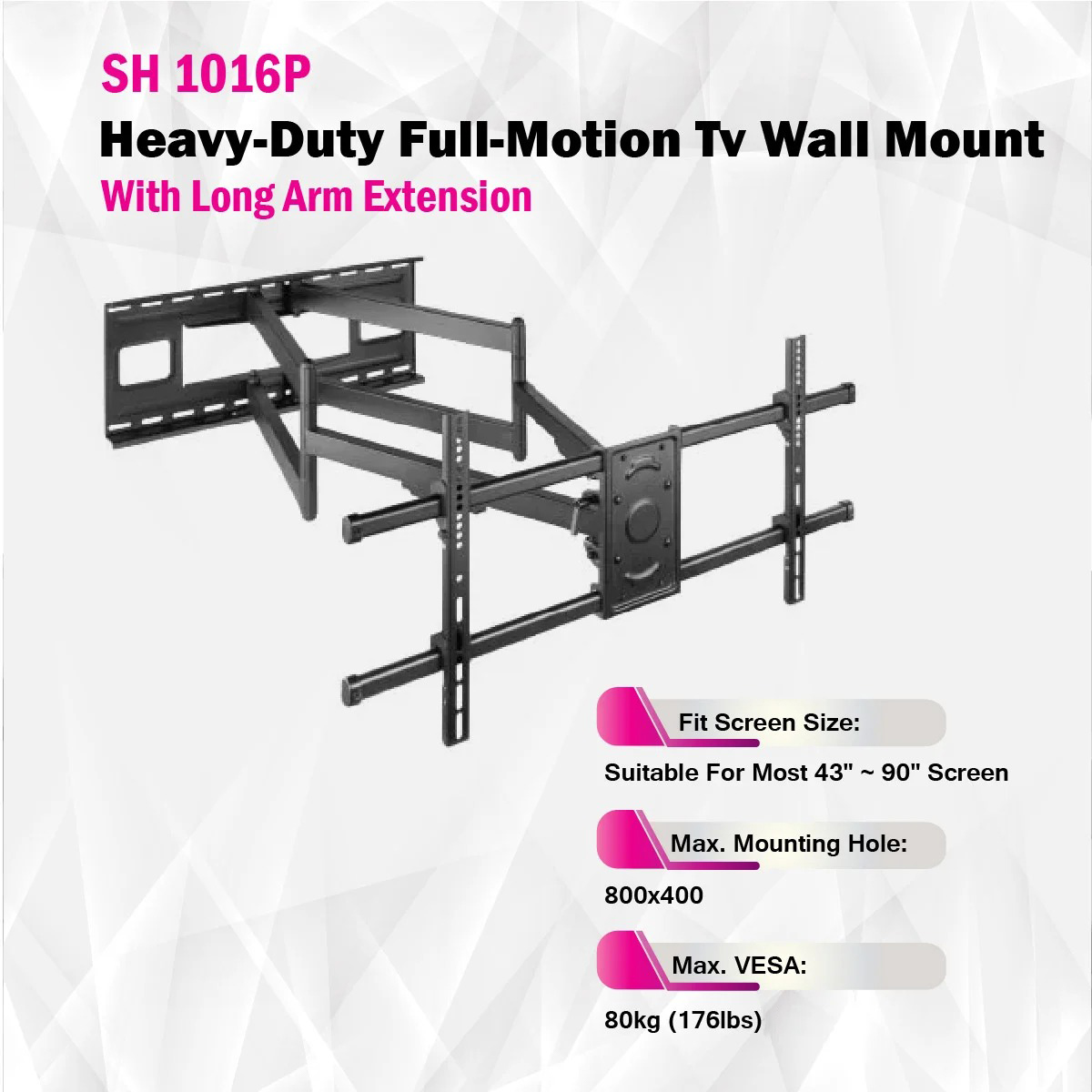

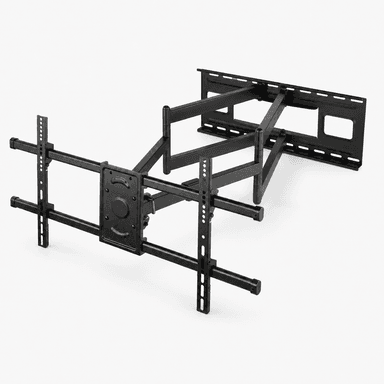

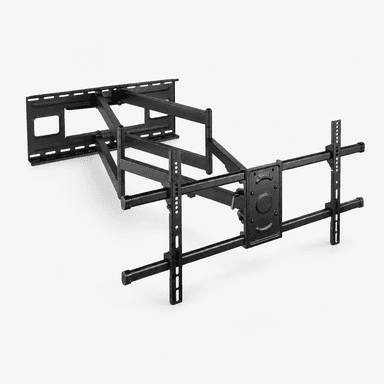

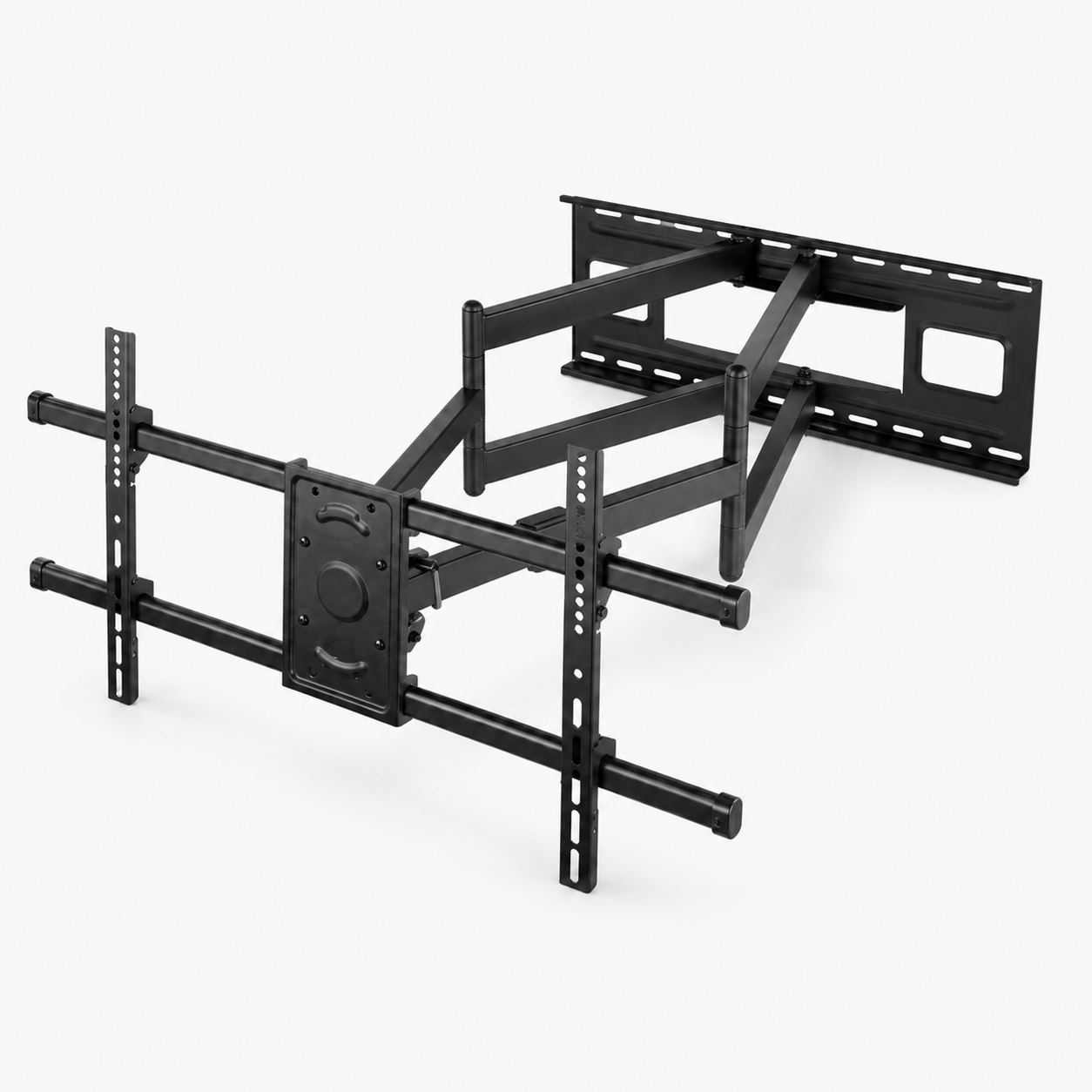

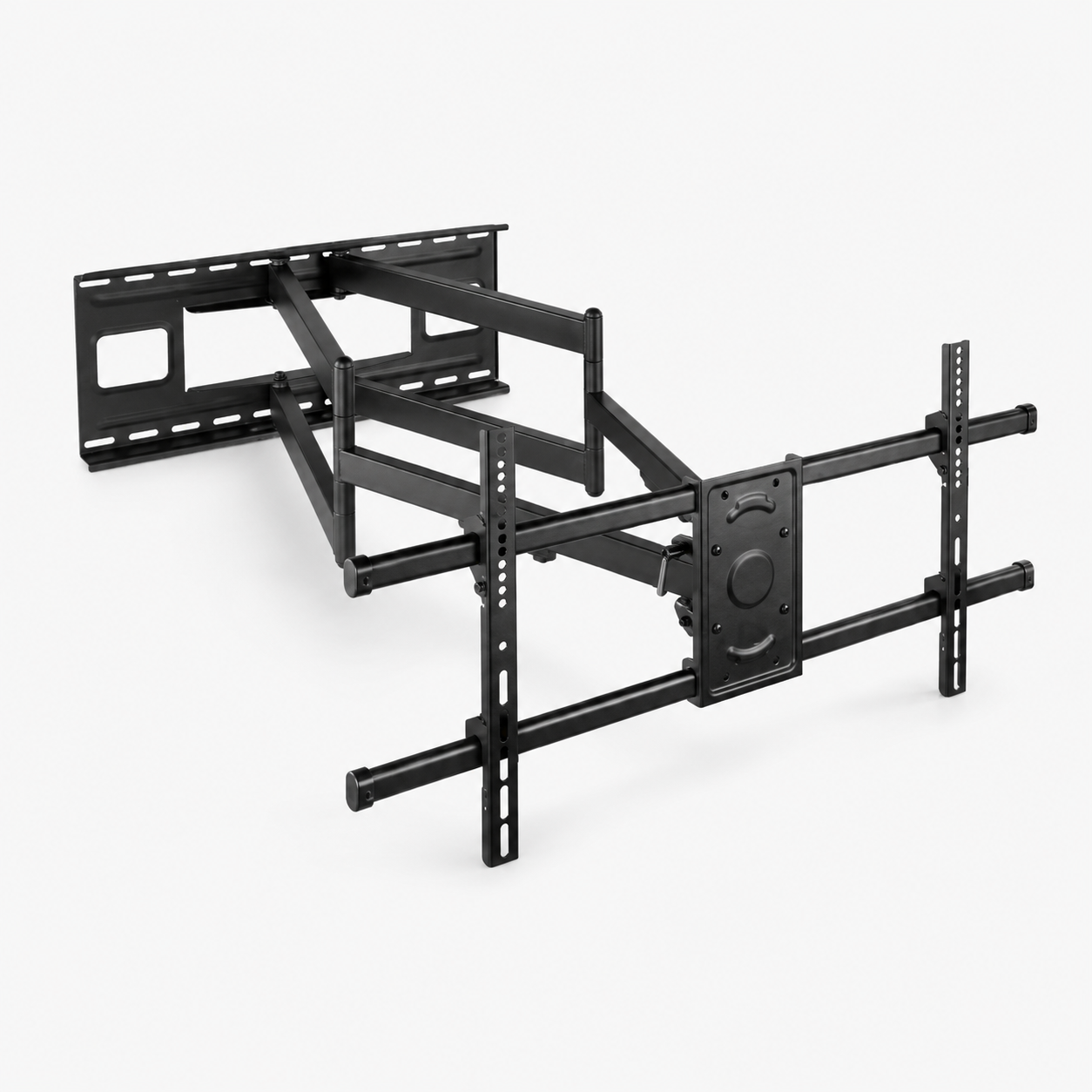

Heavy-Duty Full-Motion TV Wall Mount With Long Arm Extension
Screen Size43"~90"
Max VESA800x400mm
Weight Capacity80kg
Profile69-1044mm
Tilt Range+5° ~ -15°
Overview
| Product Category | Full- Motion TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,VESA Panel THK=0.059" cold-rolled sheet,Wall Plate THK=0.12" pickling sheet) |
| Pipe Size | 40x25x1.5mm Square Steel Tube,50x25x1.5mm Square Steel Tube (1.6"x0.98"x0.059" Square Steel Tube,2"x0.98"x0.059" Square Steel Tube) |
| Strength Tested | 3 Times Approved |
|---|---|
| Profile | 69-1044mm (2.7"~41.1") |
| Tilt Range | +5°~-15° |
| Swivel Range | +60° ~ 60° |
| Screen Level | +3° ~ -3° |
| Product Category | Full- Motion TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.059" cold-rolled sheet,VESA Panel THK=0.059" cold-rolled sheet,Wall Plate THK=0.12" pickling sheet) |
| Pipe Size | 40x25x1.5mm Square Steel Tube,50x25x1.5mm Square Steel Tube (1.6"x0.98"x0.059" Square Steel Tube,2"x0.98"x0.059" Square Steel Tube) |
Features
- Long Arm ExtensionExtends up to 1044mm (41.1") for maximum viewing flexibility and easy access behind the TV.
- High Load CapacitySupports TVs up to 80kg (176lbs), ideal for most 43"–90" screens including curved models.
- Strong Build QualityMade of thick cold-rolled and pickling steel with dual square steel tubes for enhanced durability.
- Full Range MotionOffers +60°/-60° swivel, +5°/-15° tilt, and ±3° screen leveling for optimal viewing angles.
- Enhanced Installation SupportIncludes hook-on bubble level, direction indicator, and is compatible with solid walls and double stud (406mm/450mm/600mm) setups.
Description

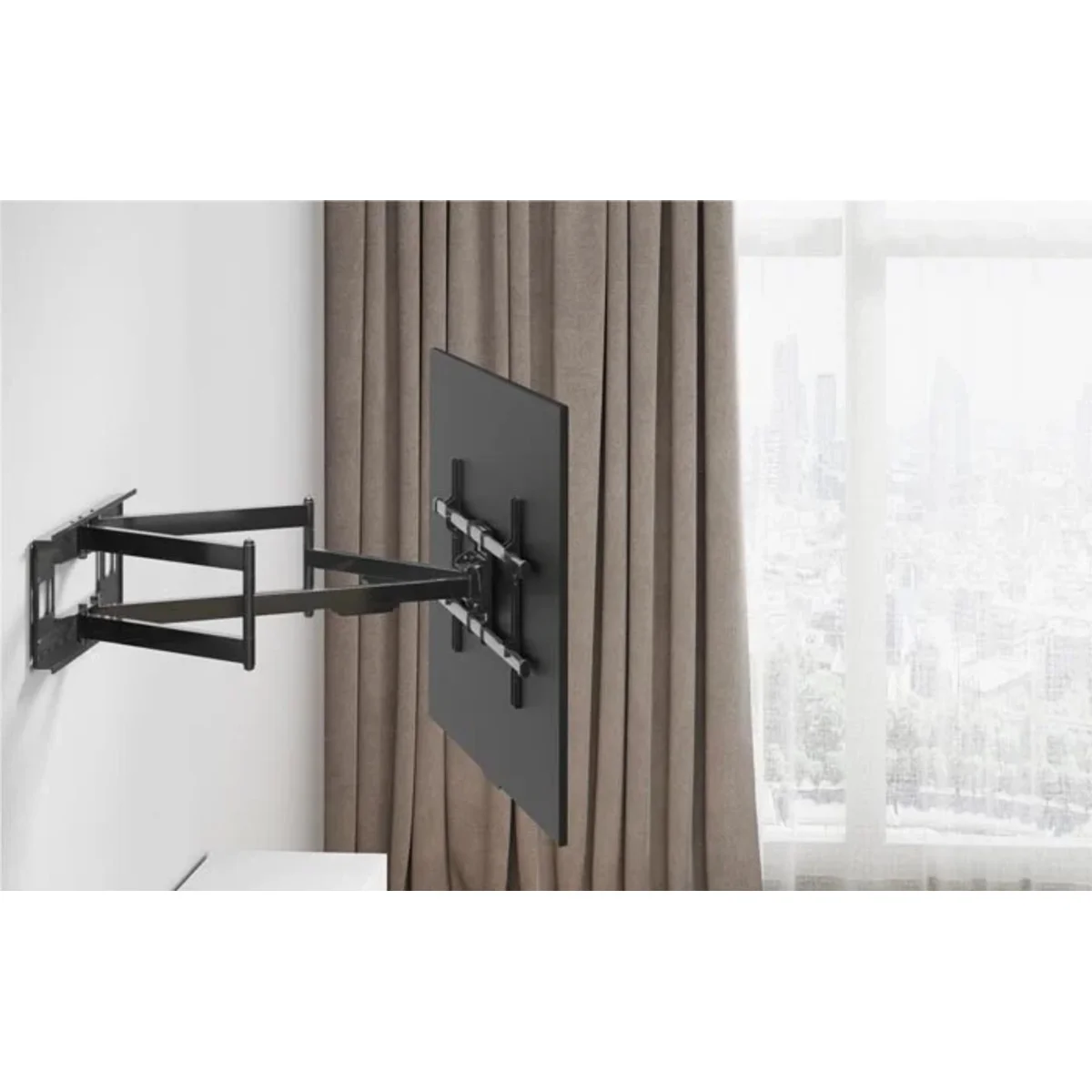

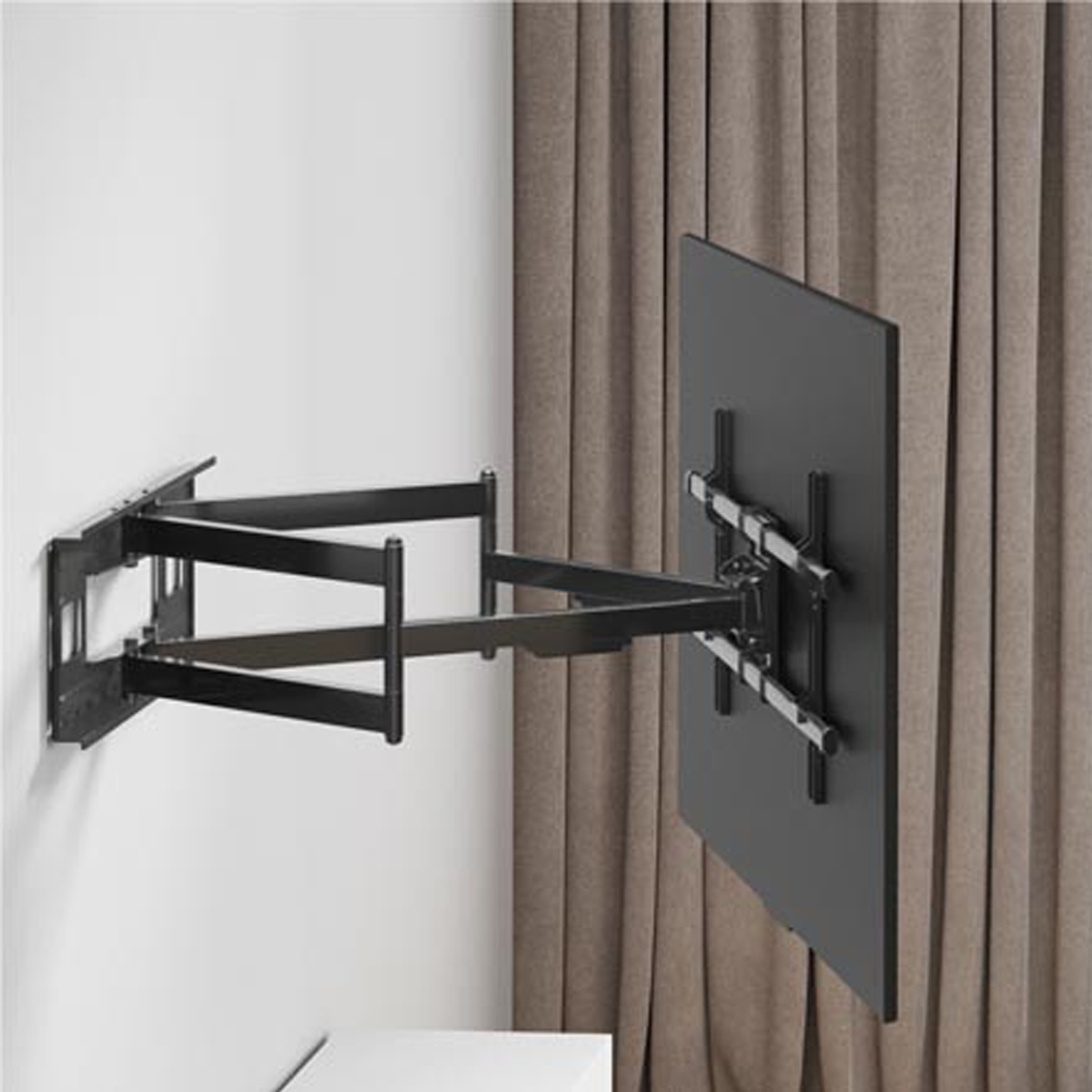

The SH 1016P is a heavy-duty full-motion TV wall mount designed for most 43"–90" screens, including curved TVs. Built with thick cold-rolled and pickling steel, it supports up to 80kg and offers a long arm extension up to 1044mm. Enjoy flexible viewing with ±60° swivel, +5°~-15° tilt, and ±3° screen leveling. Features include integrated cable management, a hook-on bubble level, direction indicator, and compatibility with double stud or solid wall installations.
Installation Video

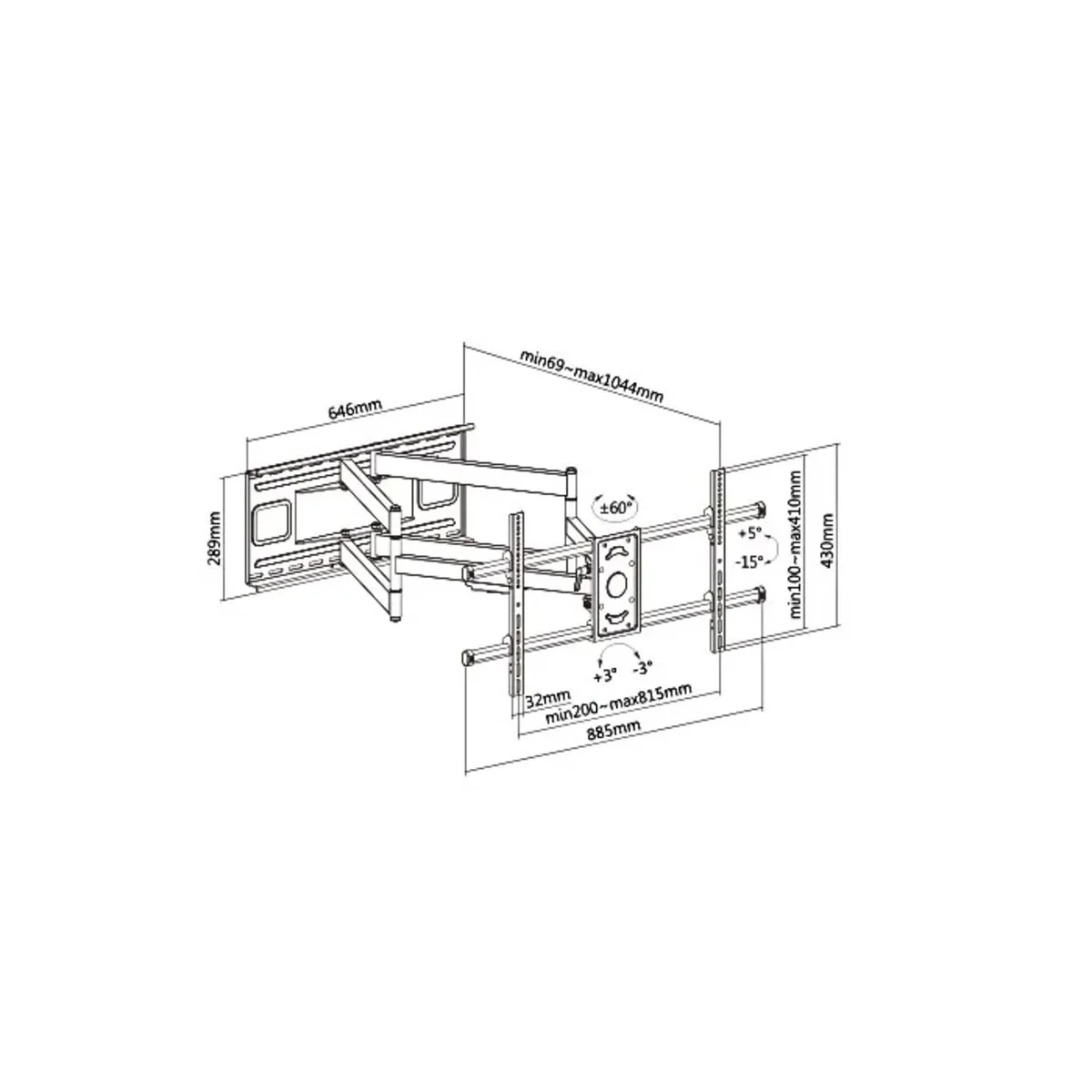

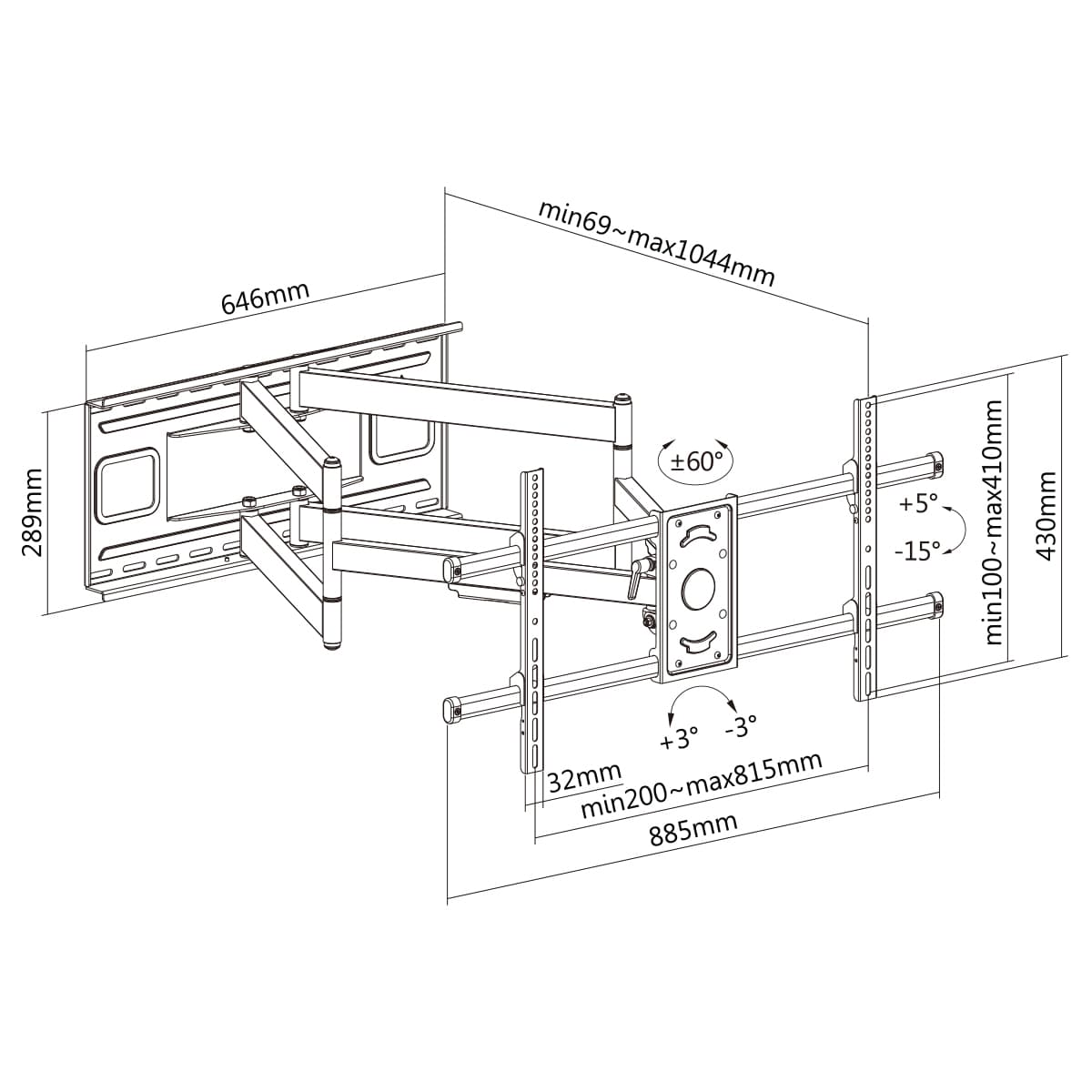

Drawing
