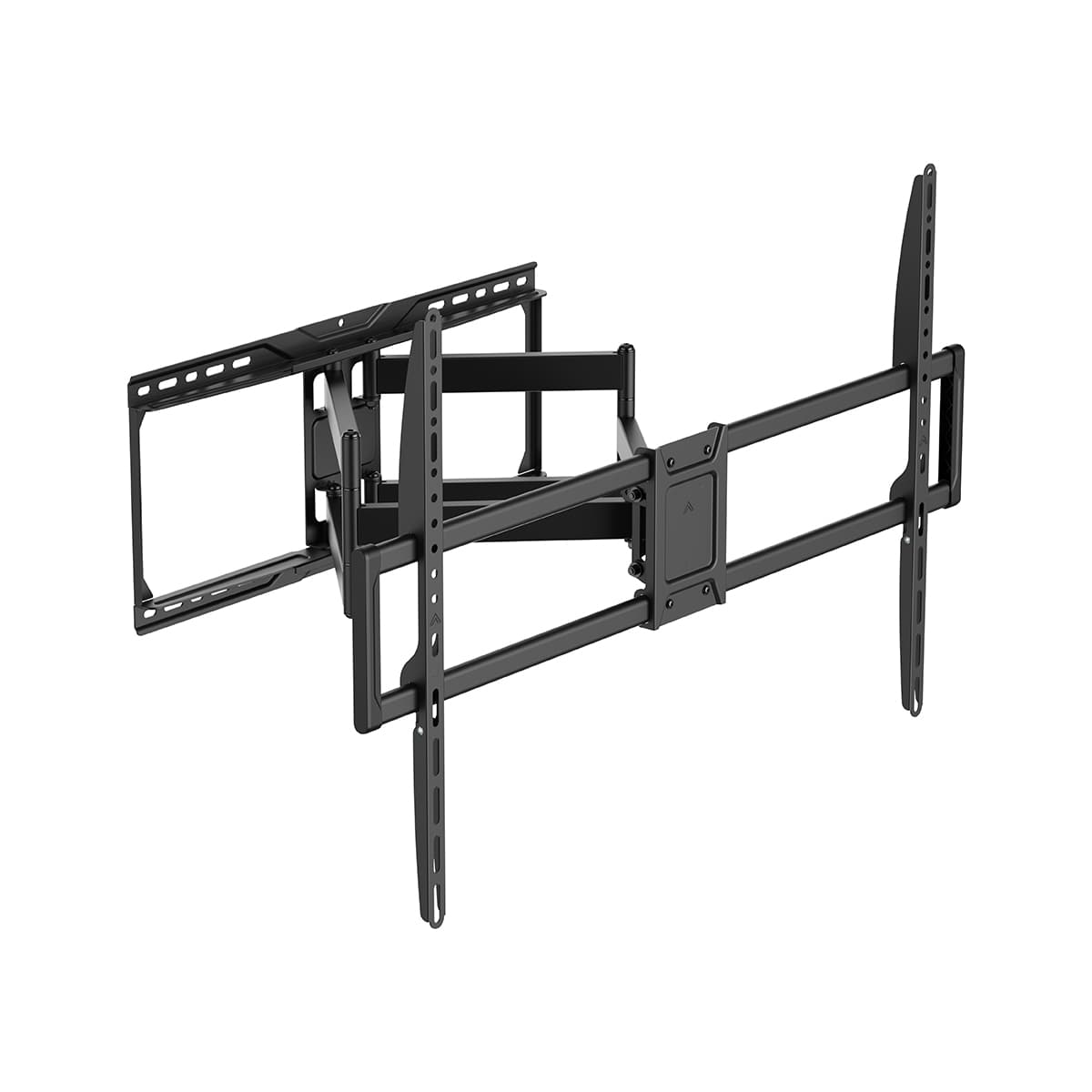

SH 940P
Heavy-Duty Full Motion TV Wall Mount
Screen Size50"~100"
Weight Capacity75kg
Max VESA900x600mm
Profile70-638mm
Tilt Range+5°~-15°
Overview
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Heavy-Duty Steel |
| Color | Black |
| Fit Screen Size | Suitable for most 50" ~ 100" Screen |
| Weight Capacity | 75kg |
|---|---|
| Profile | 70-638mm |
| Tilt Range | +5°~-15° |
| Swivel Range | +60° ~ 60° |
| Screen Level | +3° ~ -3° |
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Heavy-Duty Steel |
| Color | Black |
| Fit Screen Size | Suitable for most 50" ~ 100" Screen |
Features
- Heavy-Duty ConstructionBuilt with high-strength, enhanced durability, and long-lasting performance, providing secure and reliable support for large TVs up to 75kg (165lbs).
- Full Motion FlexibilitySwivel, tilt, extend, and level your TV for the perfect viewing angle and reduced glare.
- Wide TV CompatibilitySupports most 50"–100" flat and curved TVs with VESA patterns up to 900×600.
- Integrated Cable ManagementConceals cables neatly for a clean, organized, and professional-looking installation.
- Easy & Secure InstallationIncludes a user-friendly mounting design for quick setup and reliable long-term performance.
Description
The SH 940P Heavy-Duty Full Motion TV Wall Mount Is designed to support most 50~100-inch TVs with a maximum load capacity of 75kg (165lbs). Featuring full-motion swivel, tilt, extension, and leveling adjustments, it delivers flexible viewing from any angle. Its heavy-duty steel construction ensures exceptional strength and durability, while integrated cable management, VESA compatibility up to 900×600, and easy installation provide a clean, secure, and professional mounting solution.
Installation Video

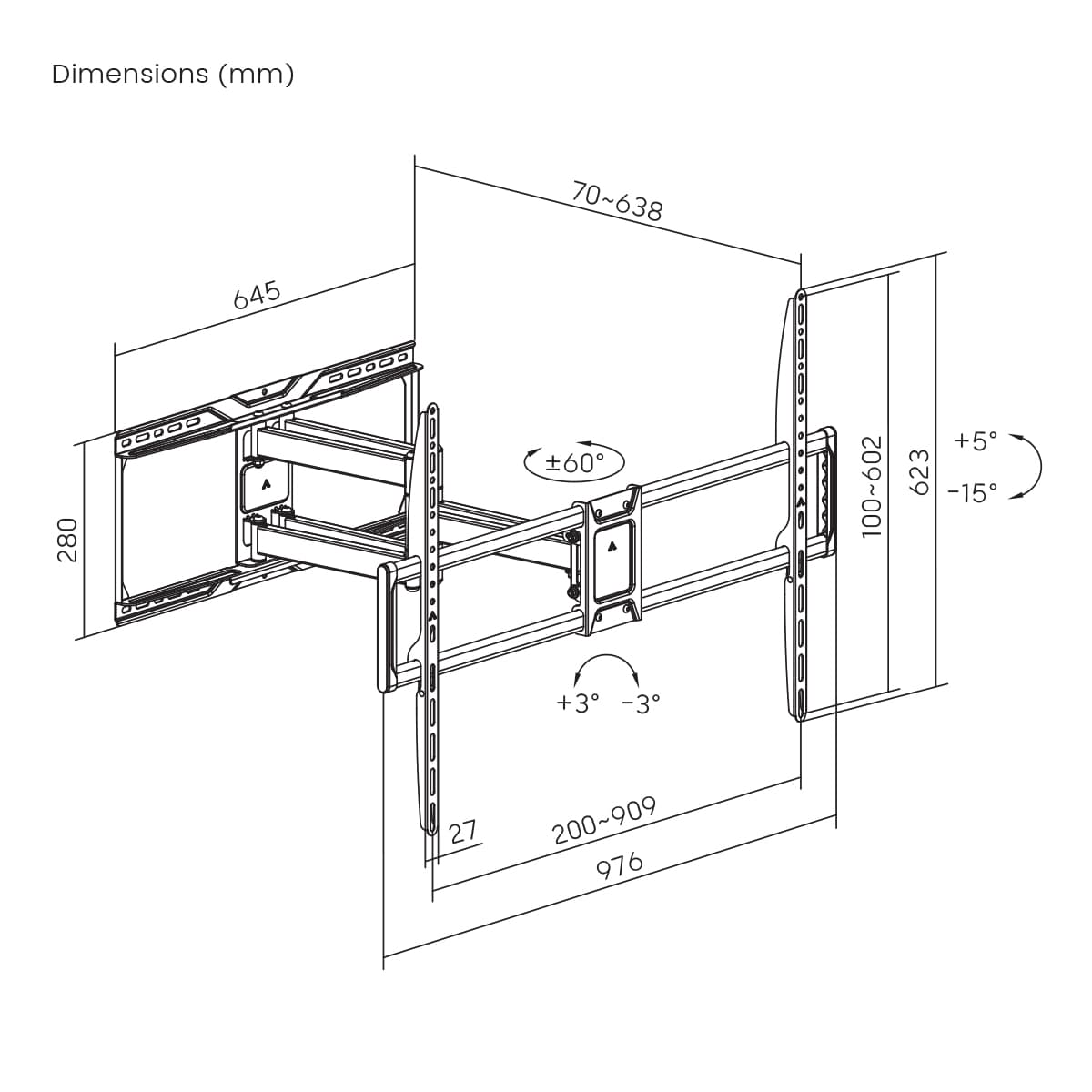

Drawing
