SH 960P

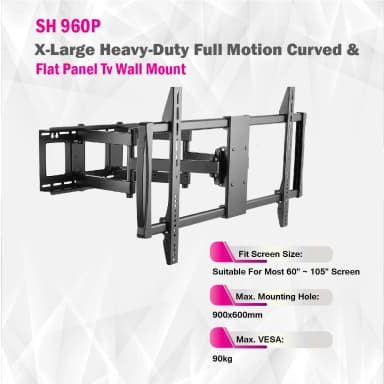

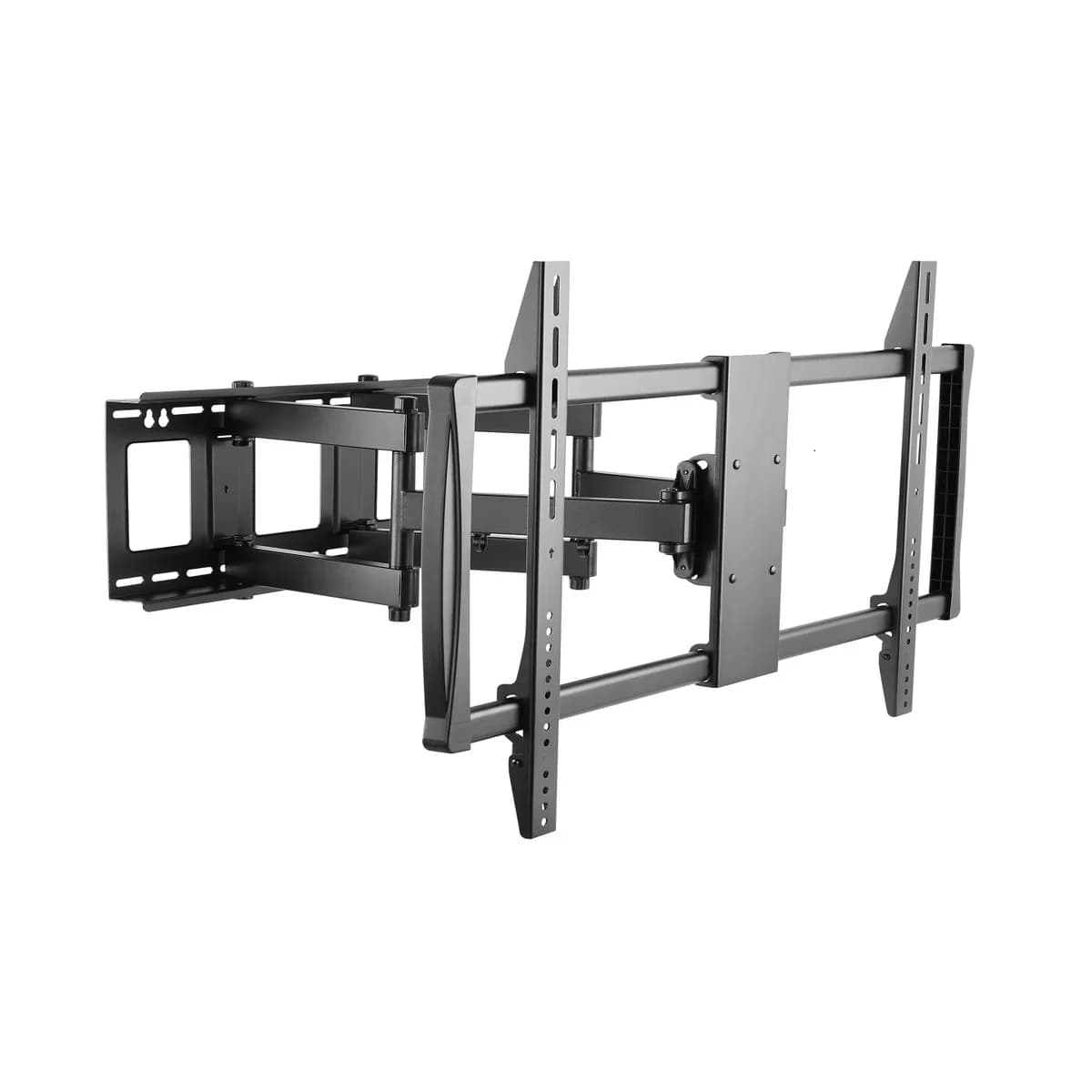

X-Large Heavy-Duty Full Motion Curved & Flat Panel TV Wall Mount
Screen Size60”~105”
Max VESA900x600mm
Weight Capacity90kg
Profile70-625mm
Tilt Range+5° ~ -15°
Overview
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel,Aluminum,Plastic |
| Pipe Size | 25x50mm (0.98"x2") |
| Surface Finish | Powder Coating |
| Weight Capacity | 90kg |
|---|---|
| Strength Tested | 4 Times Approved |
| Profile | 70-625mm |
| Tilt Range | +5°~-15° |
| Swivel Range | +45° ~ 45° |
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel,Aluminum,Plastic |
| Pipe Size | 25x50mm (0.98"x2") |
| Surface Finish | Powder Coating |
Features
- Heavy-Duty ConstructionBuilt with steel, aluminum, and plastic for superior strength and durability, supporting TVs up to 90kg.
- Wide CompatibilityFits most 60"–105" flat and curved screens with VESA and universal mounting patterns up to 900x600mm.
- Full Motion FlexibilityOffers +5° to -15° tilt, ±45° swivel, and ±3° level adjustment for optimal viewing angles.
- Extended Reach & Low ProfileAdjustable profile from 70mm to 625mm, ideal for both close-to-wall and extended setups.
- Secure Installation & Cable ManagementDesigned for double stud or solid wall mounting with integrated cable management for a clean setup.
Description
The SH 960P is a heavy-duty full-motion TV wall mount designed for large flat and curved screens from 60" to 105". Made of durable steel, aluminum, and plastic, it supports up to 90kg with VESA and universal compatibility up to 900x600mm. Featuring a +5° to -15° tilt, ±45° swivel, and ±3° screen leveling, it offers flexible viewing. Its double-stud installation and cable management ensure secure, clean setup for home or commercial use.
Installation Video

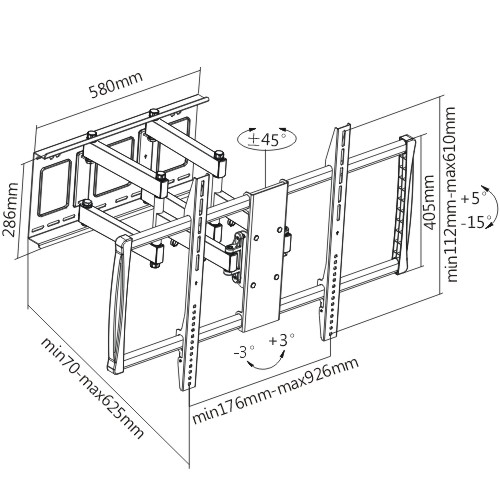

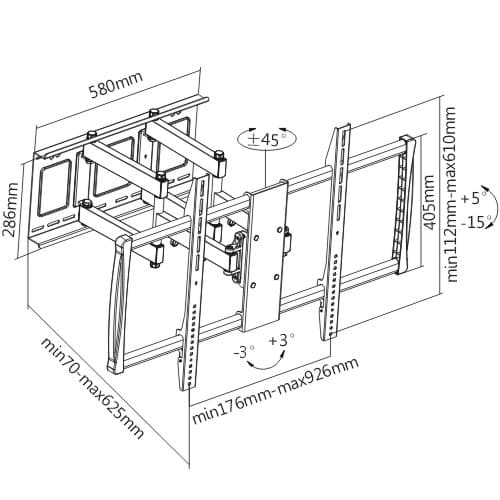

Drawing
