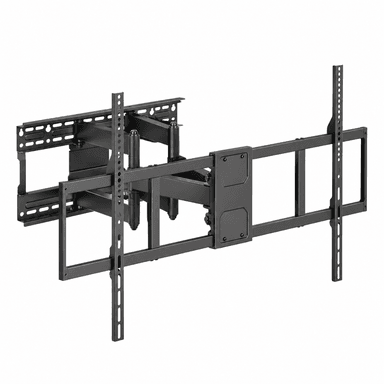

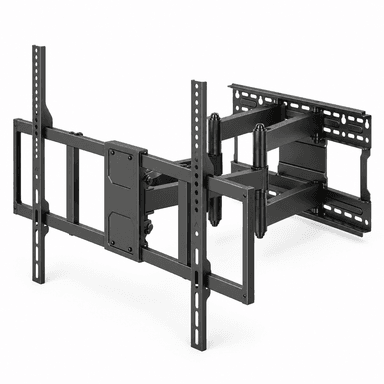

SH 126P

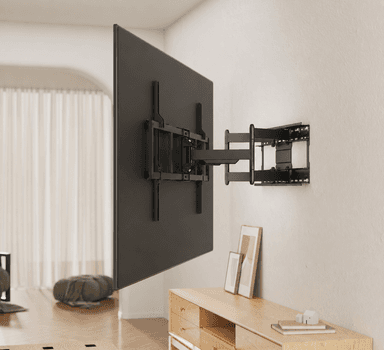

Heavy-Duty Full-Motion TV Wall Mount
Screen Size60''~140''
Weight Capacity125kg
Tilt Range+5°~-15°
Profile78~635mm
Max VESA1200x600mm
Overview
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm THK=2mm cold-rolled sheet,VESA Panel THK=2mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |
| Tilt Range | +5°~-15° |
|---|---|
| Swivel Range | +60°~-60° |
| Screen Level | +5°~-5° |
| Installation | Dual Stud(16inch/18inch/24inch),Solid Wall |
| Panel Type | Detachable Panel |
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm THK=2mm cold-rolled sheet,VESA Panel THK=2mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |
Features
- Supports Large Displays up to 140"Designed for extra-large screens, providing reliable support for TVs and displays up to 140 inches.
- Heavy-Duty 125kg Weight CapacityRobust steel construction securely holds heavy displays up to 125kg for dependable performance.
- Full-Motion Viewing FlexibilityTilt, swivel, and screen-level adjustments allow precise positioning for the best viewing experience.

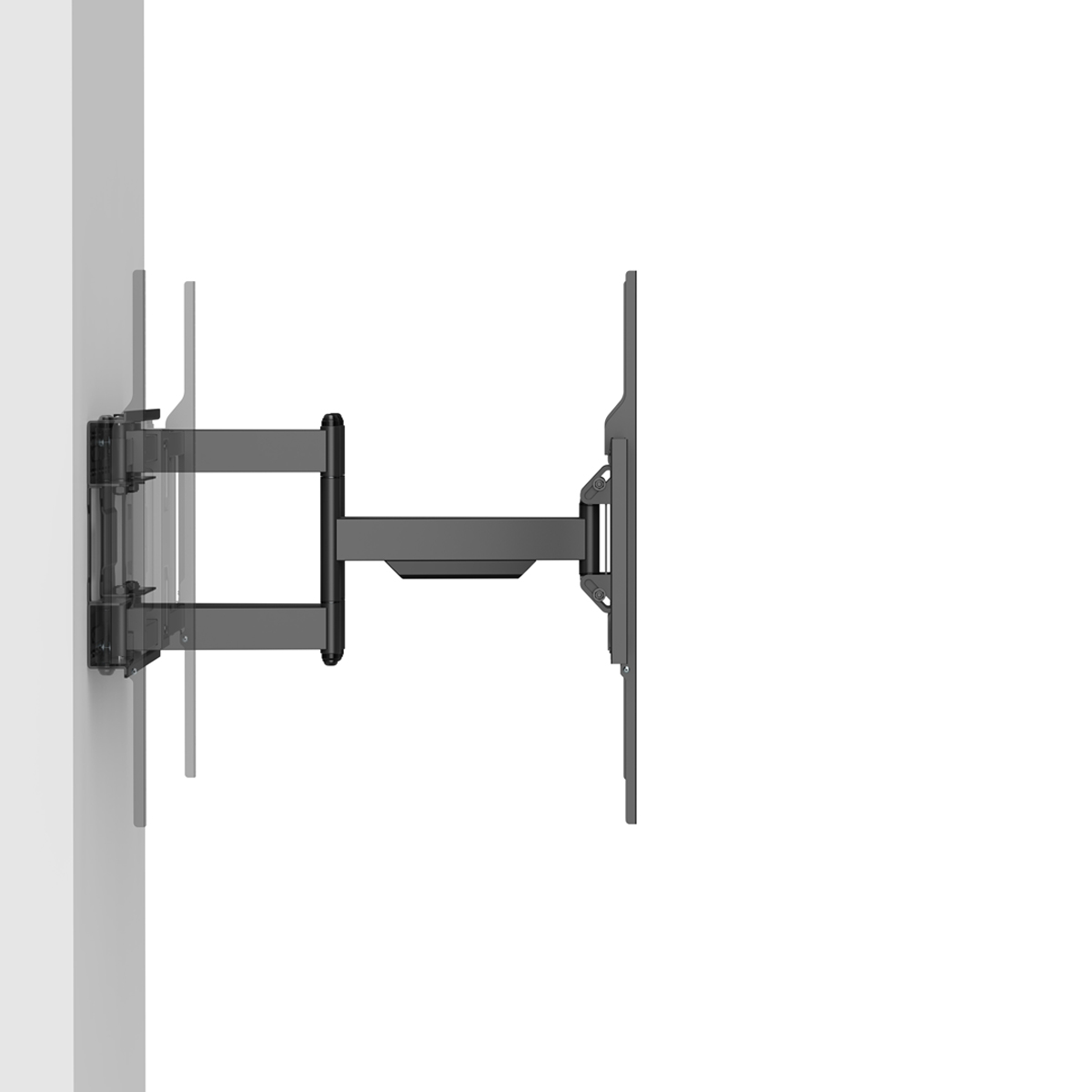

- Extended Reach Arm DesignLong extension arm offers greater viewing flexibility while maintaining excellent stability and support.
- Integrated Cable ManagementBuilt-in cable routing keeps wires organized and concealed for a clean, professional installation.
Description
The SH 126P is a heavy-duty full-motion wall mount designed for large displays up to 140". Built with durable steel construction, it supports screens weighing up to 125kg while providing smooth tilt, swivel, and screen-level adjustments for optimal viewing. Its extended-reach arm offers flexible positioning without sacrificing stability. Dual-stud installation ensures a secure fit on various wall types, and integrated cable management keeps wires neatly organized for a clean, professional appearance.
Installation Video
Product Video

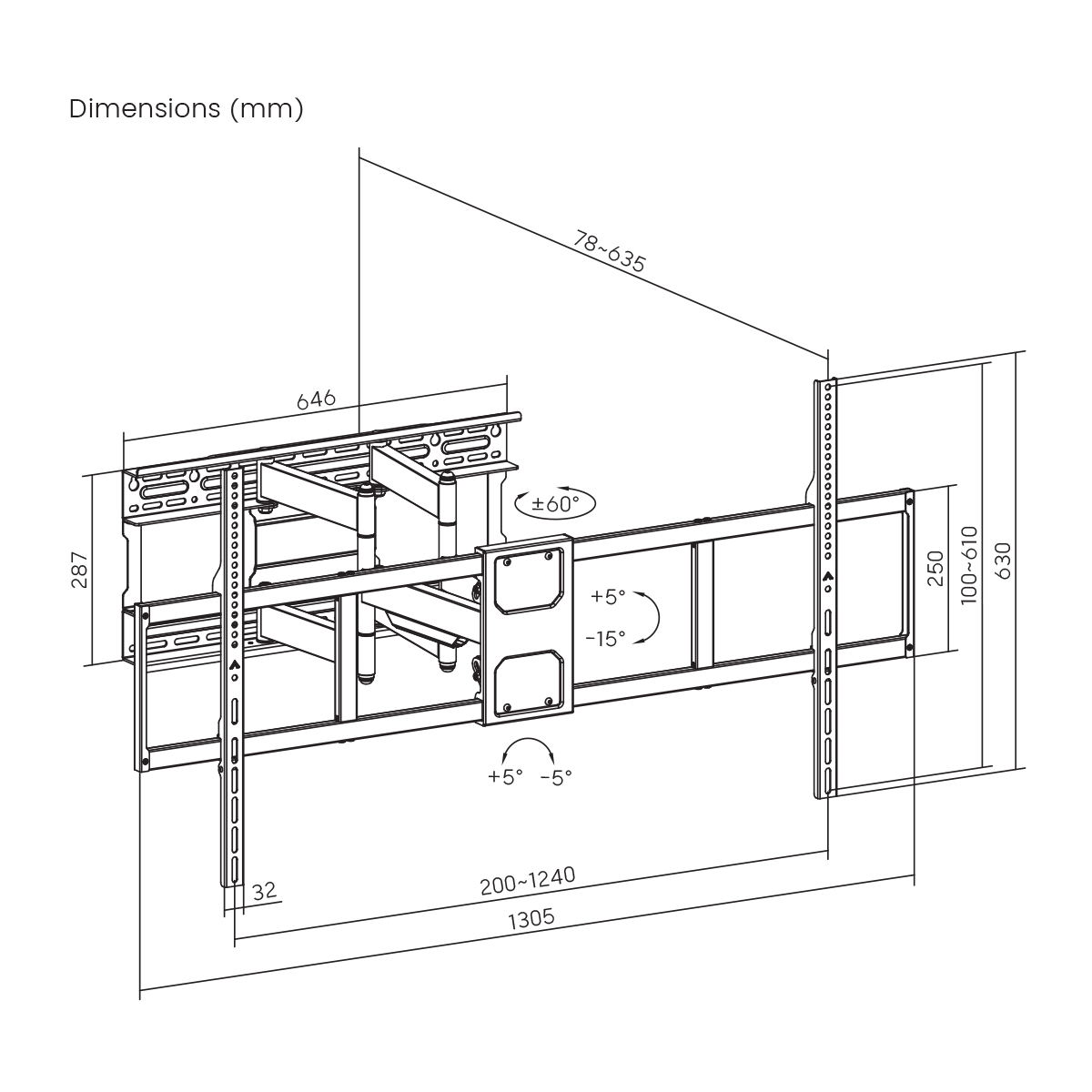

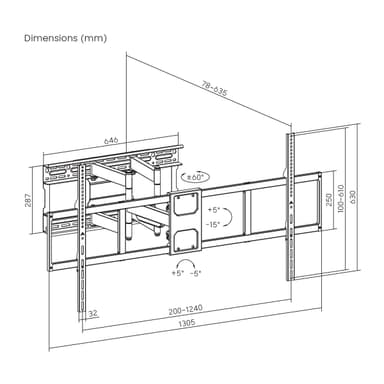

Drawing
