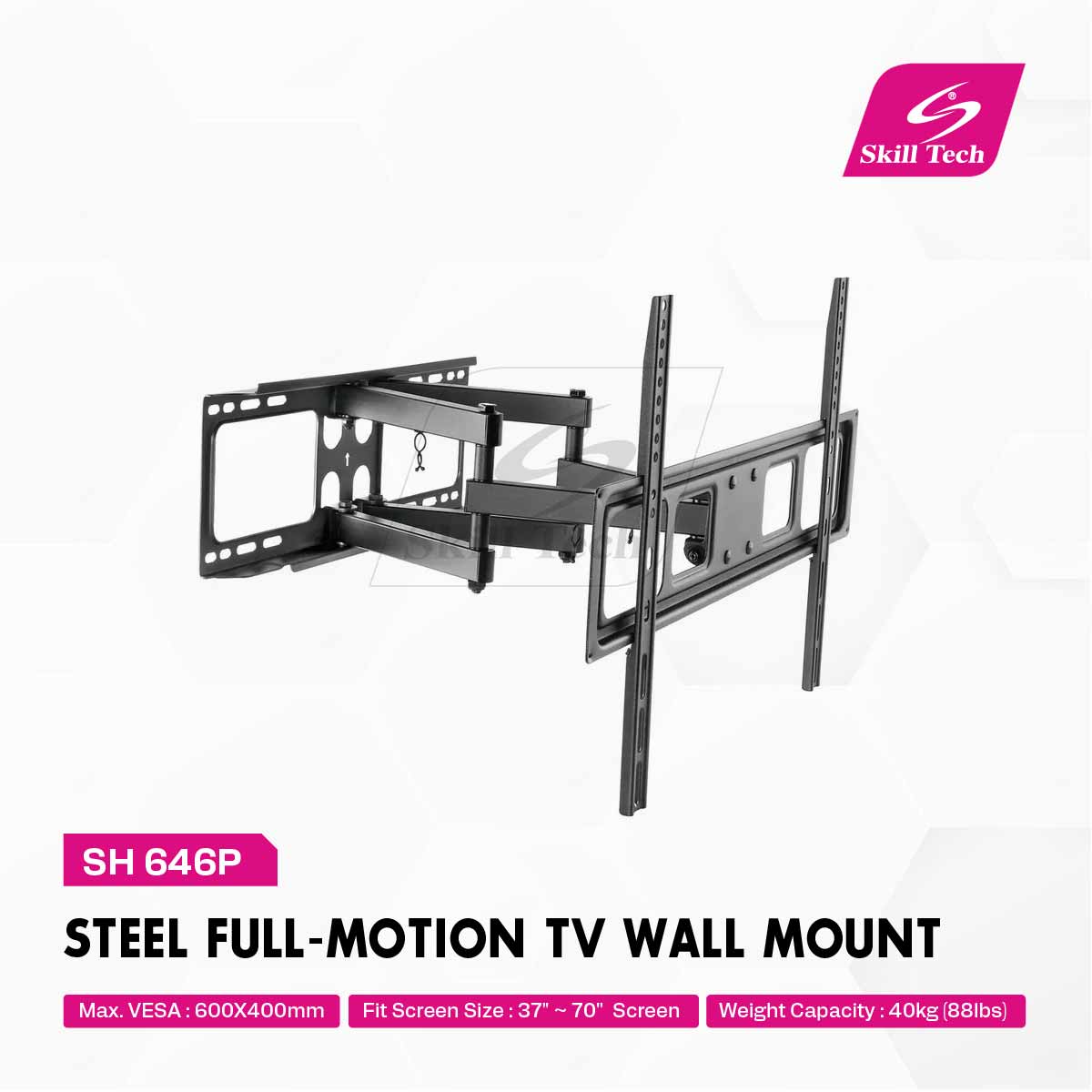

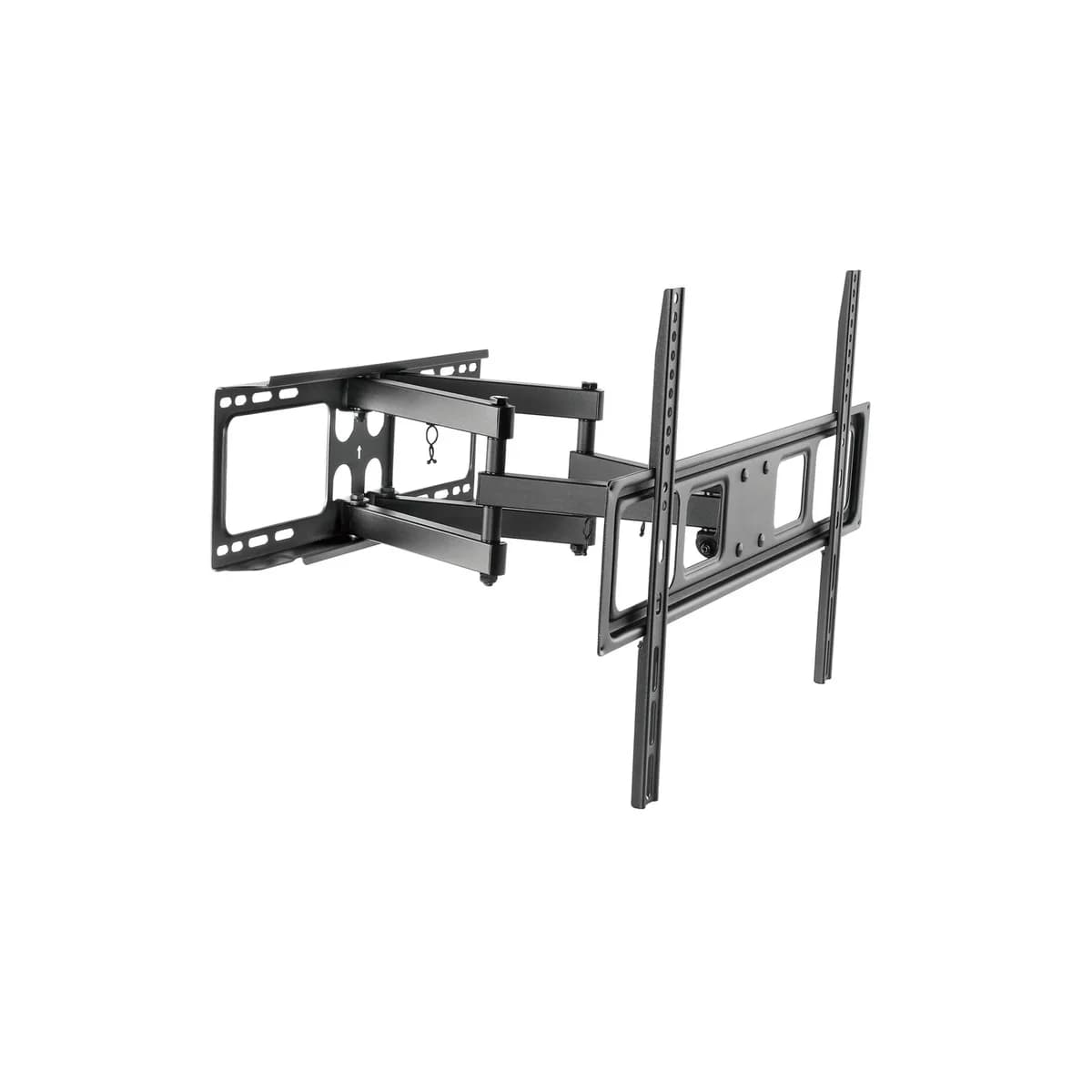

SH 646P
Steel Full-Motion TV Wall Mount
Screen Size37"~70"
Max VESA600x400mm
Weight Capacity40kg
Profile53-464mm
Tilt Range+5° ~ -15°
Overview
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Rank | Economy |
| Material | Steel |
| Pipe Size | 30x20x1.5 mm (1.2"x0.79"x0.059" ) |
| Surface Finish | Powder Coating |
| Max. VESA | 600X400mm |
|---|---|
| Weight Capacity | 40kg (88lbs) |
| Strength Tested | 2 Times Approved |
| Profile | 53~464mm (2.1"~18.3") |
| Tilt Range | +5° ~ -15° |
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Rank | Economy |
| Material | Steel |
| Pipe Size | 30x20x1.5 mm (1.2"x0.79"x0.059" ) |
| Surface Finish | Powder Coating |
Features
- Wide CompatibilityFits most 37" to 70" screens, including curved TVs, with a maximum VESA size of 600x400mm.
- Heavy-Duty CapacitySupports up to 40kg (88lbs), ensuring a secure and stable mount for large TVs.

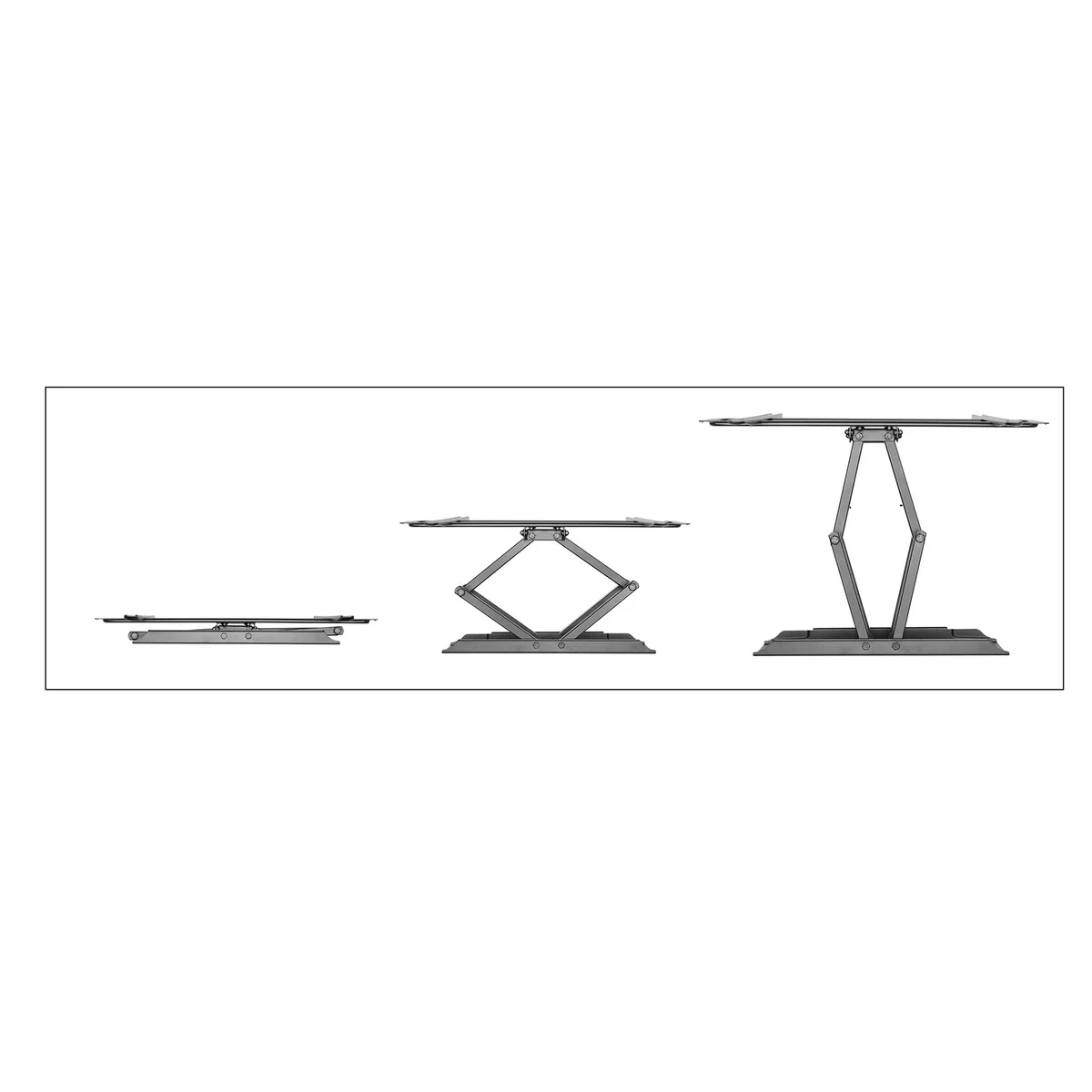

- Flexible Viewing AnglesFeatures a tilt range of +5° to -15°, swivel range of +60° to -60°, and screen leveling from +3° to -3°.
- Durable Steel ConstructionBuilt with high-quality steel for strength and durability, finished with a fine texture black powder coating.
- Easy InstallationDesigned for solid wall or double stud mounting, with a detachable panel for convenience during setup.
Description
The SH 646P Steel Full-Motion TV Wall Mount offers a reliable and versatile solution for mounting TVs ranging from 37" to 70". With a sturdy steel construction and a weight capacity of up to 40kg (88lbs), it supports both VESA and universal patterns (max 600x400mm). The mount features a +5° to -15° tilt, +60° to -60° swivel, and +3° to -3° screen leveling for optimal viewing angles. Easy to install on solid walls or double studs.
Installation Video

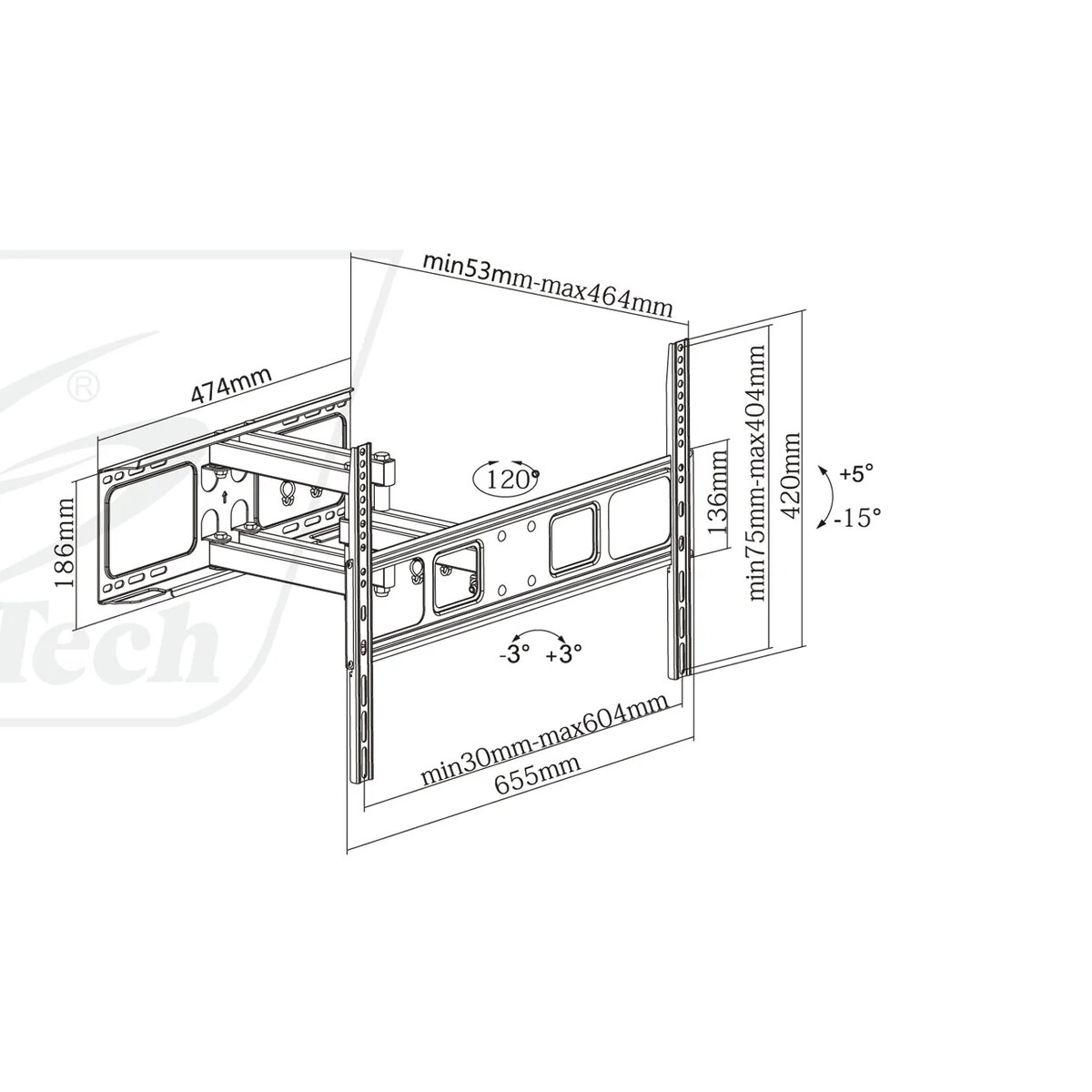

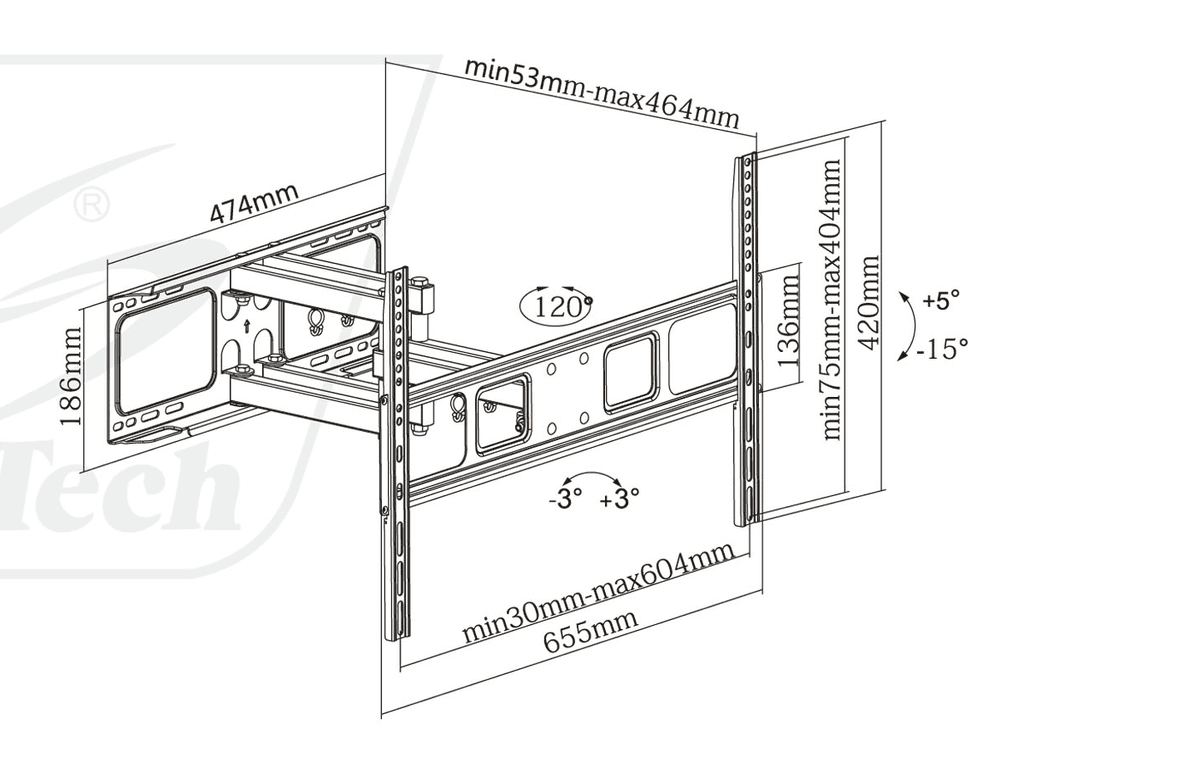

Drawing
