Home > TV Wall Mounts > Full Motion Double Arm Mounts > Elegant Double Arm Full-Motion TV Wall Mount
SH 640P

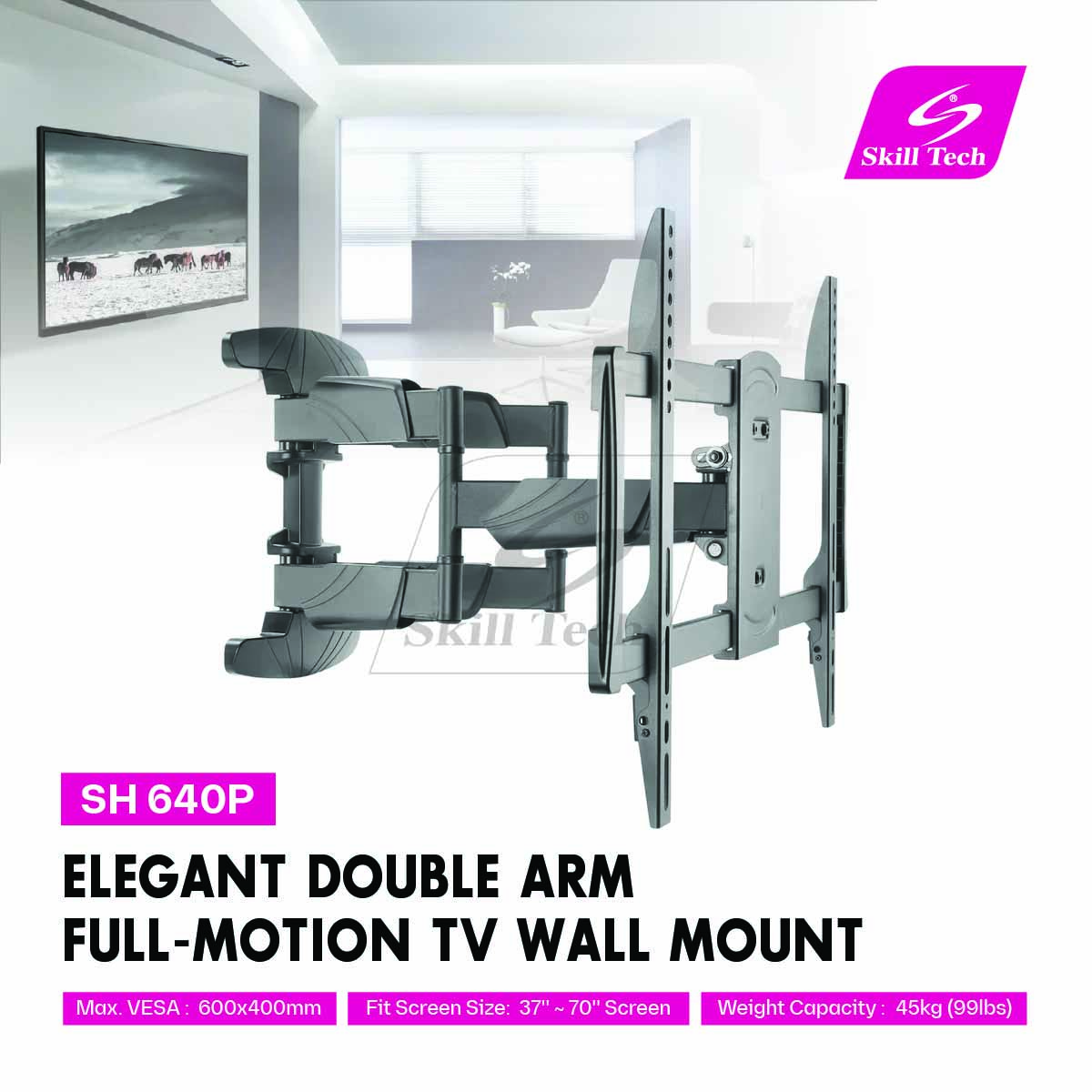

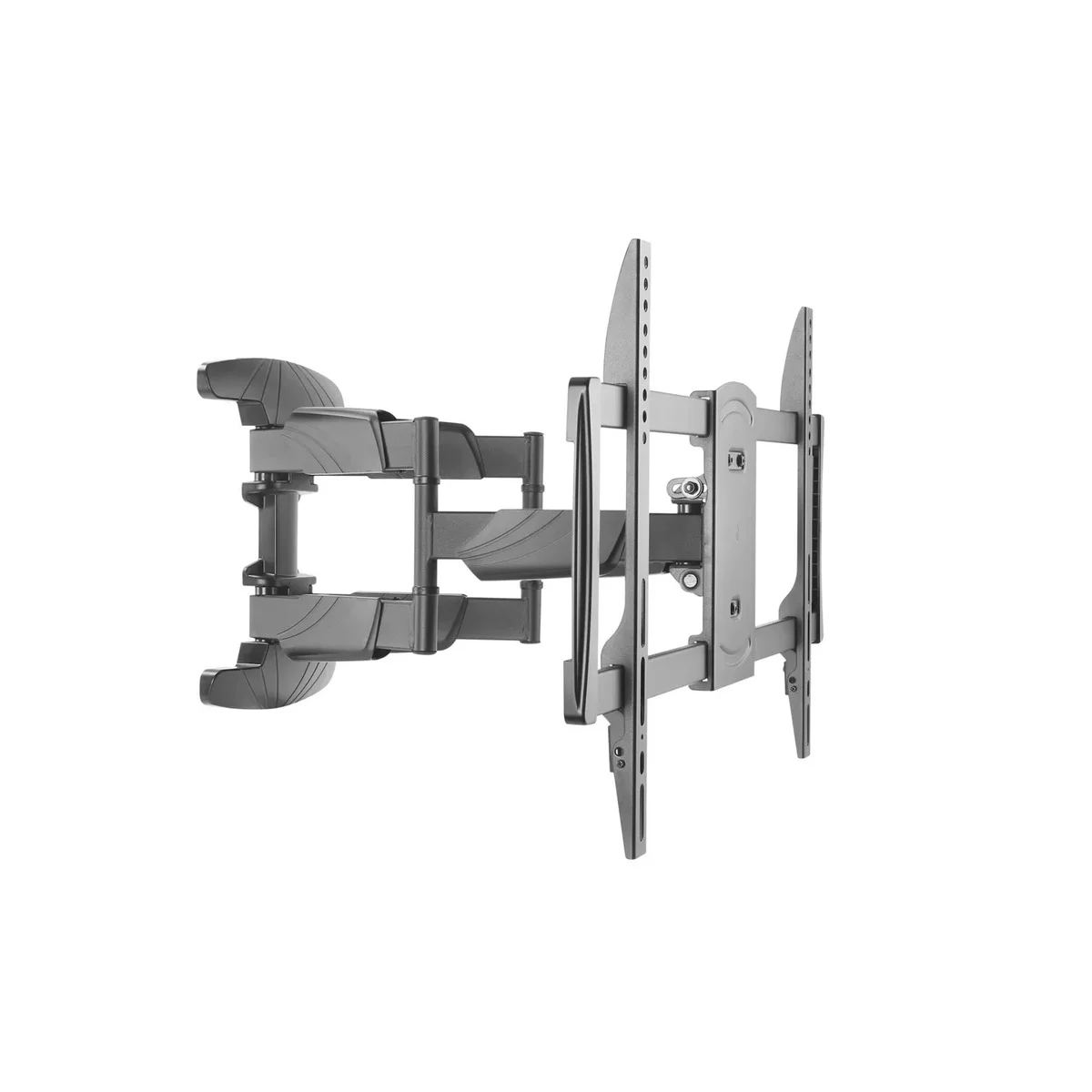

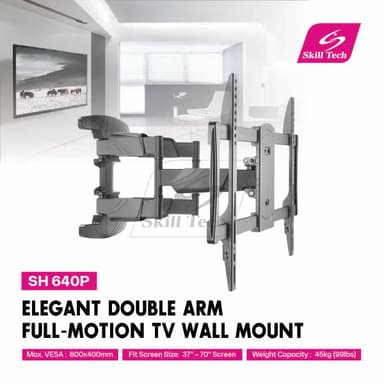

Elegant Double Arm Full-Motion TV Wall Mount
Screen Size37"~75"
Max VESA600x400mm
Weight Capacity45kg
Profile49-482mm
Tilt Range+2° ~ -15°
Overview
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel,Plastic |
| Pipe Size | 40x20x1.5mm,30x10x1.2mm |
| Surface Finish | Powder Coating |
| Weight Capacity | 45kg (99lbs) |
|---|---|
| Strength Tested | 3 Times Approved |
| Profile | 49~482mm (1.9"~19") |
| Tilt Range | +2° ~ -15° |
| Swivel Range | +60° ~ -60° |
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel,Plastic |
| Pipe Size | 40x20x1.5mm,30x10x1.2mm |
| Surface Finish | Powder Coating |
Features
- Wide CompatibilitySupports most 37" to 75" flat and curved TVs with VESA & Universal mounting patterns up to 600x400mm.
- Flexible Viewing AnglesOffers a tilt range of +2° to -15°, swivel range of ±60°, and screen level adjustment of ±3° for optimal viewing.
- Strong Double Arm DesignMade of durable steel with dual arms and tested to hold up to 45kg (99lbs).
- Extended Reach & Low ProfileExtends from 49mm to 482mm (1.9" to 19") for versatile positioning while maintaining a sleek profile.
- Easy Installation & Cable ManagementCompatible with solid wall or single stud installation and includes built-in cable management for a tidy setup.
Description
The SH 640P Elegant Double Arm Full-Motion TV Wall Mount is built for versatility and strength, supporting most 37" to 75" TVs, including curved models. With a 45kg capacity and full-motion range, it offers +2° to -15° tilt, ±60° swivel, and ±3° screen leveling. Featuring durable steel construction, VESA & universal compatibility, integrated cable management, and a sleek powder-coated finish, it ensures secure installation and stylish presentation on solid walls.
Installation Video

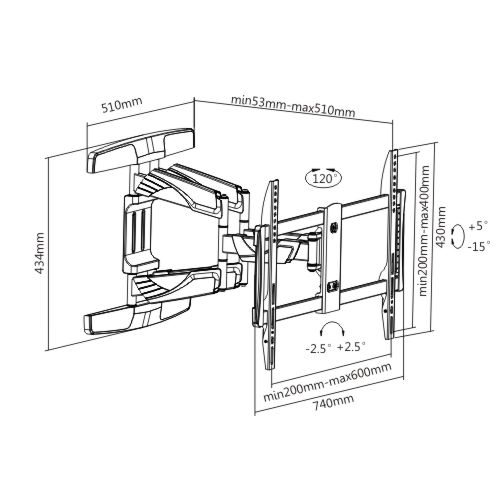

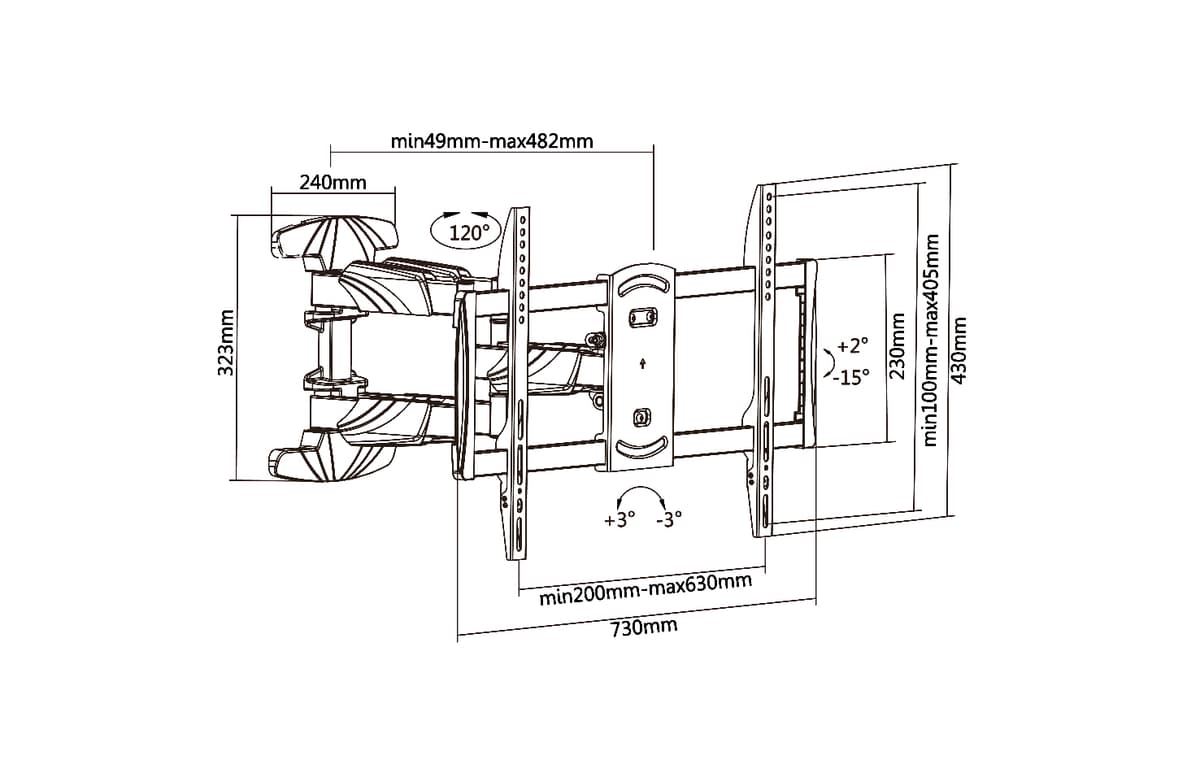

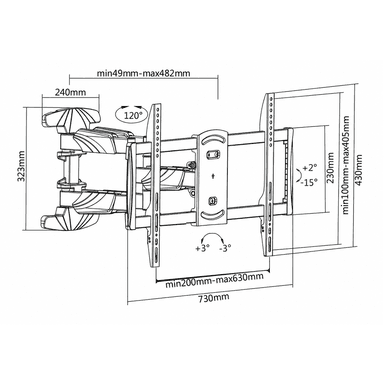

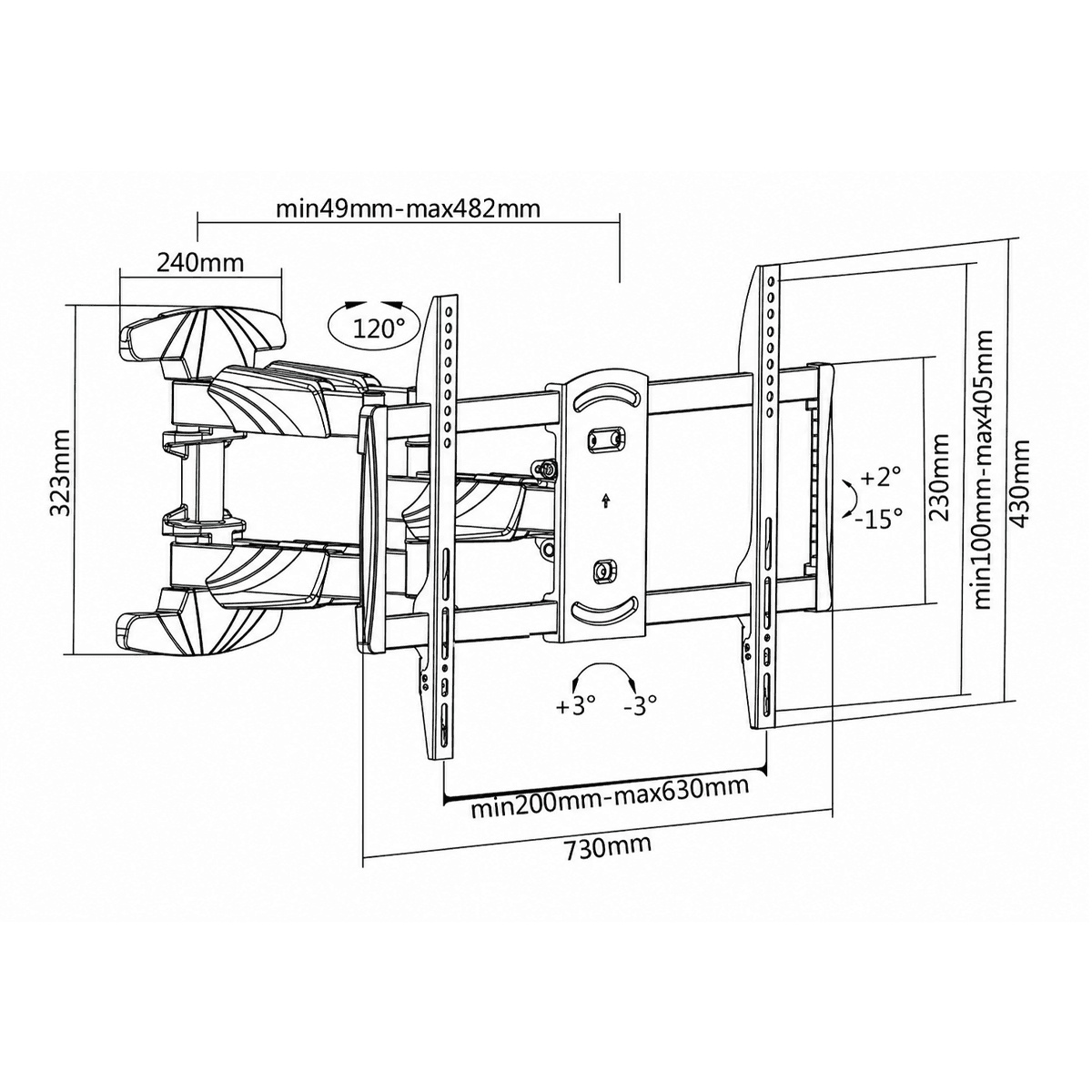

Drawing
