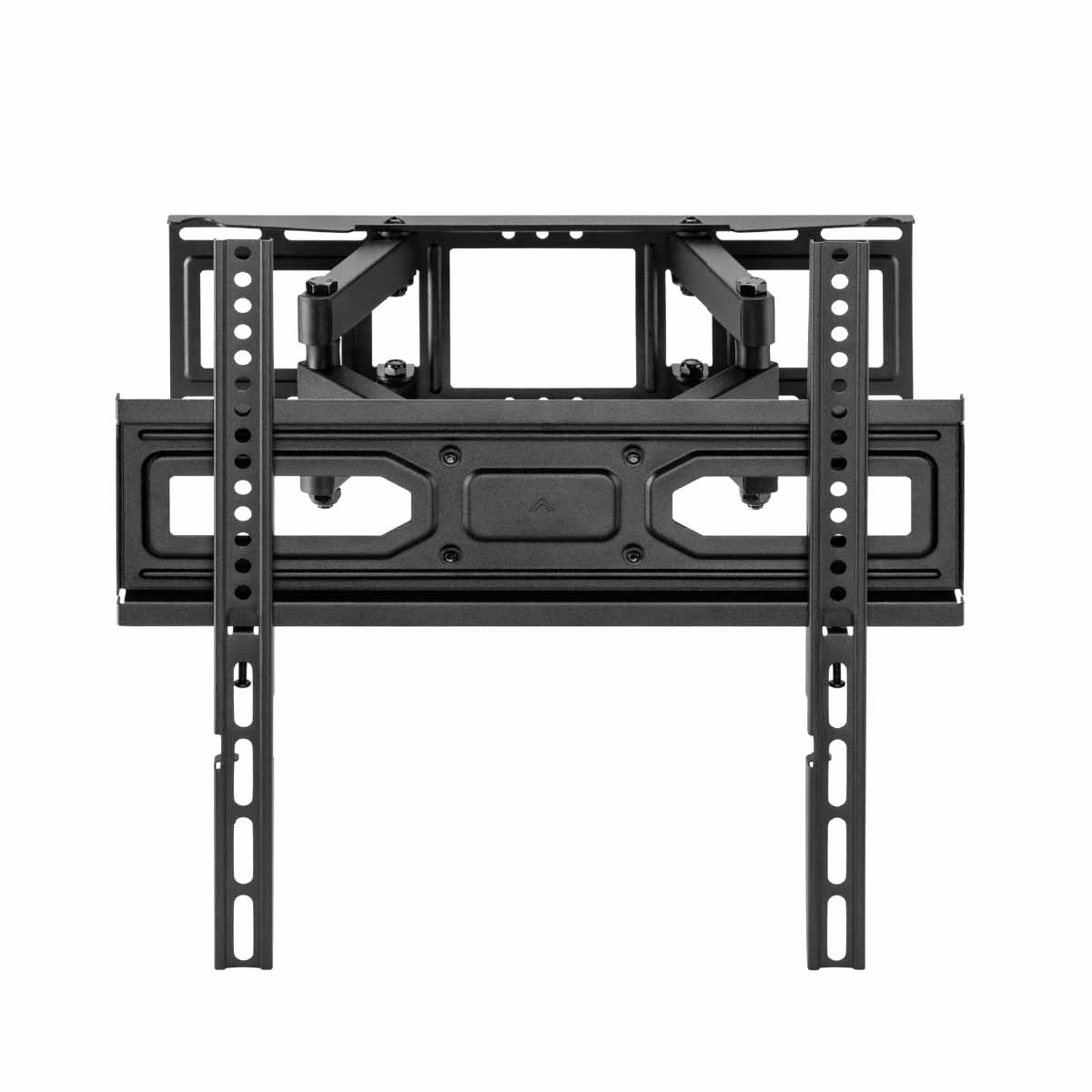

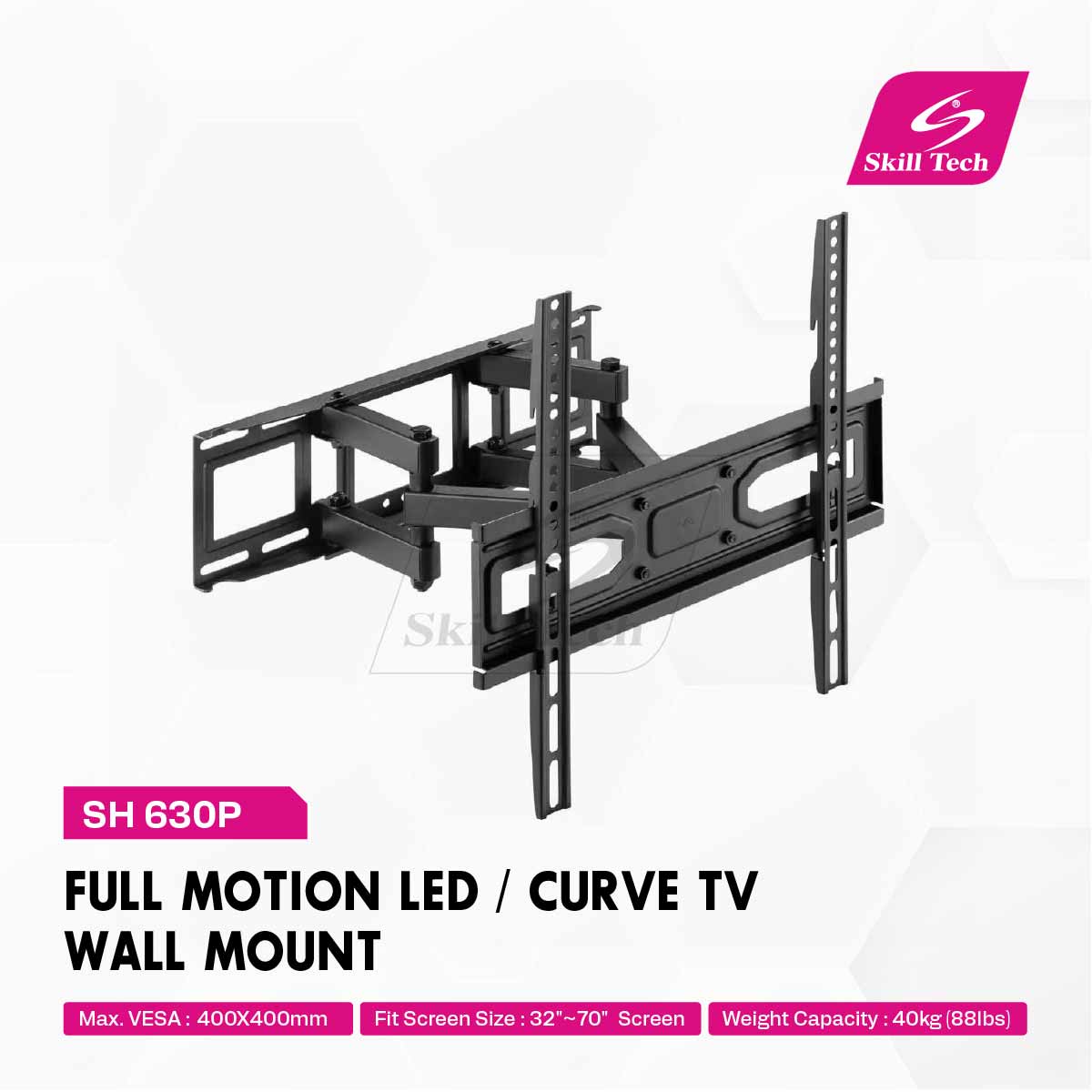

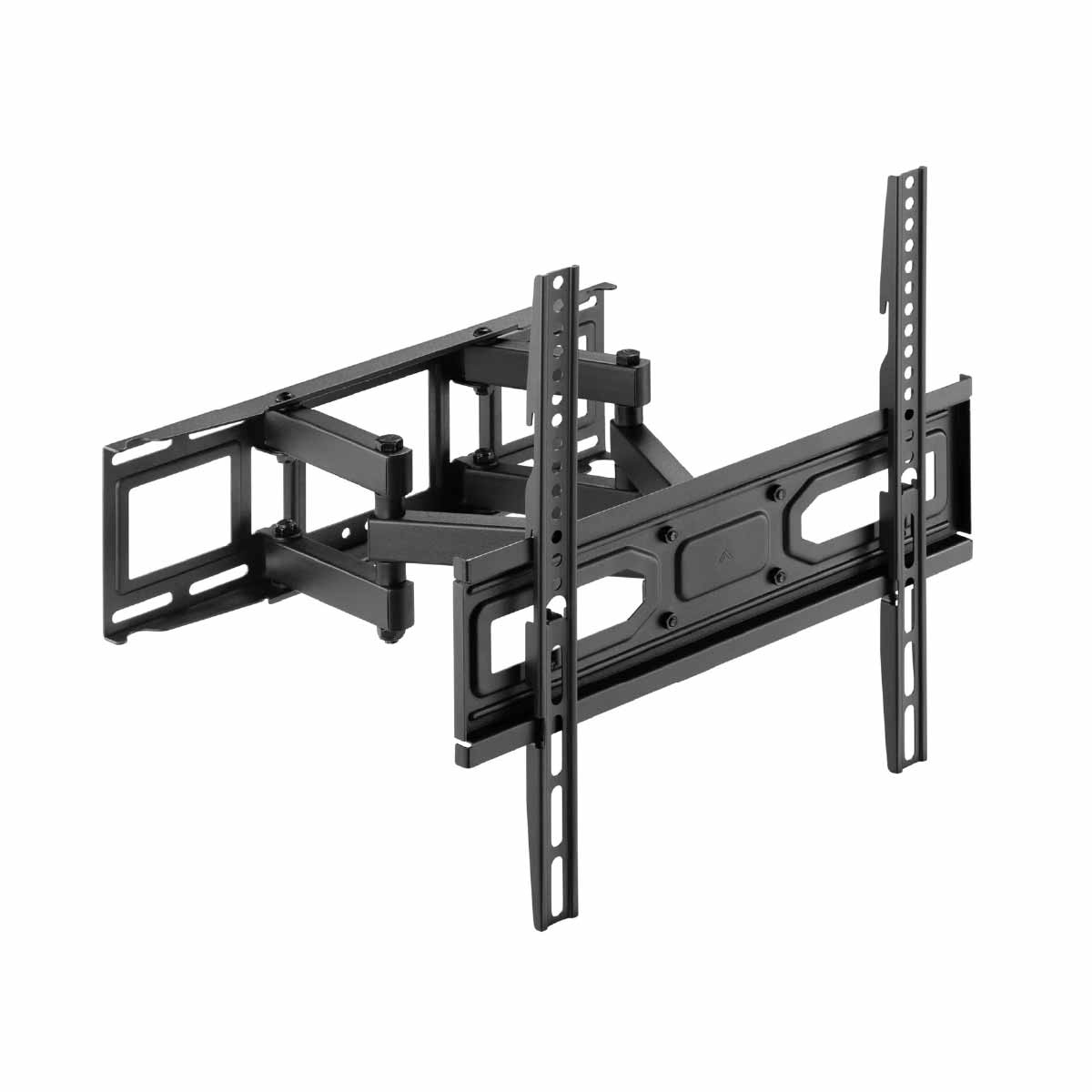

SH 630P
Full Motion LED / Curve TV Wall Mount
Screen Size32''~70''
Max VESA400x400mm
Weight Capacity40kg
Profile67-355mm
Tilt Range+3° ~ -15°
Overview
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Rank | Economy |
| Material | Steel,Plastic |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |
| Mounting Hole Pattern | VESA & Universal |
|---|---|
| Max. VESA | 400X400mm |
| Weight Capacity | 40kg (88lbs) |
| Profile | 67-355mm (2.6"~14") |
| Tilt Range | +3° ~- 15° |
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Rank | Economy |
| Material | Steel,Plastic |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |
Features
- Wide CompatibilitySupports most 32" to 70" flat and curved TVs with VESA patterns up to 400x400mm.
- Adjustable Viewing AnglesOffers tilt (+3° to -15°), swivel (±60°), and level (±3°) adjustments for optimal viewing comfort.
- Durable ConstructionMade from strong steel and plastic with a fine texture black finish.
- Flexible ExtensionExtends from 67mm to 355mm (2.6" to 14") from the wall for better positioning.
- High Load CapacitySupports up to 40kg (88lbs), ensuring secure mounting for a wide range of TVs.
Description
The SH 630P Full Motion TV Wall Mount is an ideal solution for mounting 32" to 70" flat or curved TVs. Crafted from durable steel and plastic in a fine texture black finish, it supports VESA up to 400x400mm and holds up to 40kg. With a tilt range of +3° to -15°, swivel of ±60°, and level adjustment of ±3°, it ensures flexible viewing and a clean, adjustable installation profile of 67–355mm.
Installation Video

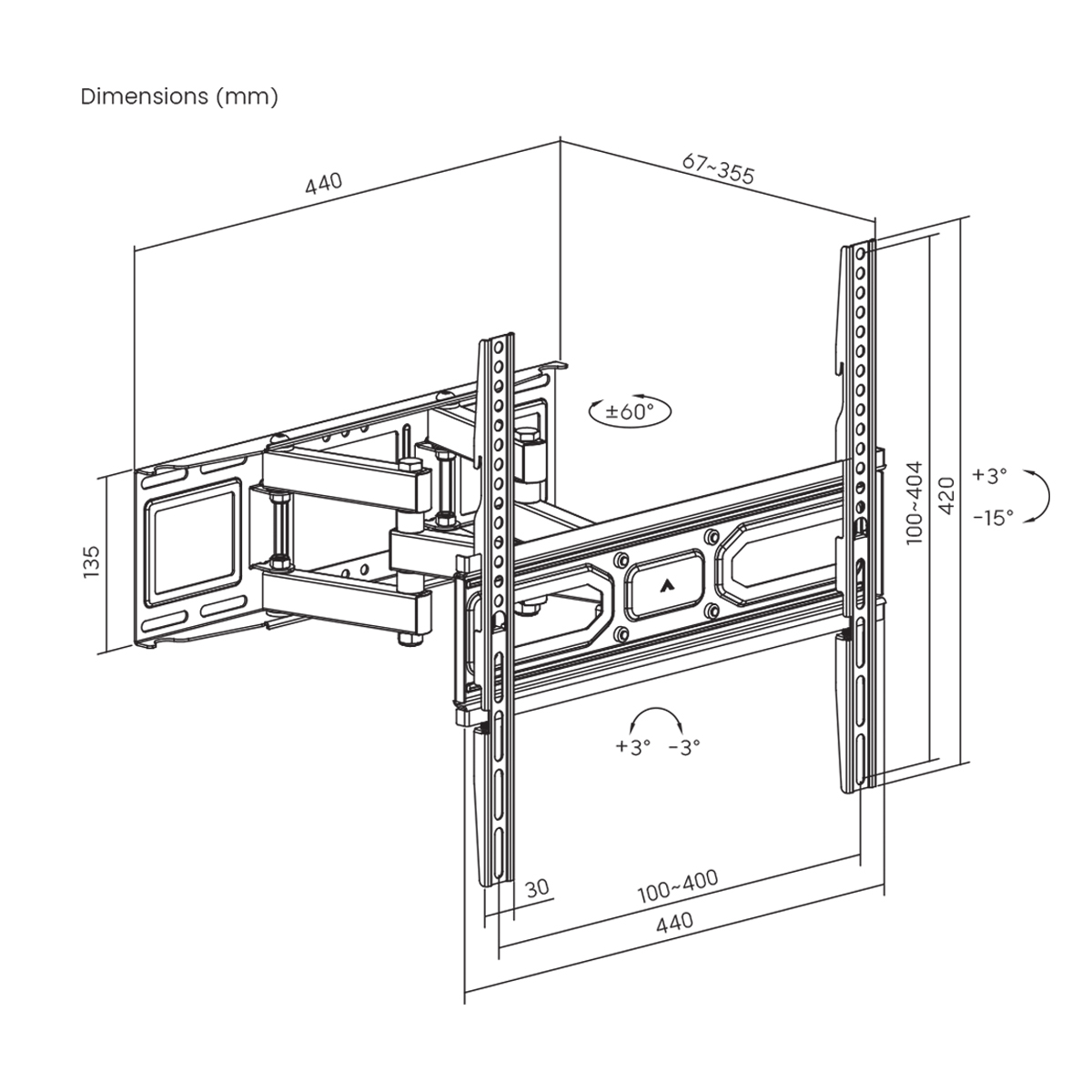

Drawing
