SH 6040P

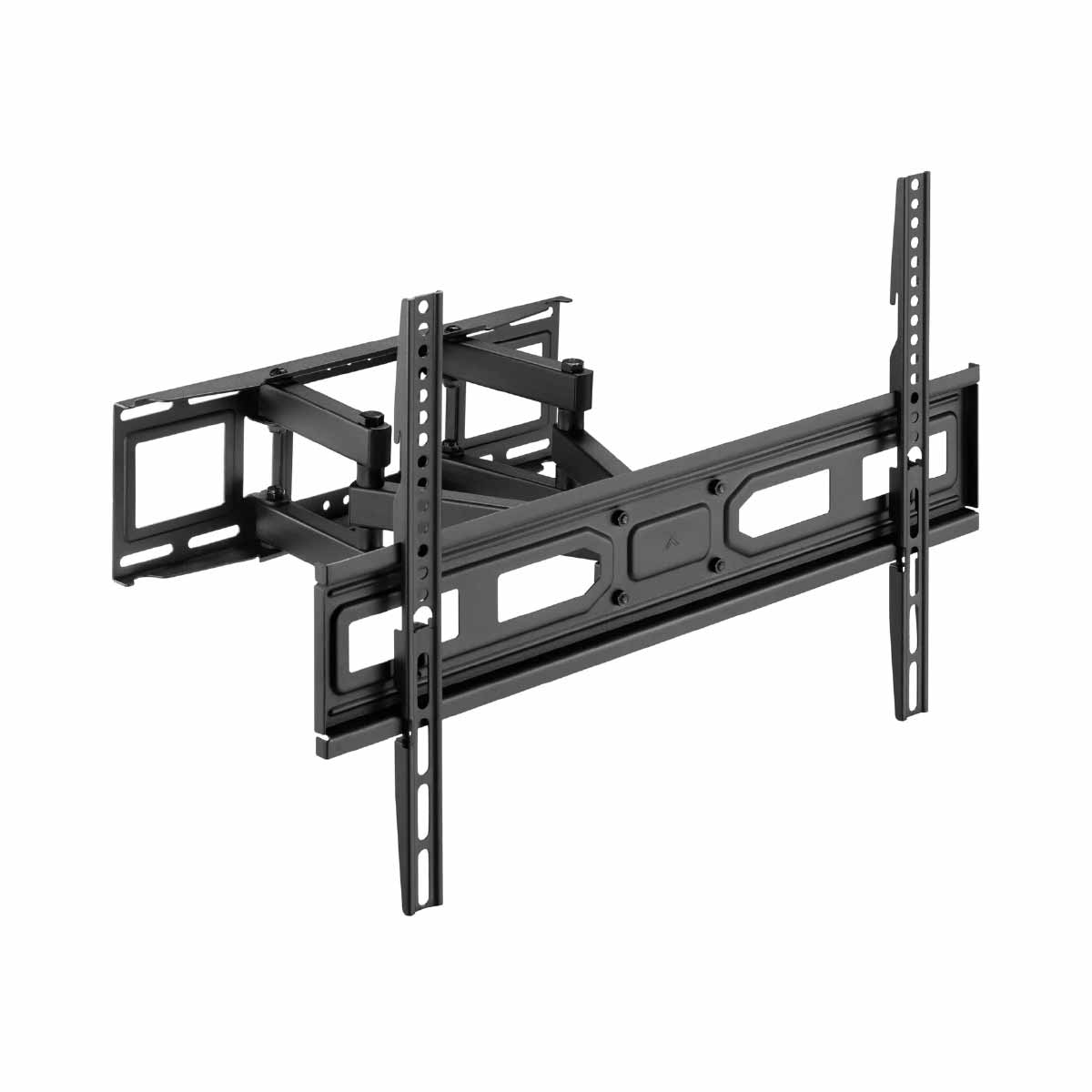

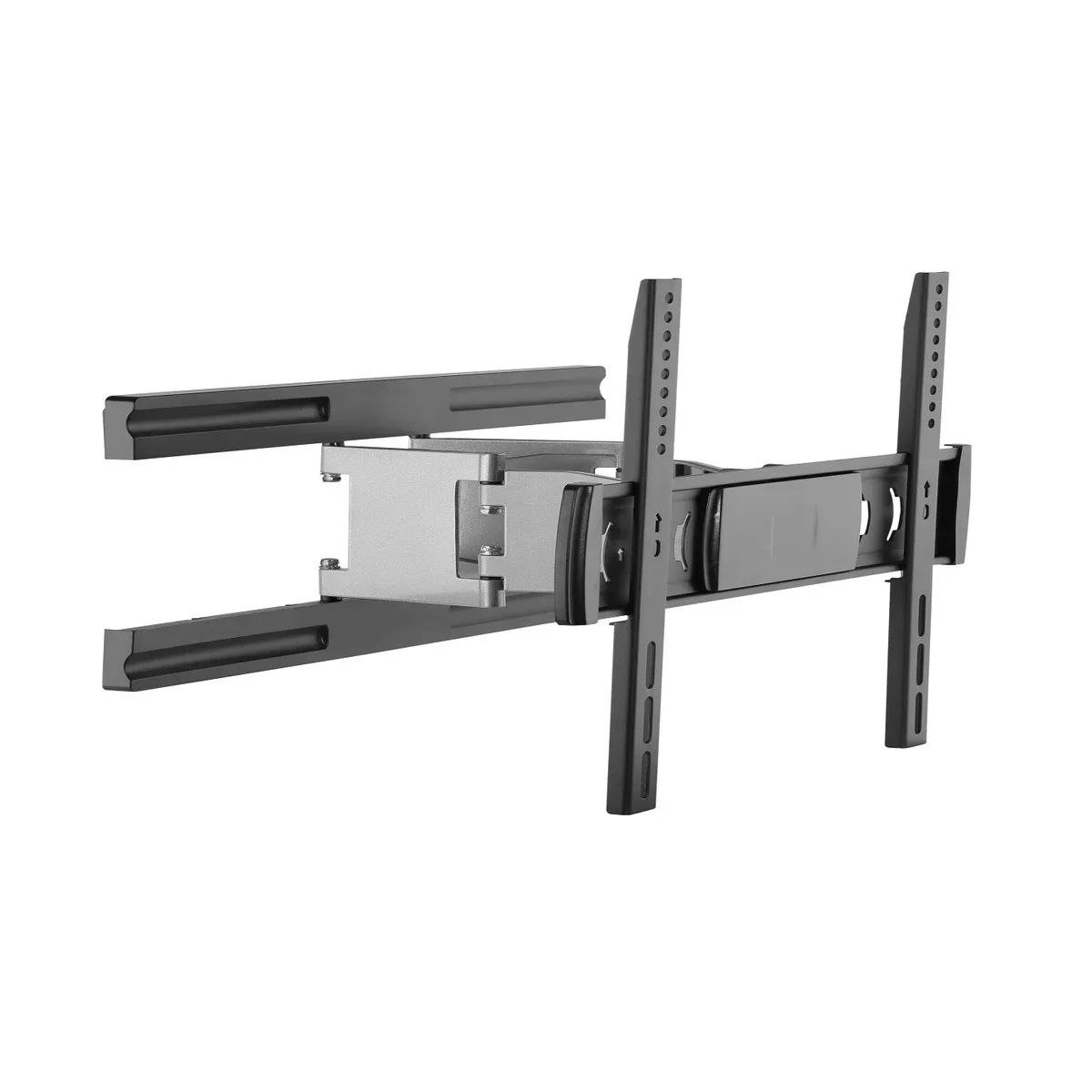

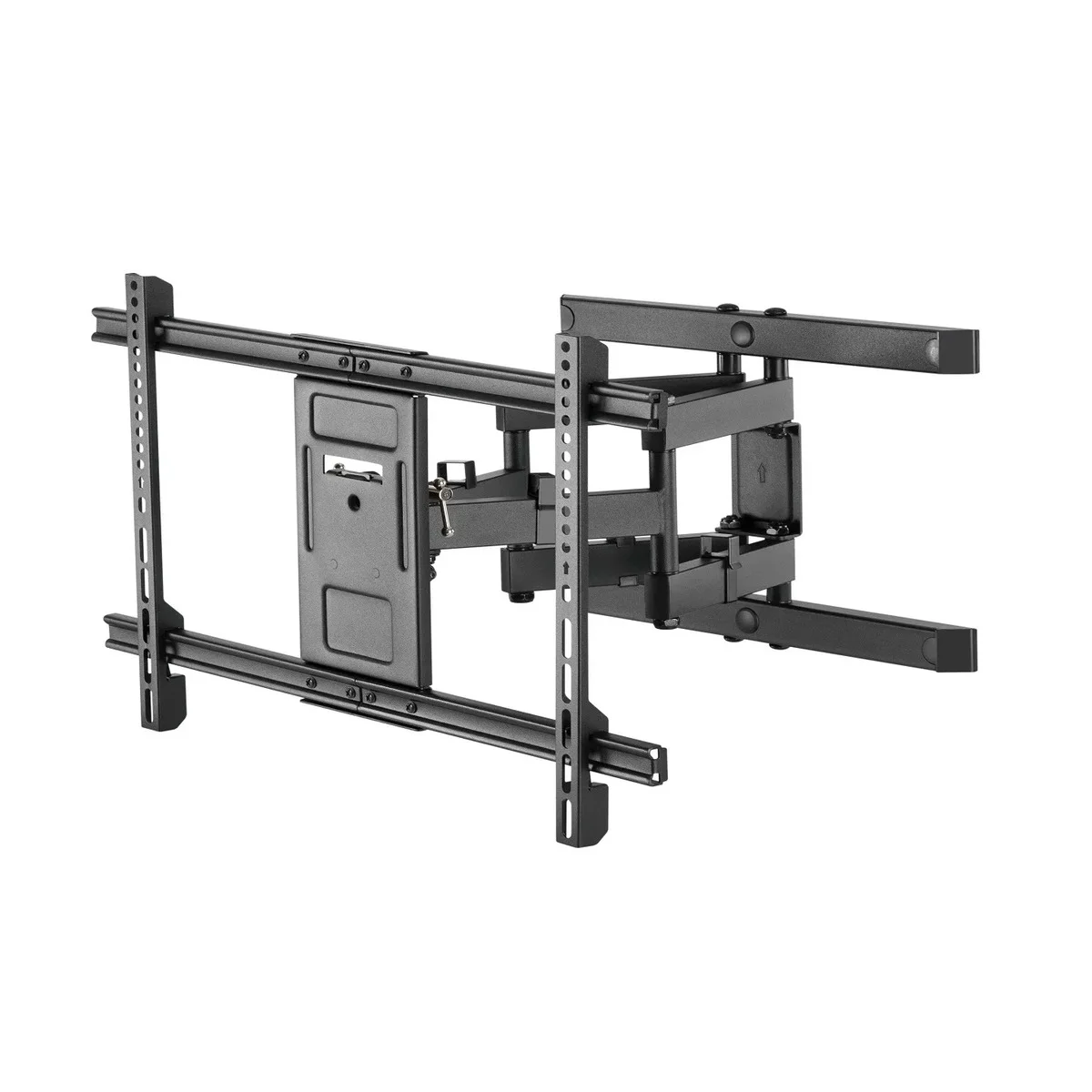

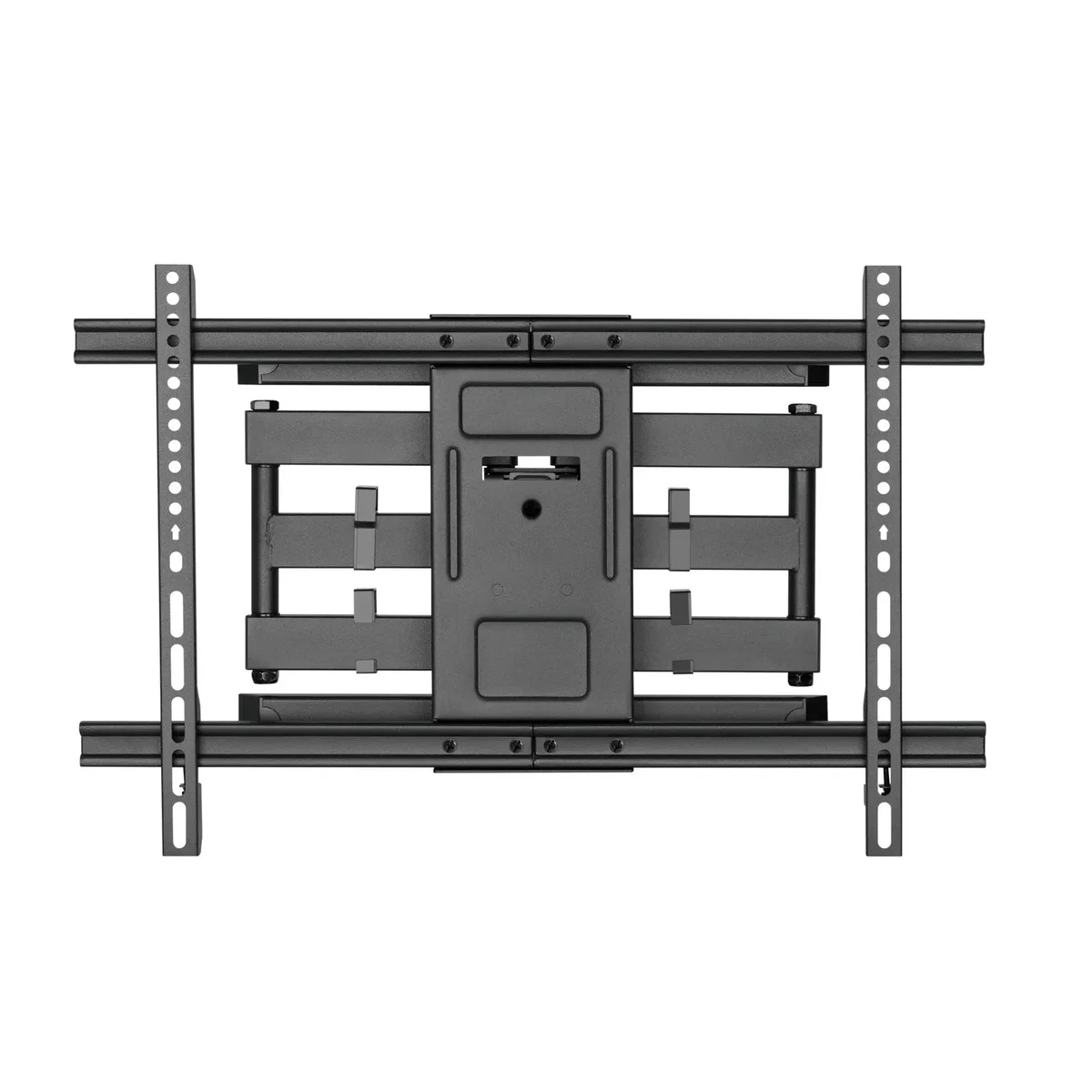

Solid Double Arm Full Motion TV Wall Mount
Screen Size37"~80"
Max VESA600x400mm
Weight Capacity60kg
Profile77-428mm
Tilt Range+3° ~ -15°
Overview
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel,Plastic |
| Metal Sheet Thickness | VESA Panel THK=2mm Cold-Rolled Sheet,Bracket Arm THK=2mm Cold-Rolled Sheet,(VESA Panel THK=0.079" Cold-Rolled Sheet,Bracket Arm THK=0.079" Cold-Rolled Sheet,) |
| Pipe Size | 30x30x1.2mm Square Steel Tube,40x40x2mm Square Steel Tube,50x40x2mm Square Steel Tube (1.2"x1.2"x0.047" Square Steel Tube,1.6"x1.6"x0.079" Square Steel Tube,2"x1.6"x0.079" Square Steel Tube) |
| Max. VESA | 600x400mm |
|---|---|
| Weight Capacity | 60kg |
| Strength Tested | 4 Times Approved |
| Profile | 77~428mm |
| Tilt Range | +3°~-15° |
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel,Plastic |
| Metal Sheet Thickness | VESA Panel THK=2mm Cold-Rolled Sheet,Bracket Arm THK=2mm Cold-Rolled Sheet,(VESA Panel THK=0.079" Cold-Rolled Sheet,Bracket Arm THK=0.079" Cold-Rolled Sheet,) |
| Pipe Size | 30x30x1.2mm Square Steel Tube,40x40x2mm Square Steel Tube,50x40x2mm Square Steel Tube (1.2"x1.2"x0.047" Square Steel Tube,1.6"x1.6"x0.079" Square Steel Tube,2"x1.6"x0.079" Square Steel Tube) |
Features
- Heavy-Duty SupportCrafted from 2mm thick cold-rolled steel with reinforced square tube arms, supporting up to 60kg for screens from 37" to 80", including curved TVs.
- Full Motion FlexibilityOffers +3° to -15° tilt, ±60° swivel, and ±3° screen leveling for optimized viewing.

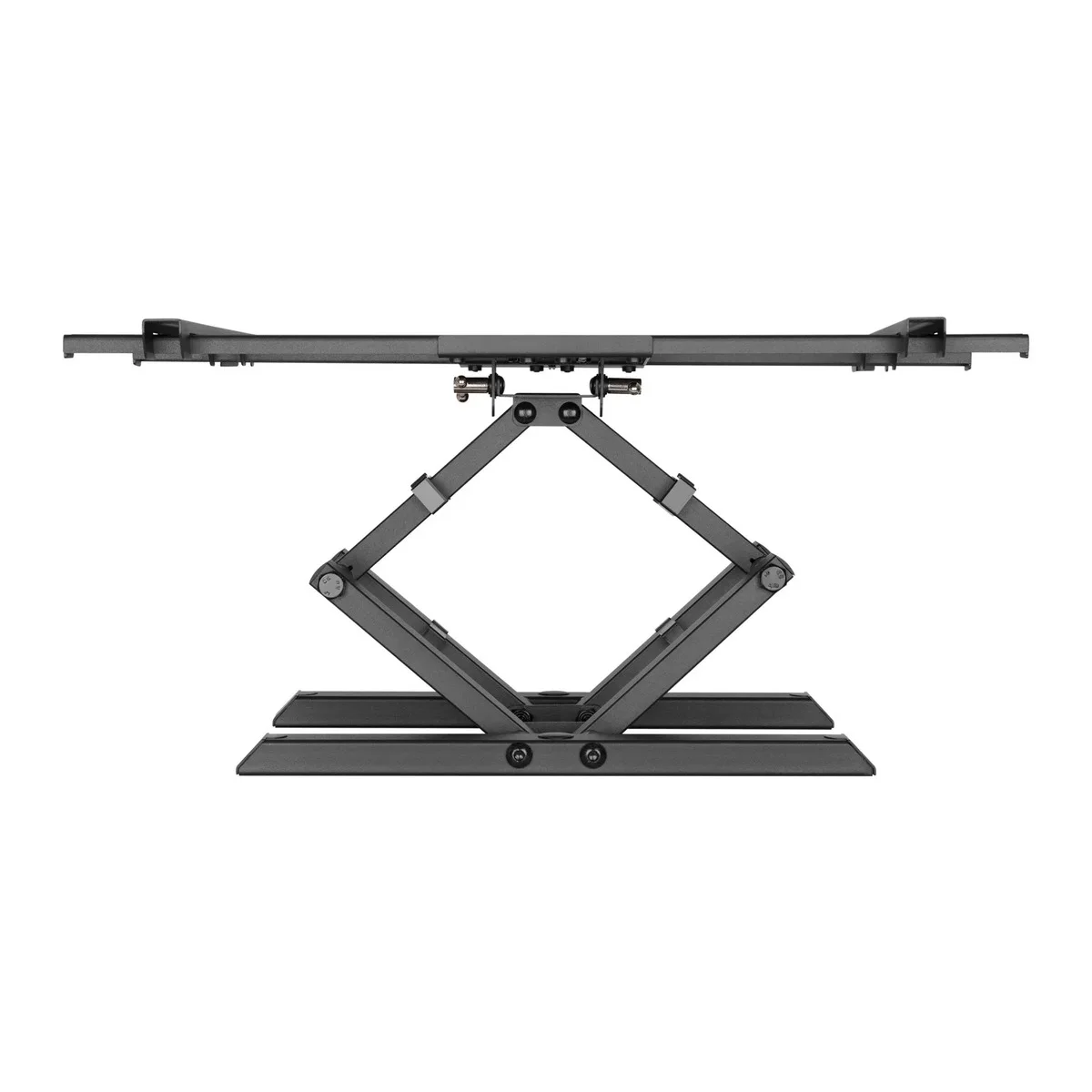

- Adjustable ProfileExtendable arm with a profile range of 77–428mm allows for versatile placement.
- Wide CompatibilitySupports both VESA and universal mounting patterns up to 600x400mm.
- Secure InstallationDesigned for solid walls or single stud setups with a fixed wall plate and detachable panel for ease of use.
Description
The SH 6040P Solid Double Arm Full Motion TV Wall Mount offers robust support for 37"–80" screens, including curved TVs. Built from high-quality steel with 2mm thick arms and VESA panel, it ensures secure installation. With a flexible profile of 77–428mm, it provides +3° to -15° tilt and ±60° swivel for customized viewing. Compatible with VESA and universal mounting up to 600x400mm, it’s ideal for solid wall and single stud setups.
Installation Video
Product Video

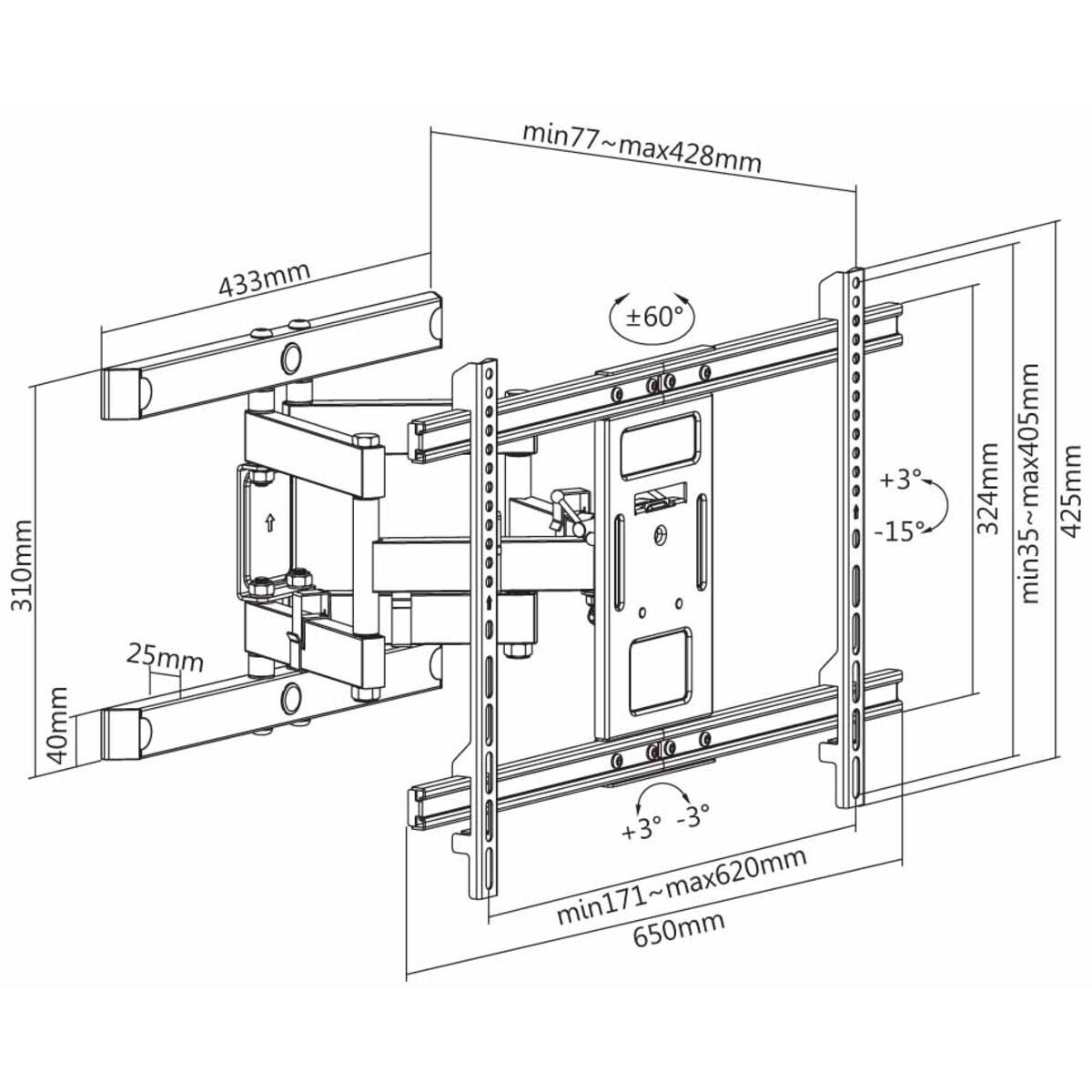

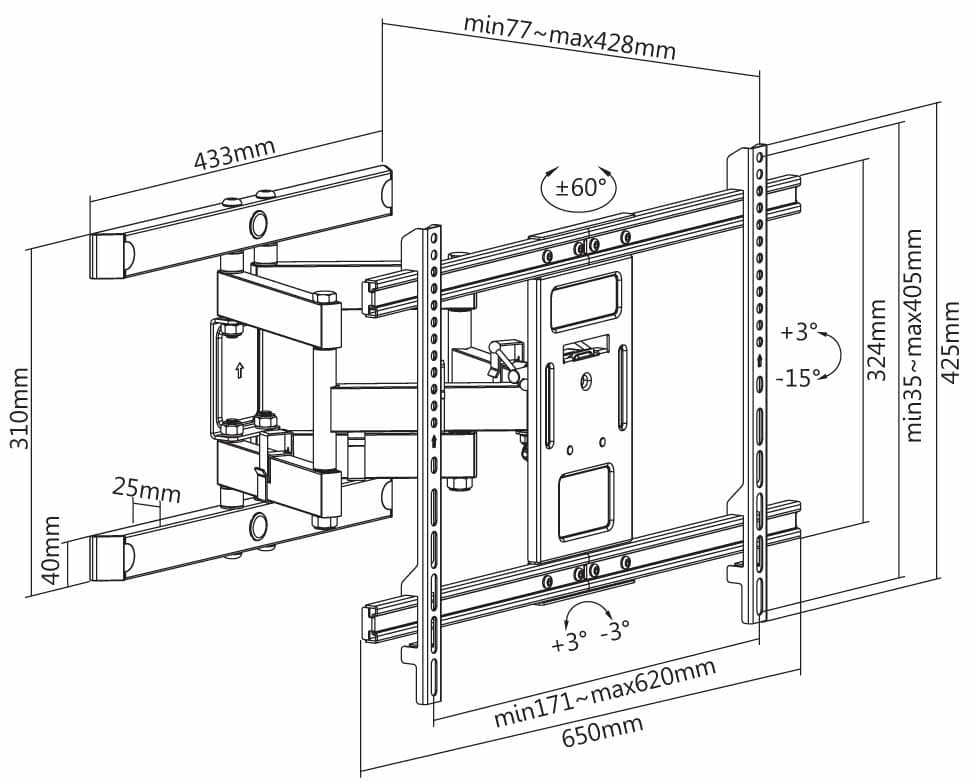

Drawing
