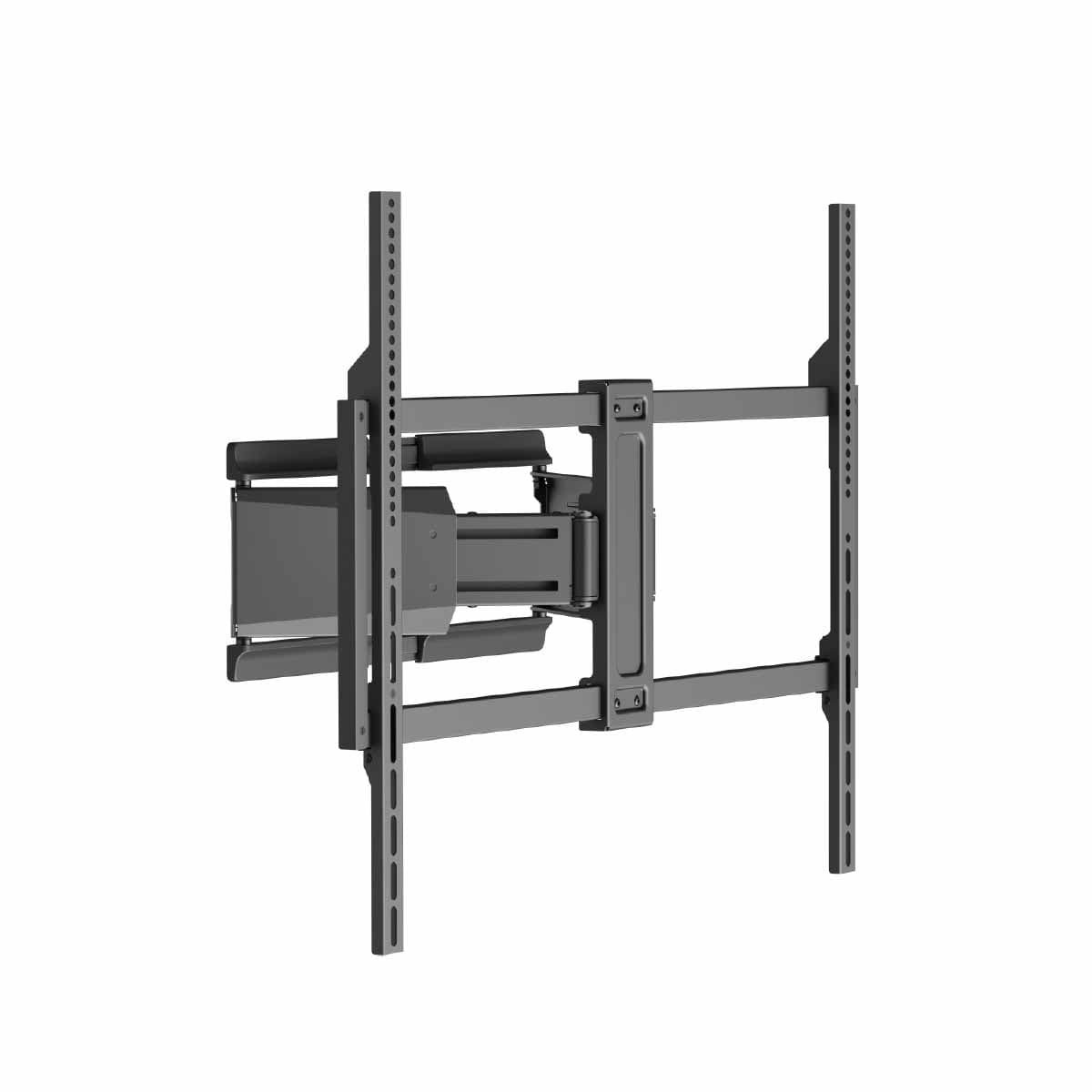

SH 443P
Ultra-Slim Heavy-Duty Full-Motion TV Mount
Screen Size43''~100''
Max VESA800x600mm
Weight Capacity65kg
Profile35~259mm
Tilt Range+3°~-15°
Overview
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel,Plastic |
| Surface Finish | Powder Coating |
| Color | Matte Black |
| Tilt Range | +3°~-15° |
|---|---|
| Swivel Range | +30°~-30° |
| Installation | Solid Wall,Double Stud(406mm/450mm) |
| Panel Type | Detachable Panel |
| Installation | Clamp,Grommet |
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel,Plastic |
| Surface Finish | Powder Coating |
| Color | Matte Black |
Features
- Wide CompatibilitySupports large 43″–100″ flat and curved TVs with VESA patterns up to 800×600mm.
- Strong Load CapacityHeavy-duty steel construction holds up to 65kg, strength-tested three times for reliability.
- Ultra-Slim to Extended ProfileAdjustable depth from 35mm to 259mm for low-profile mounting or extended positioning.
- Full-Motion AdjustmentOffers +3°~-15° tilt and +30°~-30° swivel for comfortable viewing angles.
- Easy InstallationDetachable panel, fixed wall plate, solid wall or double-stud mounting, cable management, and included bubble level.
Description
The SH 443P Ultra-Slim Heavy-Duty Full-Motion TV Mount is engineered for large 43″–100″ TVs, including curved models, supporting up to 65kg with strength tested at three times capacity. Its ultra-low 35mm profile expands to 259mm for smooth positioning with +3° ~–15° tilt and +30°~-30° swivel. The durable steel construction features a detachable panel, 800×600mm VESA compatibility, solid wall or double-stud installation, cable management, and a built-in bubble level for easy setup.
Installation Video

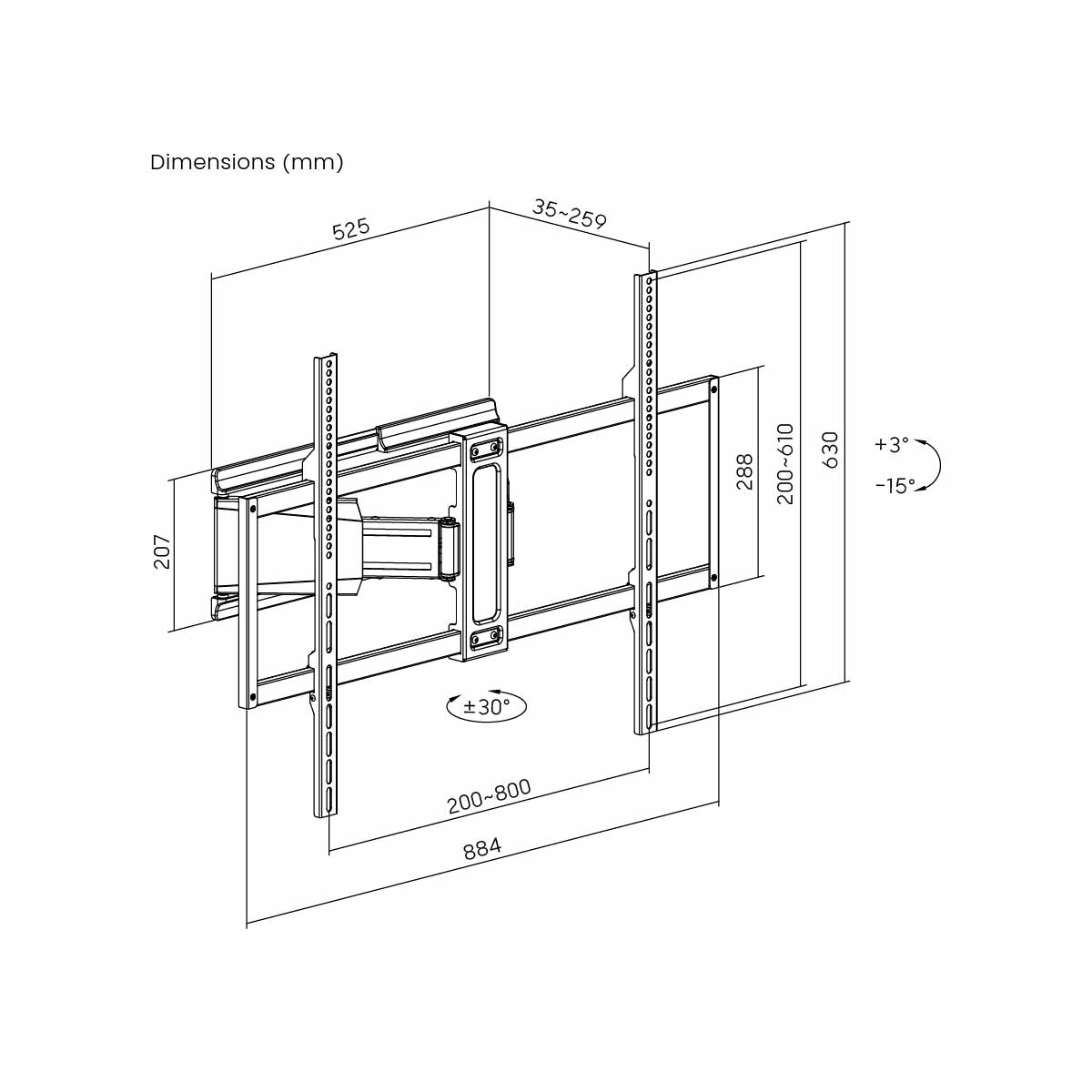

Drawing
