PM 966PW
Heavy Duty Full Motion TV Wall Mount
Screen Size50"- 120"
Max VESA900x600mm
Weight Capacity75kg
Profile70-638mm
Tilt Range+5° ~ -15°
Overview
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |
| Swivel Range | +60° ~ 60° |
|---|---|
| Max. VESA | 900X600mm |
| Weight Capacity | 75kg |
| Profile | 70~638mm |
| Panel Type | Detachable Panel |
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |
Features
- Heavy-Duty Steel ConstructionBuilt from high-strength steel with a durable powder-coated finish, supporting TVs up to 75kg for long-term stability and safety.
- Wide Compatibility (50″~120″ TVs)Fits most flat and curved TVs from 50~120 inches, with VESA support up to 900×600mm for universal mounting.
- Full-Motion Viewing FlexibilityEnjoy optimal angles with+5°~-15° tilt, +60°~60° swivel, and an adjustable profile from 70~638mm..
- Slim Yet Extendable DesignLow-profile wall clearance when retracted and smooth extension when needed—perfect for both flush mounting and wide-angle viewing.
- Easy Installation with Smart DetailsFeatures a detachable panel, fixed wall plate, built-in cable management, and an included hook-on bubble level for precise alignment.
Description
PM 966PW Heavy Duty Full Motion TV Wall Mount is designed for strength, flexibility, and wide compatibility. Made from durable steel with a fine-texture black powder-coated finish, it supports most 50″~120″ flat and curved TVs up to 75kg. Featuring +60°~ 60° swivel, +5°~-15° tilt, detachable panel, cable management, and a fixed wall plate, it delivers smooth adjustment, secure mounting, and easy installation for optimal viewing.

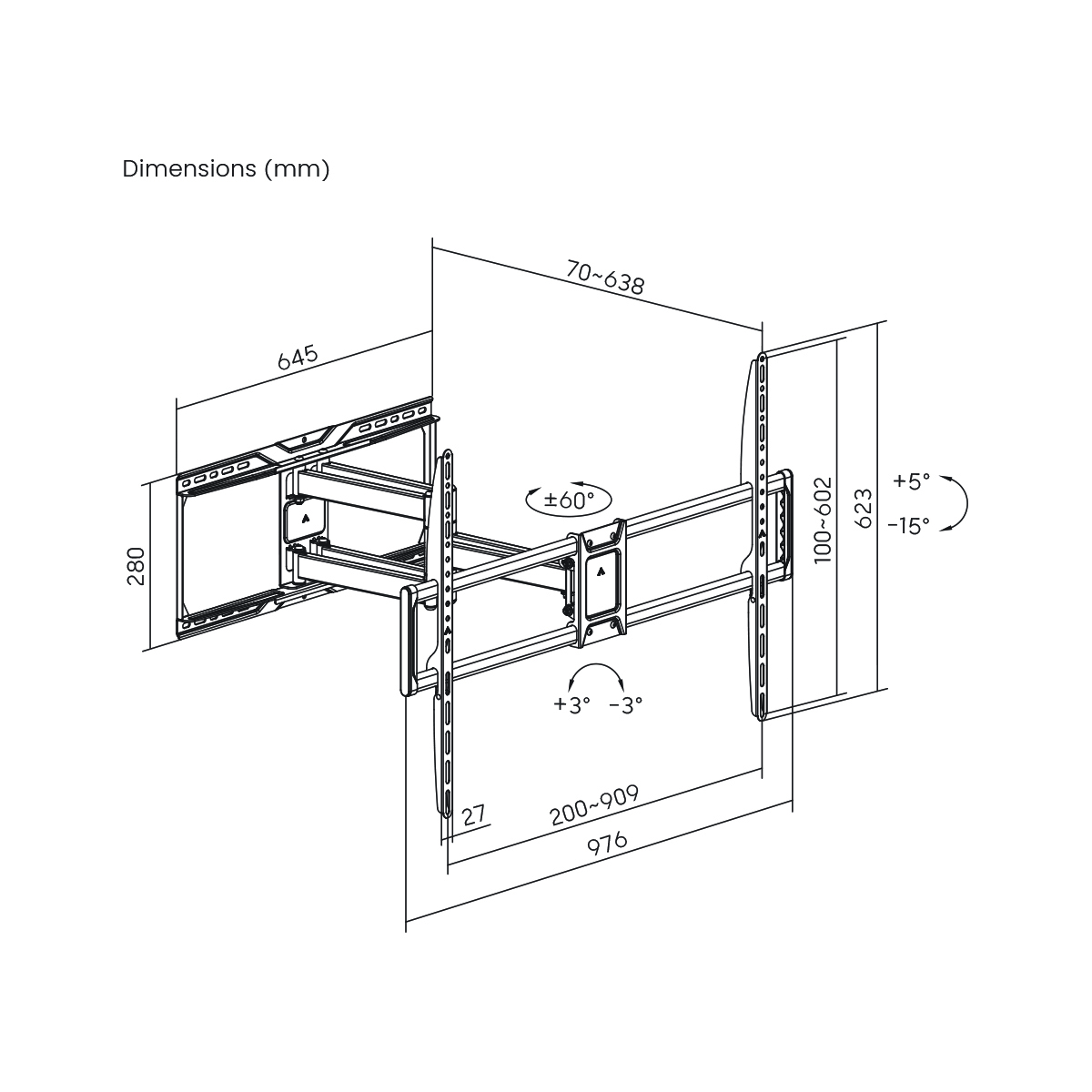

Drawing
