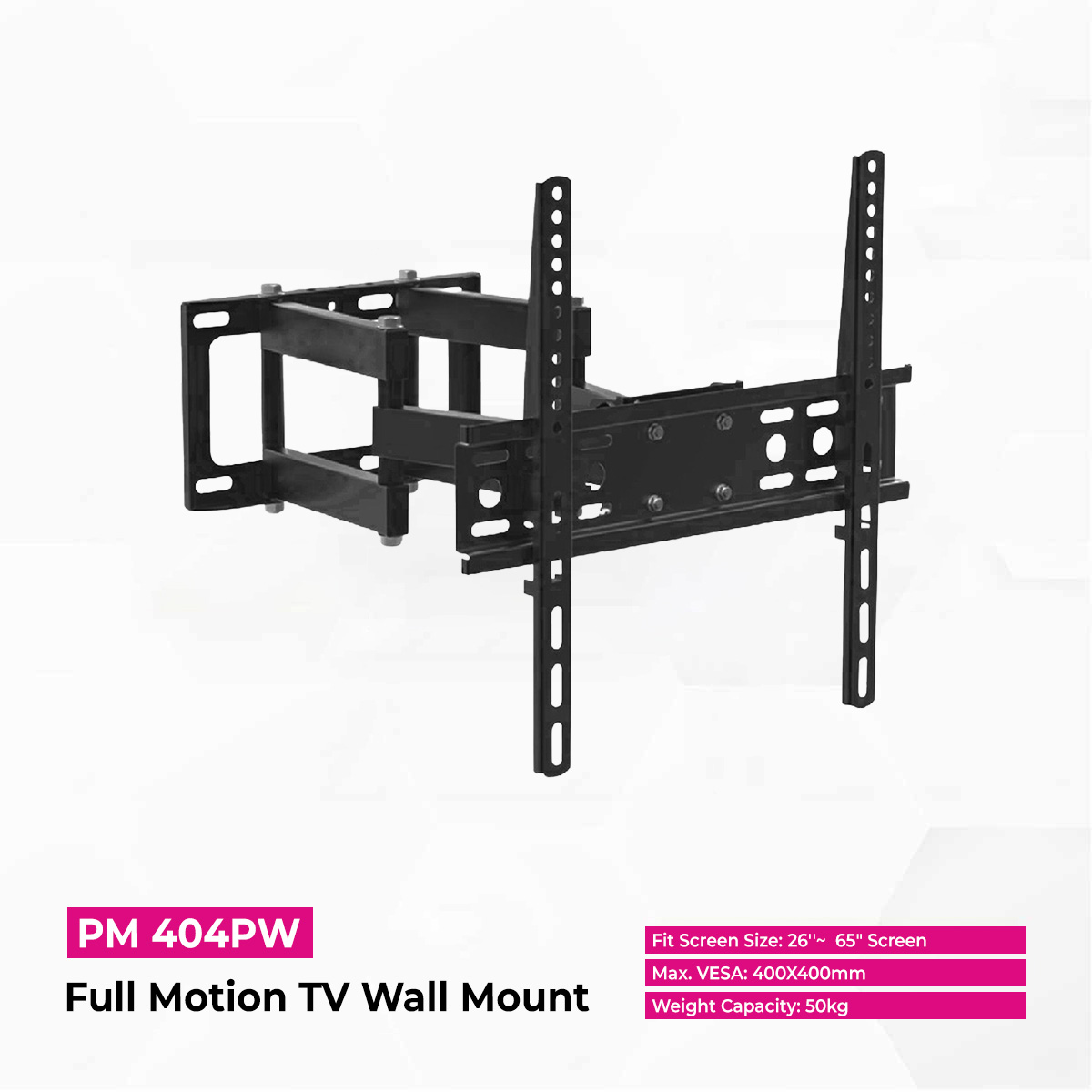

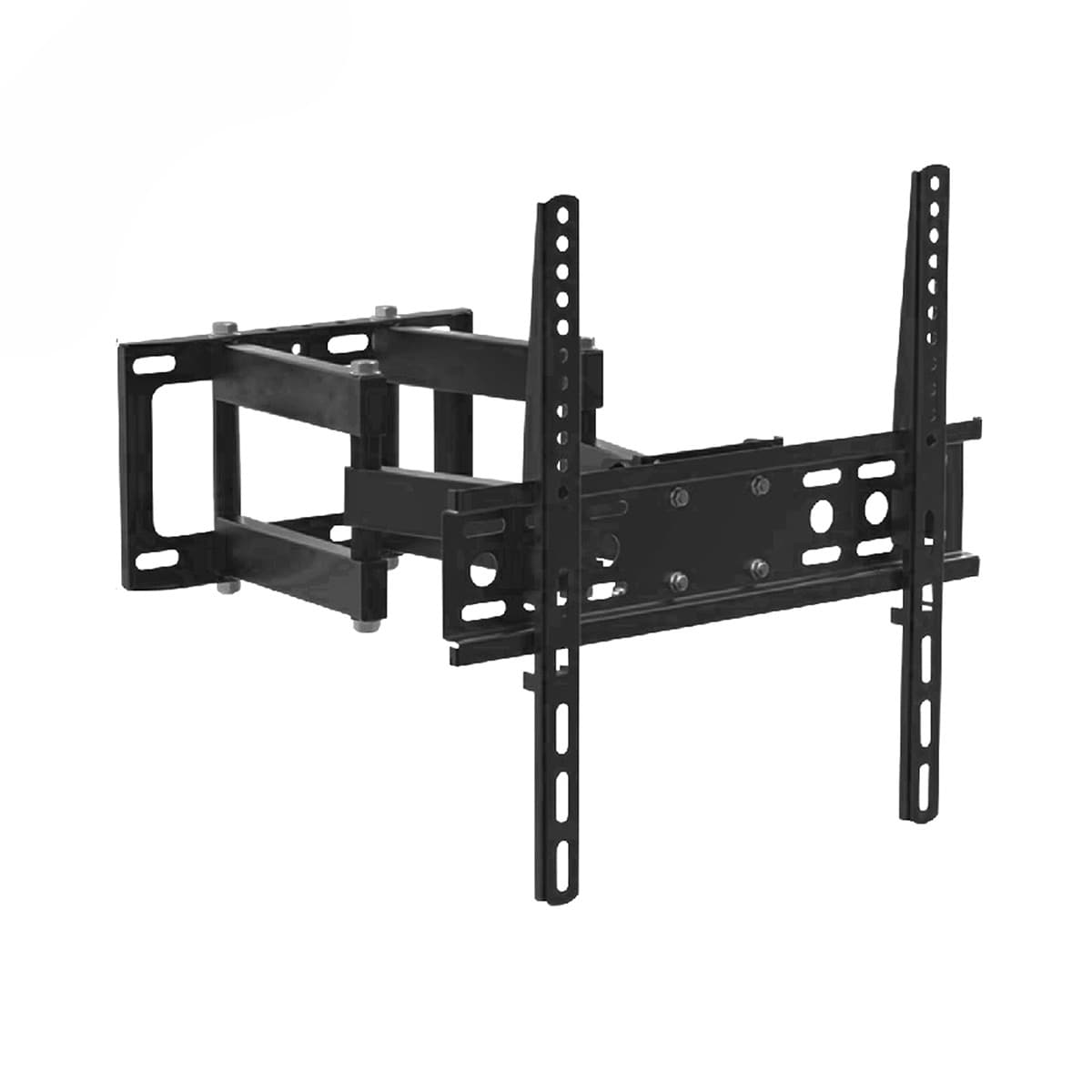

PM 404PW
Full Motion TV Wall Mount
Screen Size26''~65''
Max VESA400x400mm
Weight Capacity50kg
Profile75~470mm
Tilt Range-5°~+8°
Overview
| Product Category | Swivel TV Wall Mount |
|---|---|
| By Function | Full motion |
| Rank | Standard |
| Material | Steel |
| Surface Finish | Powder Coating |
| Tilt Range | -5° ~ +8° |
|---|---|
| Swivel | 60° ~ +60° |
| Max. VESA | 400X400mm |
| Weight Capacity | 50 kg |
| Profile | 75~470mm |
| Product Category | Swivel TV Wall Mount |
|---|---|
| By Function | Full motion |
| Rank | Standard |
| Material | Steel |
| Surface Finish | Powder Coating |
Features
- Universal CompatibilitySupports most 26”~65” flat and curved TVs with VESA patterns up to 400 × 400 mm, ensuring wide brand and model compatibility.

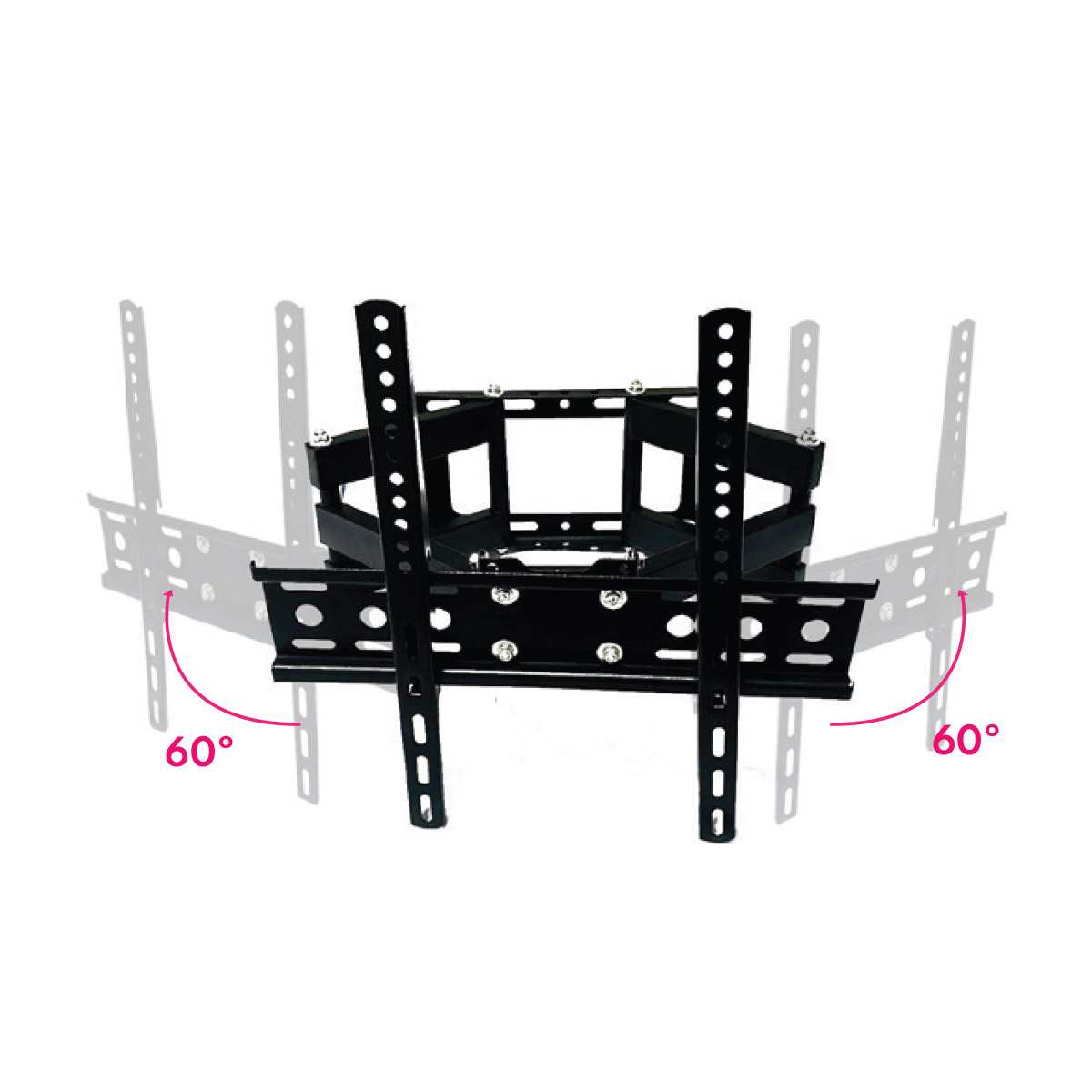

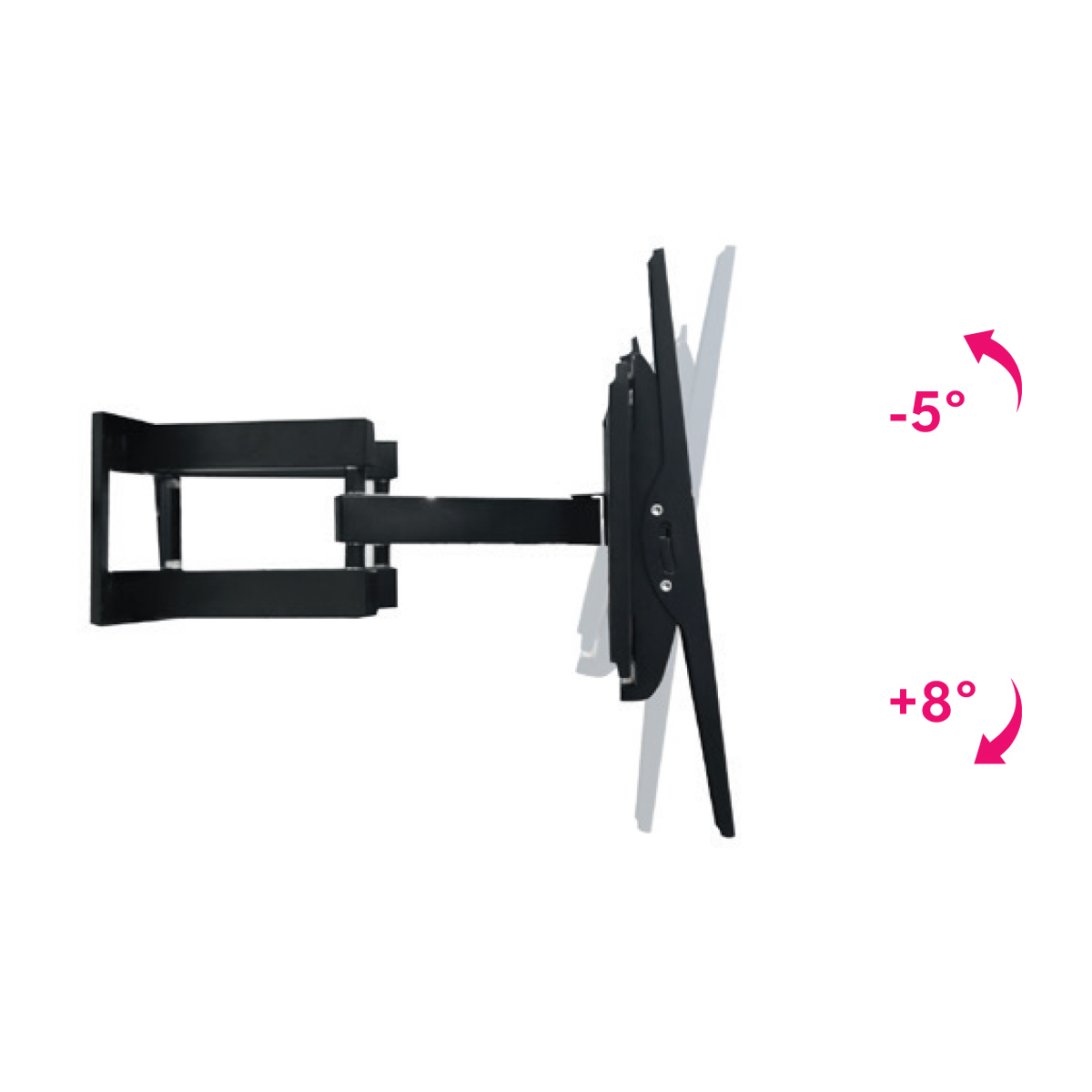

- Full Motion Viewing AdjustmentProvides -5°~+8° tilt and 60° ~ +60° swivel, allowing flexible positioning for comfortable viewing and glare reduction.
- Heavy-Duty Steel ConstructionMade from high-strength steel with a matte black powder-coated finish for durability, stability, and a clean modern appearance.
- Secure & Stable SupportDesigned to safely hold TVs weighing up to 50 kg, delivering reliable and long-lasting wall mounting performance.

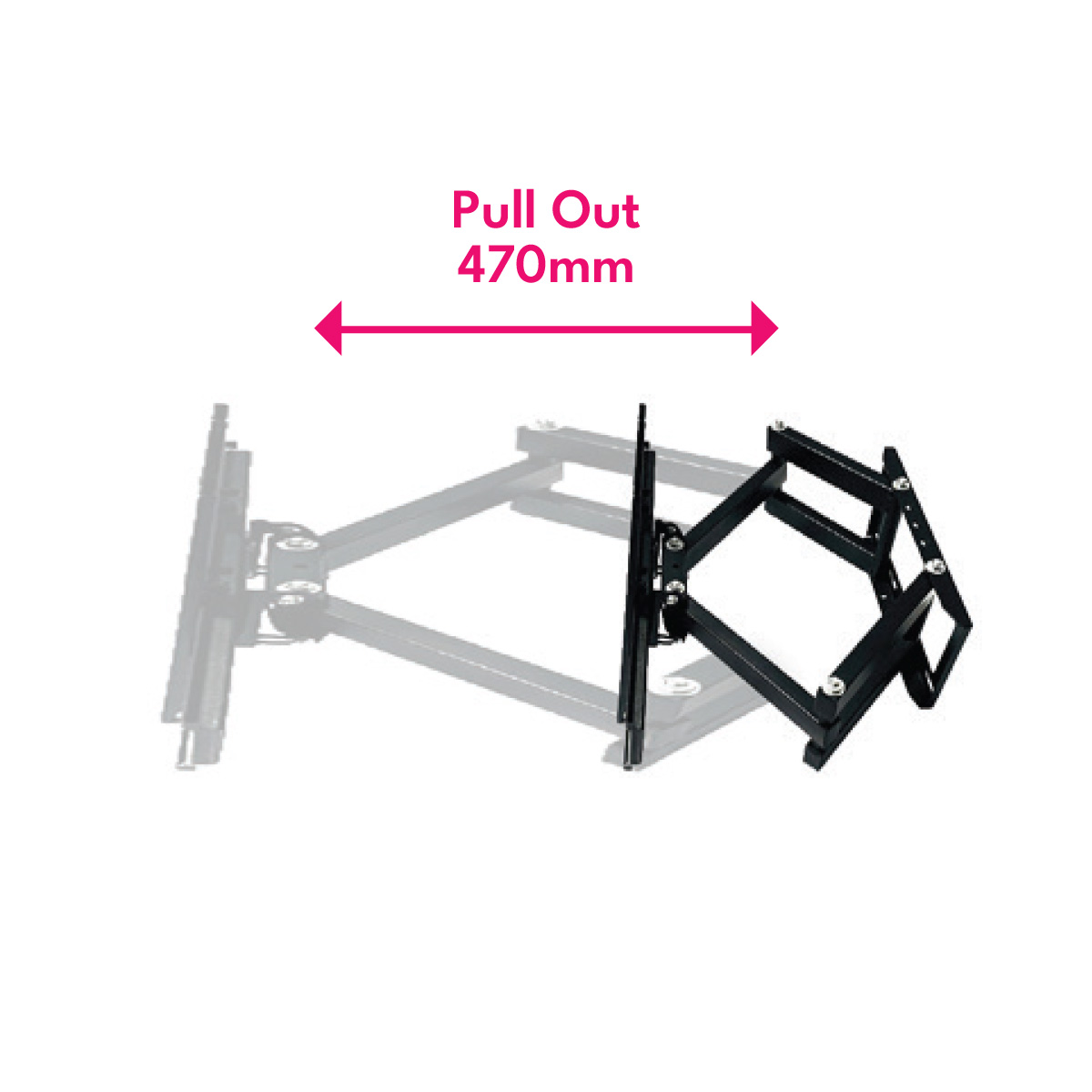

- Easy Installation & Adjustable ProfileDetachable panel, fixed wall plate, and hook-on bubble level for precise installation, with adjustable 75~470 mm wall clearance.
Description
PM 404PW Full Motion TV Wall Mount is a standard swivel mount designed for most 26”~65” flat and curved TVs. Constructed from durable steel with a matte black powder-coated finish, it supports up to 50 kg. The mount features -5°~+8° tilt, 60°~+60° swivel, and an adjustable 75~470 mm profile. Universal VESA compatibility up to 400x400, a detachable panel, and included bubble level ensure quick, precise installation and flexible viewing comfort.

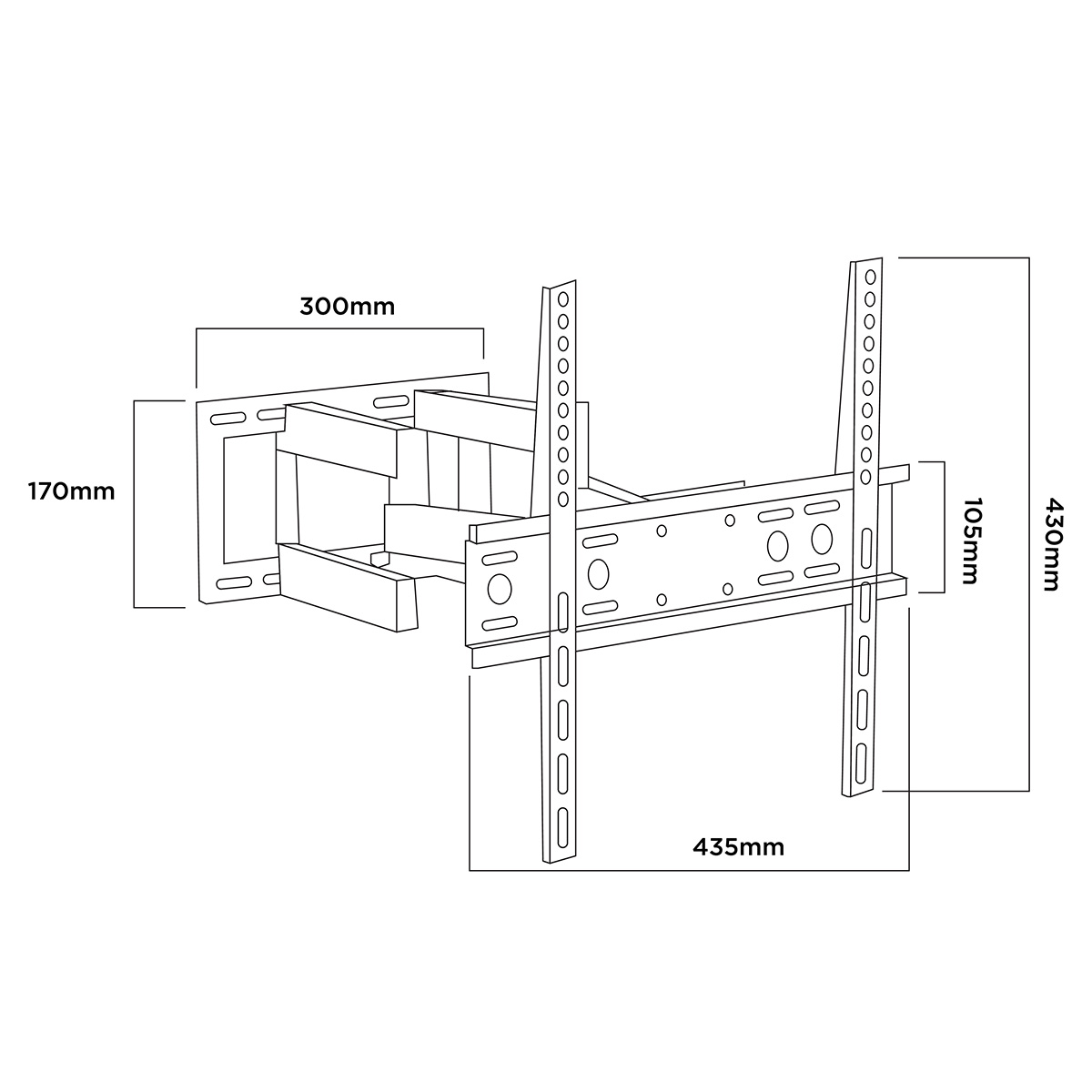

Drawing
