MW7780-MO-H1
Outdoor LED Module
Overview
| Pixel Pitch | P8 |
|---|---|
| Module Resolution (W*H) | 40x20 |
| Module Dimension (mm) | 320x160x19.4 |
| Storage Temperature | 40°C to 60°C |
| Warranty | 2 year |
| Viewing Angle | 120°/120° |
|---|---|
| Brightness | 4500 |
| Power Supply | DC 4.5 V |
| Pixel Density | 15625 |
| Single Pixel Brightness Correction | Support |
| Pixel Pitch | P8 |
|---|---|
| Module Resolution (W*H) | 40x20 |
| Module Dimension (mm) | 320x160x19.4 |
| Storage Temperature | 40°C to 60°C |
| Warranty | 2 year |
Features
- High Brightness (4500 cd/m²)Ideal for outdoor use under direct sunlight.
- Wide Viewing Angle (120°/120°)Delivers clear visuals from multiple perspectives.
- 14-bit GrayscaleEnsures smooth color transitions and rich image quality.
- Durable & Lightweight DesignWeighs just 0.45 kg with a rugged 320×160 mm form factor.
- Single Pixel Brightness CorrectionMaintains uniform brightness and color fidelity across the module.
Description

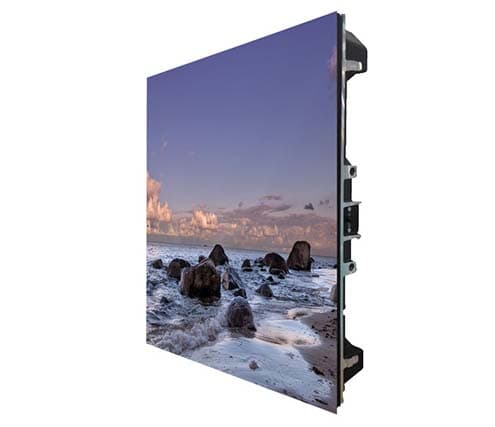

The MW7780-MO-H1 is a robust outdoor LED module with an 8mm pixel pitch, delivering vibrant and clear visuals for long-distance viewing. Its high brightness of 4500 cd/m² and wide 120° viewing angles ensure excellent visibility in outdoor settings. Built to withstand varying temperatures and conditions, it features 14-bit grayscale, ±0.003 color uniformity, and single pixel brightness correction for consistent image quality in digital signage and outdoor advertising applications.
Drawing
No drawing available
