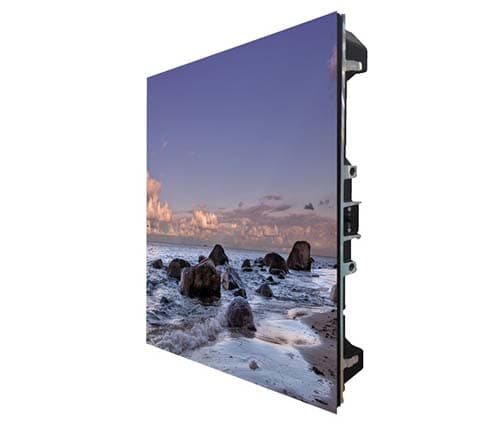

MW7730-MO-H1
Outdoor LED Module
Overview
| Pixel Pitch | P3 |
|---|---|
| Module Resolution (W*H) | 104 x 52 |
| Module Dimension (mm) | 1320x 160 x 17.1 |
| Storage Temperature | 40°C to 60°C |
| Warranty | 2 year |
| Viewing Angle | 120°/120° |
|---|---|
| Brightness | 4500 |
| Power Supply | DC 4.5 V |
| Pixel Density | 105625 |
| Single Pixel Brightness Correction | Support |
| Pixel Pitch | P3 |
|---|---|
| Module Resolution (W*H) | 104 x 52 |
| Module Dimension (mm) | 1320x 160 x 17.1 |
| Storage Temperature | 40°C to 60°C |
| Warranty | 2 year |
Features
- Fine Pixel Pitch (P3)Provides crisp and detailed images for outdoor applications.
- High Pixel Density (105,625 pixels/m²)Ensures clear visuals at closer viewing distances.
- High Brightness (4500 cd/m²)Optimal for visibility even in direct sunlight.
- Wide Viewing Angle (120°/120°)Maintains consistent image quality from various angles.
- Single Pixel Brightness CorrectionGuarantees uniform brightness and color accuracy across the module.
Description
The MW7730-MO-H1 is a high-resolution outdoor LED module featuring a 3mm pixel pitch and 105,625 pixels per square meter, delivering sharp, vivid images ideal for close to mid-range viewing. It offers 4500 cd/m² brightness, wide 120° viewing angles, and 14-bit grayscale for rich, smooth visuals. With excellent color uniformity and single pixel brightness correction, it guarantees consistent and bright outdoor display performance in diverse environments.
Drawing
No drawing available
