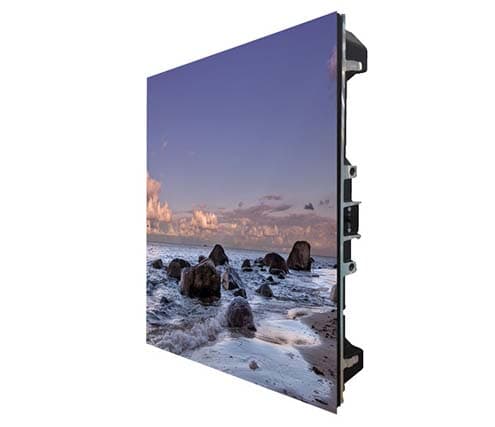

MW7725-MO-H1
Outdoor LED Module
Overview
| Pixel Pitch | P2.5 |
|---|---|
| Module Resolution (W*H) | 128 x 64 |
| Module Dimension (mm) | 320 x 160 x 17.05 |
| Storage Temperature | 40°C to 60°C |
| Warranty | 2 year |
| Viewing Angle | 120°/120° |
|---|---|
| Brightness | 4500 |
| Power Supply | DC 4.5 V |
| Pixel Density | 160000 |
| Single Pixel Brightness Correction | Support |
| Pixel Pitch | P2.5 |
|---|---|
| Module Resolution (W*H) | 128 x 64 |
| Module Dimension (mm) | 320 x 160 x 17.05 |
| Storage Temperature | 40°C to 60°C |
| Warranty | 2 year |
Features
- Fine Pixel Pitch (P2.5)Delivers crisp visuals with high pixel density.
- High Brightness (4500 cd/m²)Ensures clear visibility in outdoor daylight.
- Wide Viewing Angle (120°/120°)Maintains consistent image quality from different angles.
- 14-bit GrayscaleProvides smooth color transitions and rich detail.
- Single Pixel Brightness CorrectionGuarantees uniform brightness and color across the display.
Description
The MW7725-MO-H1 is a high-resolution outdoor LED module with a 2.5mm pixel pitch, offering sharp and vivid images with a pixel density of 160,000/m². It features 4500 cd/m² brightness, wide 120° viewing angles, and 14-bit grayscale for smooth and vibrant visuals. Designed for durability and consistency, it supports single pixel brightness correction and maintains excellent color uniformity, making it ideal for outdoor advertising and public displays.
Drawing
No drawing available
