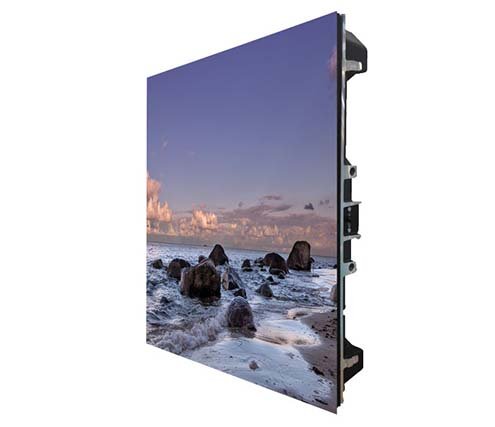

MW7760-MO-H1
Outdoor LED Module
Overview
| Pixel Pitch | P6 |
|---|---|
| Module Resolution (W*H) | 32 x 32 |
| Module Dimension (mm) | 192 x 192 x 15.4 |
| Storage Temperature | 40°C to 60°C |
| Warranty | 2 Year |
| Viewing Angle | 120°/120° |
|---|---|
| Brightness | 4500 |
| Power Supply | DC 4.5 V |
| Pixel Density | 27777 |
| Single Pixel Brightness Correction | Support |
| Pixel Pitch | P6 |
|---|---|
| Module Resolution (W*H) | 32 x 32 |
| Module Dimension (mm) | 192 x 192 x 15.4 |
| Storage Temperature | 40°C to 60°C |
| Warranty | 2 Year |
Features
- High Brightness (4500 cd/m²)Ensures visibility in outdoor daylight environments.
- Weather-Resistant DesignSuitable for harsh outdoor conditions with robust build.
- 14-bit GrayscaleDelivers smooth gradients and superior image quality.
- Wide Viewing Angle (120°/120°)Maintains image clarity from multiple directions.
- Single Pixel Brightness CorrectionSupports consistent brightness and color accuracy across the module.
Description
The MW7760-MO-H1 is a durable outdoor LED module designed for high-visibility performance in varied lighting conditions. With a 6mm pixel pitch and brightness of 4500 cd/m², it delivers clear and vibrant images even under direct sunlight. Featuring 14-bit grayscale, ±0.003 color uniformity, and wide 120°/120° viewing angles, it ensures consistent visual quality. Lightweight and weather-resistant, it’s ideal for outdoor advertising, public displays, and information boards.
Drawing
No drawing available
