| Pixel Pitch: | P5 |
| Module Resolution (W*H): | 64x32 |
| Module Dimension (mm): | 320 x 160 x 17.67 |
| Storage Temperature: | 40°C to 60°C |
| Warranty: | 2 year |
| Color Uniformity (Cx, Cy): | ±0.003 |
| Grayscale: | 14bit |
| Colour Temperature: | 3500 to 9000 |
| Viewing Angle: | 120°/120° |
| Brightness: | 4500 |
| Power Supply: | DC 4.5 V |
| Pixel Density: | 40000 |
| Single Pixel Brightness Correction: | Support |
| Weight (Kg/pcs): | 0.42±0.02kg |
| Contrast Ratio: | 3000:01 |
High Pixel Density (40,000/m²): Produces detailed images suitable for mid-range outdoor viewing.
Bright Outdoor Performance (4500 cd/m²): Ensures visibility in direct sunlight.
14-bit Grayscale: Enhances image depth and smooth transitions.
Consistent Color Output (±0.003 Cx, Cy): Delivers uniform display quality.
Wide Viewing Angle (120°/120°): Maintains clarity from different directions

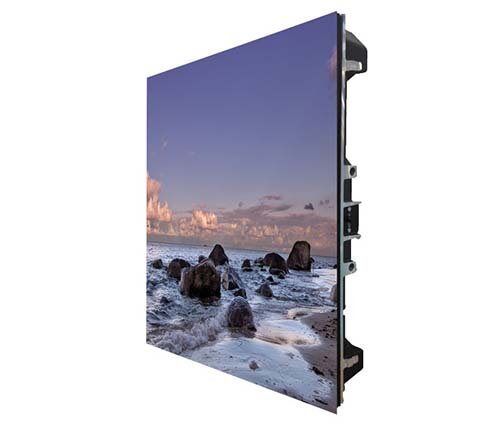

The MW7750-MO-H1 is a high-performance outdoor LED module with a 5mm pixel pitch and a pixel density of 40,000/m², providing crisp and vibrant visuals. Designed for visibility in daylight, it features 4500 cd/m² brightness, wide 120° viewing angles, and 14-bit grayscale for smooth image rendering. With ±0.003 color uniformity and support for single pixel brightness correction, it ensures consistent and reliable display output in all outdoor environments.
