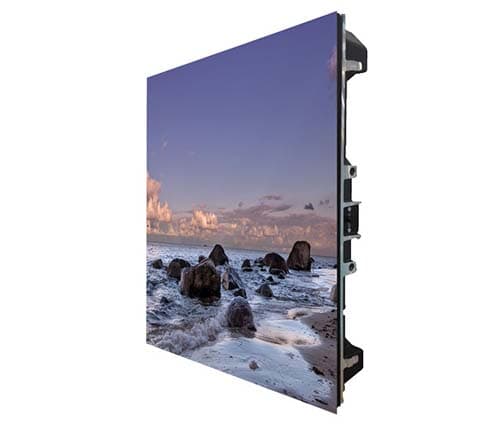

MW7215-A-BL-U
LED Display Unit
Overview
| Pixel Pitch | P1.5 |
|---|---|
| Module Resolution (W*H) | 208x104 |
| Module Dimension (mm) | 320x 160x14.6 |
| Cabinet Dimension (W*H*D) (mm) | 640×480×63 |
| Warranty | 2 year |
| Viewing Angle | 160°/140° |
|---|---|
| Brightness | 600 |
| Power Supply | AC 200-240 V |
| Pixel Density | 422500 |
| Single Pixel Brightness Correction | Support |
| Pixel Pitch | P1.5 |
|---|---|
| Module Resolution (W*H) | 208x104 |
| Module Dimension (mm) | 320x 160x14.6 |
| Cabinet Dimension (W*H*D) (mm) | 640×480×63 |
| Warranty | 2 year |
Features
- Fine Pixel Pitch (P1.5)Ensures high-resolution, detailed image clarity.
- Wide Viewing Angles (160°/140°)Consistent visuals from multiple directions.
- High Pixel Density (422,500 pixels/m²)Supports detailed and smooth content rendering.
- Robust Die-Cast Aluminum HousingLightweight, strong, and easy to install.
- Single Pixel Brightness CorrectionEnables precise brightness calibration for uniform output.
Description
The MW7215-A-BL-U is a precision-engineered indoor LED display unit with a fine 1.5mm pixel pitch, delivering ultra-clear images and vivid colors. With wide 160°/140° viewing angles, 600 cd/m² brightness, and a 4000:1 contrast ratio, it ensures vibrant visuals in various lighting conditions. The die-cast aluminum cabinet enhances durability, while single pixel brightness correction guarantees uniform image performance—ideal for control rooms, conference displays, and commercial digital signage.
Drawing
No drawing available
