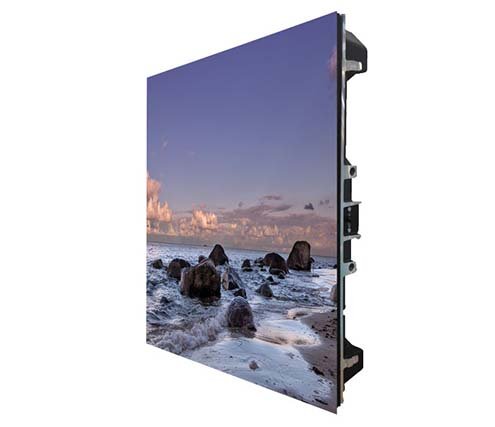

MW7718-MI-H1C
Indoor LED Display Module
Overview
| Pixel Pitch | P1.86 |
|---|---|
| Module Resolution (W*H) | 172x86 |
| Module Dimension (mm) | 320x160x16.6 |
| Storage temperature | 20 to 60°C |
| Warranty | 2 year |
| Viewing Angle | 140°/140° |
|---|---|
| Brightness | ≥500 |
| Power Supply | DC 4.5 |
| Pixel Density | 288906 |
| Brightness uniformity | ≥95% |
| Pixel Pitch | P1.86 |
|---|---|
| Module Resolution (W*H) | 172x86 |
| Module Dimension (mm) | 320x160x16.6 |
| Storage temperature | 20 to 60°C |
| Warranty | 2 year |
Features
- Fine P1.86 Pixel PitchEnsures ultra-clear visuals for close-viewing indoor applications.
- 14-bit GrayscaleDelivers smooth color transitions and high-fidelity image rendering.
- High Pixel Density (288,906/m²)Enables exceptional detail and sharpness.
- ≥95% Brightness UniformityGuarantees even luminance across the entire screen.
- Wide Viewing Angle (140°/140°)Provides optimal visibility from multiple directions.
Description
The MW7718-MI-H1C is a high-performance indoor LED display module featuring a fine P1.86 pixel pitch, delivering crisp, high-resolution visuals with 172×86 pixels per module. With 14-bit grayscale, excellent brightness uniformity (≥95%), and a wide 140° viewing angle, it offers vibrant and consistent imagery. Ideal for control rooms, corporate spaces, and luxury retail environments, this lightweight 0.45 kg module combines precision engineering with premium display quality.
Drawing
No drawing available
