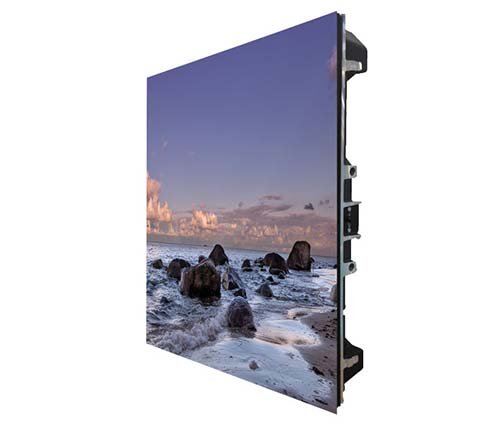

MW7720-MI-H1C
Indoor LED Display Module
Overview
| Pixel Pitch | P2 |
|---|---|
| Module Resolution (W*H) | 160x80 |
| Module Dimension (mm) | 320x160x16.6 |
| Operating humidity | 10 to 60% RH, non-condensing |
| Warranty | 2 year |
| Viewing Angle | 140°/140° |
|---|---|
| Brightness (nits) | ≥500 |
| Power Supply | DC 4.5 |
| Pixel density (pitch/m²) | 250000 |
| Unit board signal interface | HUB75 |
| Pixel Pitch | P2 |
|---|---|
| Module Resolution (W*H) | 160x80 |
| Module Dimension (mm) | 320x160x16.6 |
| Operating humidity | 10 to 60% RH, non-condensing |
| Warranty | 2 year |
Features
- Fine P2.0 Pixel PitchIdeal for high-definition indoor applications demanding sharp image clarity.
- 14-bit GrayscaleEnables smooth color gradients and rich detail across all content types.
- High Pixel Density (250,000/m²)Supports ultra-detailed visuals for premium display setups.
- Wide Viewing Angle (140°/140°)Ensures consistent brightness and color from any direction.
- HUB75 Signal InterfaceOffers standardized, reliable connectivity for modular display systems.
Description
The MW7720-MI-H1C is a premium indoor LED display module featuring a fine P2.0 pixel pitch and high resolution of 160×80 pixels. With a lightweight 0.422 kg build and HUB75 signal interface, it’s designed for seamless integration in fine-pitch video walls. Its 14-bit grayscale, wide color temperature range, and high contrast ratio ensure rich, lifelike visuals—ideal for command centers, conference rooms, and high-end retail environments.
Drawing
No drawing available
