MW7725-MI-H1C
Indoor LED Display Module
Overview
| Pixel Pitch | P2.5 |
|---|---|
| Module Resolution (W*H) | 128x64 |
| Module Dimension (mm) | 320x160x14 |
| Storage Temperature | 20 to 60°C |
| Warranty | 2 year |
| Viewing Angle | 160°/140° |
|---|---|
| Brightness | ≥500 |
| Power Supply | DC 4.5 |
| Pixel Density | 160000 |
| Single Pixel Brightness Correction | Support |
| Pixel Pitch | P2.5 |
|---|---|
| Module Resolution (W*H) | 128x64 |
| Module Dimension (mm) | 320x160x14 |
| Storage Temperature | 20 to 60°C |
| Warranty | 2 year |
Features
- P2.5 Pixel PitchDelivers high-resolution imagery for sharp, detailed indoor visuals.
- High Brightness (≥500 nits)Ensures clear display visibility even in well-lit indoor environments.
- Wide Viewing Angle (160°/140°)Provides uniform image quality across broad viewing perspectives.
- 12-bit GrayscaleSupports smooth gradation and vibrant color rendering for dynamic content.
- Lightweight Design (0.348 kg)Compact and easy to handle for flexible installations and maintenance.
Description

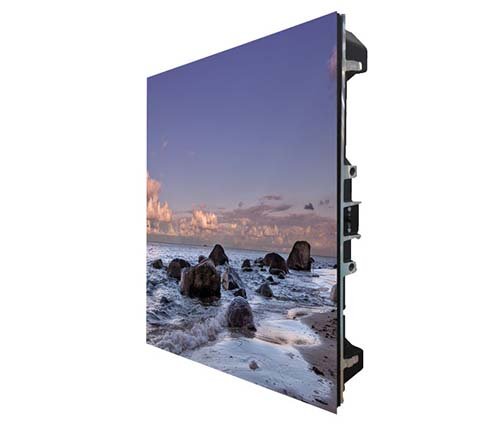

The MW7725-MI-H1C is a high-performance indoor LED display module featuring a fine P2.5 pixel pitch and a resolution of 128×64 pixels. With its slim 320×160×14 mm design and lightweight 0.348 kg build, it's ideal for seamless, high-resolution video walls. It offers excellent color uniformity, 12-bit grayscale, and wide viewing angles, delivering consistent, vivid visuals. Perfect for retail, control rooms, and corporate displays requiring precision and clarity.
Drawing
No drawing available
