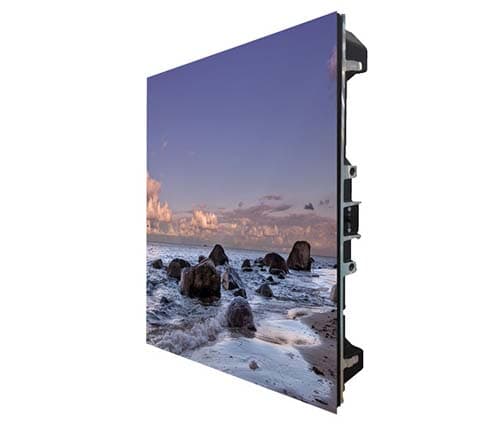

MW7712-MI-H1C
Indoor LED Display Module
Overview
| Pixel Pitch | P1.25 |
|---|---|
| Module Resolution (W*H) | 256x128 |
| Module Dimension (mm) | 320x 160x17 |
| Unit board signal interface | HUB320 |
| Warranty | 2 year |
| Viewing Angle | 140°/140° |
|---|---|
| Brightness | ≥500 |
| Power Supply | DC 4.5 V |
| Pixel Density | 640000 |
| Unit board signal interface | HUB320 |
| Pixel Pitch | P1.25 |
|---|---|
| Module Resolution (W*H) | 256x128 |
| Module Dimension (mm) | 320x 160x17 |
| Unit board signal interface | HUB320 |
| Warranty | 2 year |
Features
- Ultra-Fine Pixel Pitch (P1.25)Delivers high-definition visuals suitable for close-range indoor applications.
- Wide Viewing Angle (140°/140°)Ensures excellent visibility from both horizontal and vertical angles.
- High Grayscale (14-bit)Provides smooth gradients and lifelike image quality.
- Excellent Color Uniformity (±0.003Cx, Cy)Maintains consistent color output across the entire display.
- Lightweight and Compact DesignWeighs only 0.46 kg, making it easy to install and maintain.
Description
The MW7712-MI-H1C is a high-resolution indoor LED display module with a fine 1.25mm pixel pitch, delivering sharp images and vibrant colors. With 14-bit grayscale, high contrast, and wide viewing angles, it ensures clear visibility from any direction. Engineered for reliability, it features uniform color performance and a compact, lightweight design. Ideal for professional indoor displays in control rooms, conference halls, or commercial signage applications.
Drawing
No drawing available
