MW7840-FO-E
Outdoor LED Display Unit
Overview
| Pixel Pitch | P4 |
|---|---|
| Module Resolution (W*H) | 40x240 |
| Module Dimension (mm) | 160x 960 |
| Cabinet Dimension (W*H*D) (mm) | 960x960x87 |
| Warranty | 2 Year |
| Viewing Angle | 140°/120° |
|---|---|
| Brightness | 6000 |
| Power Supply | AC 100 to 240V |
| Pixel Density | 62500 |
| Single Pixel Brightness Correction | Support |
| Pixel Pitch | P4 |
|---|---|
| Module Resolution (W*H) | 40x240 |
| Module Dimension (mm) | 160x 960 |
| Cabinet Dimension (W*H*D) (mm) | 960x960x87 |
| Warranty | 2 Year |
Features
- Ultra-High Pixel Density (62,500/m²)Crisp, detailed visuals for high-resolution outdoor displays.
- Exceptional Brightness (6000 nits)Ensures great visibility even in direct sunlight.
- Durable Aluminum ProfileLightweight and weather-resistant construction ideal for outdoor use.
- Wide Viewing Angle140° horizontal / 120° vertical for maximum audience reach.
- Brightness Correction SupportPixel-level calibration for consistent image quality across the screen.
Description

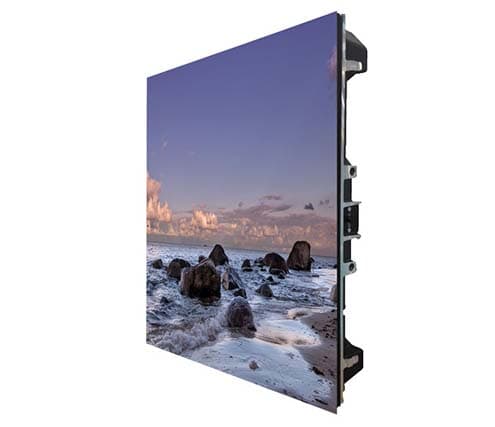

The MW7840-FO-E is a precision-engineered outdoor LED display unit featuring a P4 pixel pitch and ultra-high pixel density of 62,500 pixels/m². With a cabinet resolution of 240×240 and 6000 nits brightness, it ensures clear and vibrant images in any outdoor lighting. Housed in a durable aluminum profile, it supports single pixel brightness correction and offers a wide viewing angle of 140°/120°, backed by a 2-year warranty for reliable outdoor performance.
Drawing
No drawing available
