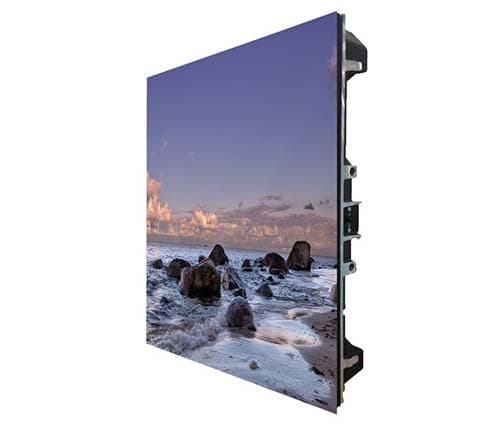

MW7750-FO-D
Outdoor Fixed LED Display Screen
Overview
| Pixel Pitch | P5 |
|---|---|
| Module Resolution (W*H) | 64x32 |
| Module Dimension (mm) | 320x160 |
| Cabinet Dimension (W*H*D) (mm) | W960×H960×D137.5?±0.5? |
| Warranty | 2 Year |
| Viewing Angle | 120°/120° |
|---|---|
| Brightness | 5500 |
| Color uniformity (Cx,Cy) | ±0.003 |
| Pixel Density | 40000 |
| Grayscale (bit) | 14 |
| Pixel Pitch | P5 |
|---|---|
| Module Resolution (W*H) | 64x32 |
| Module Dimension (mm) | 320x160 |
| Cabinet Dimension (W*H*D) (mm) | W960×H960×D137.5?±0.5? |
| Warranty | 2 Year |
Features
- High Pixel Density (40,000/m², P5)Produces sharp, high-resolution visuals for outdoor installations.
- 5500 nits Brightness + 14-bit GrayscaleVivid performance with smooth image transitions in daylight.
- Color Uniformity (±0.003 Cx, Cy)Ensures consistent and true-to-source color reproduction.
- Durable SPCC Metal CabinetEngineered for outdoor durability with excellent weather resistance.
- Multiple Contrast Ratio OptionsChoose between copper and golden wire for enhanced image depth (up to 6000:1).
Description
The MW7750-FO-D is a precision-engineered outdoor fixed LED display with a P5 pixel pitch and an ultra-clear 192×192 cabinet resolution. Offering a brightness of 5500 nits, 14-bit grayscale, and ±0.003 color uniformity, it delivers vibrant and accurate images in all lighting conditions. Built with a robust SPCC metal plate, and available in multiple contrast ratio options, this display ensures durability and visual impact for demanding outdoor applications.
Drawing
No drawing available
