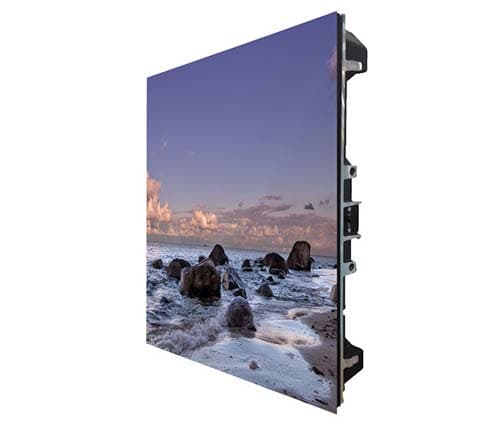

MW7830-FO-E
Outdoor LED Display Unit
Overview
| Pixel Pitch | P3.076 |
|---|---|
| Module Resolution (W*H) | 52x208 |
| Module Dimension (mm) | 160x 640 |
| Cabinet Dimension (W*H*D) (mm) | 640x640x85 |
| Warranty | 2 Year |
| Viewing Angle | 140°/120° |
|---|---|
| Brightness | 5000 |
| Power Supply | AC 100 to 240V |
| Pixel Density | 105625 |
| Single Pixel Brightness Correction | Support |
| Pixel Pitch | P3.076 |
|---|---|
| Module Resolution (W*H) | 52x208 |
| Module Dimension (mm) | 160x 640 |
| Cabinet Dimension (W*H*D) (mm) | 640x640x85 |
| Warranty | 2 Year |
Features
- Fine Pixel Pitch (P3.076)Delivers highly detailed and vibrant outdoor visuals.
- Ultra-High Pixel Density (105,625/m²)Perfect for close-view outdoor displays and advertising.
- Bright & Clear (5000 nits)Ensures visibility in bright daylight conditions.
- Rugged BuildAluminum profile cabinet offers weather resistance and durability.
- Consistent BrightnessSupports pixel-level brightness correction for uniform image quality.
Description
The MW7830-FO-E is a high-resolution outdoor LED display unit with a fine pixel pitch of P3.076 and an impressive pixel density of 105,625 pixels/m². Its 208×208 cabinet resolution delivers sharp, vibrant images, enhanced by 5000 nits brightness and a wide 140°/120° viewing angle. Constructed with a rugged aluminum profile, it supports single pixel brightness correction and operates reliably under varying outdoor conditions, backed by a 2-year warranty.
Drawing
No drawing available
