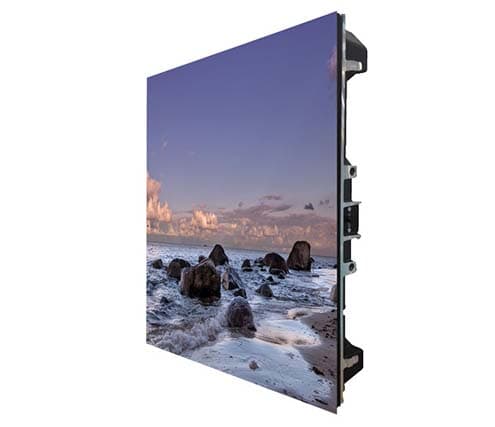

MW7780-FO-D
Outdoor Fixed LED Display Screen
Overview
| Pixel Pitch | P8 |
|---|---|
| Module Resolution (W*H) | 40x20 |
| Module Dimension (mm) | 320x160 |
| Cabinet Dimension (W*H*D) (mm) | W960×H960×D139?±0.5? |
| Warranty | 2 Year |
| Viewing Angle | 120°/120° |
|---|---|
| Brightness | 5500 |
| Power supply (V) | AC 100 to 240 |
| Pixel Density | 15625 |
| Grayscale (bit) | 14 |
| Pixel Pitch | P8 |
|---|---|
| Module Resolution (W*H) | 40x20 |
| Module Dimension (mm) | 320x160 |
| Cabinet Dimension (W*H*D) (mm) | W960×H960×D139?±0.5? |
| Warranty | 2 Year |
Features
- P8 Pixel Pitch with 14-bit GrayscaleBalances resolution and performance for vivid outdoor visuals.
- Optional High Contrast RatiosChoose copper or golden wire variants for 3000:1 to 6000:1 contrast.
- High Brightness (5500 nits)Ensures excellent visibility even in bright daylight.
- Strong SPCC Metal ConstructionOffers structural strength and resistance to outdoor elements.
- Wide Viewing Angles (120°/120°)Maintains clear visibility from multiple perspectives.
Description
The MW7780-FO-D is a rugged outdoor fixed LED display with a P8 pixel pitch and cabinet resolution of 120×120, offering 5500 nits brightness and sharp 14-bit grayscale imagery. Constructed from SPCC metal plate, it’s designed for durability and weather resistance. Featuring multiple contrast ratio options based on wire type and wide 120°/120° viewing angles, this display is ideal for impactful outdoor visuals. Includes a 2-year warranty for reliable long-term use.
Drawing
No drawing available
