MW7766-FO-D
Outdoor Fixed LED Display Screen
Overview
| Pixel Pitch | P6.67 |
|---|---|
| Module Resolution (W*H) | 48x24 |
| Module Dimension (mm) | 320x160 |
| Cabinet Dimension (W*H*D) (mm) | W960×H960×D139(±0.5) |
| Warranty | 2 Year |
| Viewing Angle | 120°/120° |
|---|---|
| Brightness | 5500 |
| Color uniformity (Cx,Cy) | ±0.003 |
| Pixel Density | 22500 |
| Grayscale (bit) | 14 |
| Pixel Pitch | P6.67 |
|---|---|
| Module Resolution (W*H) | 48x24 |
| Module Dimension (mm) | 320x160 |
| Cabinet Dimension (W*H*D) (mm) | W960×H960×D139(±0.5) |
| Warranty | 2 Year |
Features
- Fine P6.67 Pixel PitchIdeal balance between resolution and long-range visibility for outdoor use.
- Optional High Contrast RatiosCustomize contrast (3000:1 to 6000:1) based on copper or golden wire variants.
- Bright & Sharp (5500 nits, 14-bit grayscale)Ensures vivid and smooth visual performance.
- Durable SPCC Metal ConstructionOffers excellent protection against outdoor elements.
- Excellent Color Uniformity (±0.003 Cx, Cy)Guarantees consistent, vibrant color reproduction across the screen.
Description

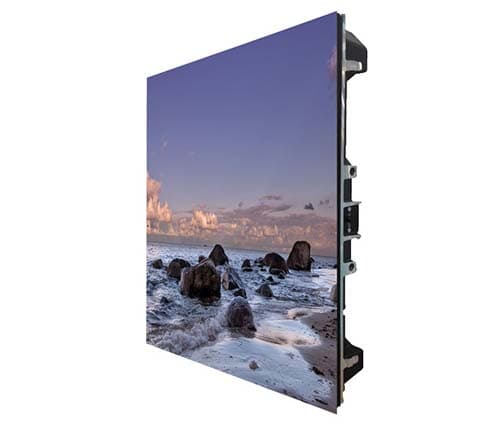

The MW7766-FO-D is a high-performance outdoor fixed LED display with a fine pixel pitch of P6.67 and a cabinet resolution of 144×144. Offering 5500 nits brightness and 14-bit grayscale depth, it delivers vibrant and sharp visuals in any lighting. Built with a durable SPCC metal plate, it ensures excellent structural integrity. With multiple contrast ratio options and wide 120°/120° viewing angles, it’s ideal for impactful and consistent outdoor presentations.
Drawing
No drawing available
