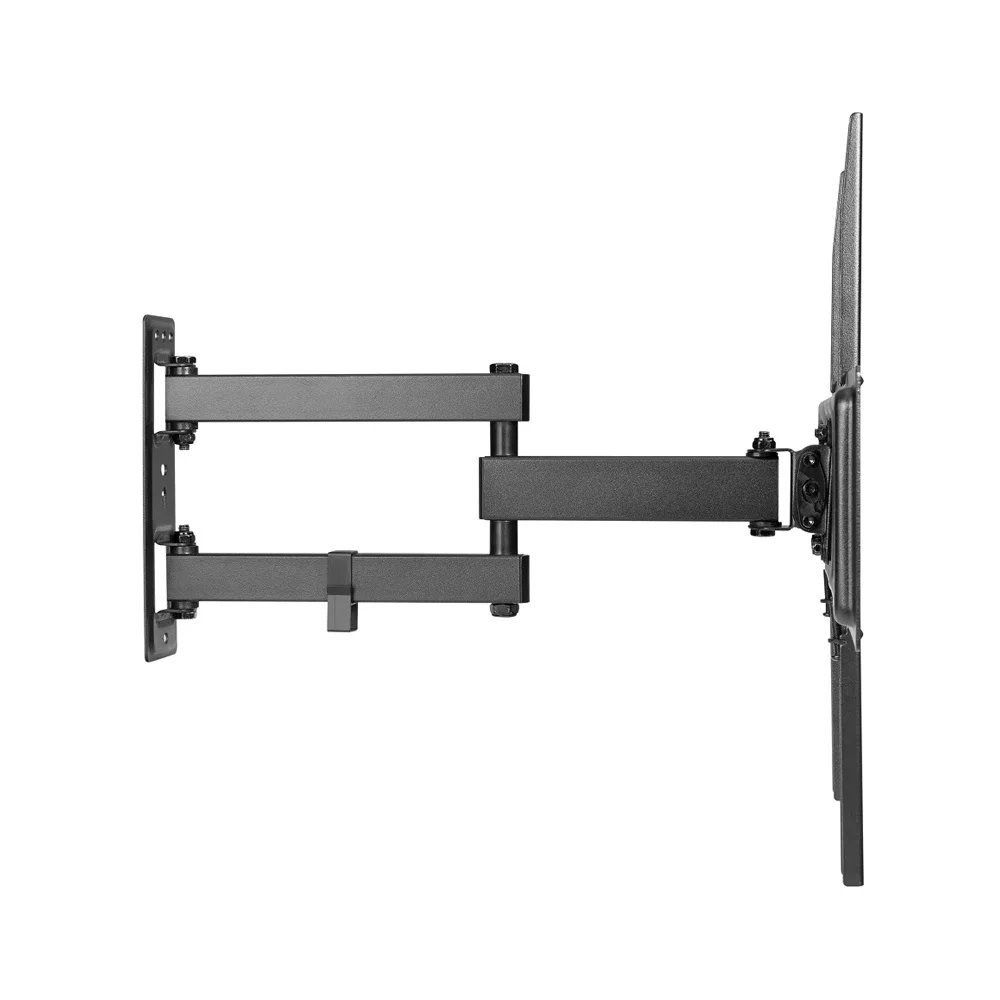

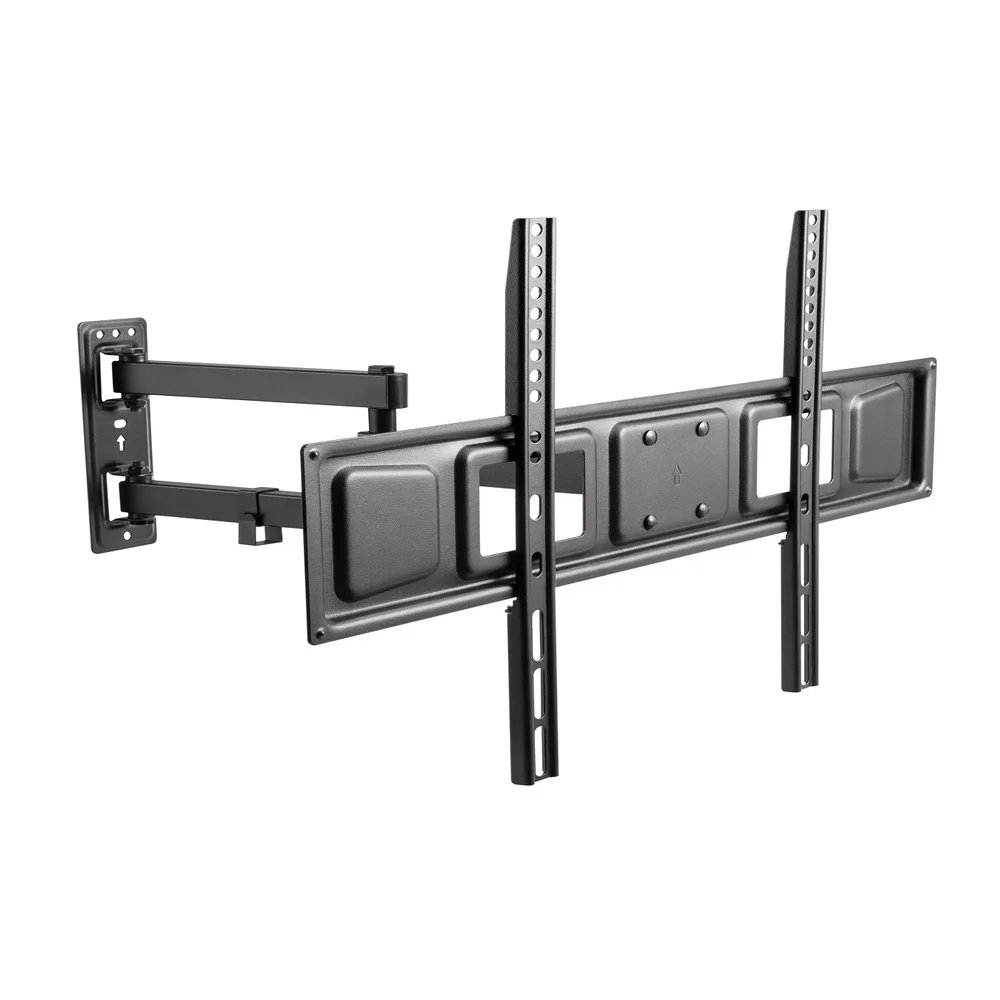

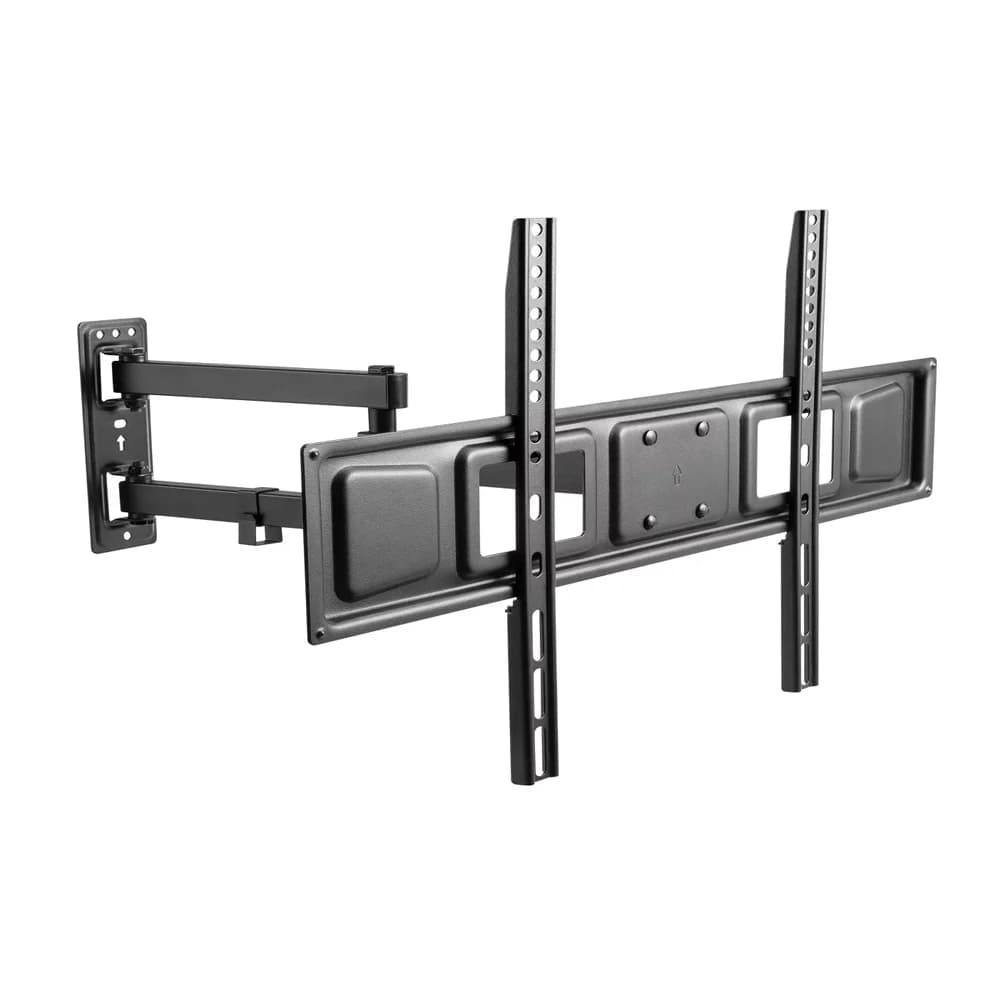

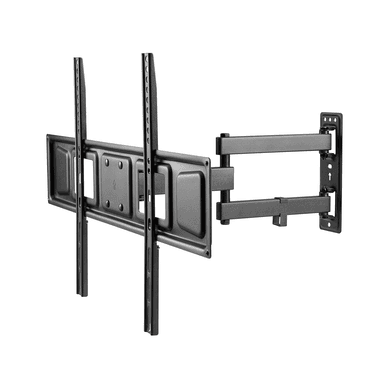

SH 70P
Ultra-Slim Low Profile Full-Motion TV Wall Mount
Screen Size37"~70"
Max VESA600x400mm
Weight Capacity35kg
Profile71-431mm
Tilt Range+10° ~ -15°
Overview
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Rank | Economy |
| Material | Steel |
| Pipe Size | 30x20x1.5mm Square Steel Tube,40x20x1.5mmSquare Steel Tube(1.2"x0.79"x0.059"Square Steel Tube,1.6"x0.79"x0.059"Square Steel Tube) |
| Surface Finish | Powder Coating |
| Weight Capacity | 35kg |
|---|---|
| Profile | 71-431mm |
| Strength Tested | 2 Times Approved |
| Tilt Range | +10° ~ -15° |
| Swivel Range | +90° ~ -90° |
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Rank | Economy |
| Material | Steel |
| Pipe Size | 30x20x1.5mm Square Steel Tube,40x20x1.5mmSquare Steel Tube(1.2"x0.79"x0.059"Square Steel Tube,1.6"x0.79"x0.059"Square Steel Tube) |
| Surface Finish | Powder Coating |
Features
- Full-Motion FlexibilityOffers +10°~-15° tilt,+90° ~ -90°swivel, and+3° ~ -3°screen leveling for optimal viewing angles.
- Ultra-Slim ProfileExtends from just 71~431mm, maintaining a sleek and low-profile look.
- Wide CompatibilitySupports most 37"~70" flat and curved TVs with max VESA 600x400mm.
- Strong & DurableMade from high-quality steel and tested 2 times for safety with a 35kg weight capacity.
- Easy InstallationFits double stud (406mm/450mm) solid wall setups with a detachable panel and fixed wall plate.
Description
The SH 70P Ultra-Slim Low Profile Full-Motion TV Wall Mount is designed for most 37"~70" flat and curved TVs. Built from durable steel and finished in fine texture black, it supports up to 35kg with VESA compatibility up to 600x400mm. Featuring full-motion flexibility with +90° ~ -90° swivel, +10°~-15° tilt, and +3° ~ -3° screen leveling, it ensures optimal viewing. Ideal for double stud installations, it combines stability with space-saving design.

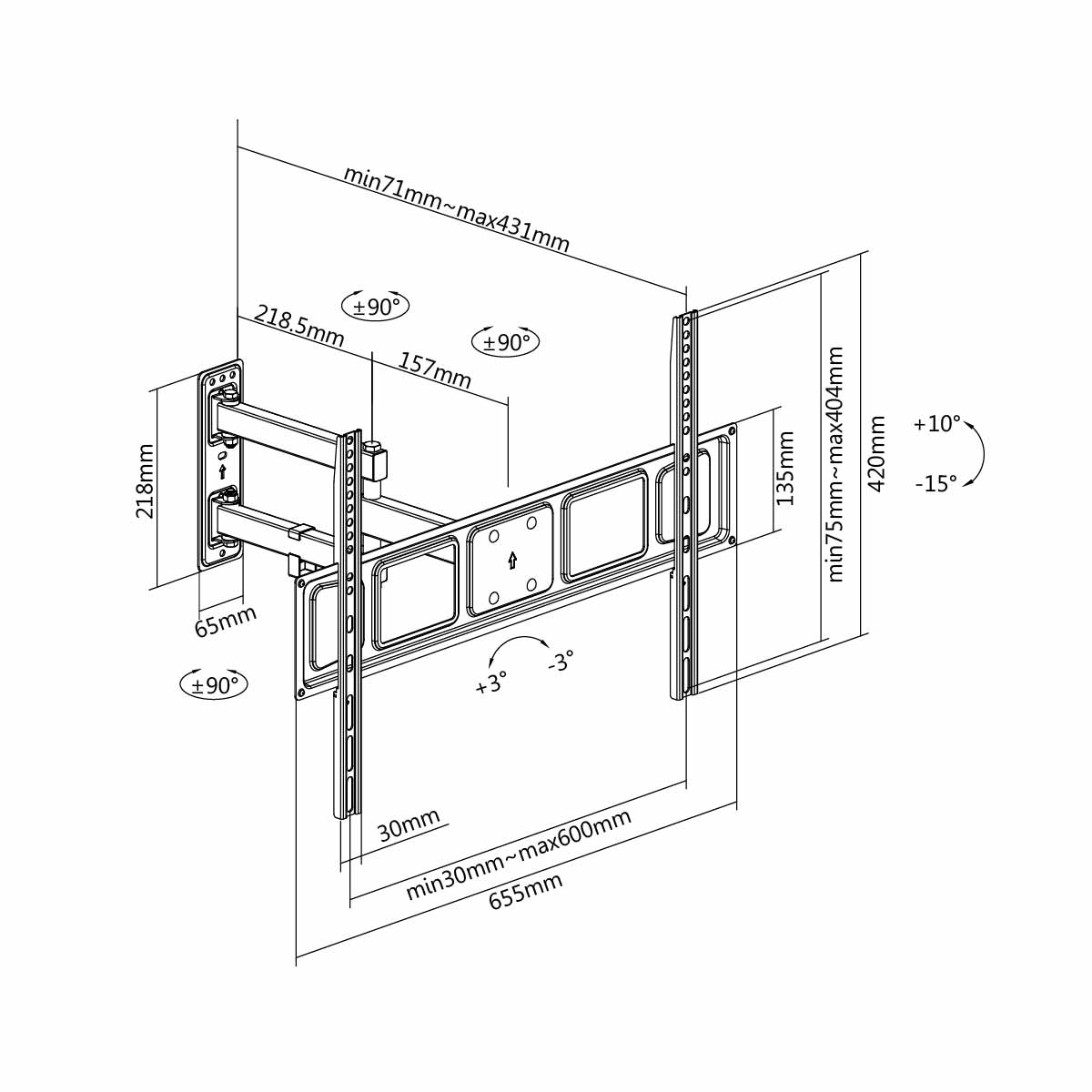

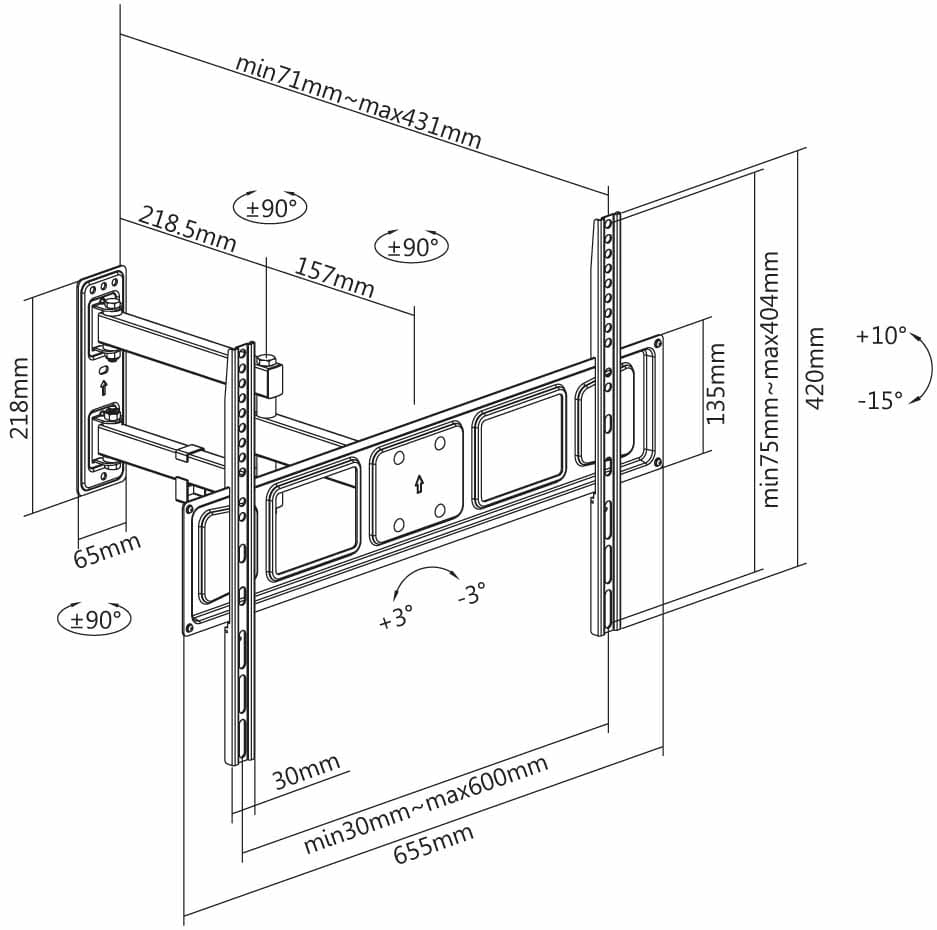

Drawing
