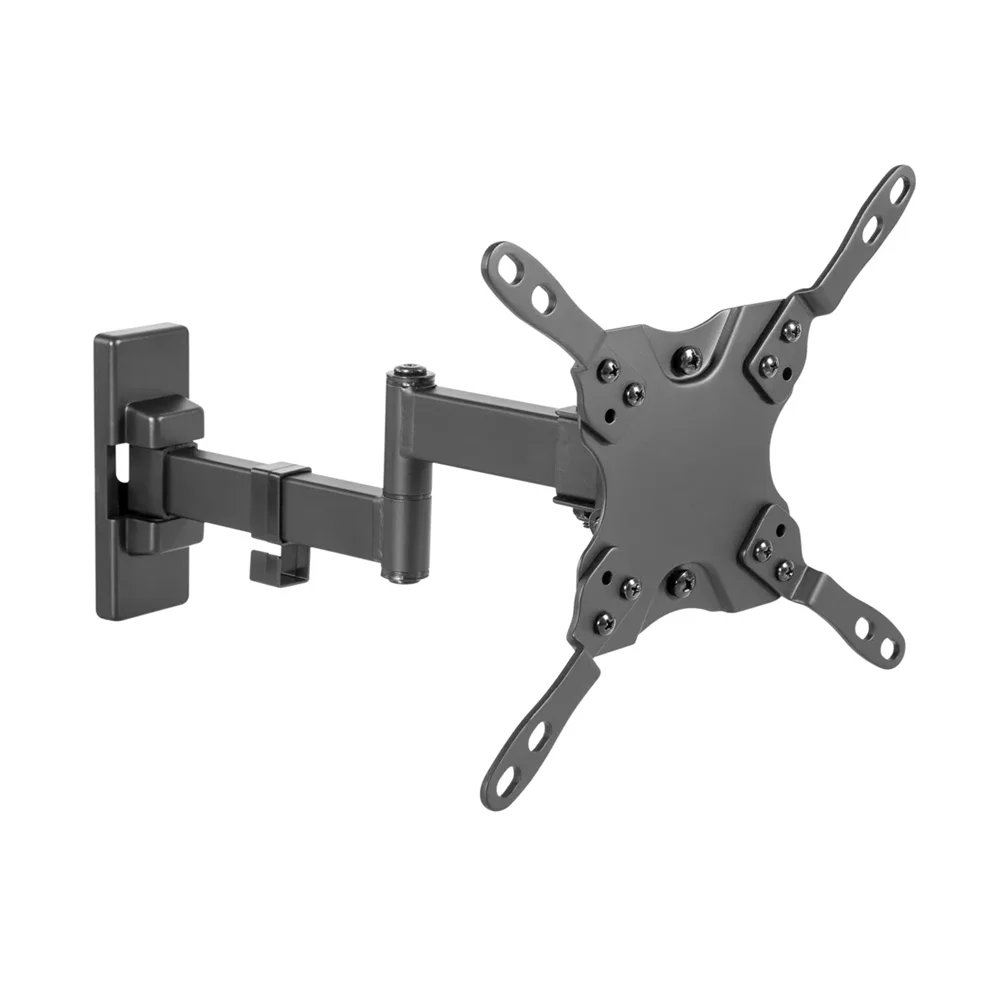

SH 23P
Low Cost Full-Motion TV Wall Mount
Screen Size13"~43"
Max VESA200x200mm
Weight Capacity20kg
Profile60-273mm
Tilt Range+5° ~ -12°
Overview
| Product Category | Full- Motion TV Wall Mount |
|---|---|
| Dimensions | 273x220x228mm (10.7"x8.7"x9") |
| Fit Screen Size | Suitable for most 13" ~ 43" Screen |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA Only |
| Tilt Range | +5°~-12° |
|---|---|
| Swivel Range | +90° ~ 90° |
| Screen Level | +3° ~ -3° |
| Screen Freely Tilting | Yes |
| Installation | Solid Wall,Single Stud |
| Product Category | Full- Motion TV Wall Mount |
|---|---|
| Dimensions | 273x220x228mm (10.7"x8.7"x9") |
| Fit Screen Size | Suitable for most 13" ~ 43" Screen |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA Only |
Features
- Wide CompatibilitySupports most 13" to 43" flat and curved TVs with VESA mounting up to 200x200mm.
- Smooth Motion AdjustmentsOffers +5° to -12° tilt, ±90° swivel, and ±3° screen leveling for optimal viewing angles.
- Compact Extension ProfileAdjustable profile from 60mm to 273mm saves space and allows flexible positioning.
- Easy InstallationDesigned for solid wall and single stud mounting with a detachable panel for simple setup.
- Cable Management SystemKeeps wires organized and out of sight for a clean, professional look.
Description
The SH 23P Low Cost Full-Motion TV Wall Mount offers reliable performance and flexibility for most 13" to 43" flat and curved TVs. With a compact profile of 60–273mm, it supports up to 20kg and VESA patterns up to 200x200mm. Featuring tilt, swivel, and screen leveling adjustments, it ensures optimal viewing. Durable steel construction, easy single-stud installation, detachable panel, and integrated cable management make it an excellent space-saving mounting solution.
Installation Video
Product Video

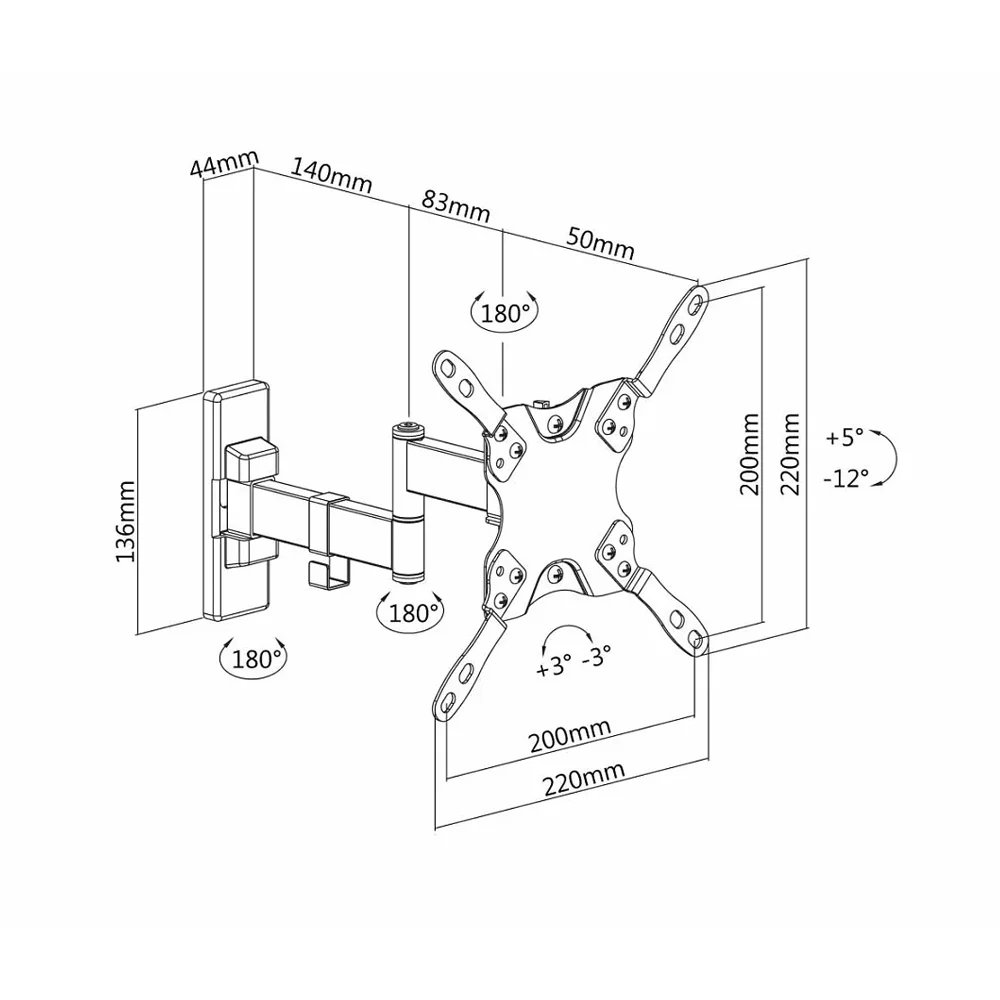

Drawing
