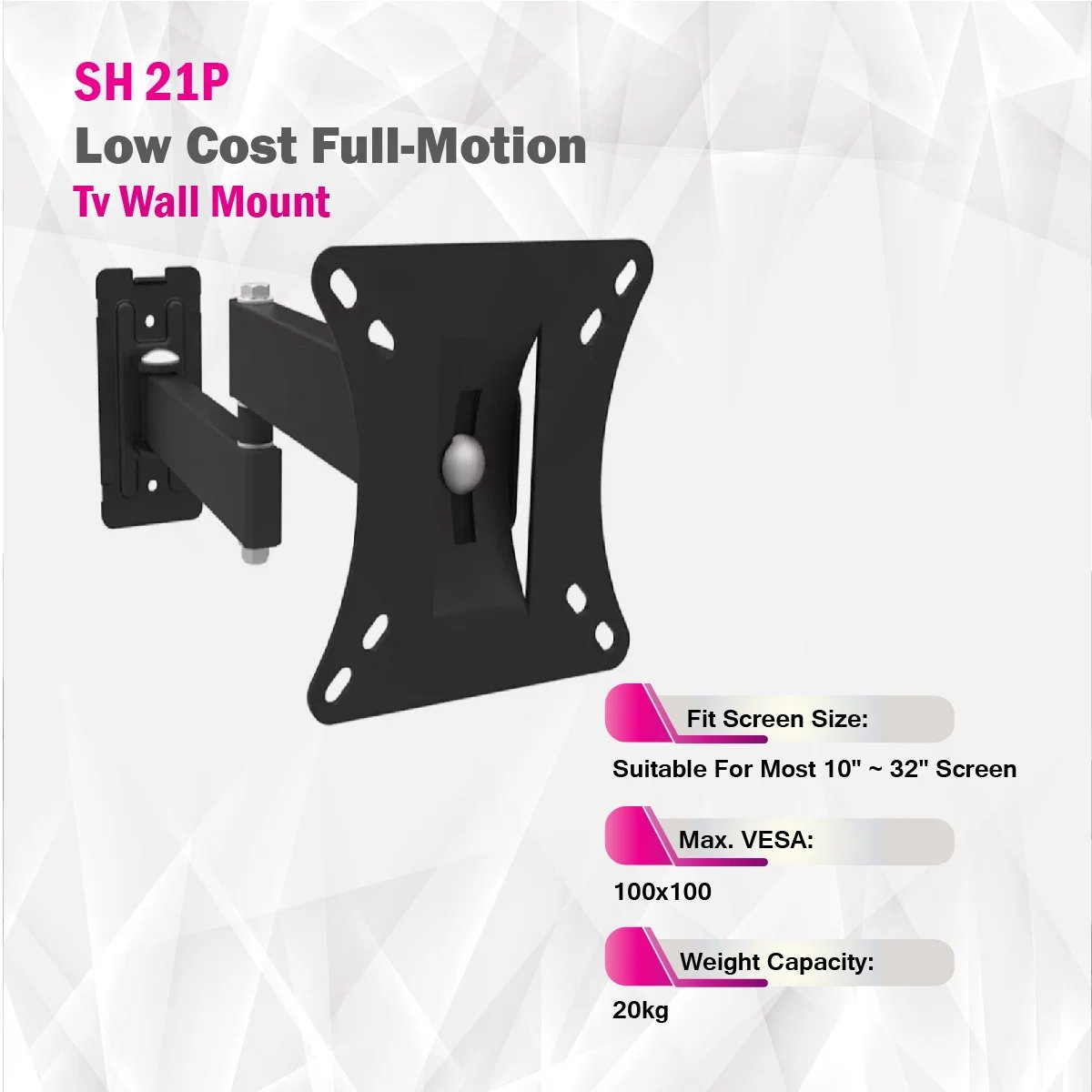

SH 21P
Low Cost Full-Motion TV Wall Mount
Screen Size10"~32"
Max VESA100x100mm
Weight Capacity20kg
Profile60-325mm
Tilt Range+15° ~ -15°
Overview
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Rank | Economy |
| Material | Steel,Plastic |
| Surface Finish | Powder Coating |
| Color | Matte Black |
| Weight Capacity | 20kg |
|---|---|
| Profile | 60 ~ 325mm |
| Tilt Range | +15° ~ -15° |
| Swivel Range | +90°~-90° |
| Installation | Solid wall, Single Stud |
| Product Category | Full-Motion TV Wall Mount |
|---|---|
| Rank | Economy |
| Material | Steel,Plastic |
| Surface Finish | Powder Coating |
| Color | Matte Black |
Features
- Wide CompatibilityFits most 10" to 32" flat and curved TVs with VESA mounting up to 100x100mm.
- Flexible ViewingOffers +15° to -15° tilt and +90° to -90° swivel for optimal screen positioning.
- Space-Saving ProfileExtends from 60mm to 325mm from the wall.
- Strong & DurableSupports up to 20kg with steel and plastic construction.
- Convenient InstallationIncludes detachable panel, cable management, and a compartment polybag accessory kit.
Description

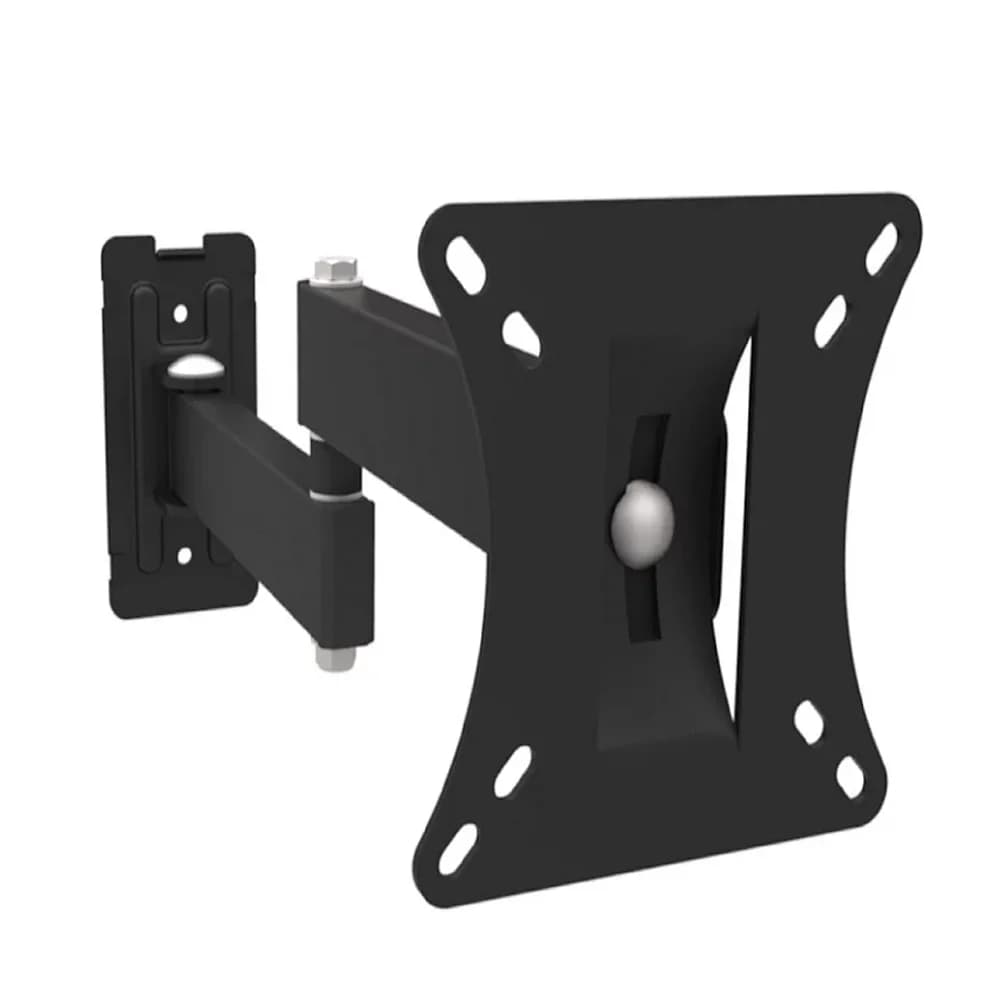

The SH 21P Low Cost Full-Motion TV Wall Mount is an economical solution designed for most 10" to 32" flat and curved TVs. With a sturdy steel and plastic build, it supports up to 20kg and VESA patterns up to 100x100mm. It features a smooth tilt range of +15° to -15° and swivel range of ±90°, plus cable management and a detachable panel for convenient, space-saving installation on solid walls.

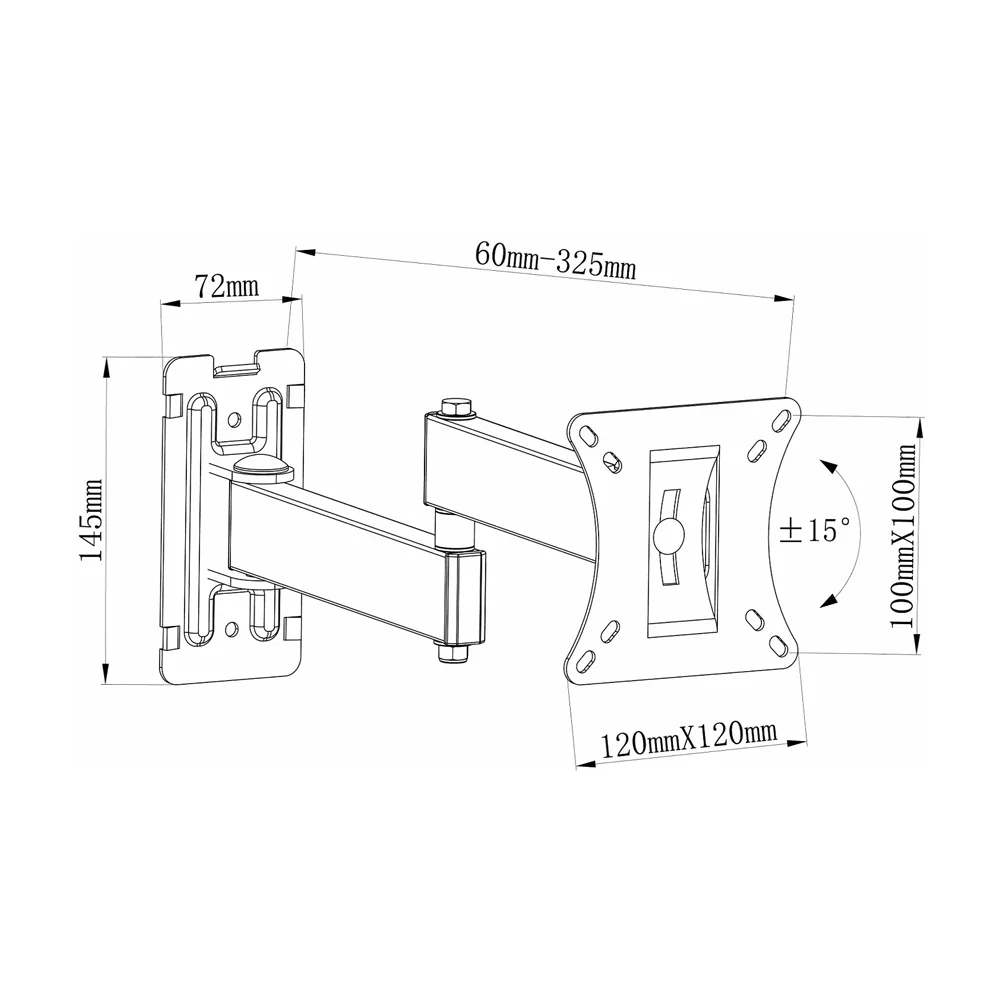

Drawing
