SH 1015P
Extra Long Single Arm Full-Motion TV Wall Mount
Screen Size43''~80"
Max VESA800x400mm
Weight Capacity50kg
Profile82-1015mm
Tilt Range+5° ~ -15°
Overview
| Product Category | Full- Motion TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel |
| Pipe Size | 50x25x1.5mm Square Steel Tube |
| Surface Finish | Powder Coating |
| Profile | 82-1015mm (3.2"-40") |
|---|---|
| Tilt Range | +5°~-15° |
| Swivel Range | +90° ~ 90° |
| Screen Level | +3° ~ -3° |
| Screen Freely Tilting | Yes |
| Product Category | Full- Motion TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel |
| Pipe Size | 50x25x1.5mm Square Steel Tube |
| Surface Finish | Powder Coating |
Features
- Full-Motion FlexibilityOffers a wide swivel range of +90°~-90° and tilt range of +5°~-15° for optimal viewing angles.
- Heavy-Duty ConstructionBuilt with robust steel and a square tube design, this mount supports up to 50kg (110lbs) for large TVs (43"~80").
- Easy Screen AdjustmentFeatures a screen leveling range of +3°~-3°, allowing precise positioning.

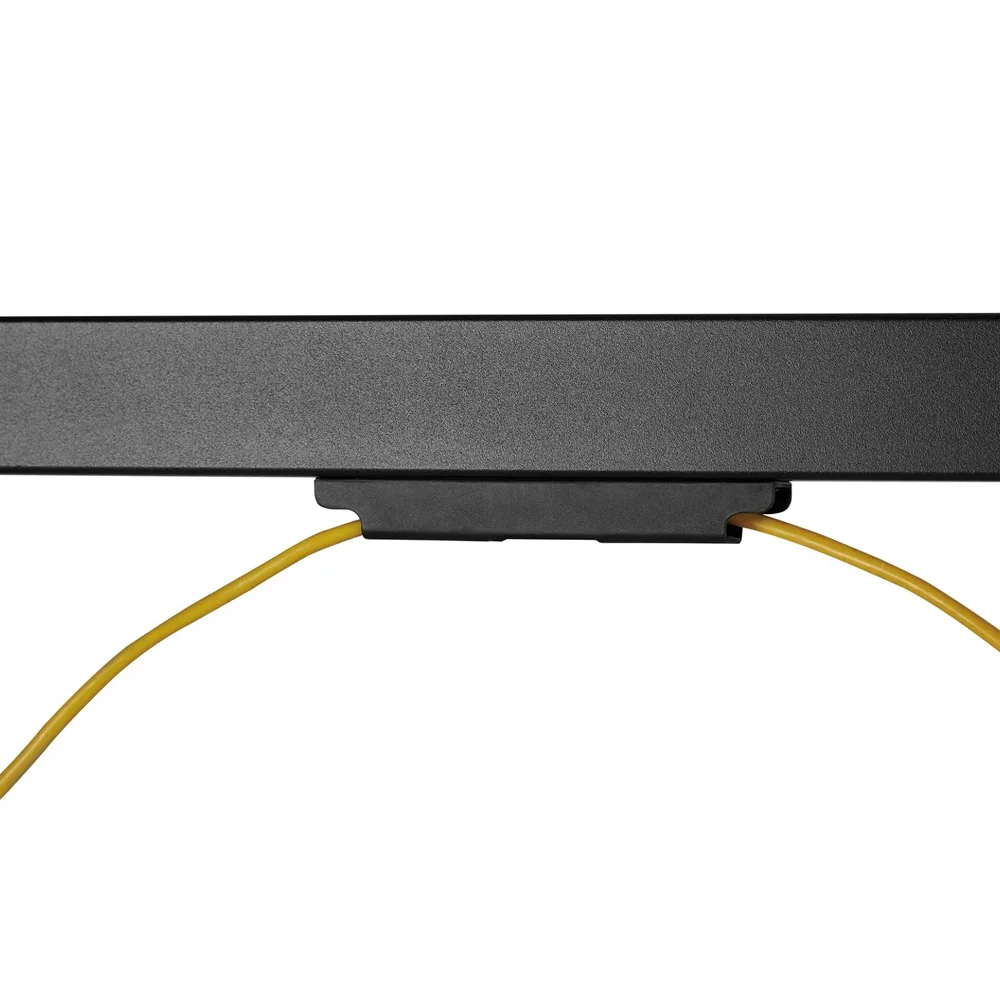

- Cable Management SystemKeeps cables organized and hidden for a clean, professional look.
- Bubble Level for Precise InstallationComes with a hook-on bubble level for accurate alignment during installation.
Description
The SH 1015P Extra Long Single Arm Full-Motion TV Wall Mount is designed to support most 43"~80" flat and curved screens with a VESA pattern up to 800x400mm. It features a robust steel construction, offering a weight capacity of 50kg. The mount provides +5°~-15° tilt, +90°~-90° swivel, and a screen leveling range of +3°~-3°. Includes cable management, a hook-on bubble level, and easy installation.
Installation Video
Product Video

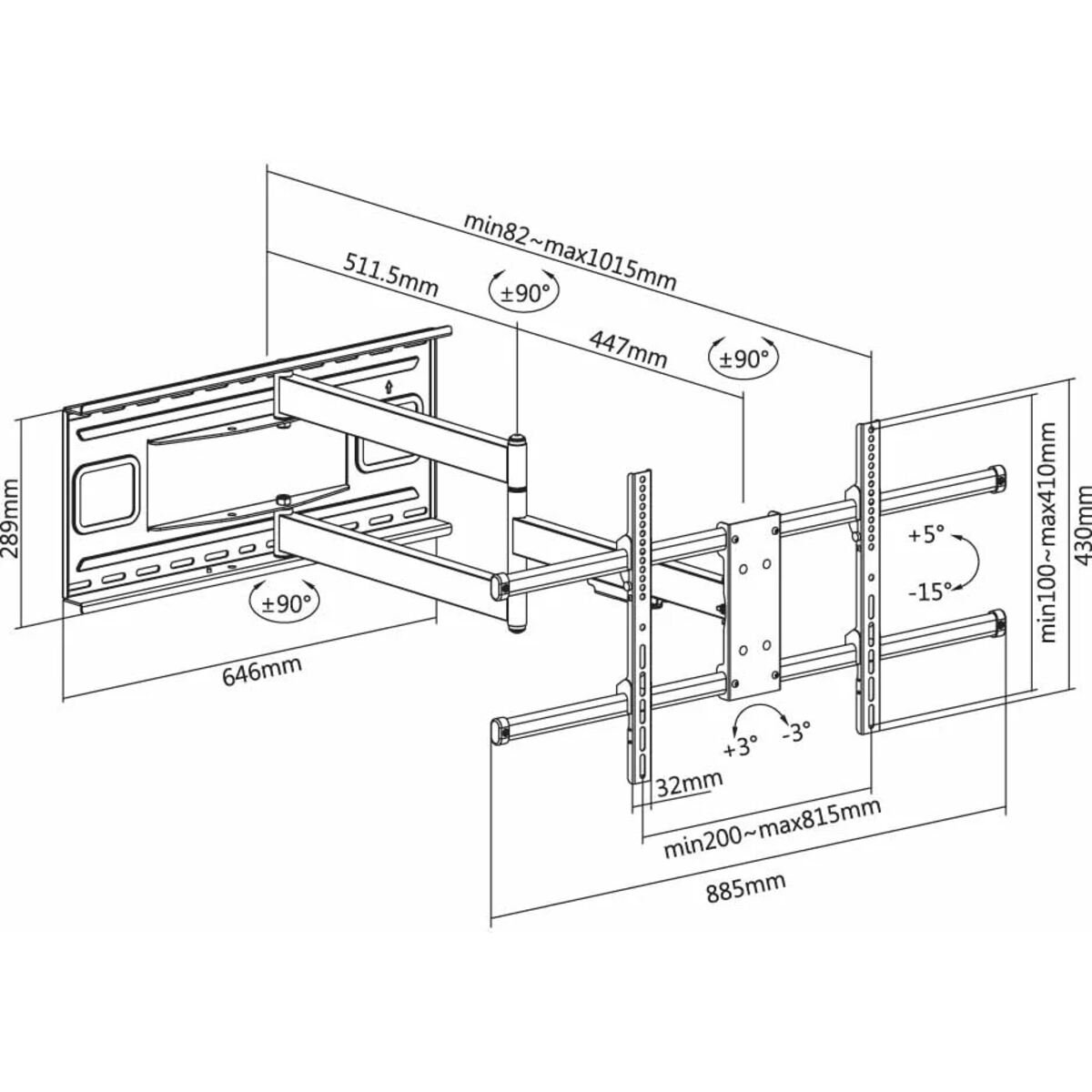

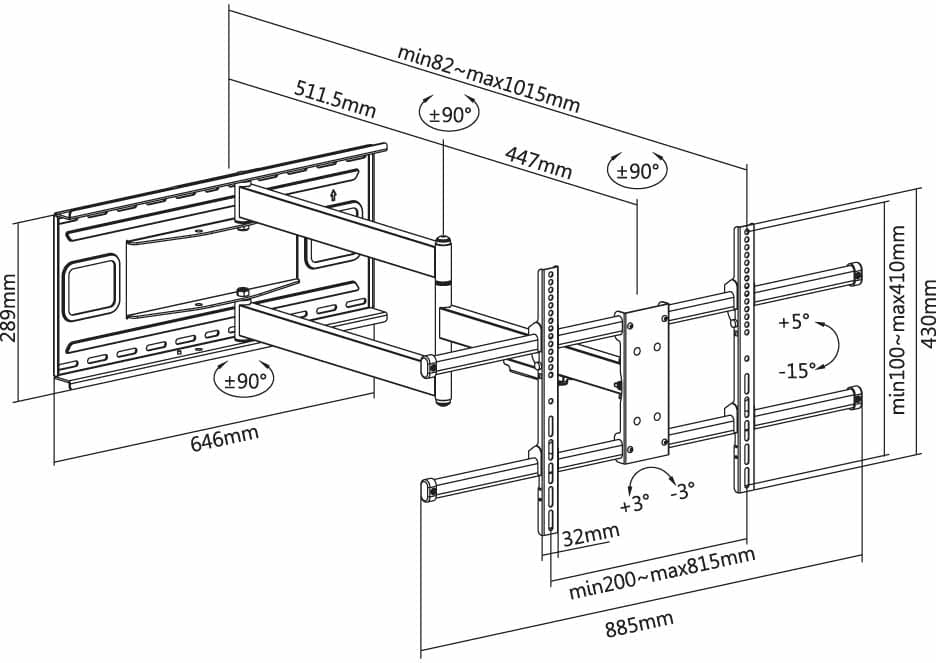

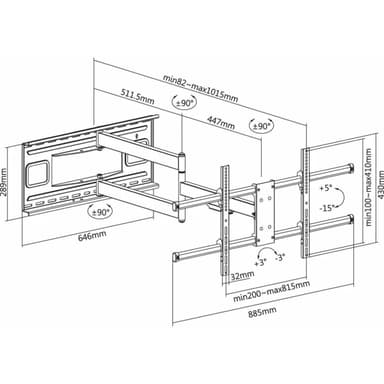

Drawing
