PM 63FW
Fixed TV Wall Mount
Screen Size32''~86''
Max VESA600x500mm
Weight Capacity60kg
Profile30mm
Curved TV
Overview
| Product Category | Fixed TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel |
| Surface Finish | Powder Coating |
| Color | Matte Black |
| Max. VESA | 600X500mm |
|---|---|
| Dimensions | 636×533x25mm |
| Weight Capacity | 60kg |
| Profile | 30mm |
| Panel Type | Detachable Panel |
| Product Category | Fixed TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel |
| Surface Finish | Powder Coating |
| Color | Matte Black |
Features
- Wide CompatibilityFits most 32"–86" flat and curved TVs with VESA patterns up to 600x500mm.
- High Load CapacityStrong steel construction supports TVs up to 60 kg securely.

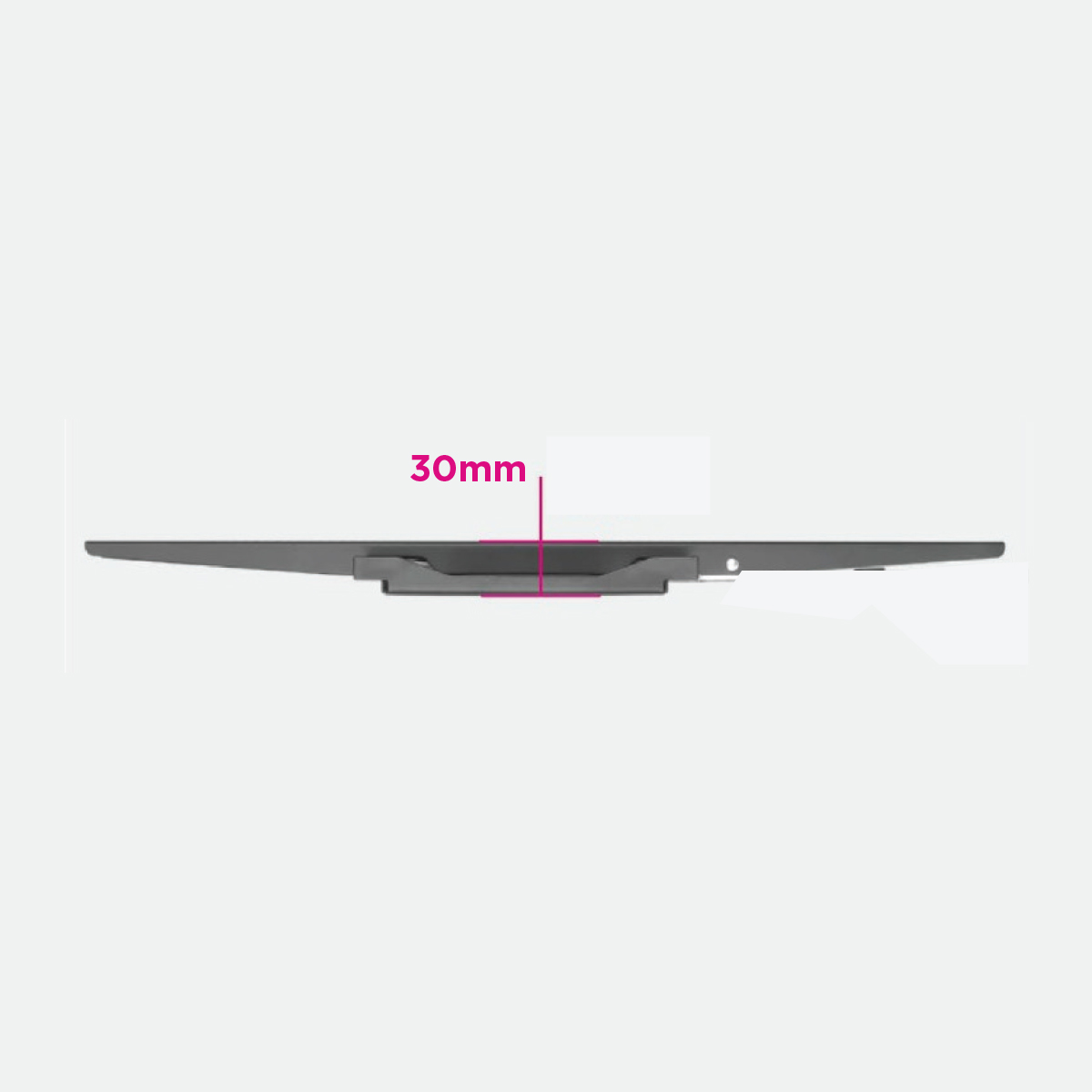

- Slim Profile30mm low-profile design keeps the TV close to the wall for a clean look.
- Easy InstallationDetachable panel and fixed wall plate ensure simple, hassle-free setup.
- Durable FinishMatte black powder-coated surface enhances strength and style.
Description
The PM 63FW Fixed TV Wall Mount is a reliable and sturdy mounting solution for most 32"–86" flat and curved TVs. Crafted from durable steel with a matte black powder-coated finish, it supports up to 60 kg with ease. Featuring universal VESA compatibility up to 600x500mm, a detachable panel, and a fixed wall plate, it ensures secure installation. With a slim 30 mm profile, it provides a sleek, space-saving setup.

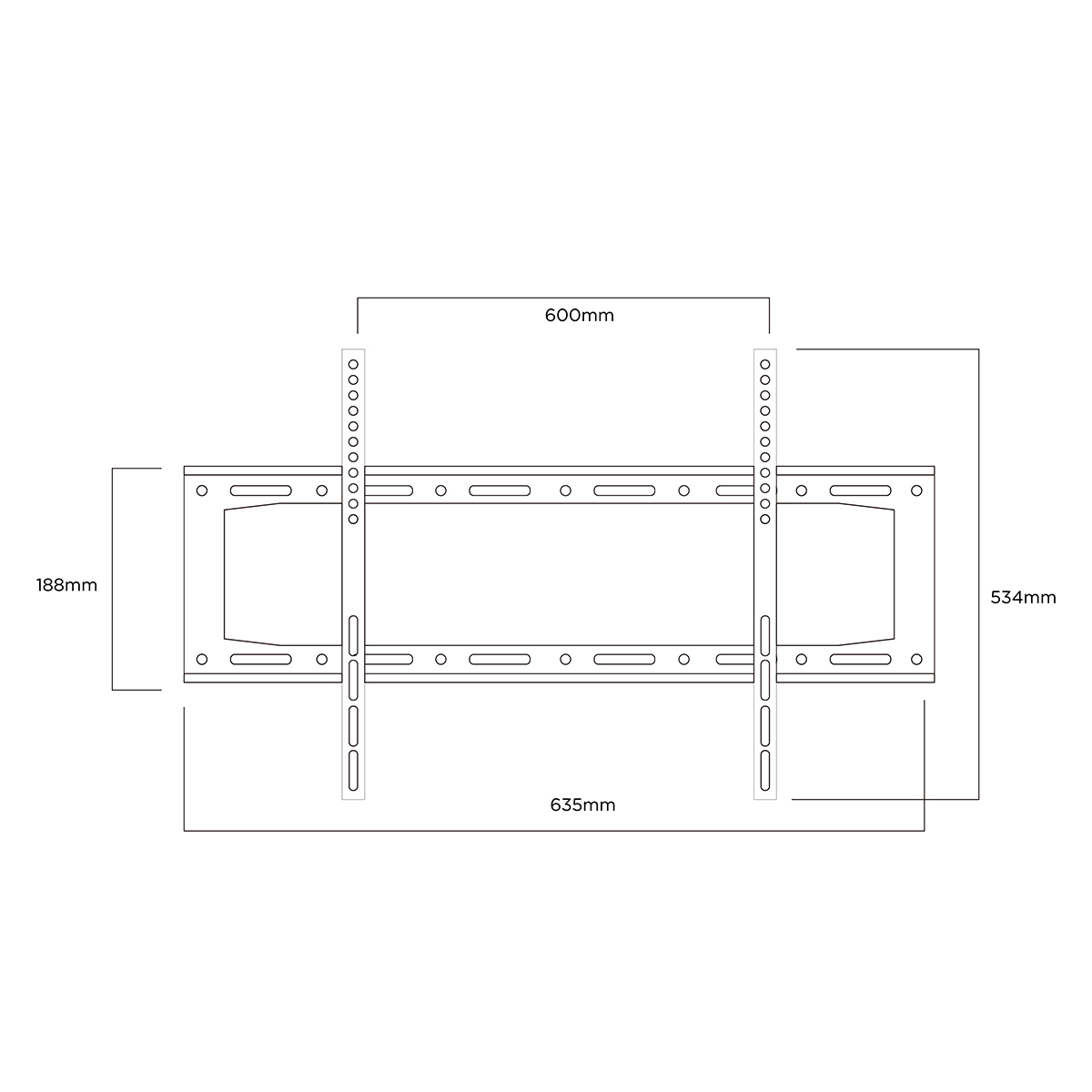

Drawing
