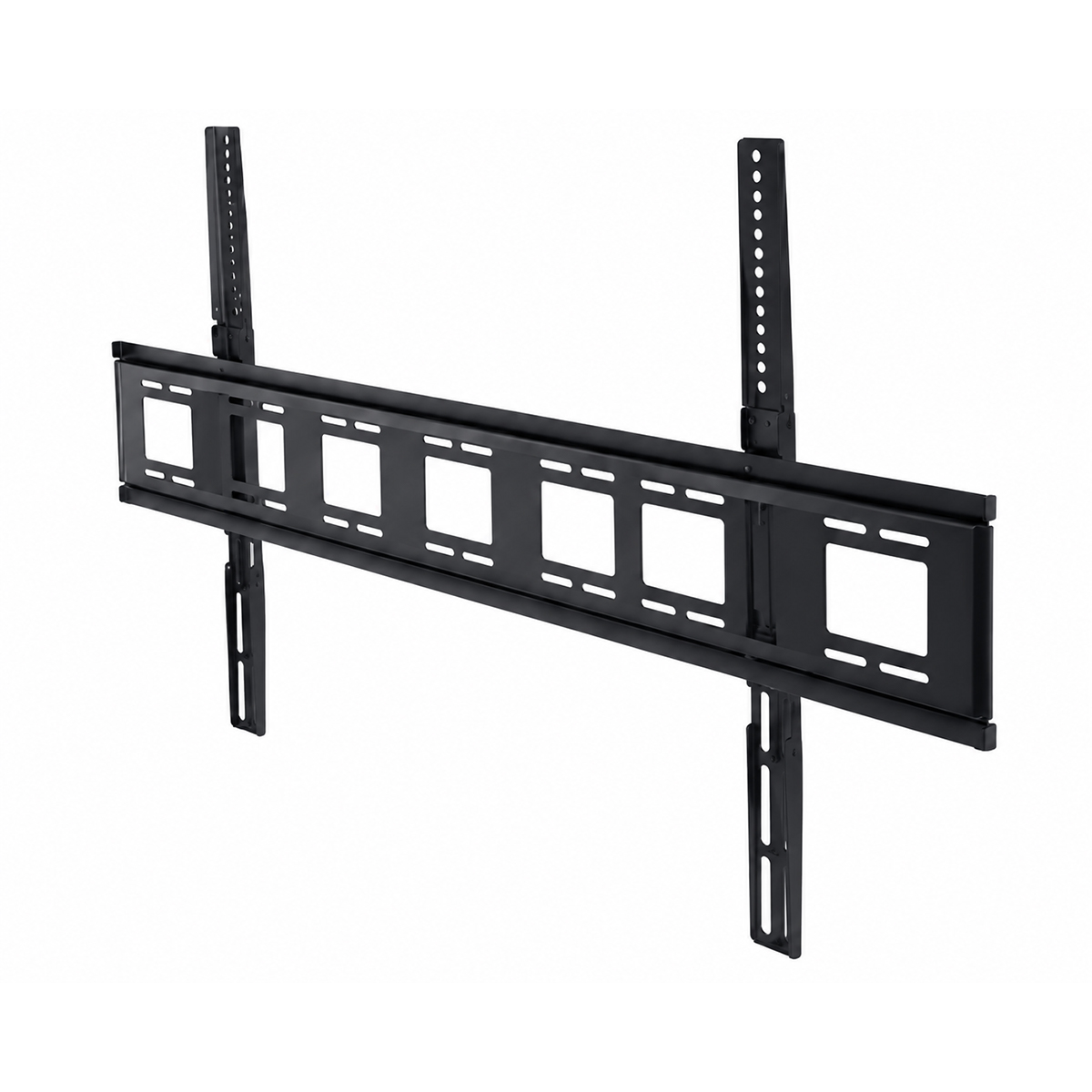

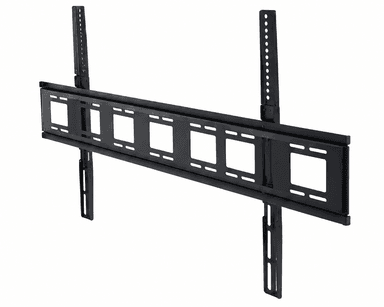

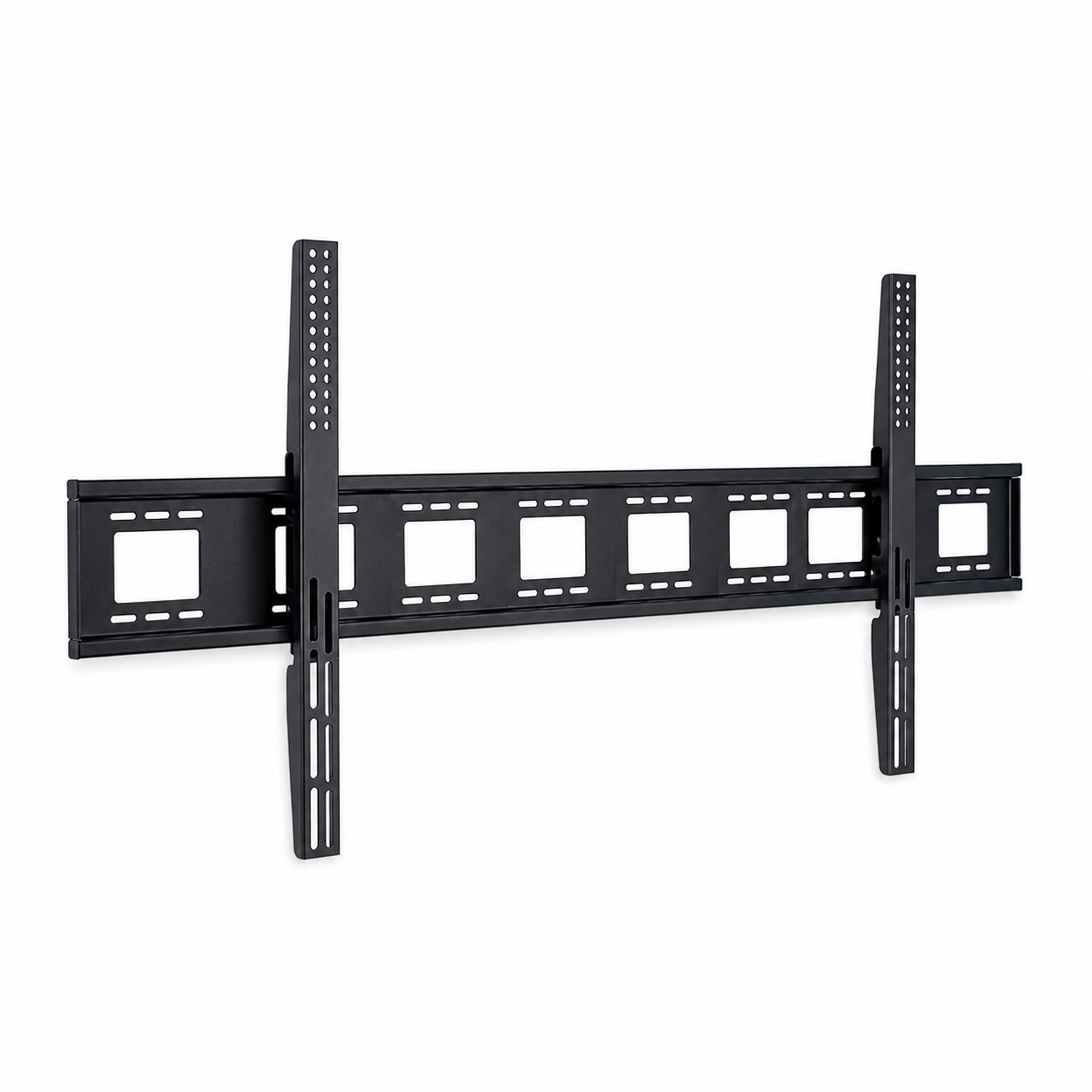

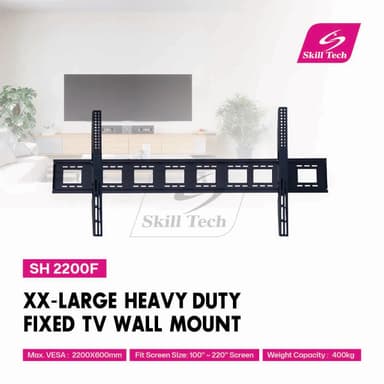

SH 2200F
XX-Large Heavy Duty Fixed TV Wall Mount
Screen Size100"~220"
Max VESA2200x600mm
Weight Capacity400kg
Profile55mm
Curved TV
Overview
| Product Category | X-Large Heavy-Duty Fixed Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel |
| Surface Finish | Powder Coating |
| Color | Matte Black |
| Max. VESA | 2200X600mm |
|---|---|
| Weight Capacity | 400kg |
| Profile | 55mm |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Product Category | X-Large Heavy-Duty Fixed Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel |
| Surface Finish | Powder Coating |
| Color | Matte Black |
Features
- Ultra-Heavy Load CapacitySupports up to 400kg, ideal for large commercial displays.
- VESA CompatibilityFits screens from 100"~ 220" with VESA patterns up to 2200x600mm.
- Detachable Panel DesignAllows easy mounting and maintenance access.
- Built-In Bubble LevelHook-on level ensures precise and straight installation.
- Durable ConstructionPowder-coated steel frame with a slim 55mm profile.
Description
The SH 2200F is an XX-Large heavy-duty fixed TV wall mount designed for massive 100" ~ 220" displays. Built from durable steel with a matte black powder-coated finish, it supports up to 400kg with VESA compatibility up to 2200x600mm. Its 55mm profile offers a sturdy, low-profile setup, while the detachable panel and hook-on bubble level ensure easy installation. Ideal for both flat and curved screens in professional or commercial settings.

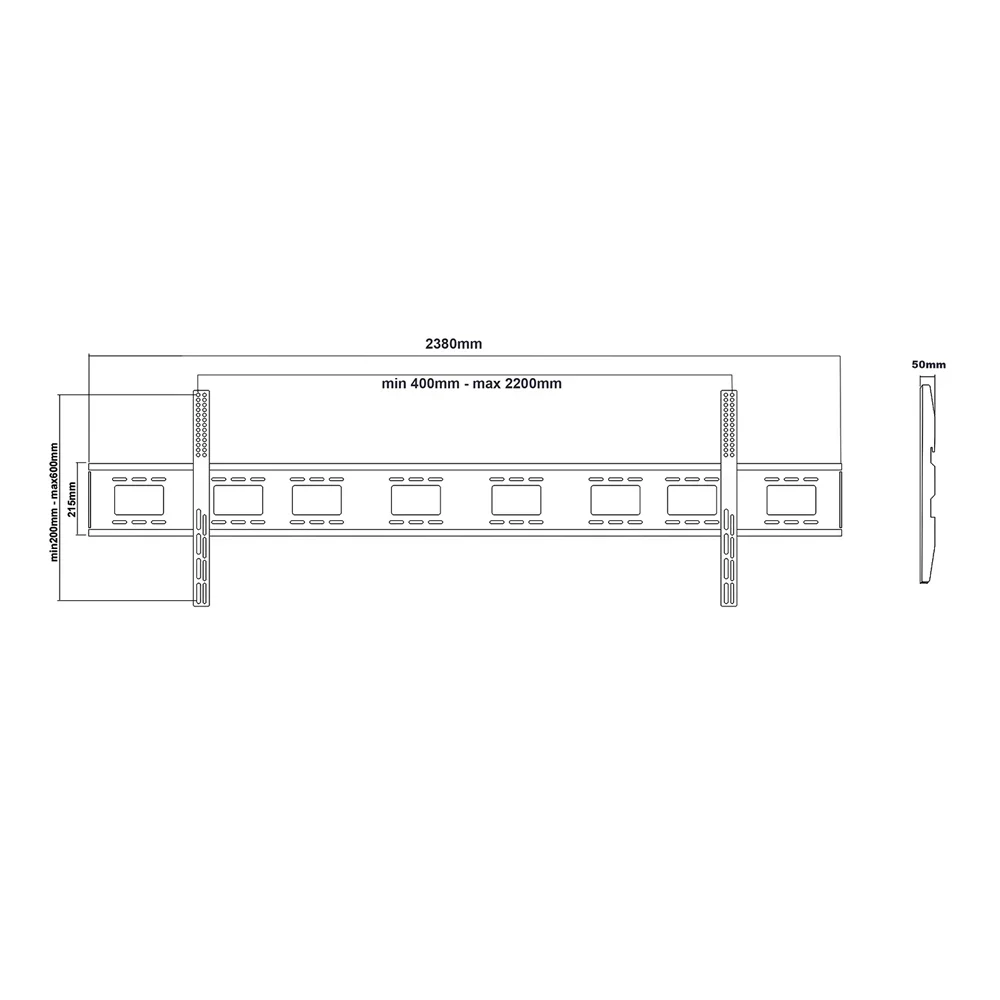

Drawing
