Home > TV Wall Mounts > Fixed / Flat Wall Mounts > Landscape/Portrait Wall Mount For Interactive Display/Flat Panel Display
SH 46UFR

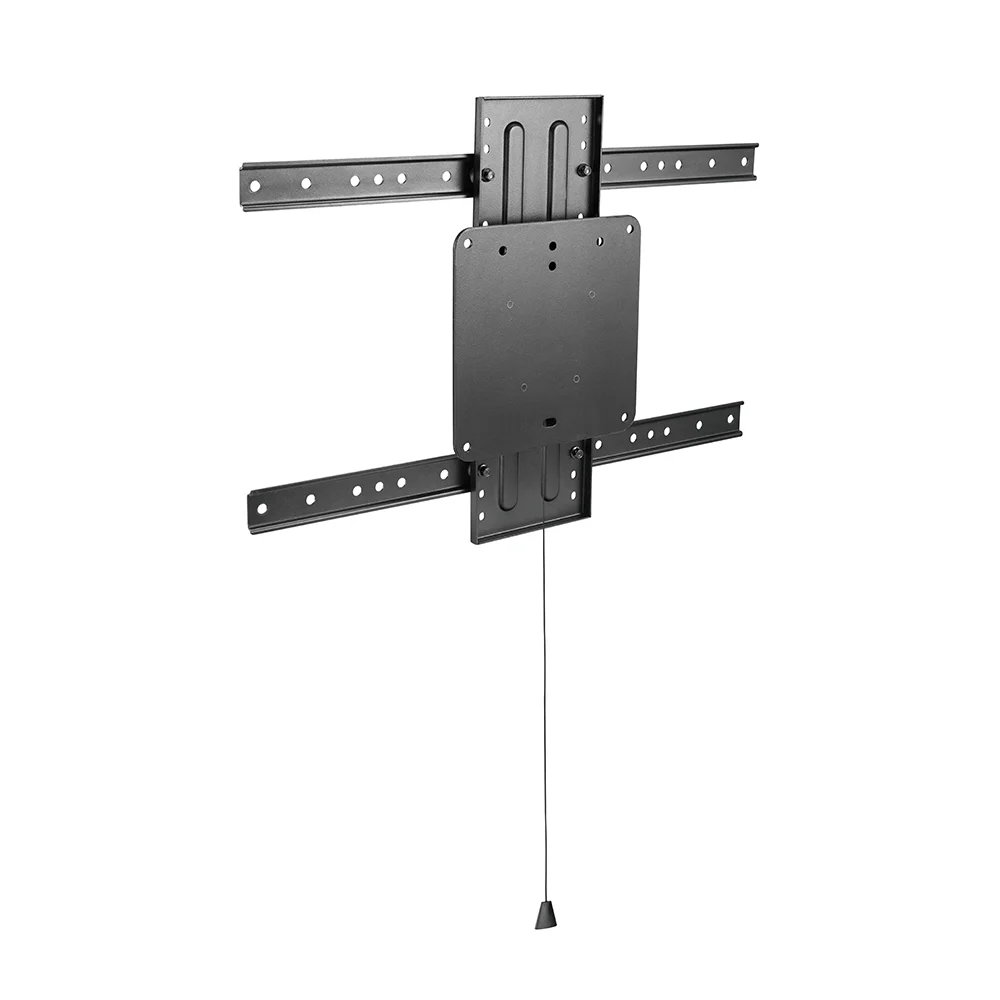

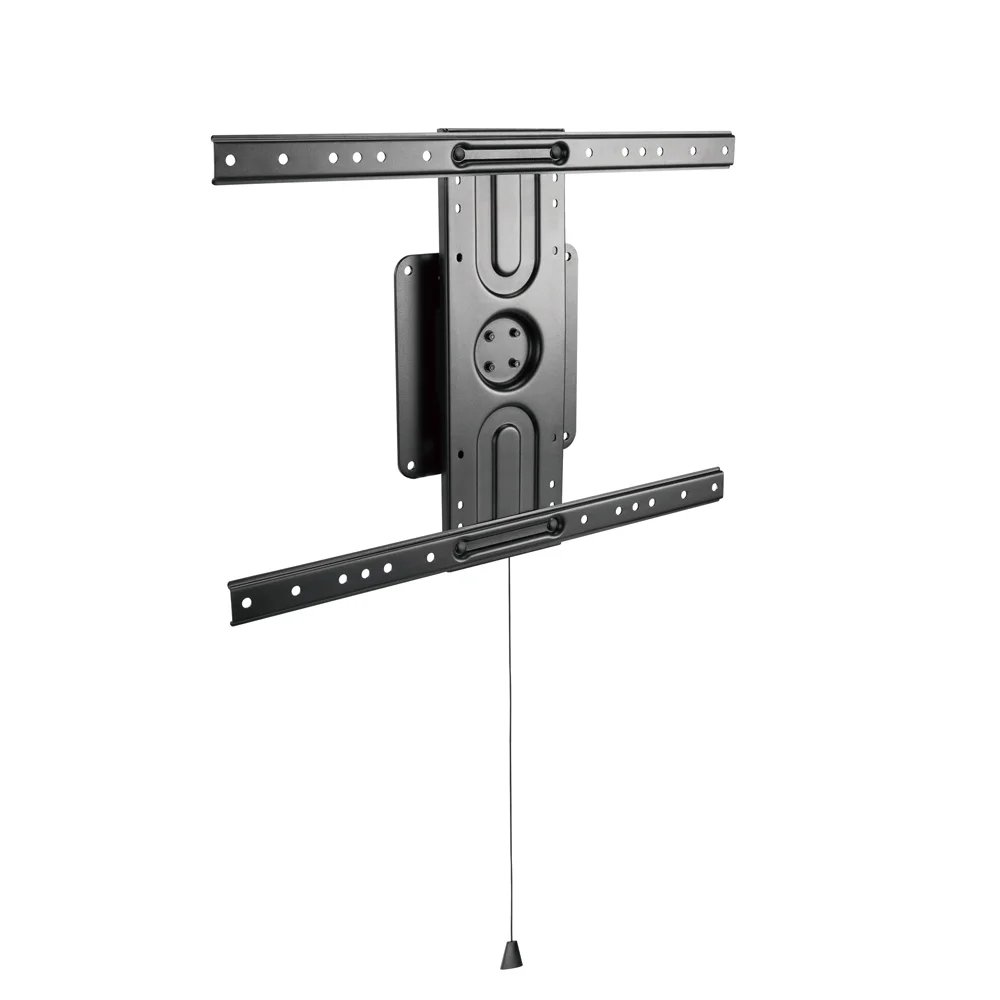

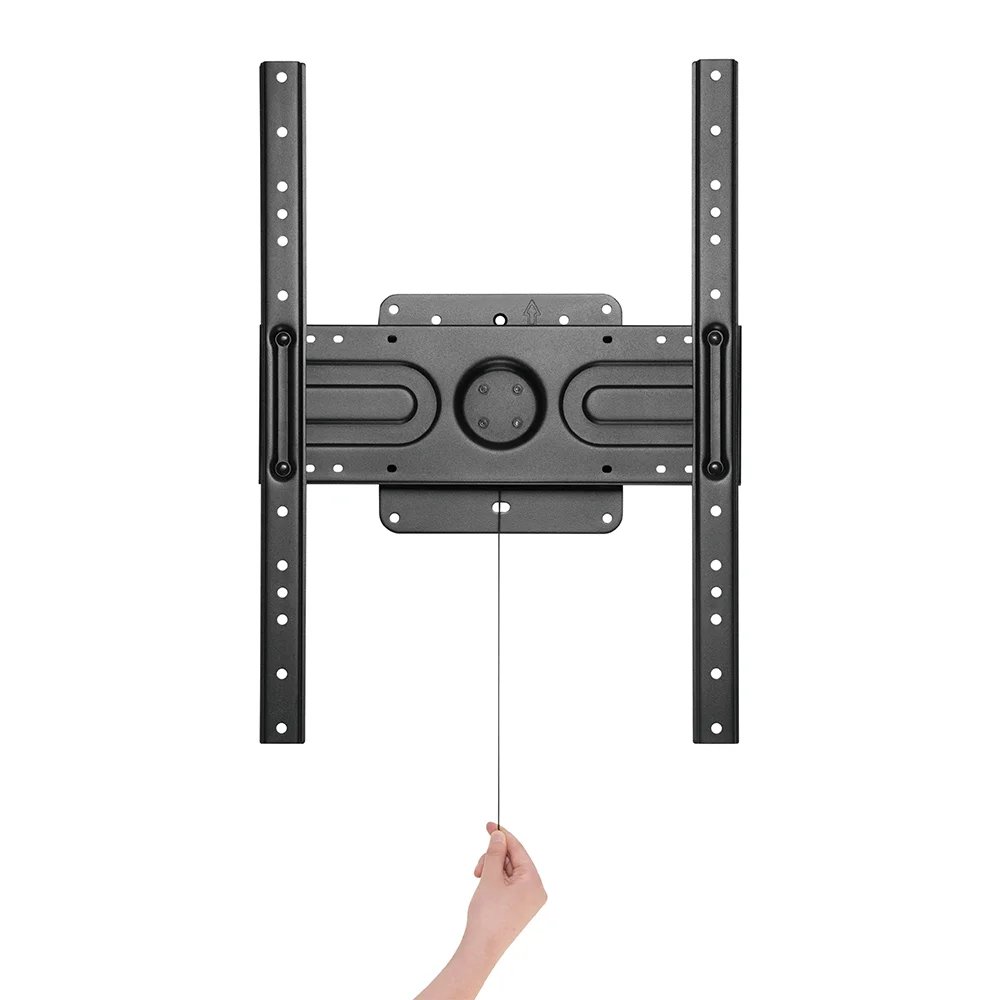

Landscape/Portrait Wall Mount For Interactive Display/Flat Panel Display
Screen Size37''~80''
Max VESA600x400mm
Weight Capacity50kg
Profile45mm
Screen Rotation+180°~-180°
Overview
| Product Category | Fixed TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Aluminum,Steel,Plastic |
| Color | Fine Texture Black |
| Dimensions(LxWxH) | 45x630x450mm (1.8"x24.8"x17.7") |
| Weight Capacity | 50kg (110lbs) |
|---|---|
| Max. VESA | 600x400mm |
| Profile | 45mm (1.8") |
| Screen Level | +3°~-3° |
| Screen Rotation | +180°~-180° |
| Product Category | Fixed TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Aluminum,Steel,Plastic |
| Color | Fine Texture Black |
| Dimensions(LxWxH) | 45x630x450mm (1.8"x24.8"x17.7") |
Features
- Wide CompatibilitySupports most 37"~ 80" flat and curved screens with VESA and universal mounting patterns up to 600x400mm.
- Durable BuildConstructed from high-quality aluminum, steel, and plastic with a fine texture black finish for strength and style.
- Flexible ViewingOffers +3°~-3° screen leveling and full +180°~-180° rotation for optimal viewing angles.
- Slim ProfileMaintains a low profile of just 45mm (1.8") from the wall, ideal for a sleek setup.
- Easy InstallationDesigned for secure mounting on solid walls or single stud setups.
Description
The SH 46UFR TV Wall Mount is a versatile solution for 37''~ 80'' flat or curved displays. With a sleek 45mm low profile, it supports both landscape and portrait orientations. Built from aluminum, steel, and plastic in a fine texture black finish, it features VESA compatibility up to 600x400mm, +180°~-180° screen rotation, and +3°~-3° level adjustment. Ideal for solid wall or single stud installations, it holds up to 50kg.
Installation Video

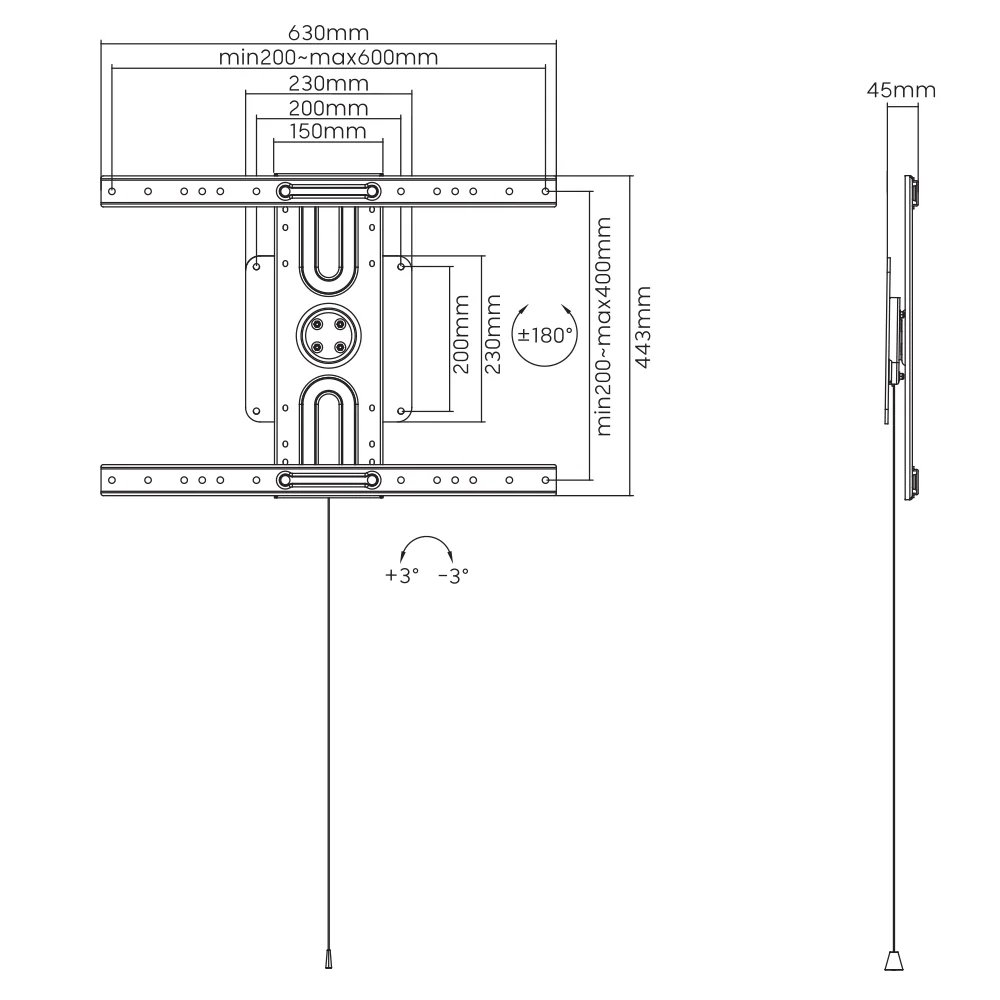

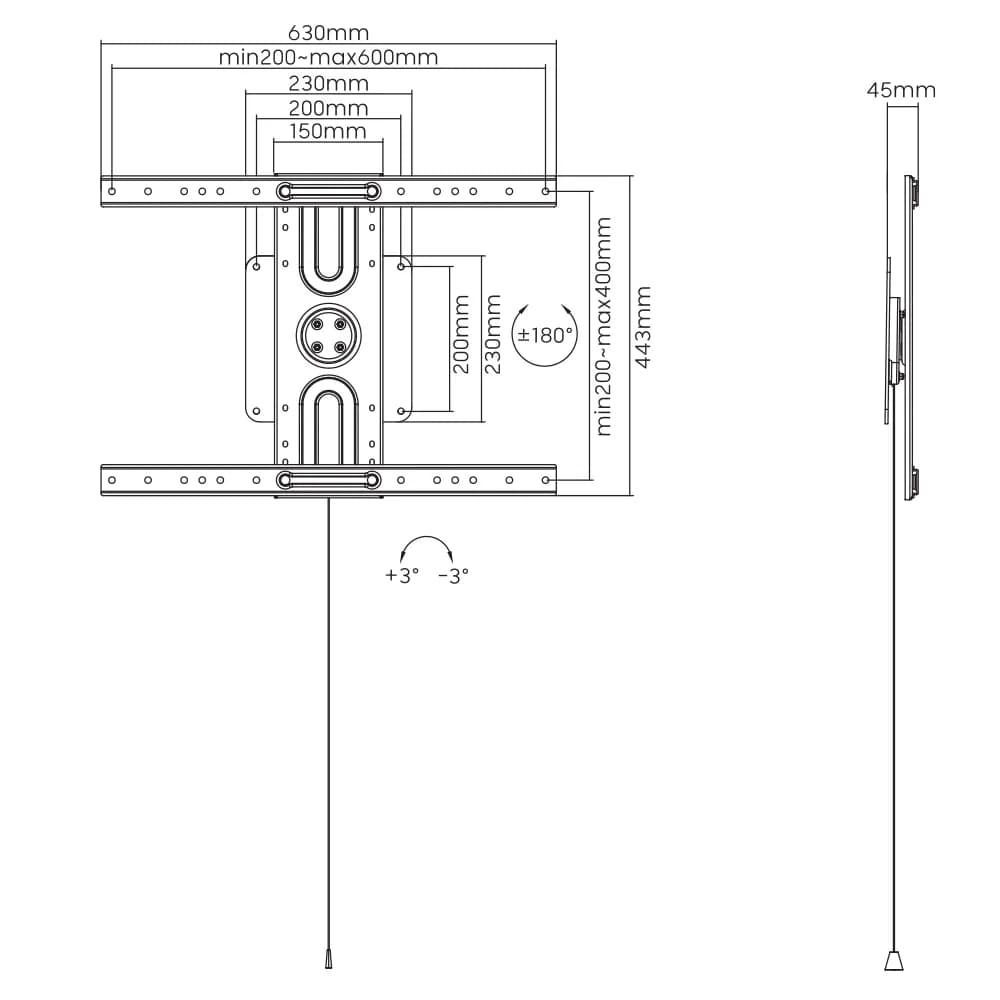

Drawing
