SH 1690F
Commercial Ultra Heavy Duty Flat Wall Mount
Screen Size85''~ 150"
Weight Capacity300kg
Max VESA1600x900mm
Profile70mm
Overview
| Product Category | Extra Large Heavy Duty Flat TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel |
| Surface Finish | Powder Coating |
| Color | Matte Black |
| Max. VESA | 1600X900mm |
|---|---|
| Weight Capacity | 300kg |
| Profile | 70mm |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Product Category | Extra Large Heavy Duty Flat TV Wall Mount |
|---|---|
| Rank | Standard |
| Material | Steel |
| Surface Finish | Powder Coating |
| Color | Matte Black |
Features
- Supports 85"–150" DisplaysDesigned for securely mounting extra-large flat panel TVs and commercial displays.
- 300kg Heavy-Duty Load CapacityBuilt with high-strength steel for exceptional durability and maximum stability.
- VESA Compatible up to 1600 × 900mmFits a wide range of large-format displays with universal mounting compatibility.
- Low-Profile 70mm DesignKeeps the TV close to the wall for a clean, modern, and space-saving installation.
- Ideal for Commercial & Residential UsePerfect for conference rooms, digital signage, control rooms, auditoriums, and home theater installations.
Description
The SH 1690F Extra Large Heavy Duty Flat Wall Mount is engineered for securely mounting extra-large 85"~150" flat panel displays. Built with a robust 300kg weight capacity, it provides exceptional strength and stability for commercial and residential installations. Featuring VESA compatibility up to 1600 × 900mm and a 70mm low-profile design, this heavy-duty wall mount delivers a clean, space-saving installation while ensuring reliable support for oversized screens.

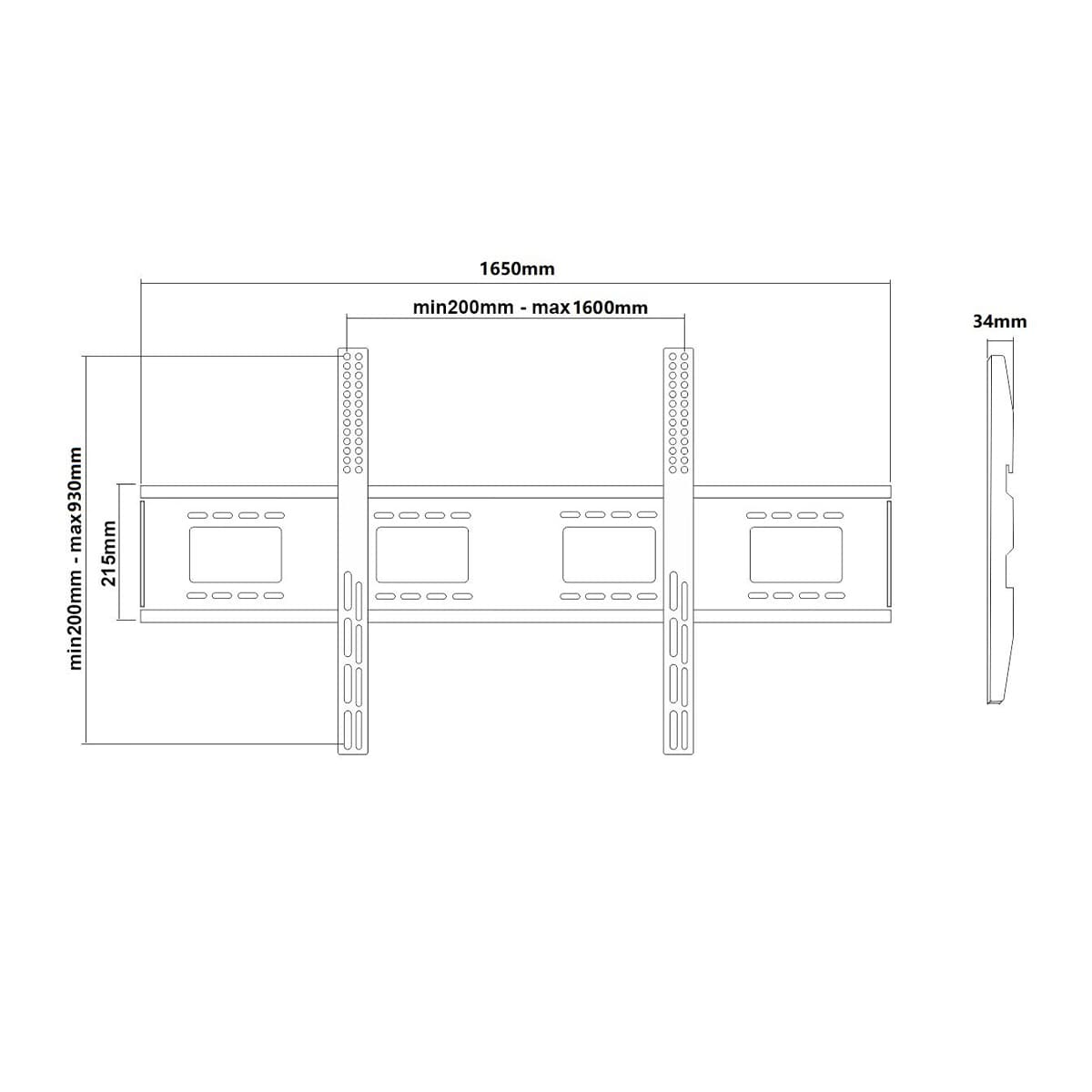

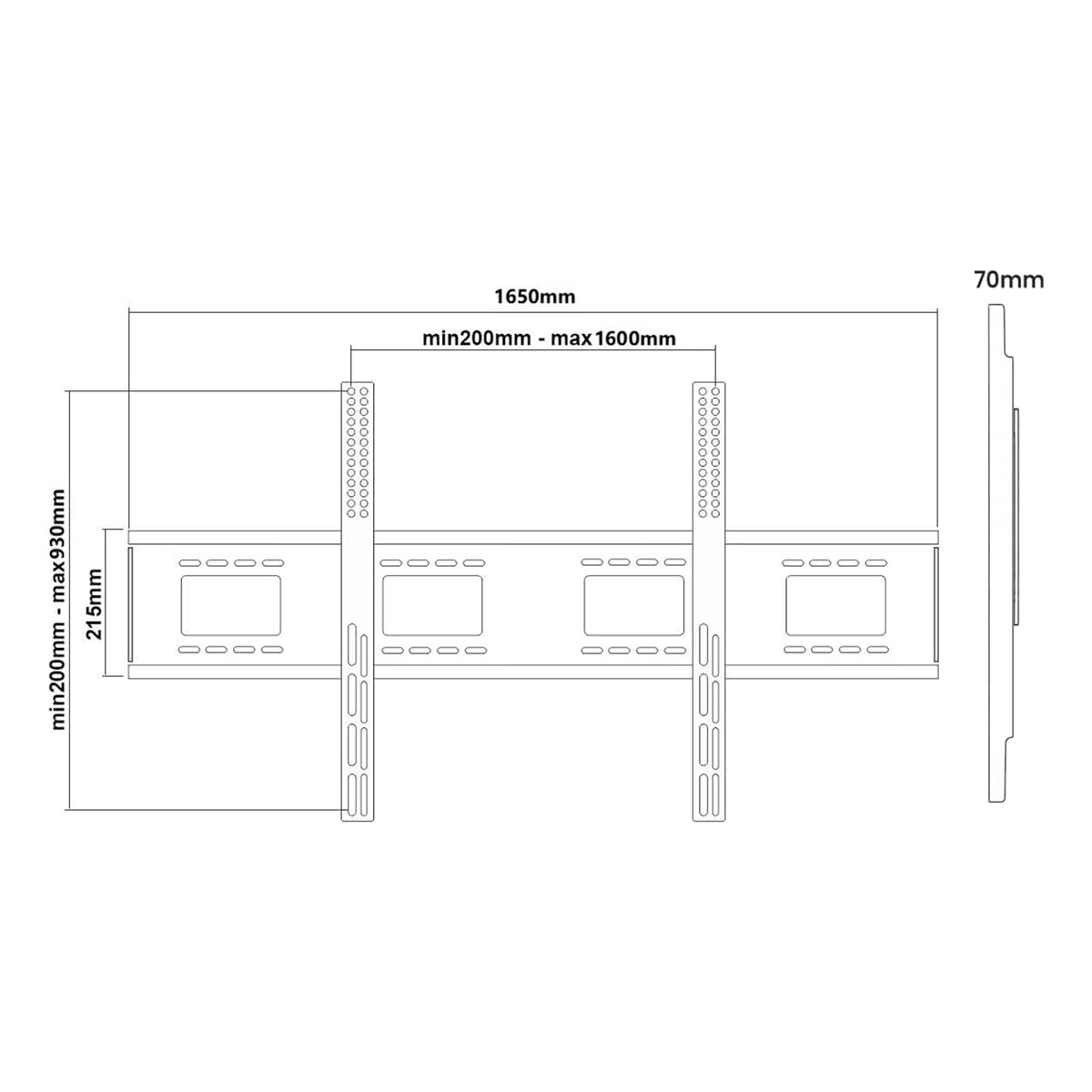

Drawing
