Home > Monitor & Desktop Mounts > Articulating Monitor Arm > Single Monitor Pole-Mounted Monitor Arm
SH070 C012

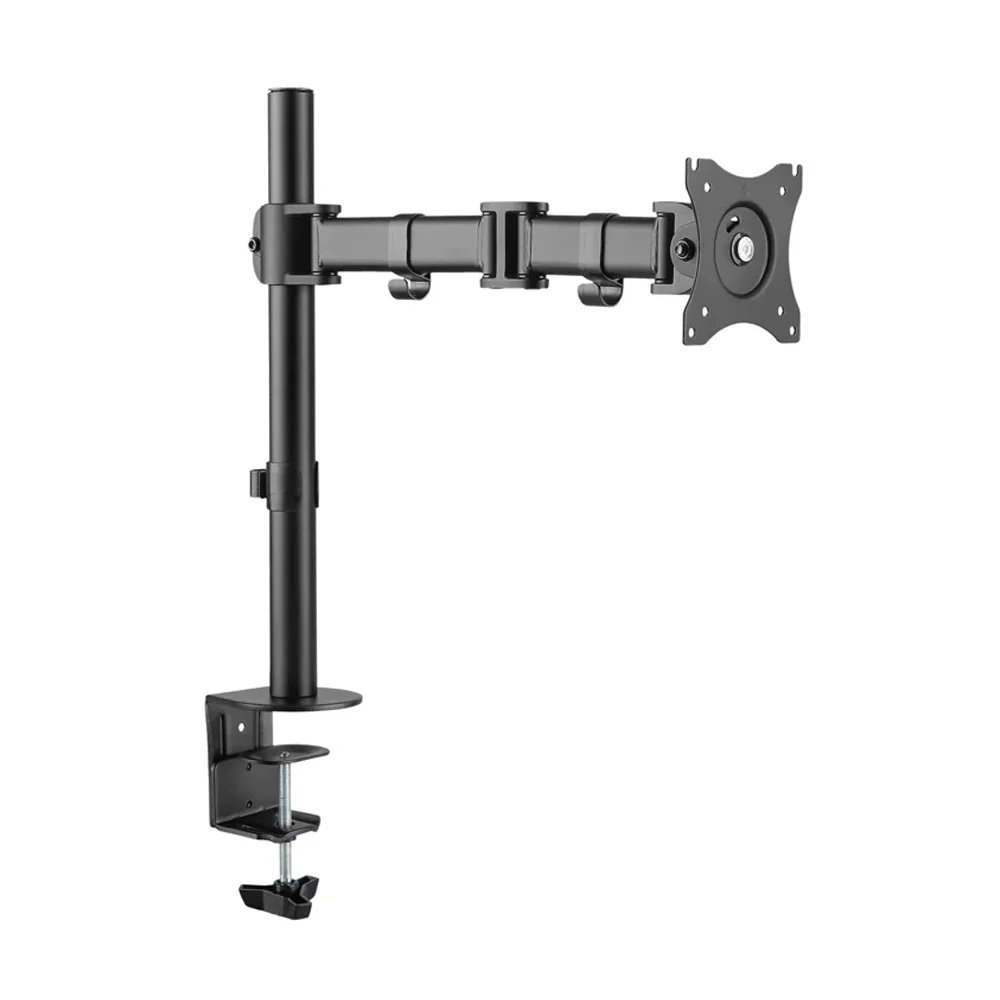

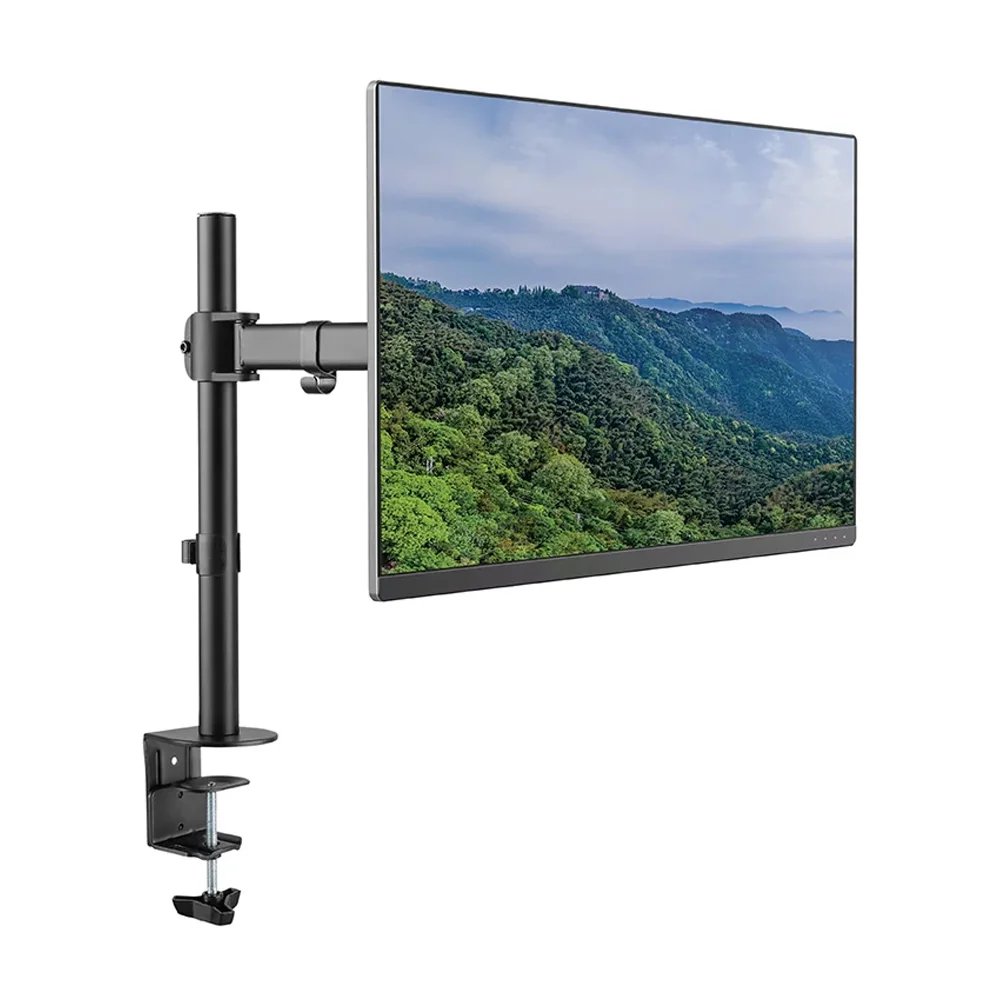

Single Monitor Pole-Mounted Monitor Arm
Screen Size13''~27''
Max VESA100x100mm
Weight Capacity8kg
Profile450mm
Tilt Range+45° ~ -45°
Overview
| Product Category | Articulating Monitor Arm |
|---|---|
| Rank | Standard |
| Material | Steel,Plastic,Aluminum |
| Surface Finish | Powder Coating |
| Color | Matte Black |
| Max. VESA | 100x100mm |
|---|---|
| Tilt Range | +45° ~ -45° |
| Swivel Range | +90° ~ -90° |
| Screen Rotation | +180° ~ -180° |
| Arm Full Extension | 428mm (16.9") |
| Product Category | Articulating Monitor Arm |
|---|---|
| Rank | Standard |
| Material | Steel,Plastic,Aluminum |
| Surface Finish | Powder Coating |
| Color | Matte Black |
Features
- Wide CompatibilitySupports most 13″ to 27″ monitors with a weight capacity of up to 8kg (17.6lbs).

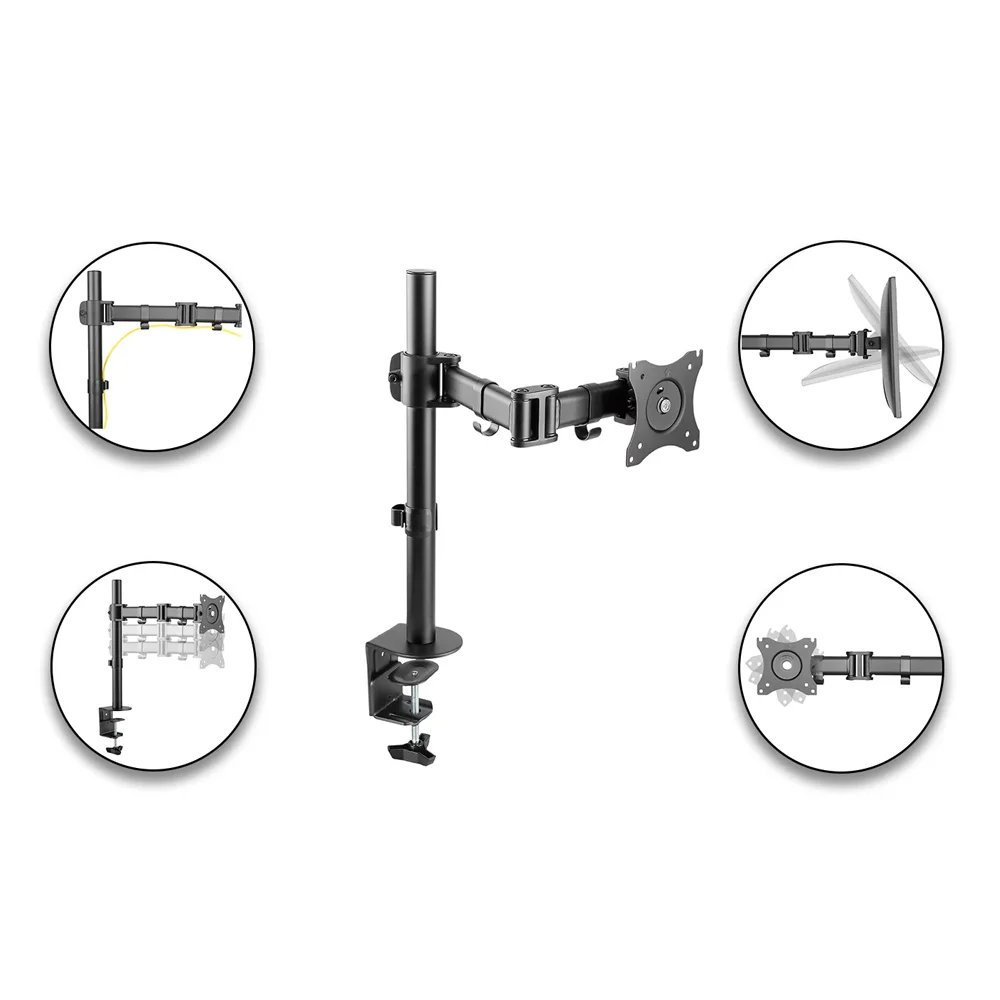

- Flexible AdjustabilityOffers +45° to -45° tilt, +90° to -90° swivel, and +180° to -180° screen rotation for optimal viewing.
- Extended ReachArm extends up to 428mm (16.9″) and includes a 450mm (17.7″) tall pole for height versatility.
- Durable BuildConstructed from steel, plastic, and aluminum with a sleek matte black powder-coated finish.
- Versatile InstallationEasy setup with both grommet and clamp options; fits desktops from 10–88mm thick, plus built-in cable management.
Description
The SH070 C012 Single Monitor Pole-Mounted Arm is a standard-grade solution for 13″–27″ screens, supporting up to 8kg. Built with steel, plastic, and aluminum in a matte black powder-coated finish, it offers full tilt, swivel, and rotation adjustments. With a 450mm pole and 428mm arm extension, it allows ergonomic positioning. Compatible with clamp and grommet installation, it includes integrated cable management for a clean and organized workspace.
Installation Video
Product Video

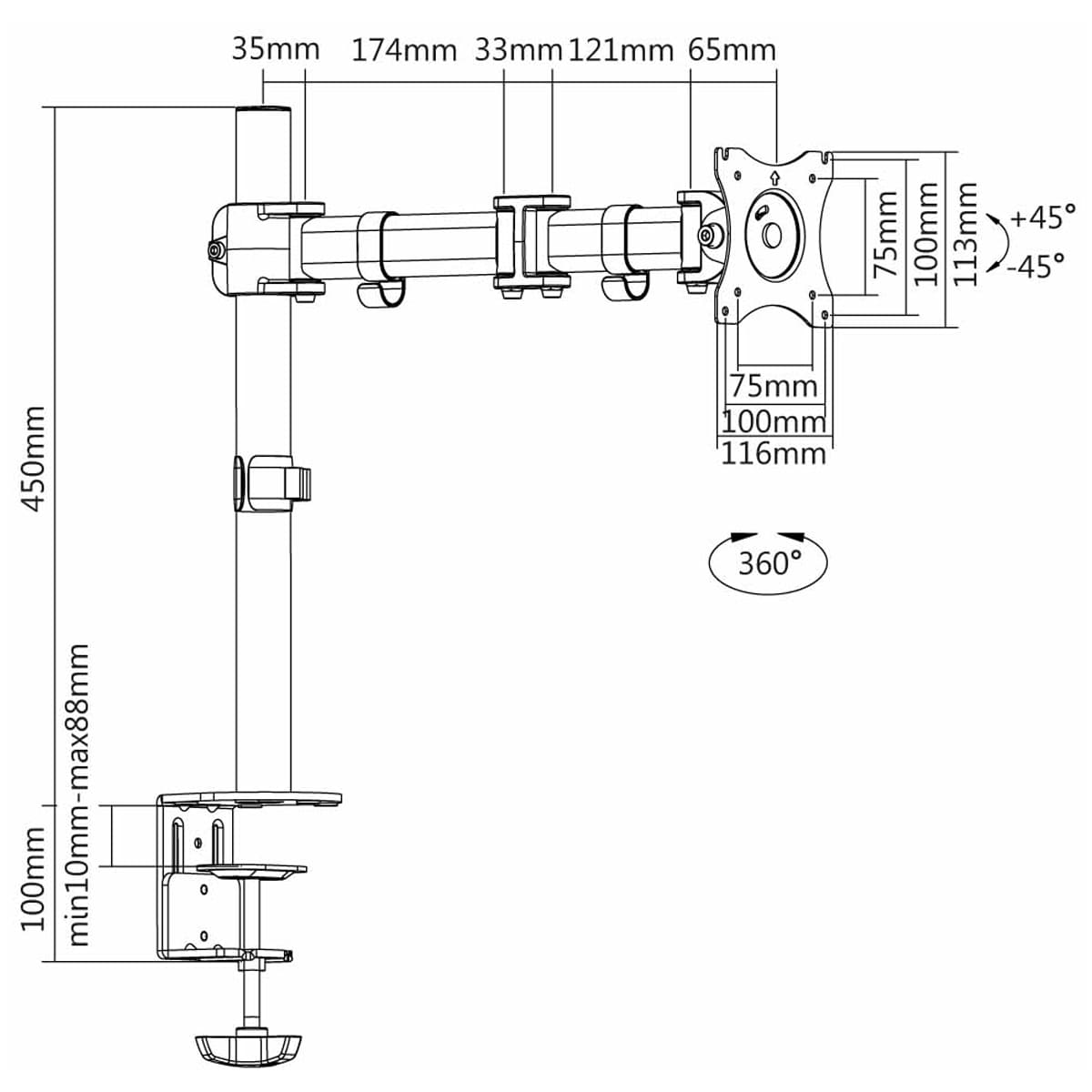

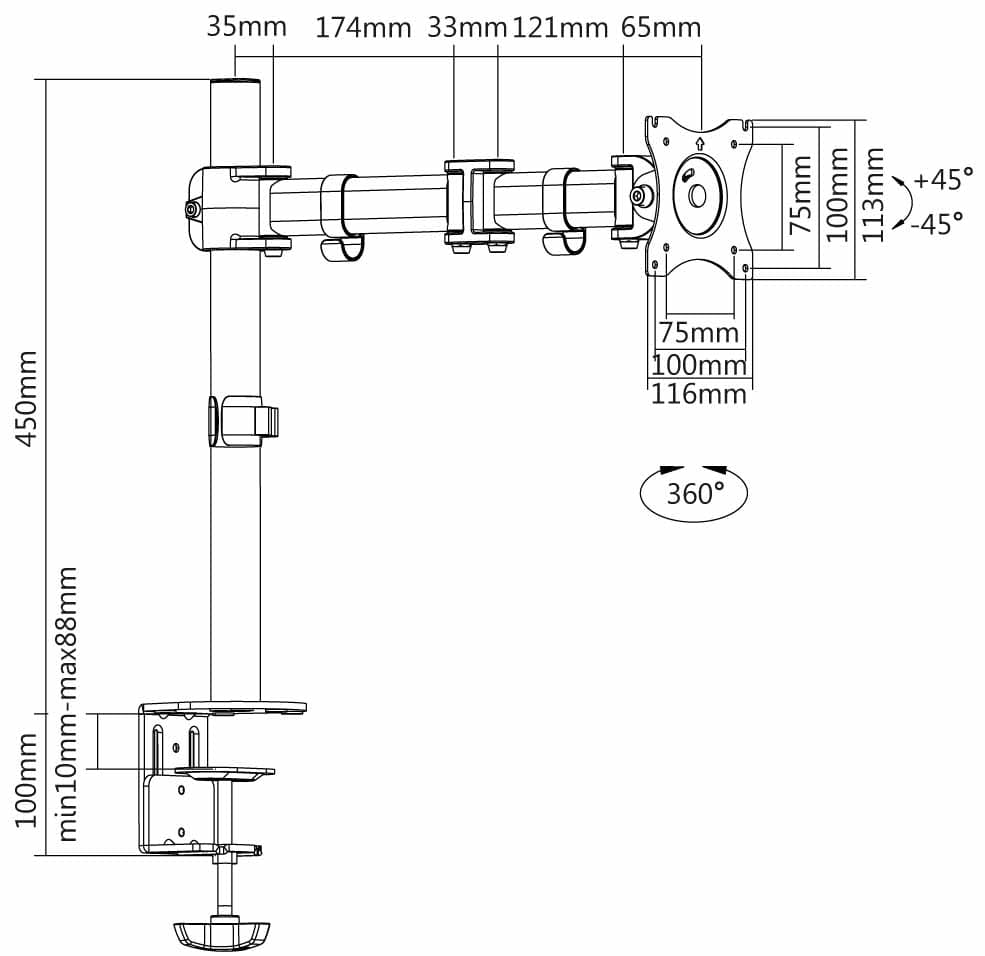

Drawing
