Home > Monitor & Desktop Mounts > Articulating Monitor Arm > Heavy-Duty Articulating Quad Monitor Stand
SH91 T048

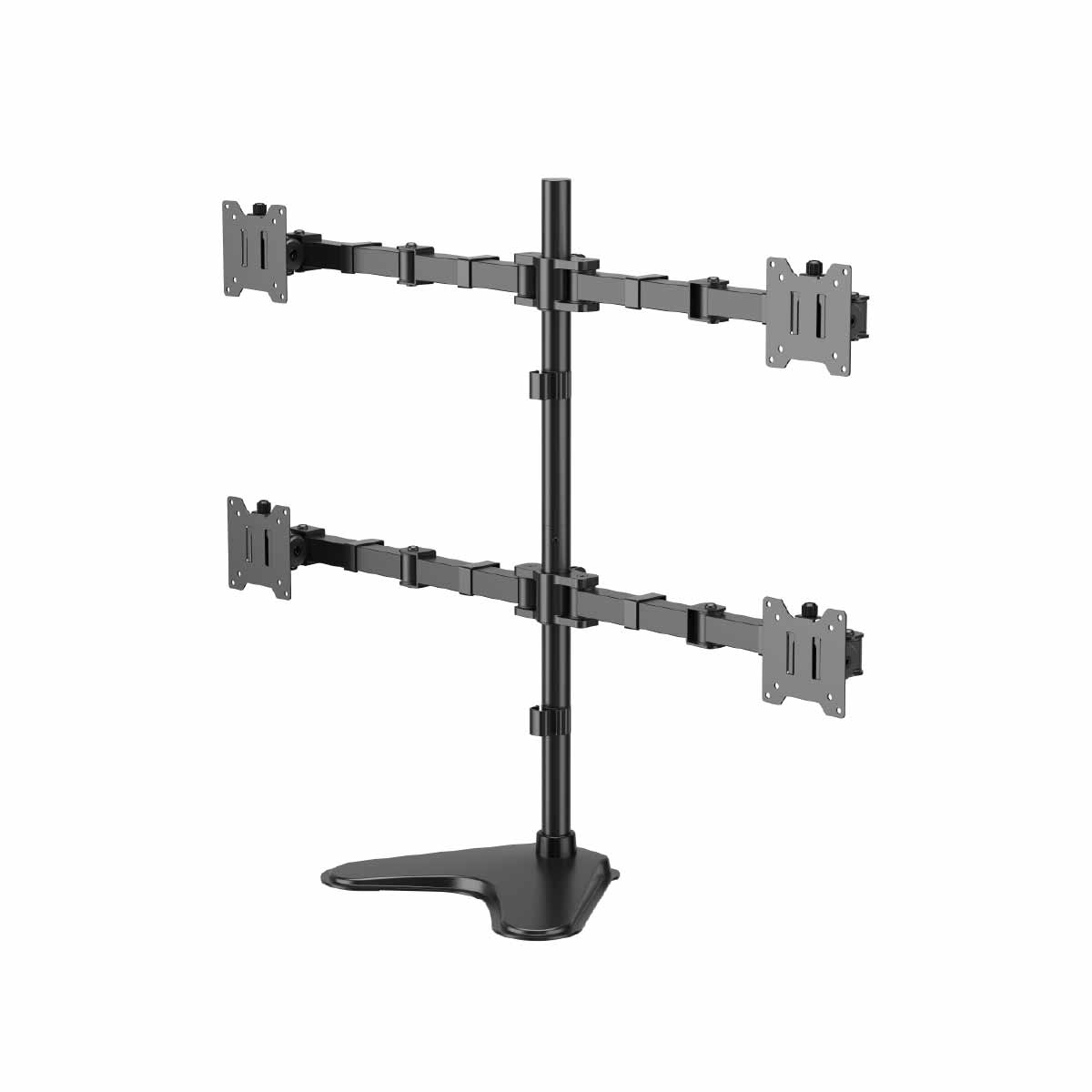

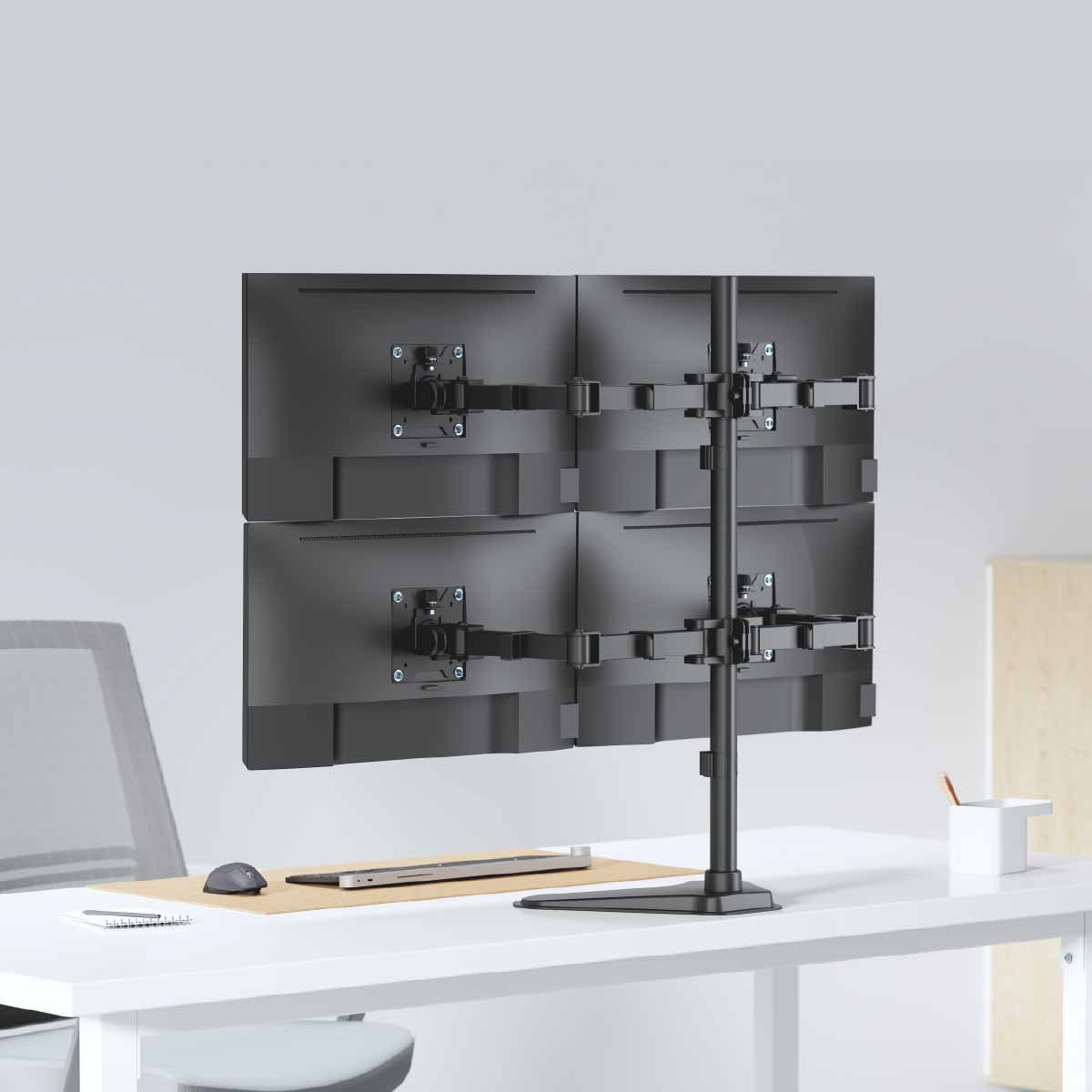

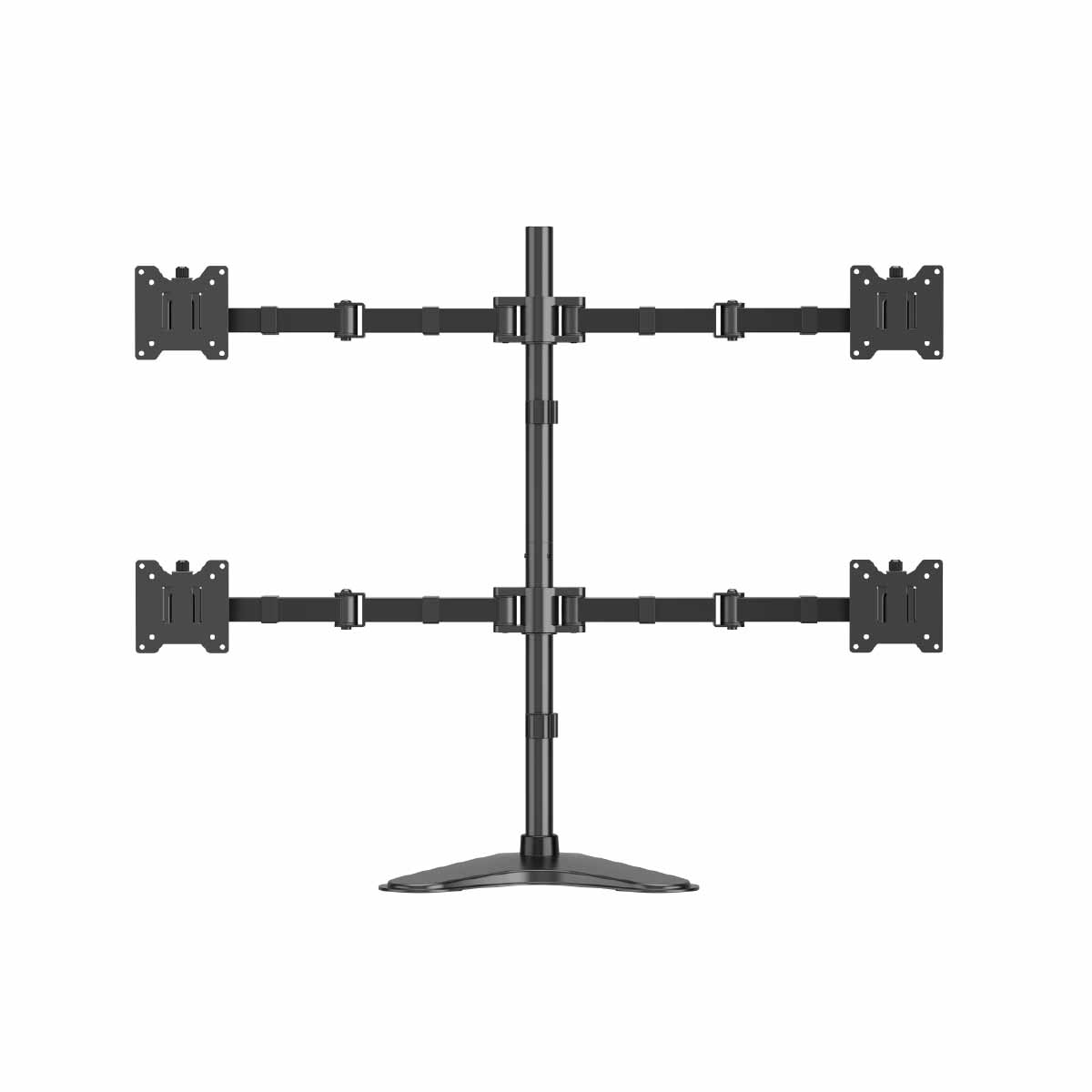

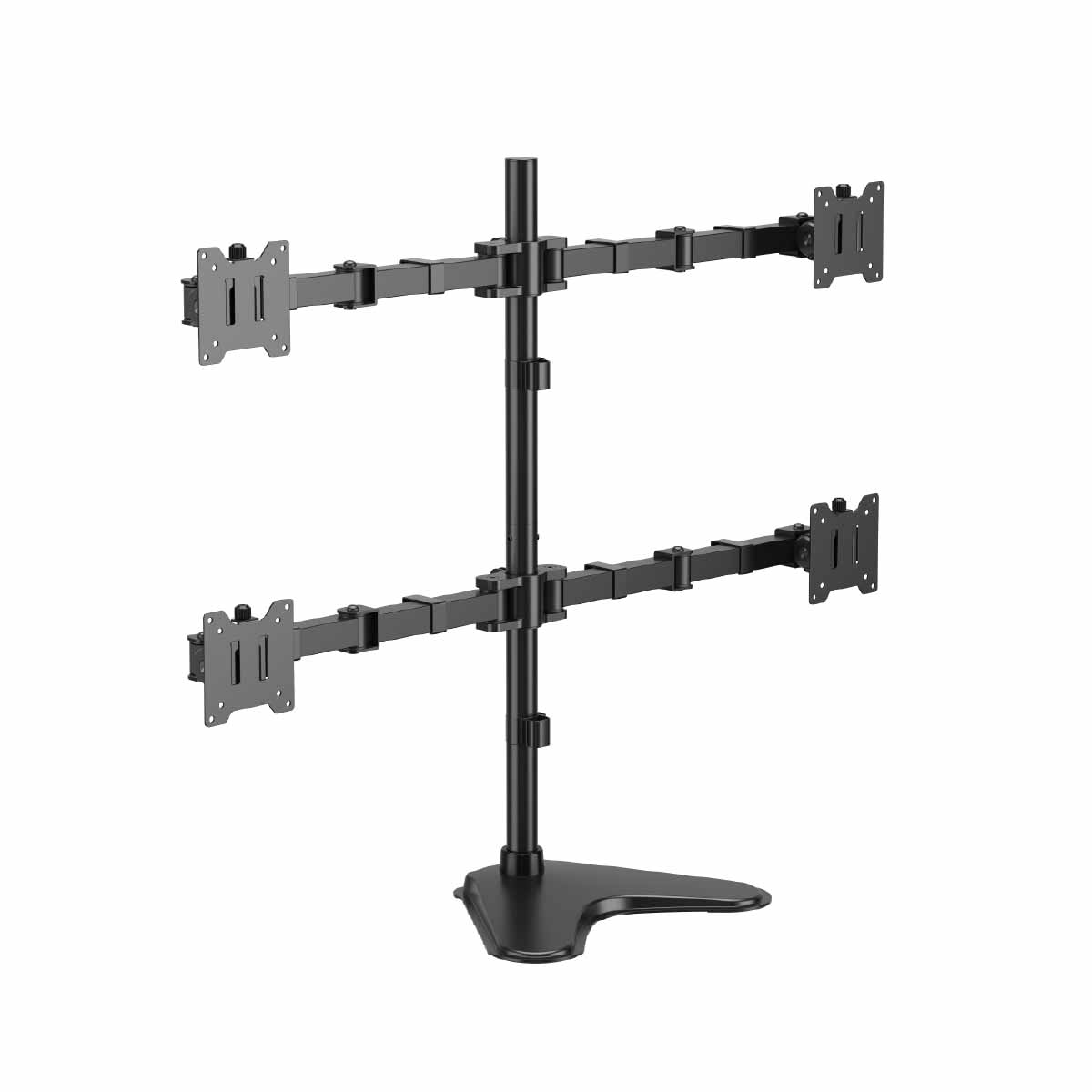

Heavy-Duty Articulating Quad Monitor Stand
Screen Size17''~35''
Max VESA100x100mm
Weight Capacity15kg
Tilt Range+50°~-20°
Swivel Range+90°~-90°
Overview
| Product Category | Articulating Monitor Arm |
|---|---|
| Rank | Standard |
| Material | Steel,Aluminum,Plastic |
| Surface Finish | Powder Coating |
| Color | Matte Black |
| Max. VESA | 100X100mm |
|---|---|
| Tilt Range | +50°~-20° |
| Swivel Range | +90°~-90° |
| Screen Rotation | +180°~-180° |
| Arm Full Extension | 442mm (17.4") |
| Product Category | Articulating Monitor Arm |
|---|---|
| Rank | Standard |
| Material | Steel,Aluminum,Plastic |
| Surface Finish | Powder Coating |
| Color | Matte Black |
Features
- Quad-Screen SupportHolds up to four 17"–35" monitors (max. VESA 100×100mm), each up to 15kg (33lbs).
- Full Motion Adjustment+50° to -20° tilt, ±90° swivel, and ±180° rotation for ergonomic viewing.
- Extended Reach442mm (17.4") arm extension and 814mm (32") pole height for flexible positioning.
- Quick Release VESA PlatesSimplifies monitor installation and removal.
- Cable ManagementKeeps cables neatly organized for a clutter-free workspace.
Description
The SH91 T048 is a standard articulating monitor desk stand designed to support four 17"–35" screens (max. VESA 100×100mm). Made from steel, aluminum, and plastic with a matte black powder-coated finish, each arm holds up to 15kg (33lbs). It offers +50° to -20° tilt, ±90° swivel, and ±180° rotation, with a 442mm arm extension and 814mm pole height. Features include quick-release VESA plates and integrated cable management.

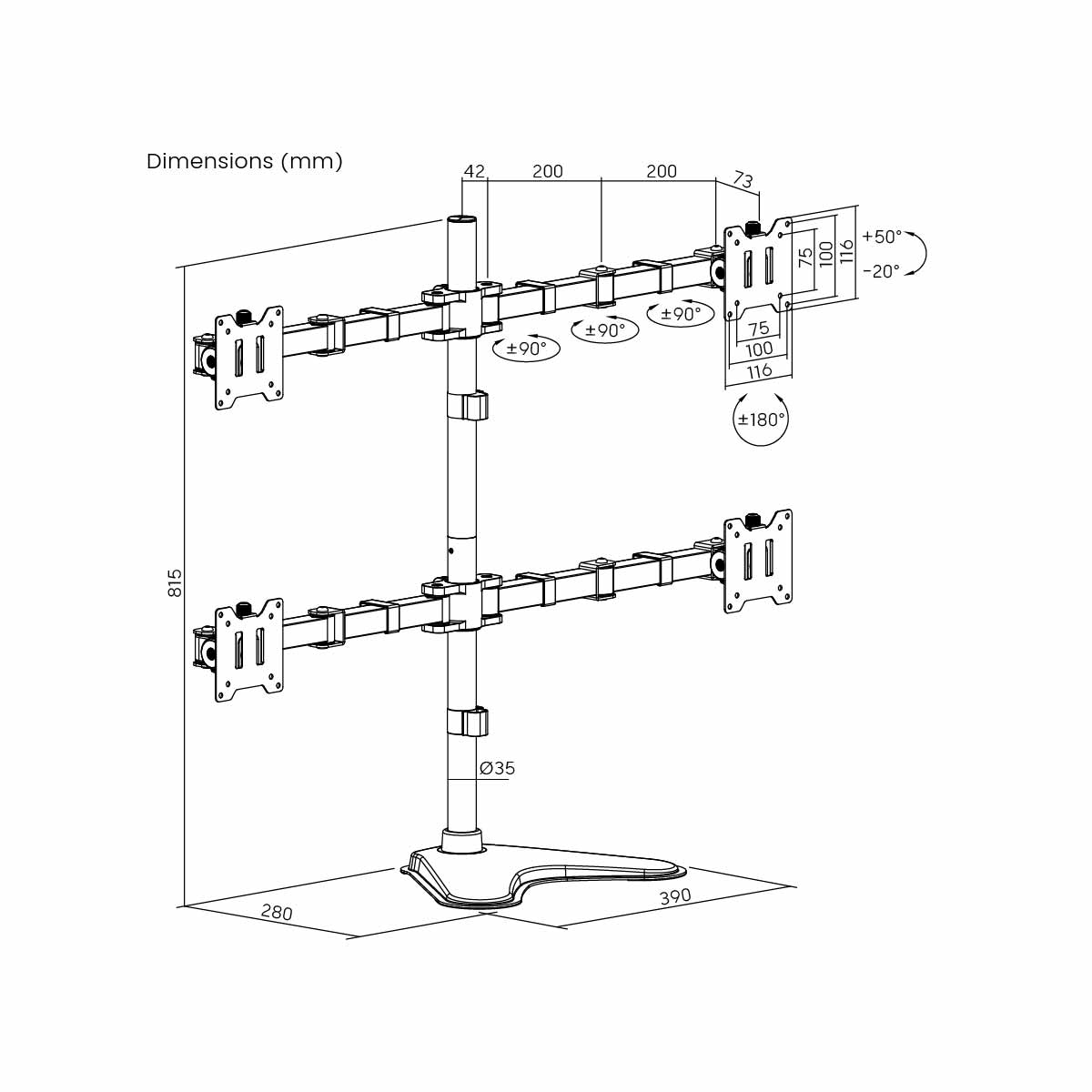

Drawing
