Home > Monitor & Desktop Mounts > Articulating Monitor Arm > Quad Screens Heavy-Duty Aluminium Monitor Arms
SH38 C04

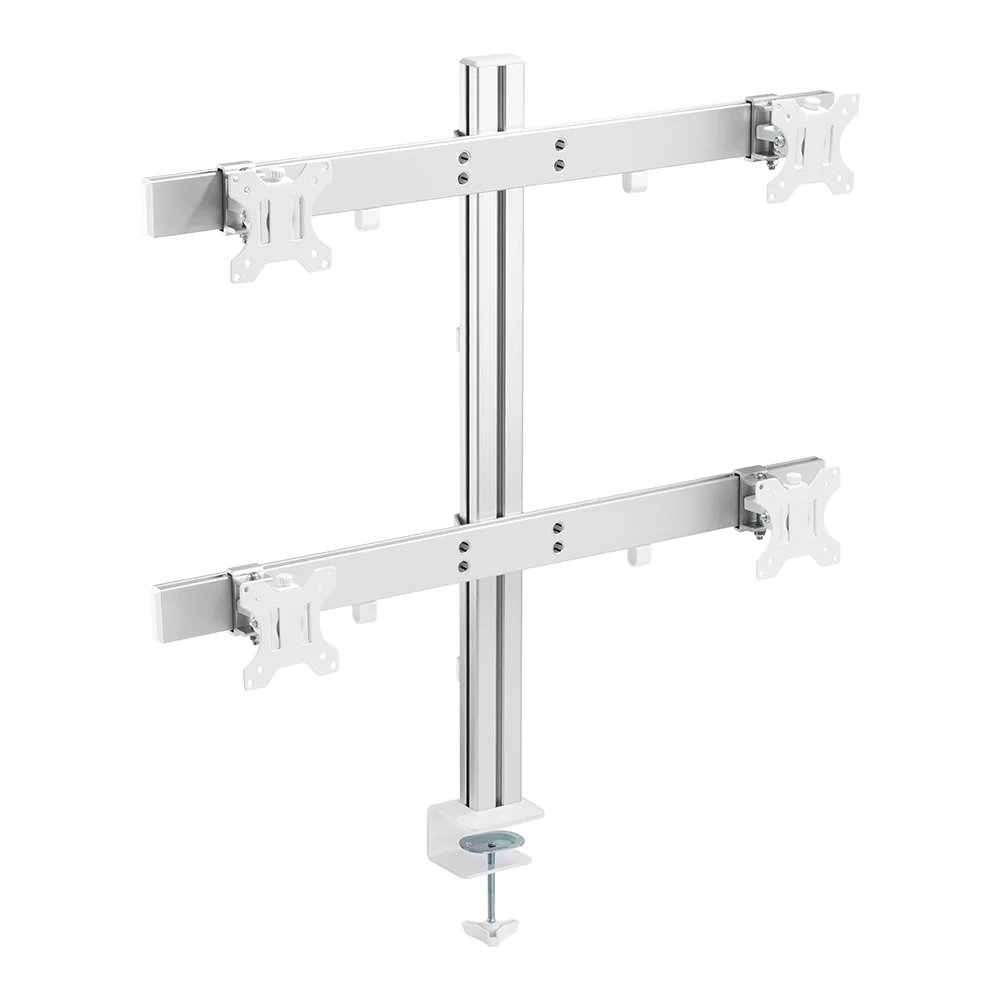

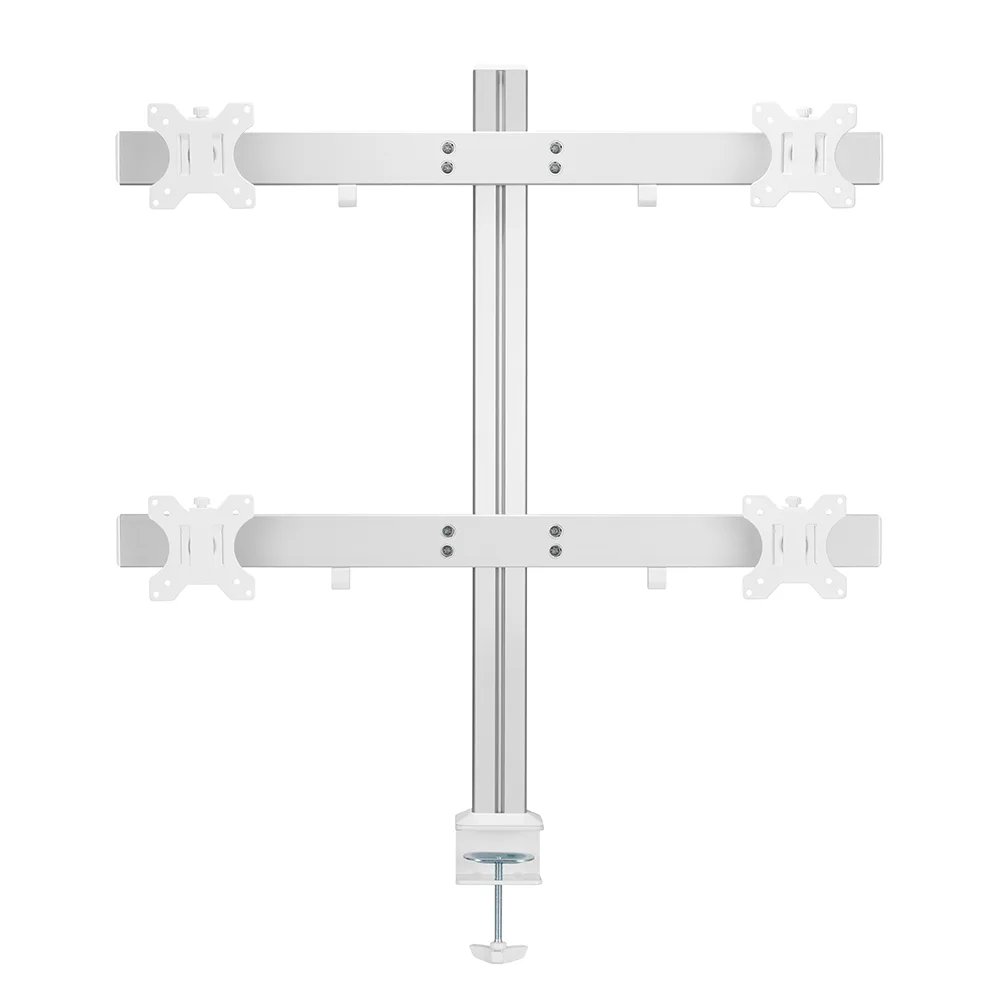

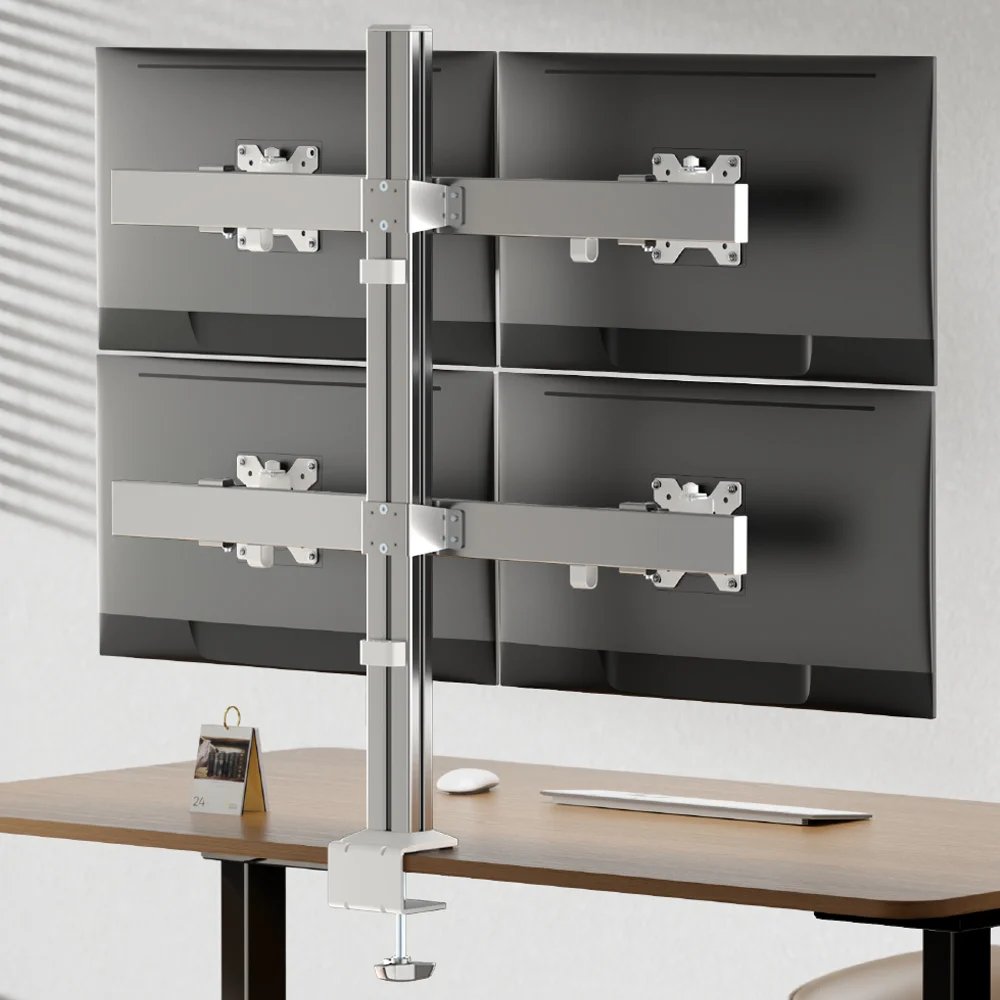

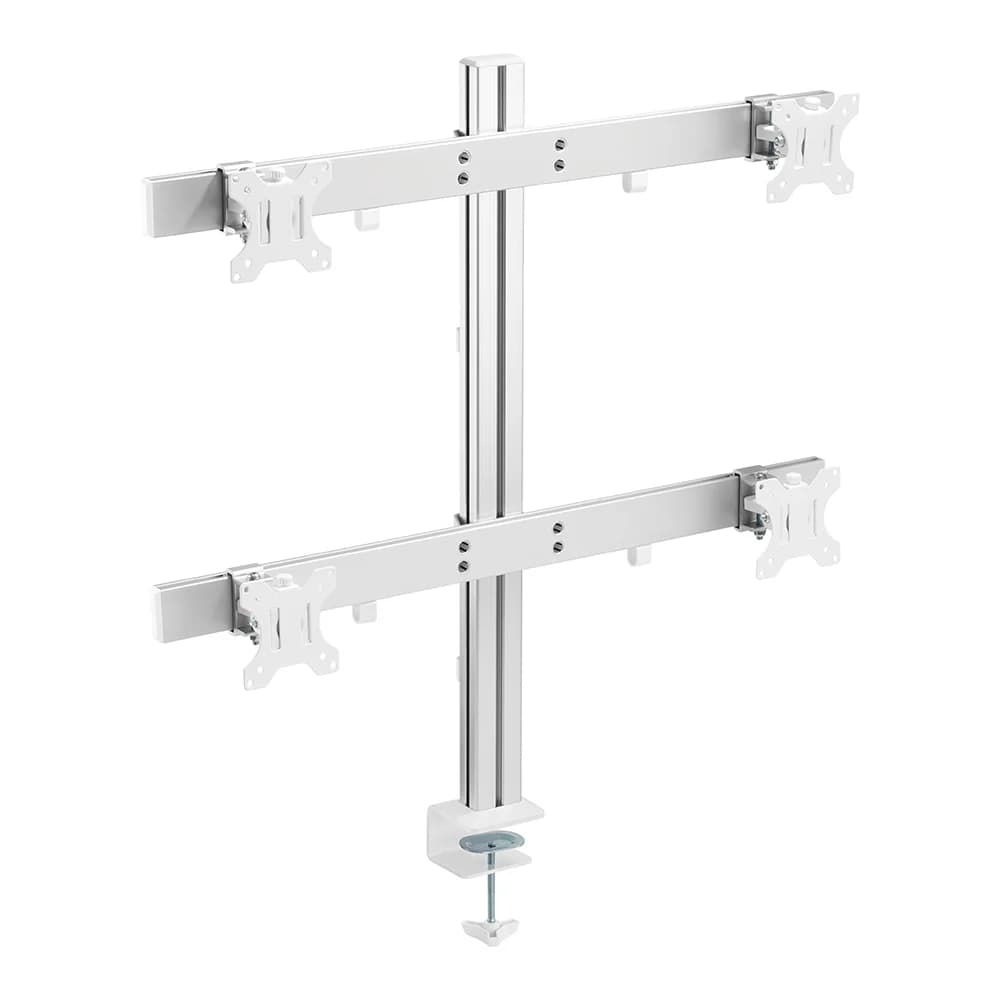

Quad Screens Heavy-Duty Aluminium Monitor Arms
Screen Size17''~32''
Max VESA100x100mm
Weight Capacity8kg
Tilt Range+34°~-34°
Swivel Range+17°~-17°
Overview
| Product Category | Articulating Monitor Arm |
|---|---|
| Rank | Premium |
| Material | Steel,Aluminum,Plastic |
| Color | Fine Texture Grey |
| Dimensions | 906x198x1008mm (35.7"x7.8"x39.7") |
| Max. VESA | 100x100mm |
|---|---|
| Tilt Range | +34° ~ -34° |
| Swivel Range | +17°~-17° |
| Screen Rotation | +180°~-180° |
| Pole Height | 857mm (33.7") |
| Product Category | Articulating Monitor Arm |
|---|---|
| Rank | Premium |
| Material | Steel,Aluminum,Plastic |
| Color | Fine Texture Grey |
| Dimensions | 906x198x1008mm (35.7"x7.8"x39.7") |
Features
- Supports Four MonitorsDesigned to hold up to four 17″–32″ flat monitors with a maximum weight of 8kg (17.6lbs) per screen.
- Full Motion AdjustmentOffers tilt range of ±34°, swivel range of ±17°, and 180° screen rotation for flexible viewing angles.
- Tall Pole Design857mm (33.7") pole allows ample height adjustment and vertical stacking configurations.
- Versatile InstallationCompatible with both clamp and grommet mounting methods for various desk types.
- Quick Release & Cable ManagementFeatures quick-release VESA plates and integrated cable management for a clean, efficient setup.
Description
The SH38 C04 Quad Screens Heavy-Duty Aluminium Monitor Arms offer robust support and premium functionality for multi-display setups. Designed for four 17″–32″ monitors, each arm supports up to 8kg and allows tilt, swivel, and 180° rotation adjustments for optimal viewing. With a tall 857mm pole, clamp and grommet mounting options, quick-release VESA plates, and built-in cable management, it’s the ideal solution for professional and ergonomic multi-monitor workstations.

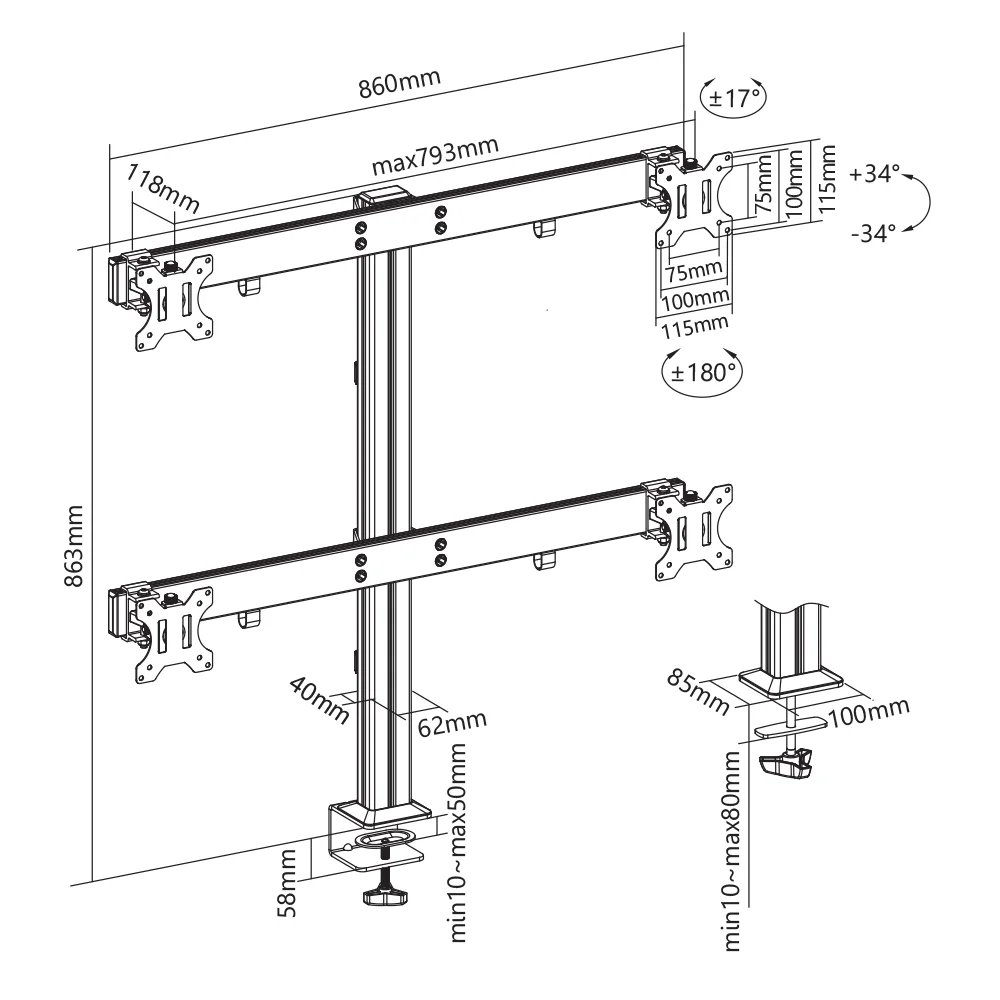

Drawing
