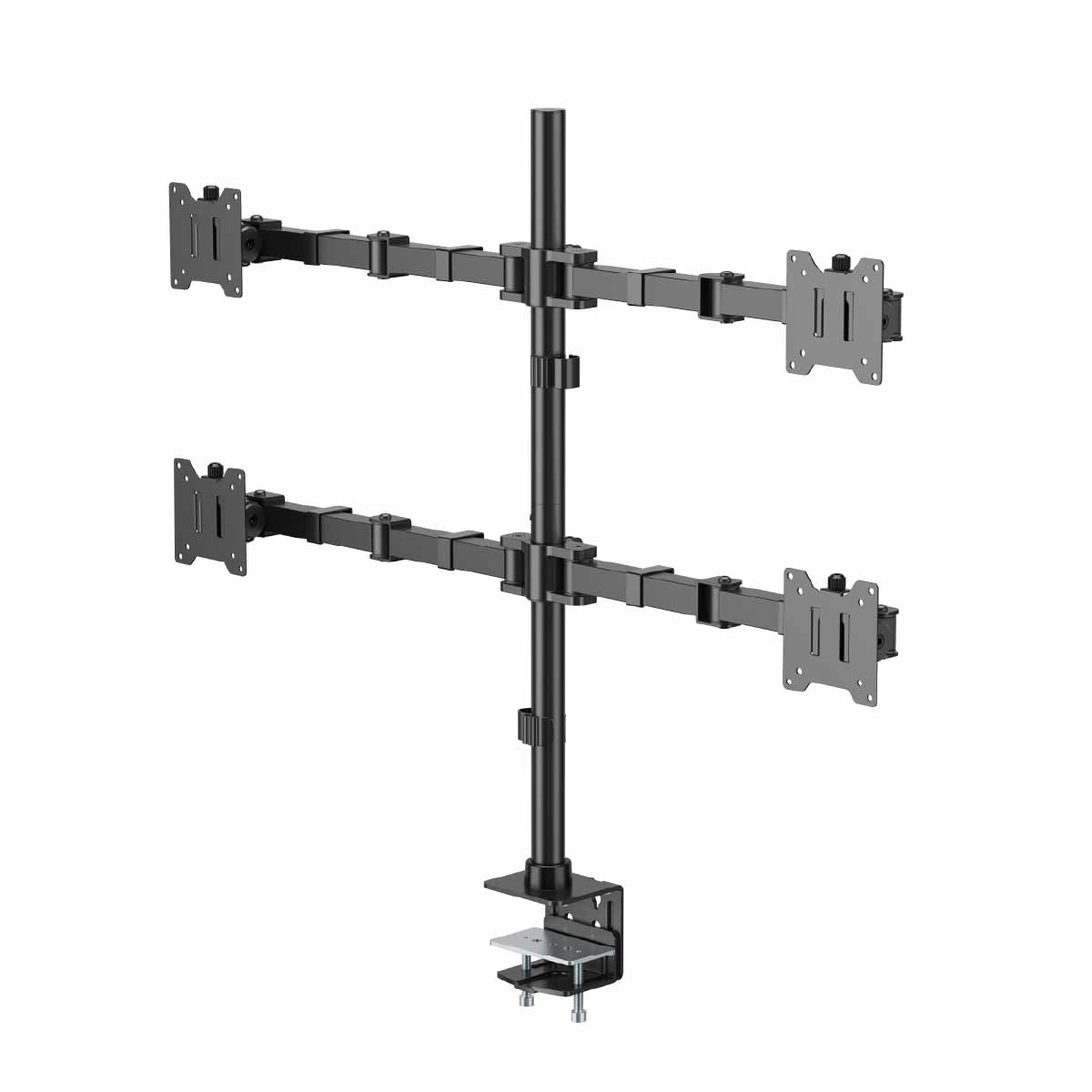

SH91 C048 Heavy-Duty Articulating Quad Monitor Arm

Product Category:	Articulating Monitor Arm
Rank:	Standard
Material:	Steel,Aluminum,Plastic
Surface Finish:	Powder Coating
Color:	Matte Black

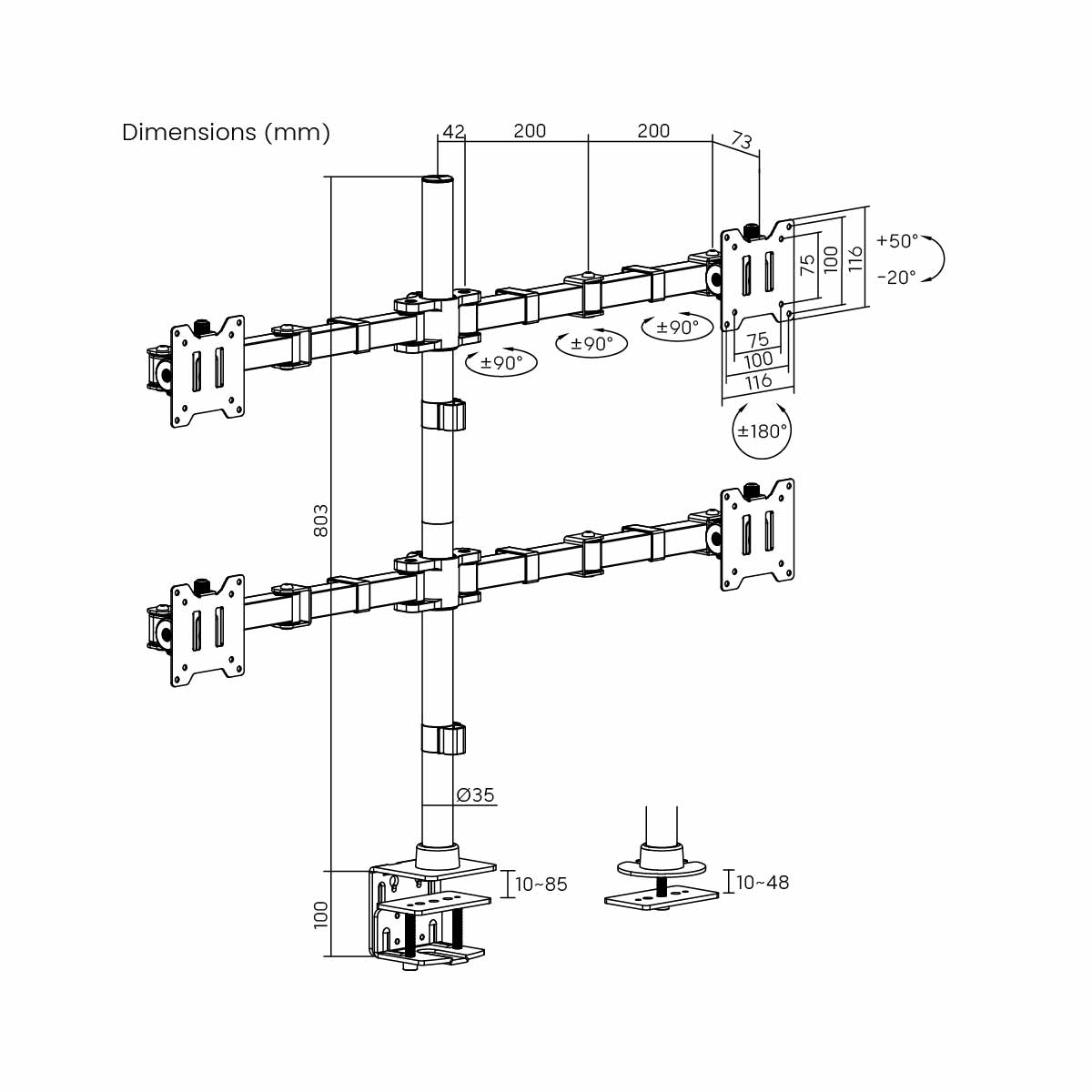

Dimensions:	1002x125x957mm (39.4"x4.9"x37.7")
Fit Screen Size:	Suitable For Most 17"~35" Screen
Screen Quantity:	4
Weight Capacity (per screen):	15kg (33lbs)
Max. VESA:	100X100mm
Tilt Range:	+50°~-20°
Swivel Range:	+90°~-90°
Screen Rotation:	+180°~-180°
Arm Full Extension:	442mm (17.4")
Pole Height:	803mm (31.6")

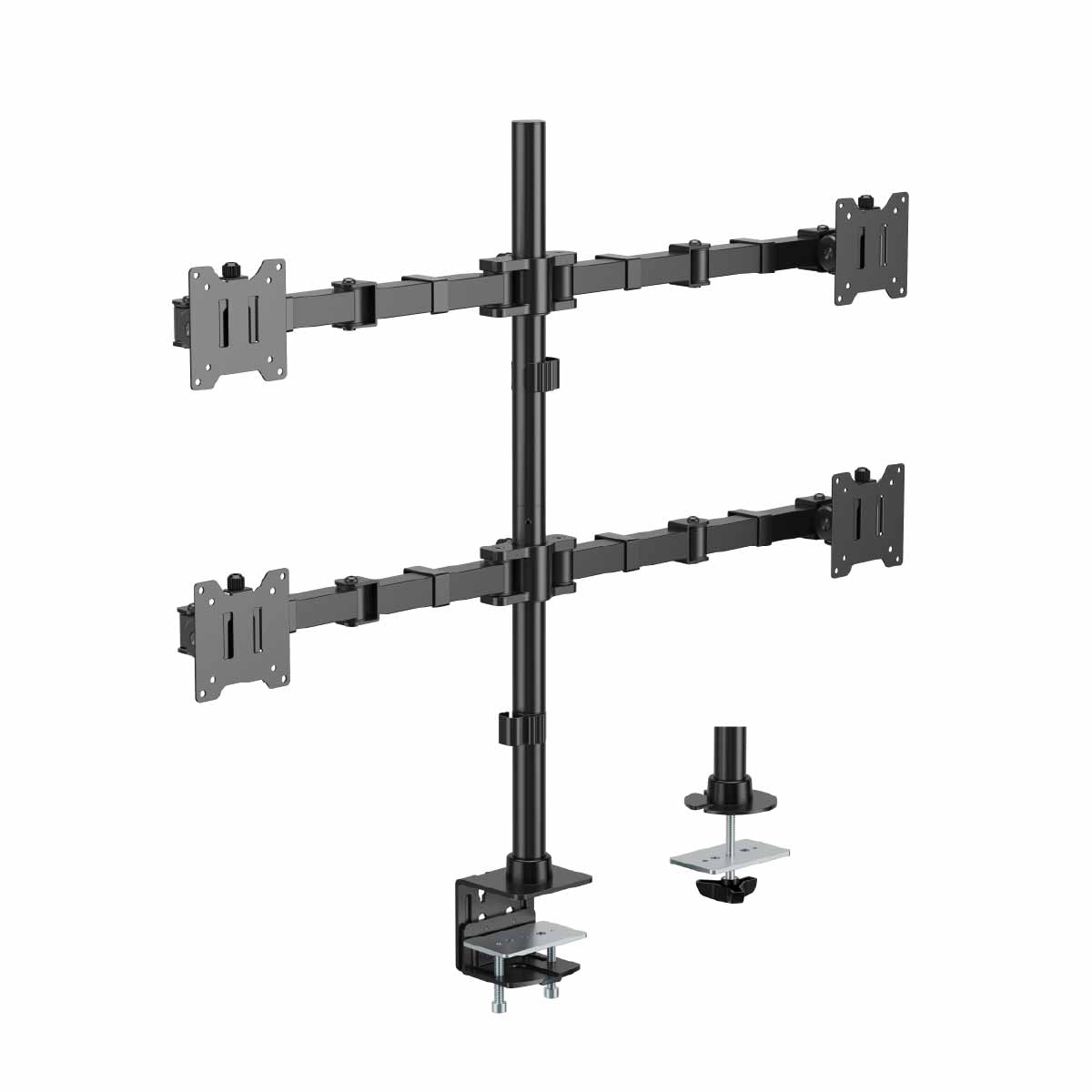

Installation:	Clamp,Grommet
Suggested Desktop Thickness:	Clamp:10~85mm Grommet:10~48mm (Clamp:0.39"~3.3" Grommet:0.39"~1.9")
Quick Release VESA Plate:	Yes
Cable Management:	Yes

DESKTOP-MOUNTS

Quad-Screen Support – Holds up to four 17″–35″ monitors, each weighing up to 15kg (33lbs).
Flexible Adjustment – +50° to -20° tilt, ±90° swivel, and ±180° rotation for ergonomic multi-screen viewing.
Robust Construction – Made from steel, aluminum, and plastic with a matte black powder-coated finish.
Extended Reach – 442mm (17.4″) arm extension and tall 803mm (31.6″) pole for optimal positioning.
Easy Installation – Quick release VESA plates, clamp or grommet mount, and integrated cable management.

The SH91 C048 articulating monitor arm holds four 17″–35″ screens (max. VESA 100×100mm), each supporting up to 15kg (33lbs). Built from steel, aluminum, and plastic with a matte black powder-coated finish, it offers +50° to -20° tilt, ±90° swivel, and ±180° rotation. Features a 442mm (17.4″) arm extension, tall 803mm (31.6″) pole, quick release VESA plates, clamp or grommet installation, and integrated cable management for a tidy, ergonomic workspace.
